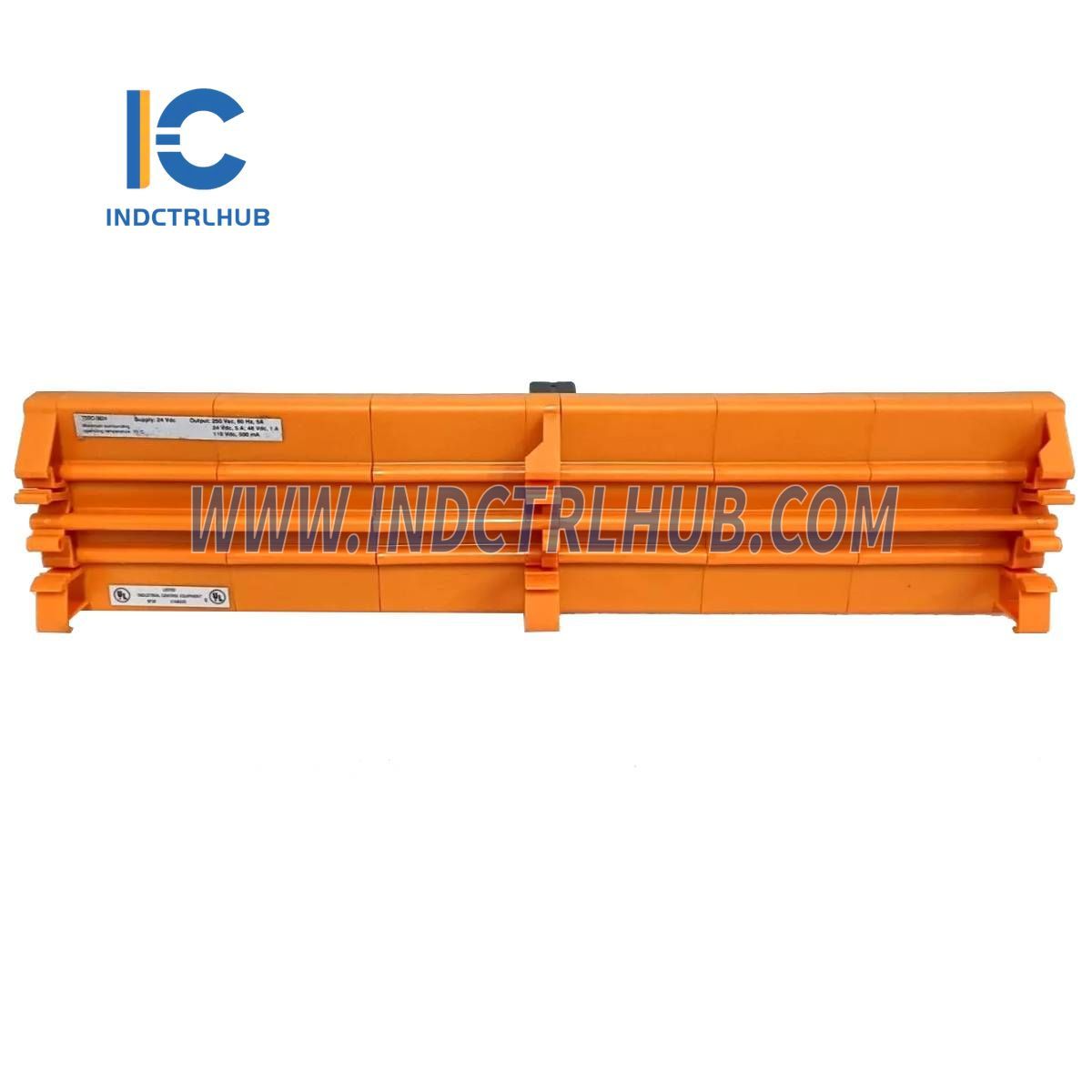

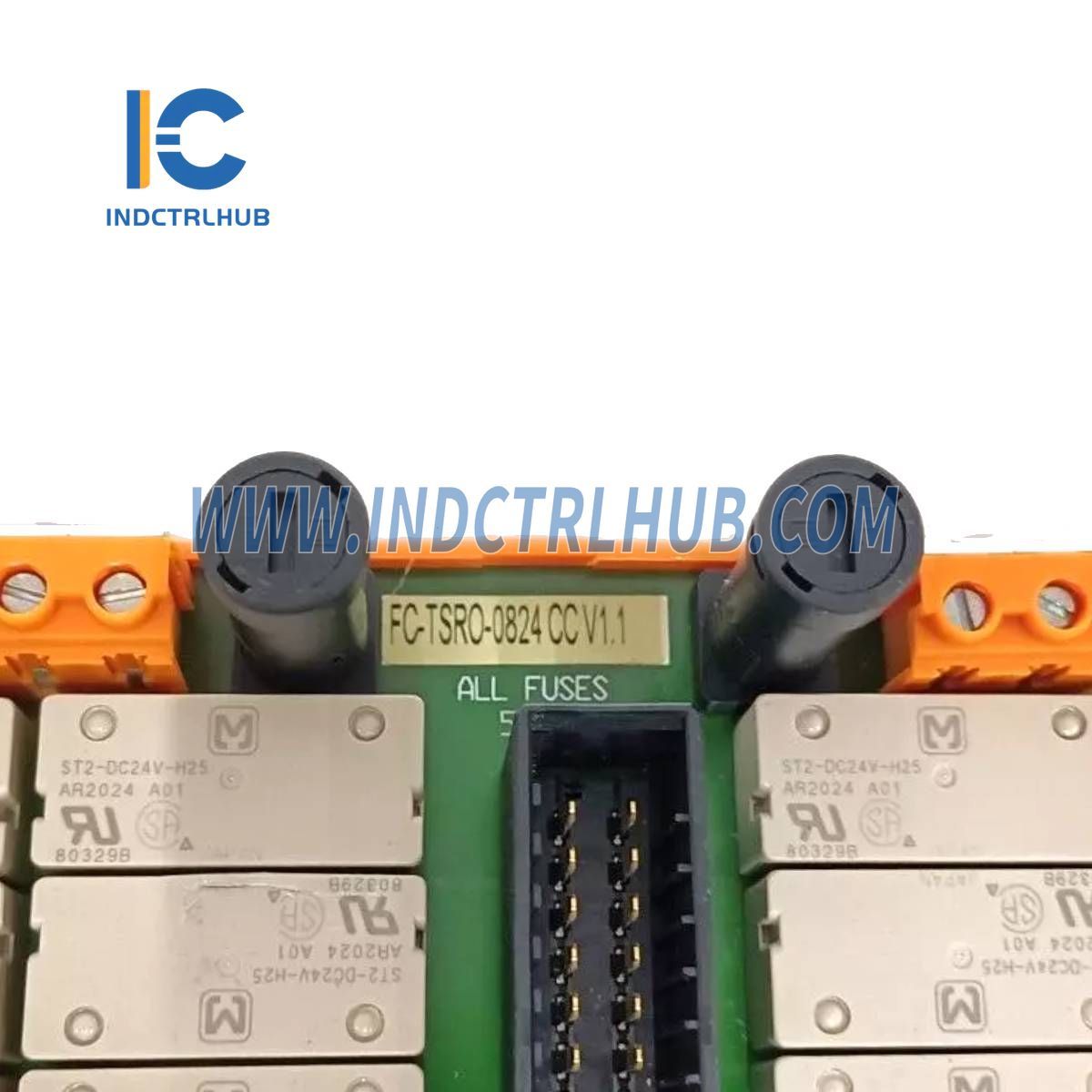

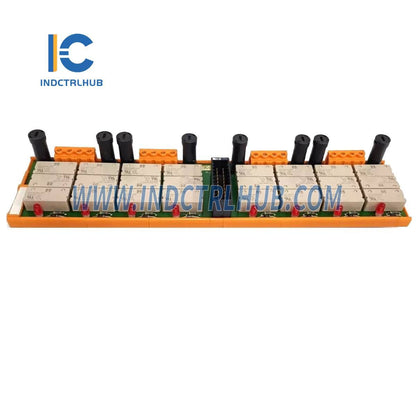

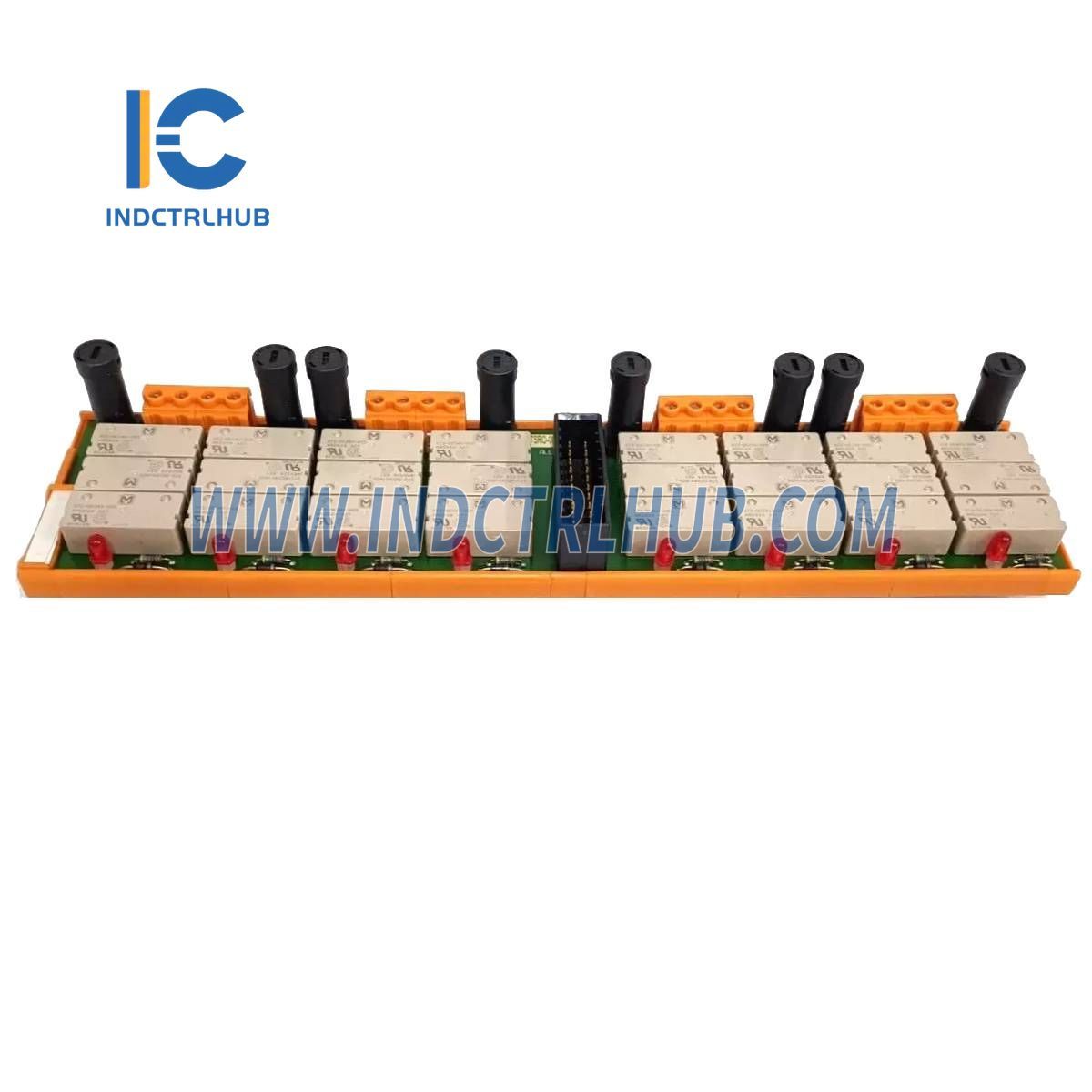

Product Description
General Information
|
Manufacturer |
Honeywell |
|---|---|
|
Model/Part Number |
FC-TSRO-0824 |
|
Description |
Field Termination Assembly Module |
|
Approvals |
CE, UL, TUV, CSA |
|
Safety Class |
Up to and including SIL3 |
Technical Specifications
|
Parameter |
Specification |
|---|---|
|
General Type Numbers |
FS-TSRO-0824, FC-TSRO-0824 |
|
Nominal Input Voltage |
24 V DC |
|
Max. Input Voltage |
36 V DC |
|
Relay Pick-up Voltage |
19.2 V DC |
|
Input Current |
Typically 40 mA at 24 V DC |
|
Number of Output Channels |
8 |
|
Max. Output Current |
5 A (fused) |
|
Min. Output Current |
1 mA at 5 V |
|
Max. Output Voltage |
250 V AC / 250 V DC |
|
Max. Switched Load |
1250 VA / 150 W |
|
Fuse Rating |
5 A |
|
Fuse Dimensions |
5 × 20 mm |
|
Voltage Rating (AC/DC) |
250 V AC / 150 V DC |
|
Fuse Manufacturer |
Schurter |
|
Manufacturer PN |
0001.2511 |
|
Derating Curve |
Linear from 5 A at 25°C to 3.5 A at 70°C module ambient |
Physical Specifications
|
Parameter |
Specification |
|---|---|
|
Module Dimensions (L × W × H) |
300 × 70 × 60 mm (11.81 × 2.76 × 2.36 in) |
|
DIN EN Rails |
TS32 / TS35 × 7.5 |
|
Used Rail Length |
301 mm (11.85 in) |
|
Termination Screw Terminals |
Max. Wire Diameter: 2.5 mm² (AWG 14) Strip Length: 7 mm (0.28 in) Tightening Torque: 0.5 Nm (0.37 ft.-lb.) |
Environmental Specifications
|
Parameter |
Specification |
|---|---|
|
Ambient Temperature |
-5°C to +60°C (23°F to 140°F) |
Isolation
|
Parameter |
Specification |
|---|---|
|
Coil to Contact |
4000 V AC |
|
Contact to Contact |
1200 V AC |
Relay Contact Specifications
|
Parameter |
Specification |
|---|---|
|
Max. Switching Load |
250 V AC, 5 A 24 V DC, 5 A 48 V DC, 1 A 110 V DC, 500 mA |
|
Max. Switching Frequency |
20 Hz |
|
Expected Life |
Refer to manufacturer specifications |
|
Contact Material |
Gold flash over silver alloy |
