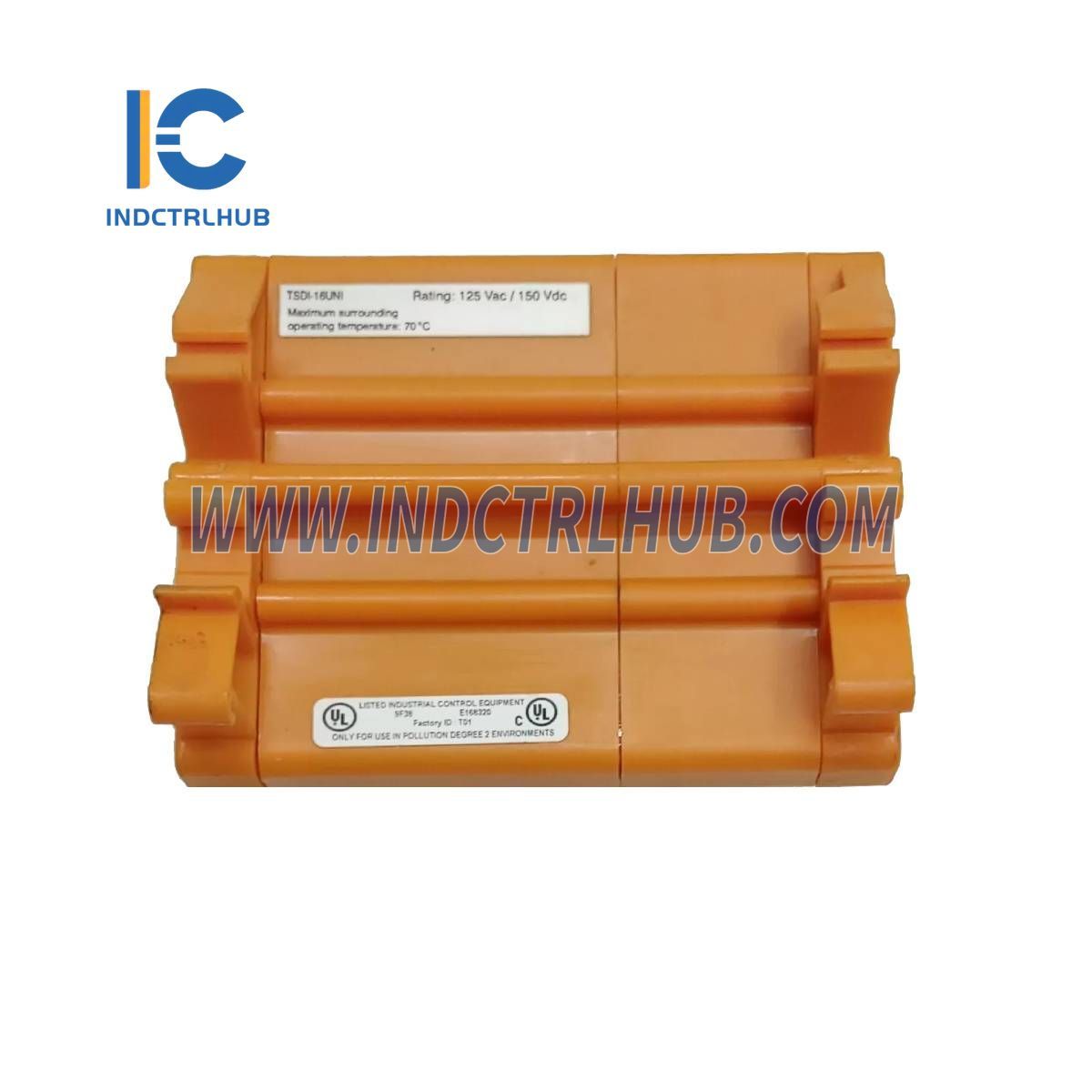

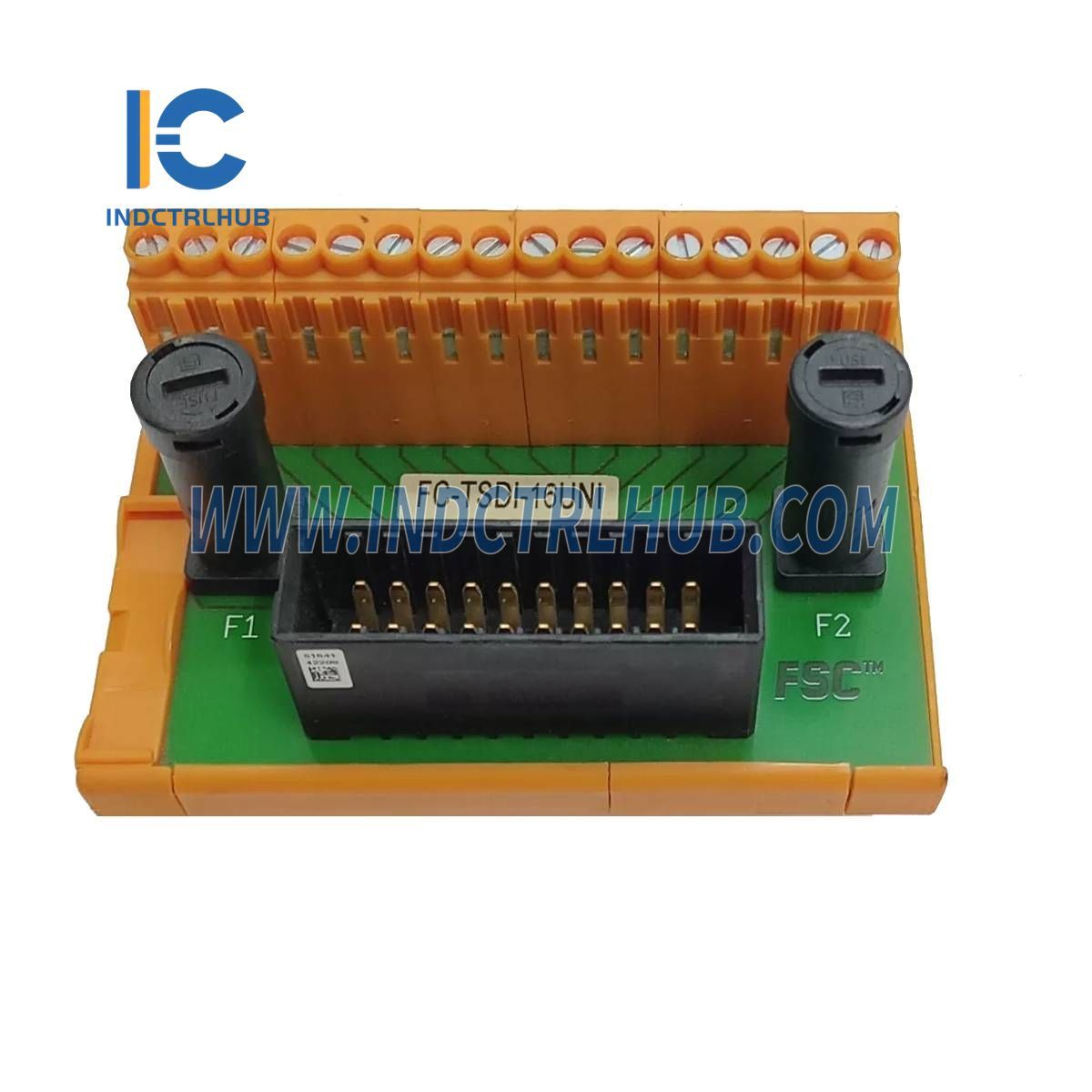

Honeywell FC-TSDI-16UNI Safety Manager System Module

Honeywell FC-TSDI-16UNI Safety Manager System Module

  • Manufacturer: Honeywell

  • Product No.: FC-TSDI-16UNI

  • Condition:1000 in stock

  • Product Type: Safety Manager System Module

  • Product Origin: USA

  • Payment: T/T, Western Union

  • Weight: 1000g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

General Information

Manufacturer

Honeywell

Model/Part Number

FC-TSDI-16UNI

Description

Safety Manager System Module

Approvals

CE, TUV, UL, CSA, FM

Technical Specifications

Parameter

Specification

General Type Numbers

FS-TSDI-16UNI, FC-TSDI-16UNI

Number of Channels

16 (2 groups of 8)

Maximum Voltage

50 V DC – IEC 61010-1 (1990), Overvoltage category 3 (Table D.12)  150 V DC – IEC 61010-1 (1990), Overvoltage category 2 (Table D.10)

Actual Maximum Voltage

Defined by the connected input module

Physical Specifications

Parameter

Specification

Module Dimensions (L × W × H)

90 × 70 × 60 mm  (3.54 × 2.76 × 2.36 in)

DIN EN Rails

TS32 / TS35 × 7.5

Used Rail Length

91 mm (3.58 in)

Fuse Specifications

Parameter

Specification

Rating

250 mAT (slow-acting)

Dimensions

5 × 20 mm (0.2 × 0.79 in)

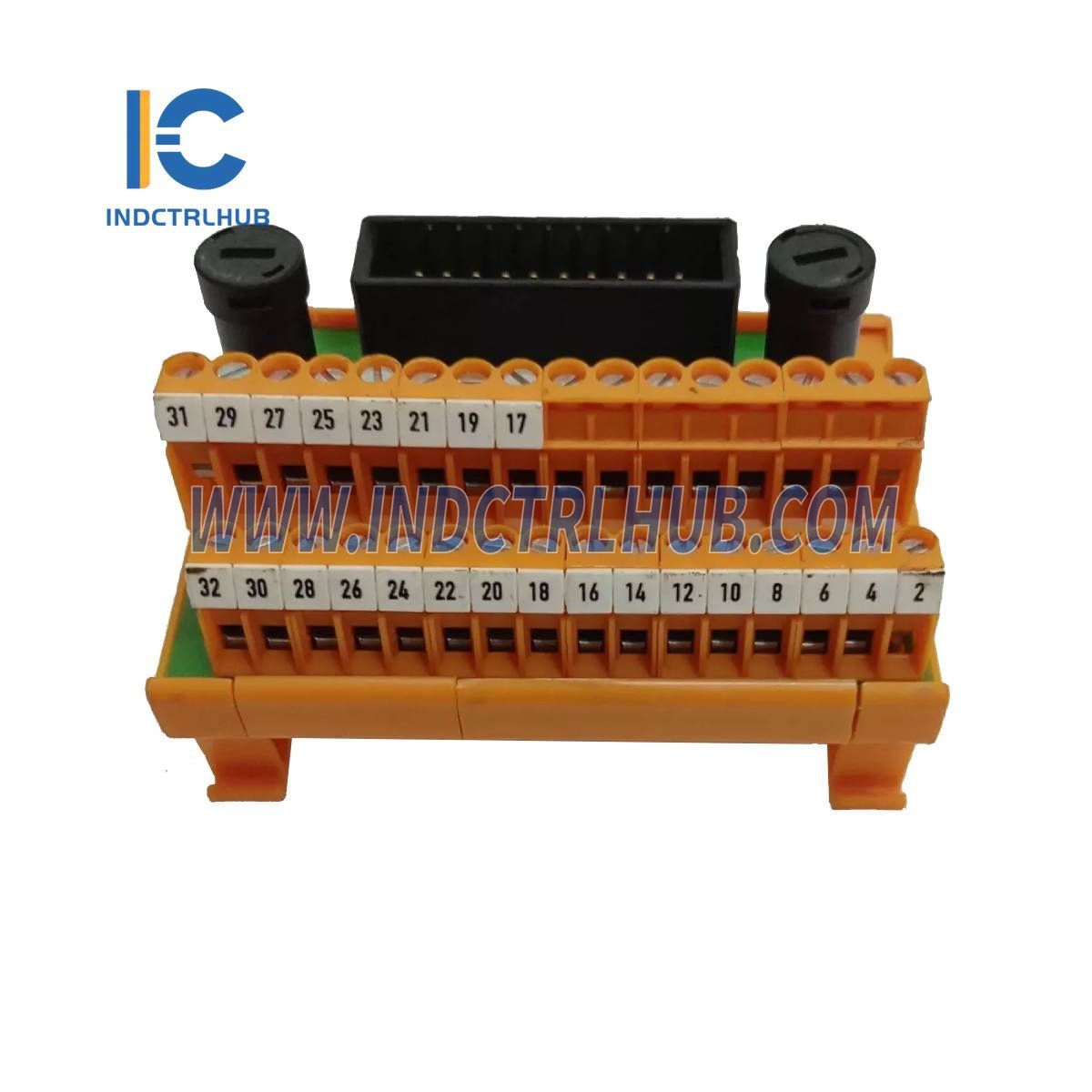

Termination Specifications

Parameter

Specification

Screw Terminals

Max. Wire Diameter: 2.5 mm² (AWG 14)  Strip Length: 7 mm (0.28 in)  Tightening Torque: 0.5 Nm (0.37 ft-lb)



View full details

Product Description

General Information

Manufacturer

Honeywell

Model/Part Number

FC-TSDI-16UNI

Description

Safety Manager System Module

Approvals

CE, TUV, UL, CSA, FM

Technical Specifications

Parameter

Specification

General Type Numbers

FS-TSDI-16UNI, FC-TSDI-16UNI

Number of Channels

16 (2 groups of 8)

Maximum Voltage

50 V DC – IEC 61010-1 (1990), Overvoltage category 3 (Table D.12)  150 V DC – IEC 61010-1 (1990), Overvoltage category 2 (Table D.10)

Actual Maximum Voltage

Defined by the connected input module

Physical Specifications

Parameter

Specification

Module Dimensions (L × W × H)

90 × 70 × 60 mm  (3.54 × 2.76 × 2.36 in)

DIN EN Rails

TS32 / TS35 × 7.5

Used Rail Length

91 mm (3.58 in)

Fuse Specifications

Parameter

Specification

Rating

250 mAT (slow-acting)

Dimensions

5 × 20 mm (0.2 × 0.79 in)

Termination Specifications

Parameter

Specification

Screw Terminals

Max. Wire Diameter: 2.5 mm² (AWG 14)  Strip Length: 7 mm (0.28 in)  Tightening Torque: 0.5 Nm (0.37 ft-lb)
