Product Description
General Information
|
Manufacturer |
Honeywell |
|---|---|
|
Model/Part Number |
FC-TELD-0001 |
|
Description |

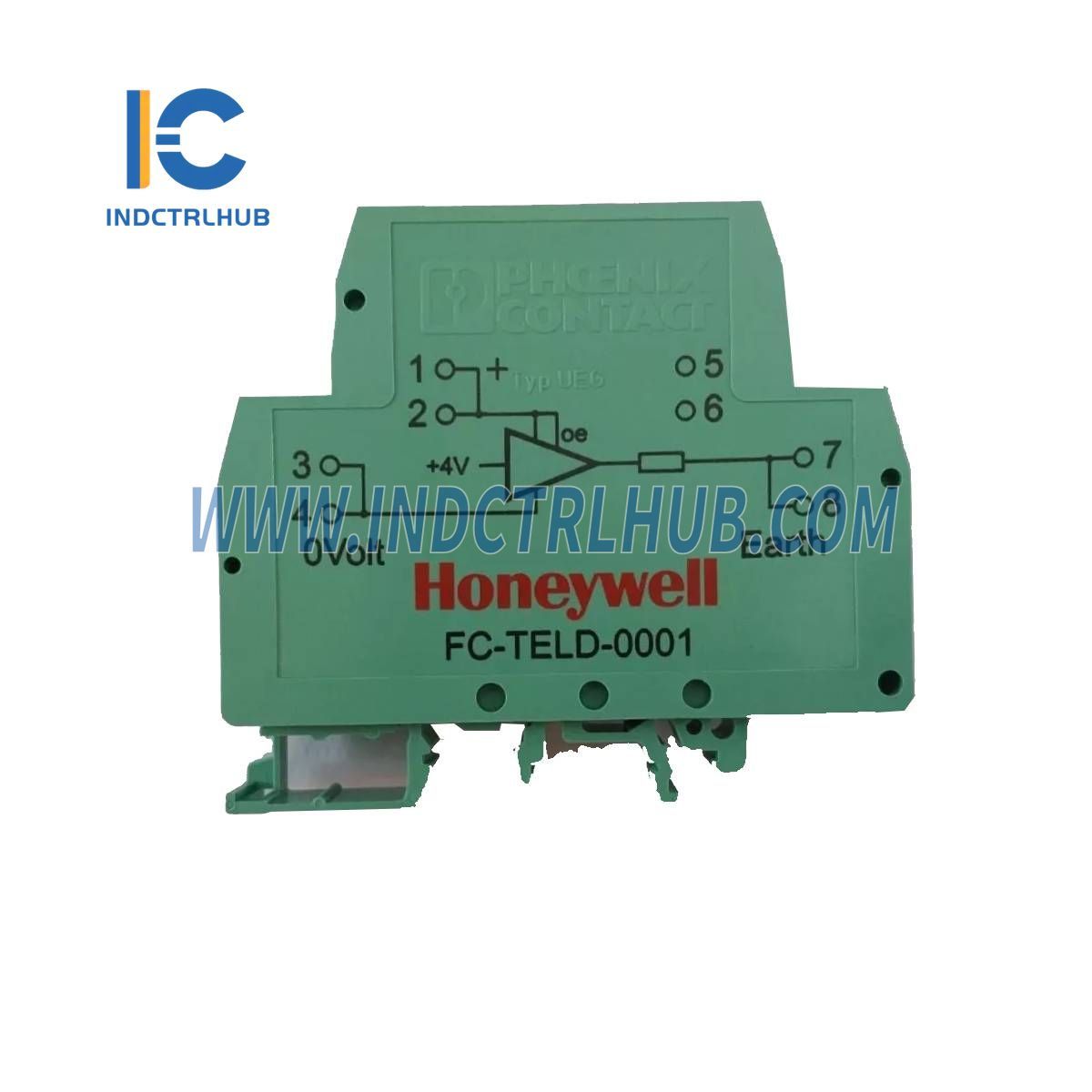

Earth Leakage Detector Terminal |
|
Approvals |
CE, TUV |
Technical Specifications
|
Parameter |
Specification |
|---|---|
|
General Type Number |
FC-TELD-0001 |
|
Operating Temperature |
-40°C to +75°C (-40°F to +167°F) |
|
Physical Module Dimensions |
80 x 20 x 70 mm (L x W x H) 3.15 x 0.79 x 2.76 in (L x W x H) |
|
DIN EN Rails |
TS32 / TS35 x 7.5 |
|
Used Rail Length |
21 mm (0.82 in) |
|
Input Voltage |
24 VDC +30/-15% (with approximately 250 Ohm series impedance) |
|
Input Current |
10 mA (no earth fault present) Maximum 25 mA (limited by the power source) |
|
Earth Voltage |
Typically +4.1 VDC (with monitored 0V as reference) |
|
Resistor (R) |
Approximately 2.8 kOhm |
|
Earth Fault Detection Threshold |
Approximately 0.6 mA (flowing into FC-TELD-0001) Approximately 0.2 mA (coming from the FC-TELD-0001) |
|
Termination Screw Terminals Wire Size |
0.2 mm² - 4 mm² (solid) 0.2 mm² - 2.5 mm² (stranded) |
|
Strip Length |
8 mm |
