Product Description
Product Overview

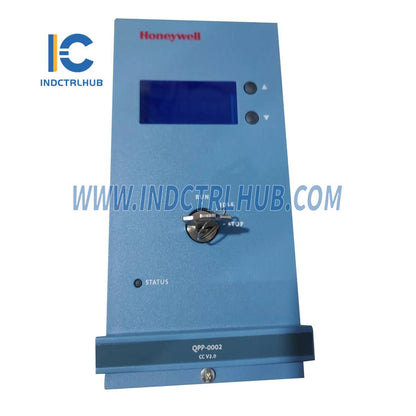

The Honeywell FC-QPP-0002 CC V2.0 Quad Processor Pack is a high-performance processing module designed for Honeywell’s industrial control systems, such as the Safety Manager or Experion platforms. This quad-processor unit supports critical safety and control functions, featuring dual power inputs (24 V DC and 5 V DC), robust environmental tolerances, and certifications from CE, UL, CSA, TUV, and FM. With a compact design and advanced output capabilities, it is engineered for reliable operation in demanding automation environments.
Technical Information
| Parameter | Specifications |
|---|---|
| Manufacturer | Honeywell |
| Model/Part Number | FC-QPP-0002 CC V2.0 |
| Description | Quad Processor Pack |
| General Type Number | FC-QPP-0002 CC V2.0 |
| Environmental | |
| Operating Temperature | Outside module: -5°C to +70°C (+23°F to +158°F) Inside module: -5°C to +85°C (+23°F to +185°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Relative Humidity | 10% to 95% (non-condensing) |
| Approvals | CE, UL, CSA, TUV, FM |
| Power | |
| 24 V Supply Voltage | 24 V DC (-15% to +30%, 20.4 V to 31.2 V) |
| 24 V Supply Current | Max. 25 mA |
| 5 V Supply Voltage | 5 V DC (± 5%, 4.75 V to 5.25 V) |
| 5 V Supply Current | Max. 1.2 A |
| +24 V_sd Output Supply Voltage | 15-31 V DC |
| Output Resistance | Approx. 1.1 kΩ |
| Short Circuit Proof | Continuous |
| SD Input Voltage (High) | 15-32 V DC |
| SD Input Voltage (Low) | < 4 V (reverse polarity protected) |
| Input Current | Approx. 8 mA at 24 V DC |
| WDout Output Current | 750 mA per output |
| Physical | |
| Dimensions (HxWxD) | 176 × 88.5 × 212 mm (6.93 × 3.48 × 8.35 in) |
| Weight | 1.3 kg (2.87 lb) |
Specific Configuration
- Model/Part Number: FC-QPP-0002 CC V2.0
- Configuration Details:
- "CC V2.0" indicates Control Card Version 2.0, specifying the configuration or firmware revision
