Product Description

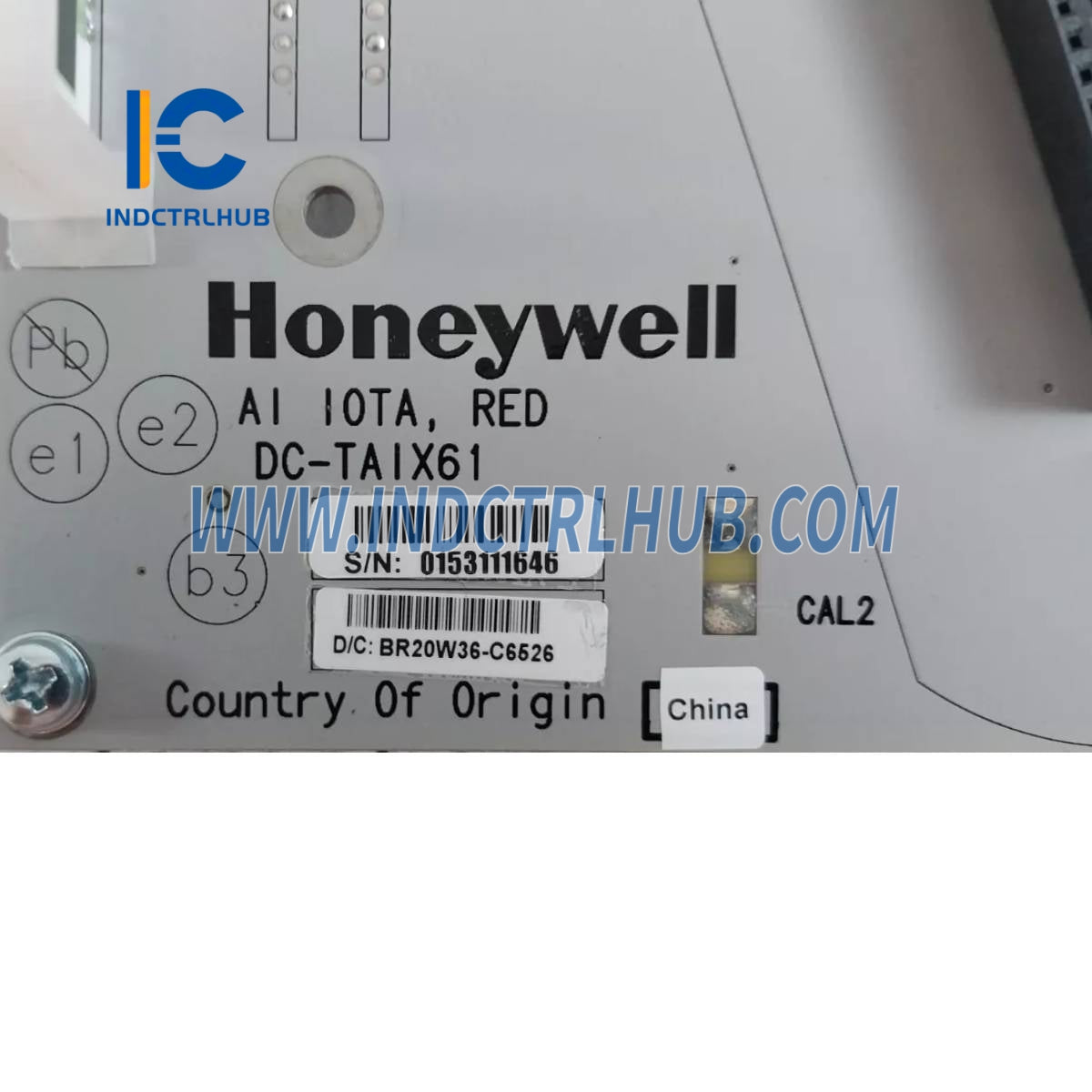

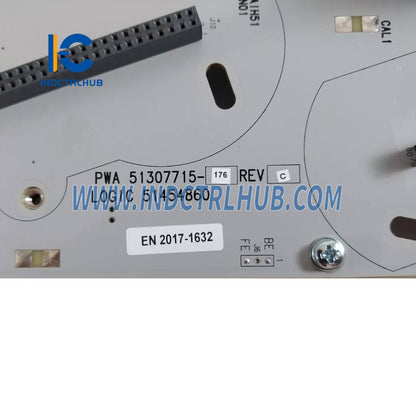

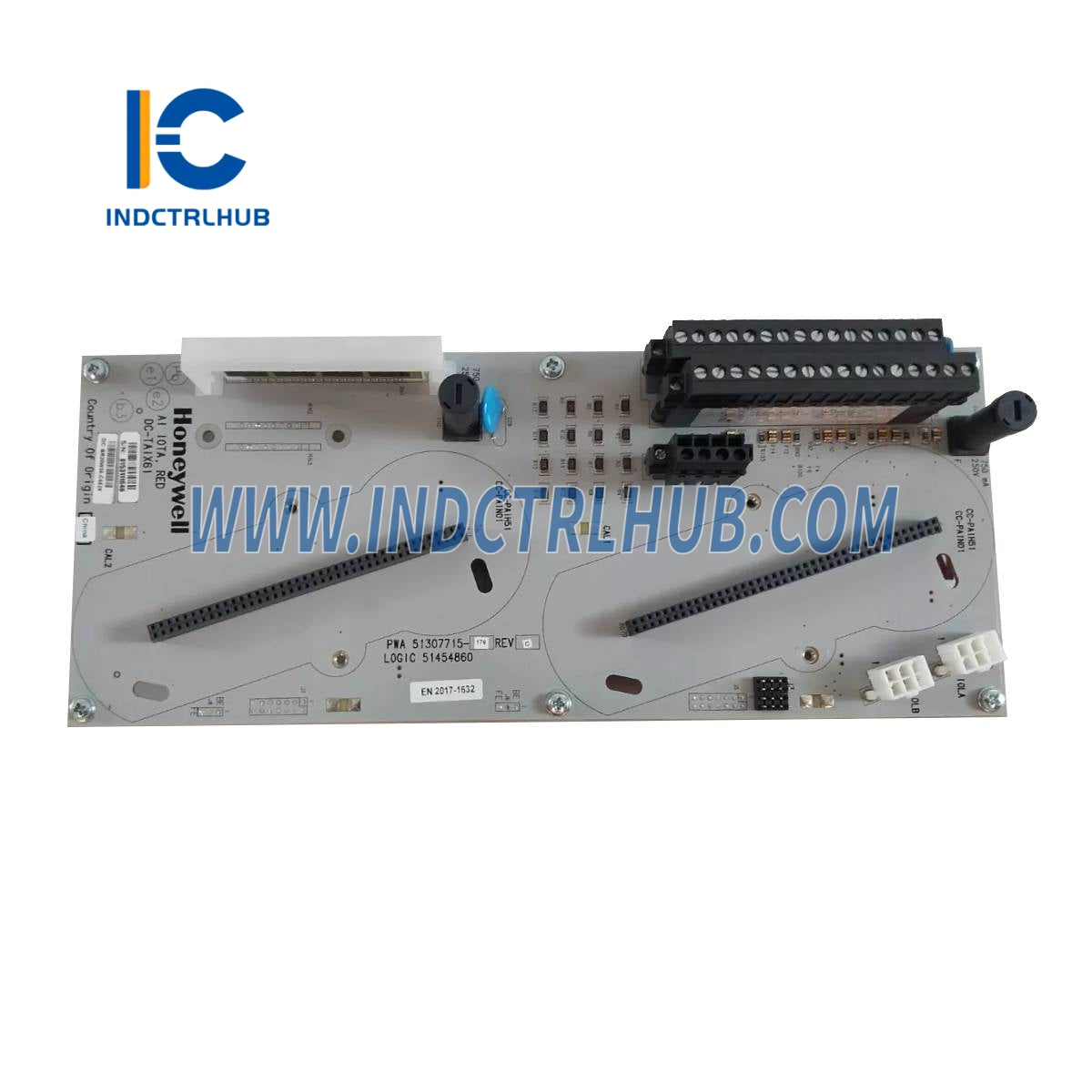

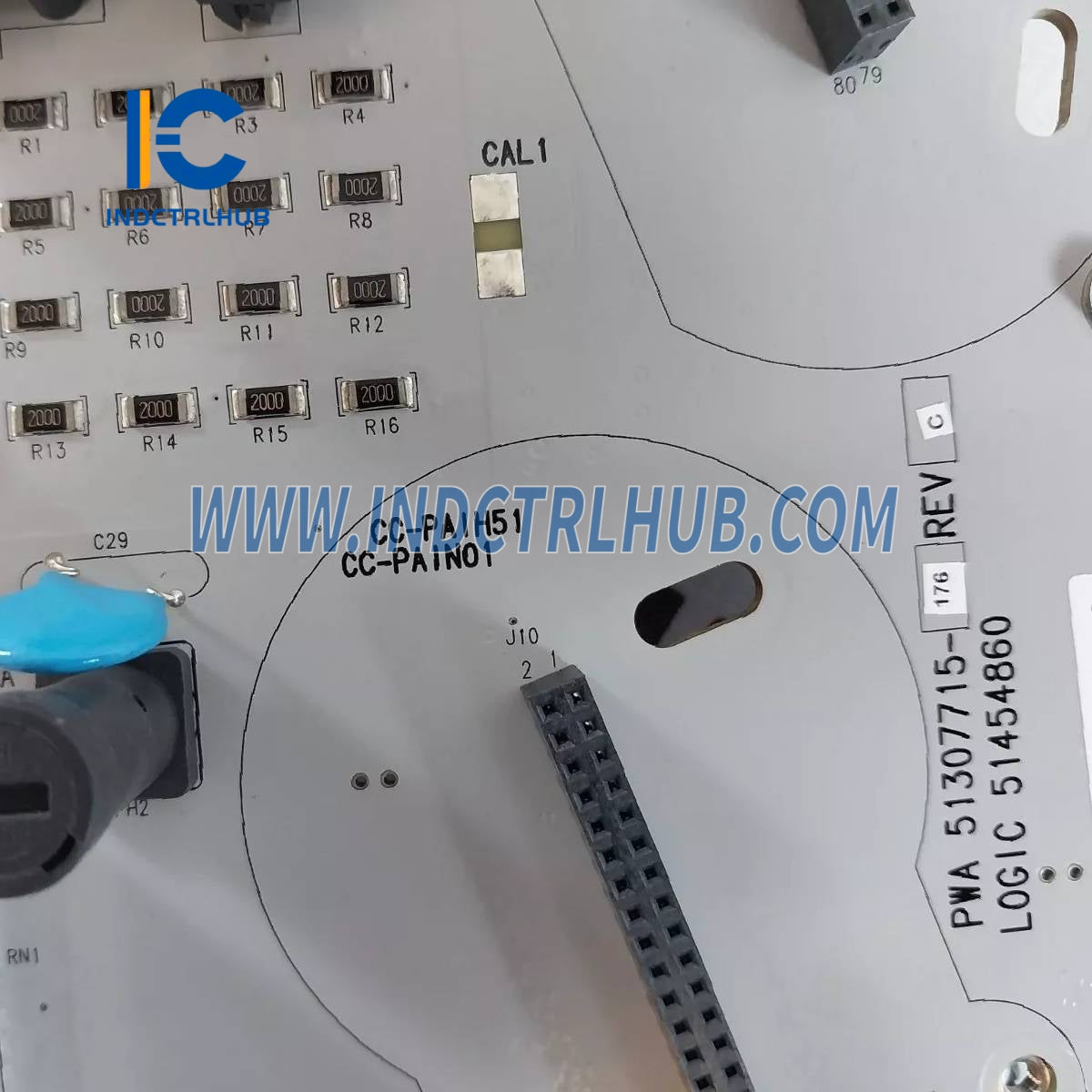

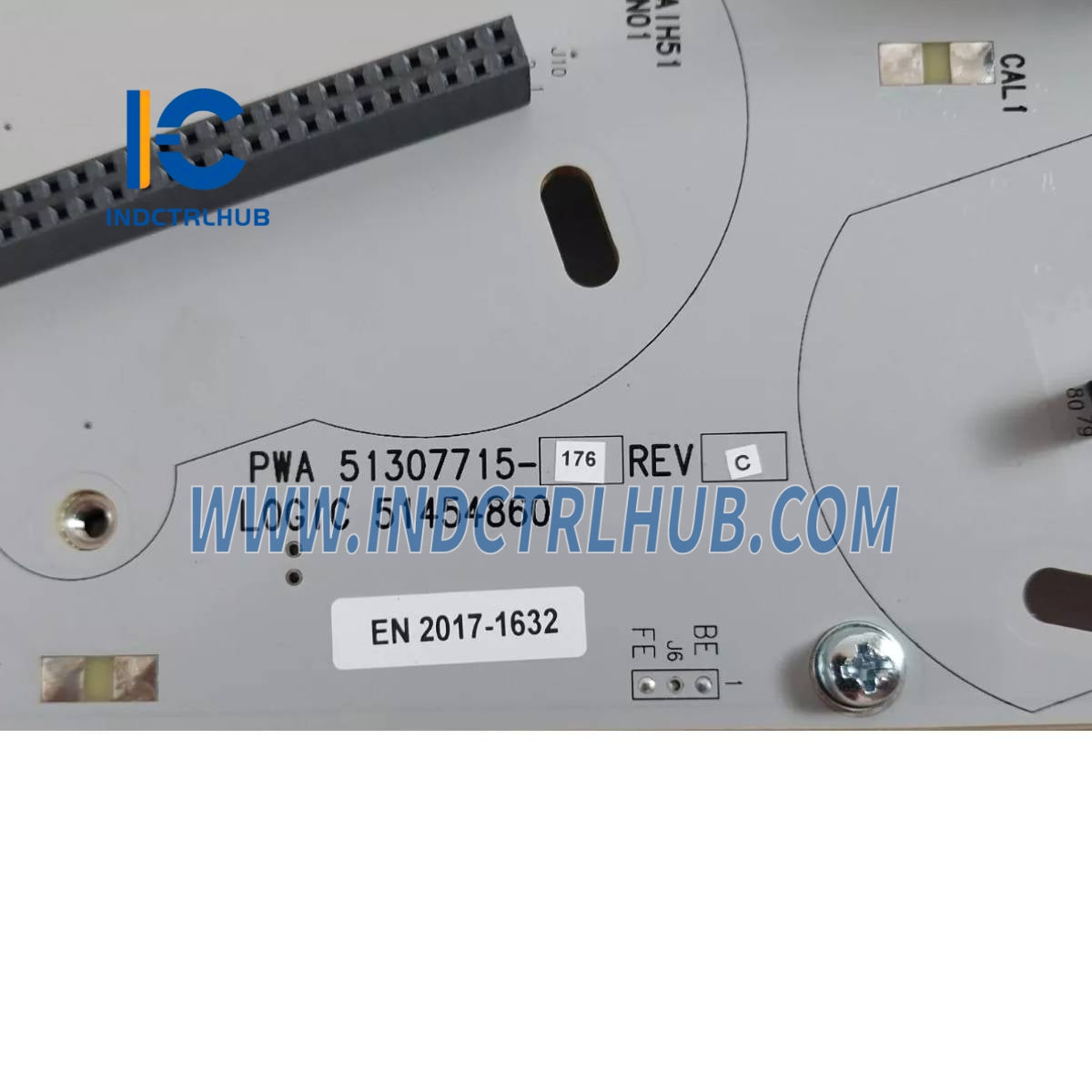

Honeywell DC-TAIX61 Analog Input Module
Product Overview
- The Honeywell DC-TAIX61 is an Analog Input IOTA (Input/Output Termination Assembly) designed for use in Honeywell’s Experion Process Knowledge System (PKS) and Series C distributed control systems. This module serves as a termination assembly for analog input signals, supporting high-level inputs with HART communication. It is optimized for redundant configurations, ensuring reliable data acquisition from field devices in industrial automation applications.
Technical Specifications
- The DC-TAIX61 has the following specifications based on standard characteristics for this model:
| Specification | Details |
|---|---|
| Model/Part Number | DC-TAIX61 |
| Manufacturer | Honeywell |
| Description | Analog Input IOTA, Redundant, 16 Channels |
| Series | Experion PKS / Series C |
| Input Channels | 16 channels, high-level analog input |
| Input Types | 4 to 20 mA (with HART), voltage inputs |
| Power Supply | 24 VDC nominal (via I/O rack) |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Weight | Approx. 0.4 kg |
| Size | 12 inches (IOTA board) |
Additional Details
- The DC-TAIX61 includes the following additional information based on its standard use and documentation:
- Function: Provides termination for analog input signals with HART communication, enabling precise monitoring of process variables.
- Mounting: Installs in Experion PKS or Series C I/O rack, designed for redundant setups with corresponding analog input modules (e.g., CC-PAIH51).
- Compatibility: Works with Honeywell’s Experion PKS C300 Controller and Series C I/O modules, such as CC-PAIH51 for high-level analog inputs.
- Configuration: Supports redundant IOTA configurations for high-reliability applications; configured via Honeywell’s control system software.
- Certifications: Meets UL, CE, and ATEX standards for industrial and hazardous environments.
