Product Description
Product Overview

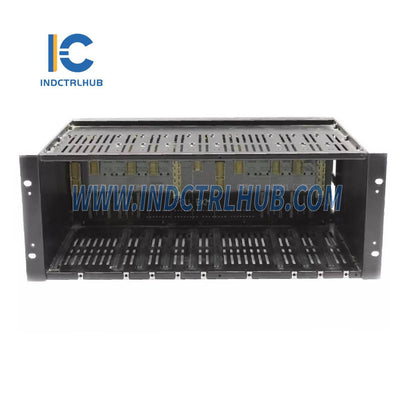

The Honeywell CPCHAS-0001 1010032 Chassis for Control Processor is a robust enclosure designed to house Control Processor modules within Honeywell’s Safety Manager system. Each Safety Manager configuration includes one Controller chassis, typically positioned at the top of the cabinet, with I/O chassis located below. This chassis provides a secure and organized framework, featuring a controller housing and backplane, to support critical safety control functions in industrial applications.
General Information
- The Controller chassis CPCHAS-0001 is used to contain the Control Processor modules.
- Each Safety Manager has one Controller chassis, generally located at the top position in the cabinet, with I/O chassis at lower positions.
- Components included:
- Controller housing
- Controller backplane
Technical Information
| Item | Specifications |
|---|---|
| Manufacturer | Honeywell |
| Model/Part Number | CPCHAS-0001 1010032 |
| Description | Chassis for Control Processor |
| General Type Number | FS-CPCHAS-0001 |
| Approvals | CE, UL, CSA, TUV, FM |
| Power Consumption | 5V-1: 0.05 A 5V-2: 0.05 A |
| Dimensions (HxWxD) | Height: 4 HE (177 mm, 7 in) Width: 482.6 mm (19 in) Depth: 280 mm (11 in) |
| Weight | 5.8 kg (12.8 lb) |
Specific Configuration
- Model/Part Number: CPCHAS-0001 1010032
- Configuration Details:
- No suffix or option codes specified beyond model number, indicating a standard configuration
