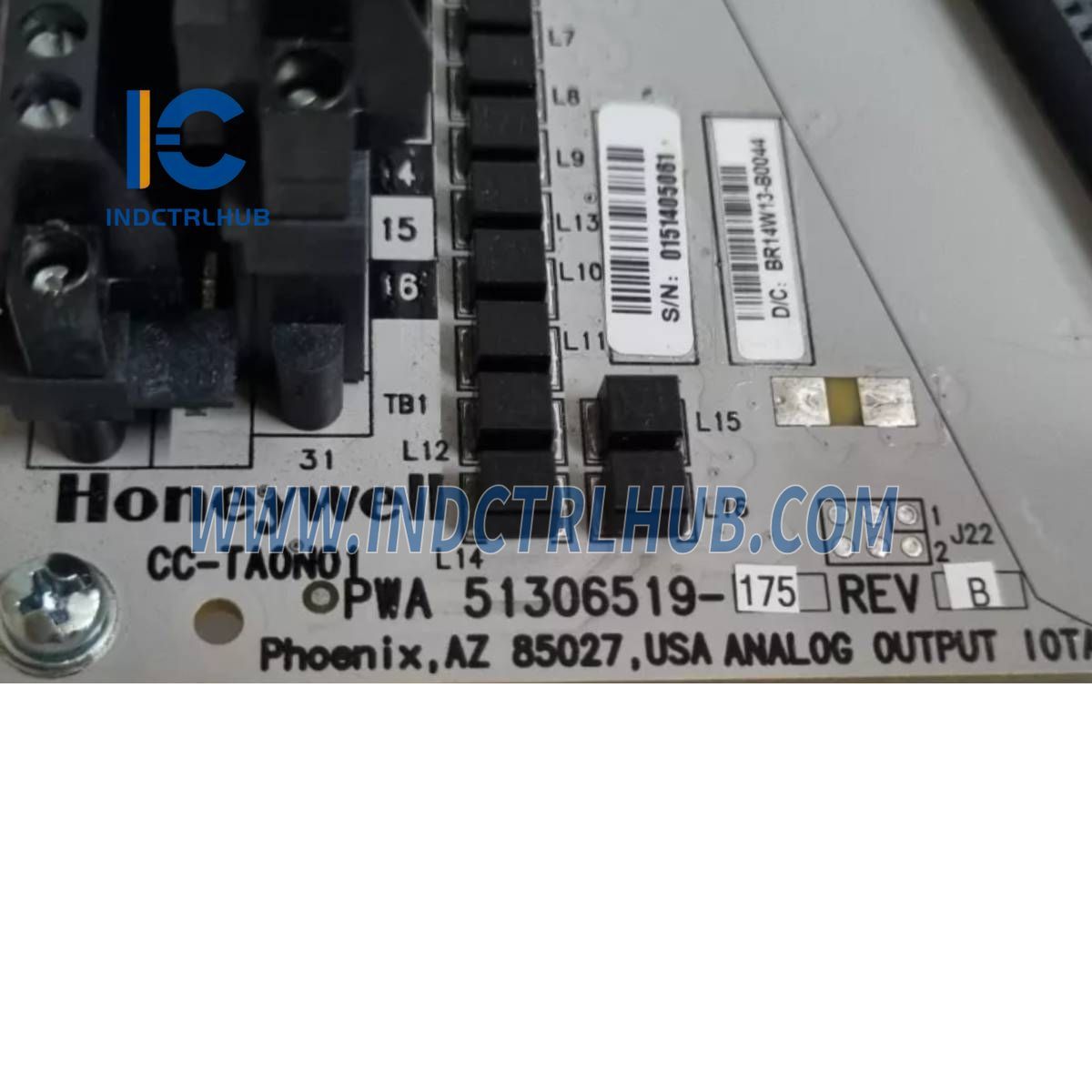

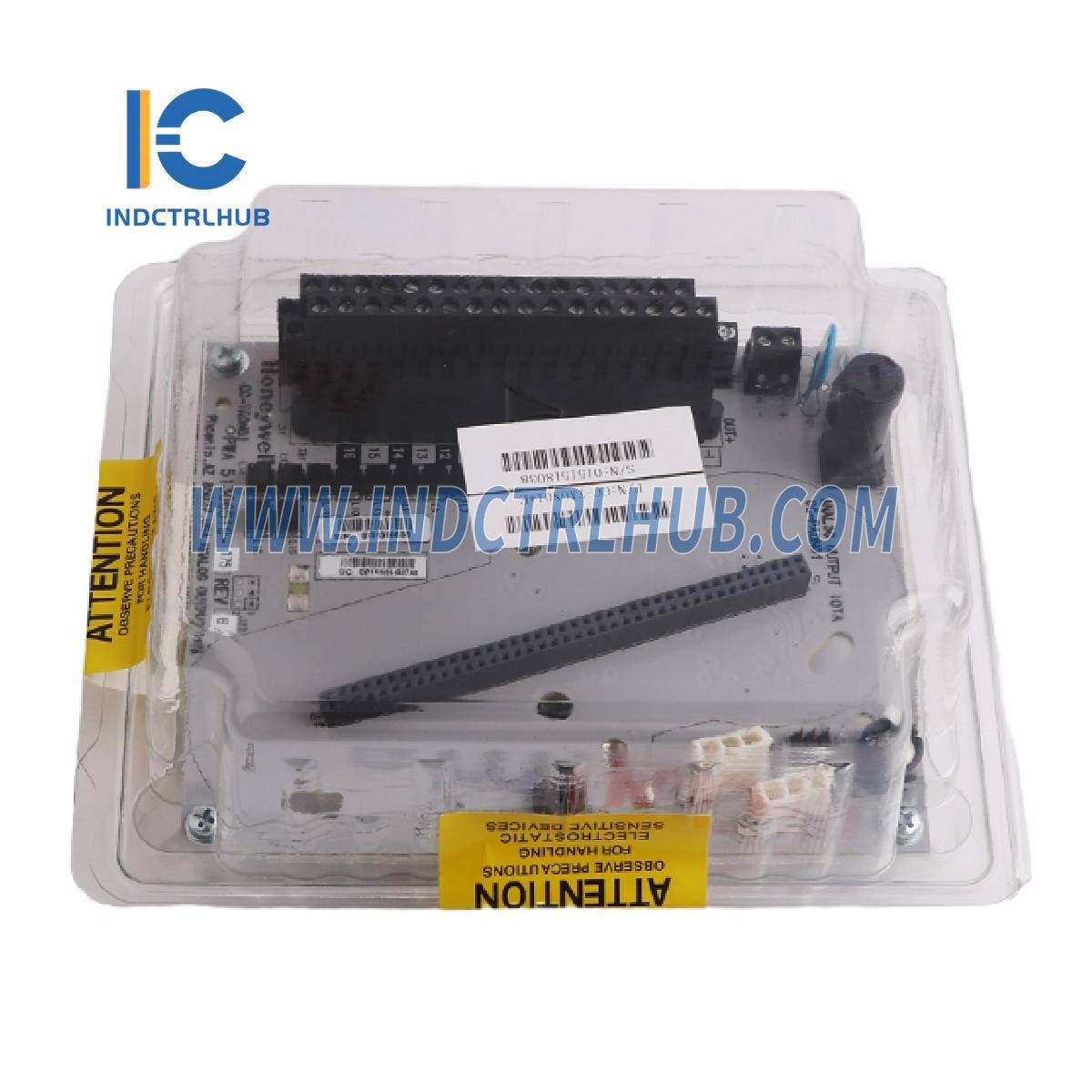

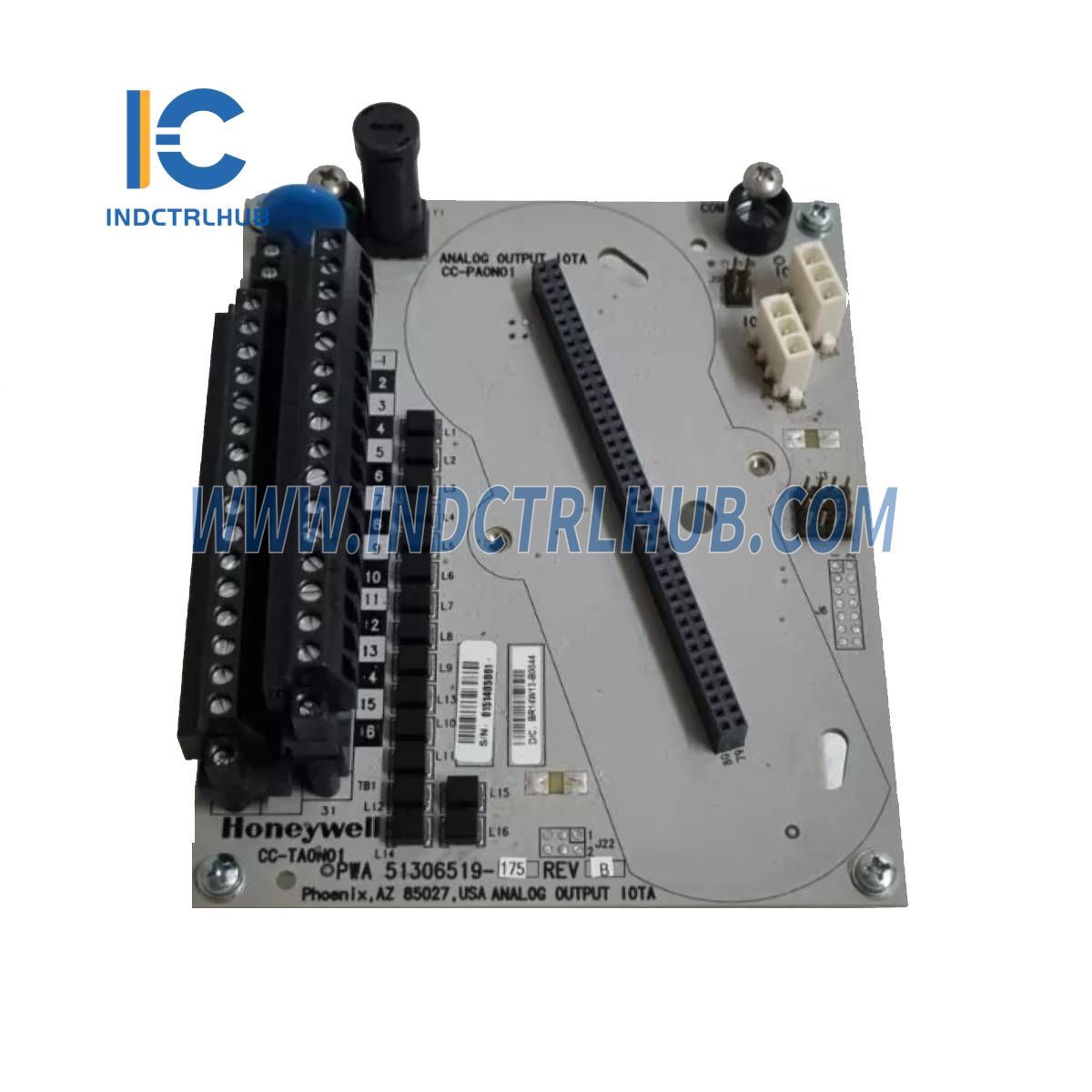

Honeywell CC-TAON01 Analog Output Module

Honeywell CC-TAON01 Analog Output Module

  • Manufacturer: Honeywell

  • Product No.: CC-TAON01

  • Condition:1000 in stock

  • Product Type: Analog Output Module

  • Product Origin: USA

  • Payment: T/T, Western Union

  • Weight: 1000g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

General Information

Manufacturer

Honeywell

Model/Part Number

CC-TAON01

Description

Analog Output Module

Function


The Analog Output (AO) Module delivers high-level constant current to actuators and recording/indicating devices.


Notable Features

Extensive self-diagnostics

Optional redundancy

Safe-state (FAILOPT) behaviors configurable per channel

Output read-back and alarm on discrepancy

Non-incendive output


FAILOPT (Fail-Safe Operation)

Supports the FAILOPT parameter on a per-channel basis.

Each channel can be configured to HOLD LAST VALUE or SHED to a SAFE VALUE.

If the IOM device electronics fail, the output will always go to zero (safe state).


Open-wire Detection

Detects and annunciates open field wire with a Channel Soft Failure indication.


Technical Specifications

Parameter

Specification

Input/Output Model

CC-PAON01 - High-Level Analog Output

IOTA Models

CC-TAON01 (Non-Redundant, 6”)CC-TAON11 (Redundant, 12”)

Output Type

4-20 mA

Output Channels

16

Output Ripple

< 100 mV peak-to-peak at power line frequency, across 250 Ω load

Output Temperature Drift

0.005% of Full Scale/°C

Output Readback Accuracy

±4% of Full Scale

Output Current Linearity

± 0.05% of Full Scale nominal

Resolution

± 0.05% of Full Scale

Calibrated Accuracy

± 0.35% of Full Scale (25°C) including linearity

Directly Settable Output Current Range

0 mA, 2.9 mA to 21.1 mA

Maximum Resistive Load

800 ohms (24 V supply = 22 VDC through 28 VDC)

Maximum Output Compliance Voltage

16 V (24 V supply = 22 VDC through 28 VDC)

Maximum Open Circuit Voltage

22 V

Response Time (DAC input code to output)

Settles to within 1% of final value within 80 ms

Gap (0 mA) of Output to Field on Switchover

10 ms max (applies to redundancy only)

View full details

Product Description

General Information

Manufacturer

Honeywell

Model/Part Number

CC-TAON01

Description

Analog Output Module

Function


The Analog Output (AO) Module delivers high-level constant current to actuators and recording/indicating devices.


Notable Features

Extensive self-diagnostics

Optional redundancy

Safe-state (FAILOPT) behaviors configurable per channel

Output read-back and alarm on discrepancy

Non-incendive output


FAILOPT (Fail-Safe Operation)

Supports the FAILOPT parameter on a per-channel basis.

Each channel can be configured to HOLD LAST VALUE or SHED to a SAFE VALUE.

If the IOM device electronics fail, the output will always go to zero (safe state).


Open-wire Detection

Detects and annunciates open field wire with a Channel Soft Failure indication.


Technical Specifications

Parameter

Specification

Input/Output Model

CC-PAON01 - High-Level Analog Output

IOTA Models

CC-TAON01 (Non-Redundant, 6”)CC-TAON11 (Redundant, 12”)

Output Type

4-20 mA

Output Channels

16

Output Ripple

< 100 mV peak-to-peak at power line frequency, across 250 Ω load

Output Temperature Drift

0.005% of Full Scale/°C

Output Readback Accuracy

±4% of Full Scale

Output Current Linearity

± 0.05% of Full Scale nominal

Resolution

± 0.05% of Full Scale

Calibrated Accuracy

± 0.35% of Full Scale (25°C) including linearity

Directly Settable Output Current Range

0 mA, 2.9 mA to 21.1 mA

Maximum Resistive Load

800 ohms (24 V supply = 22 VDC through 28 VDC)

Maximum Output Compliance Voltage

16 V (24 V supply = 22 VDC through 28 VDC)

Maximum Open Circuit Voltage

22 V

Response Time (DAC input code to output)

Settles to within 1% of final value within 80 ms

Gap (0 mA) of Output to Field on Switchover

10 ms max (applies to redundancy only)
