Product Description
Product Overview

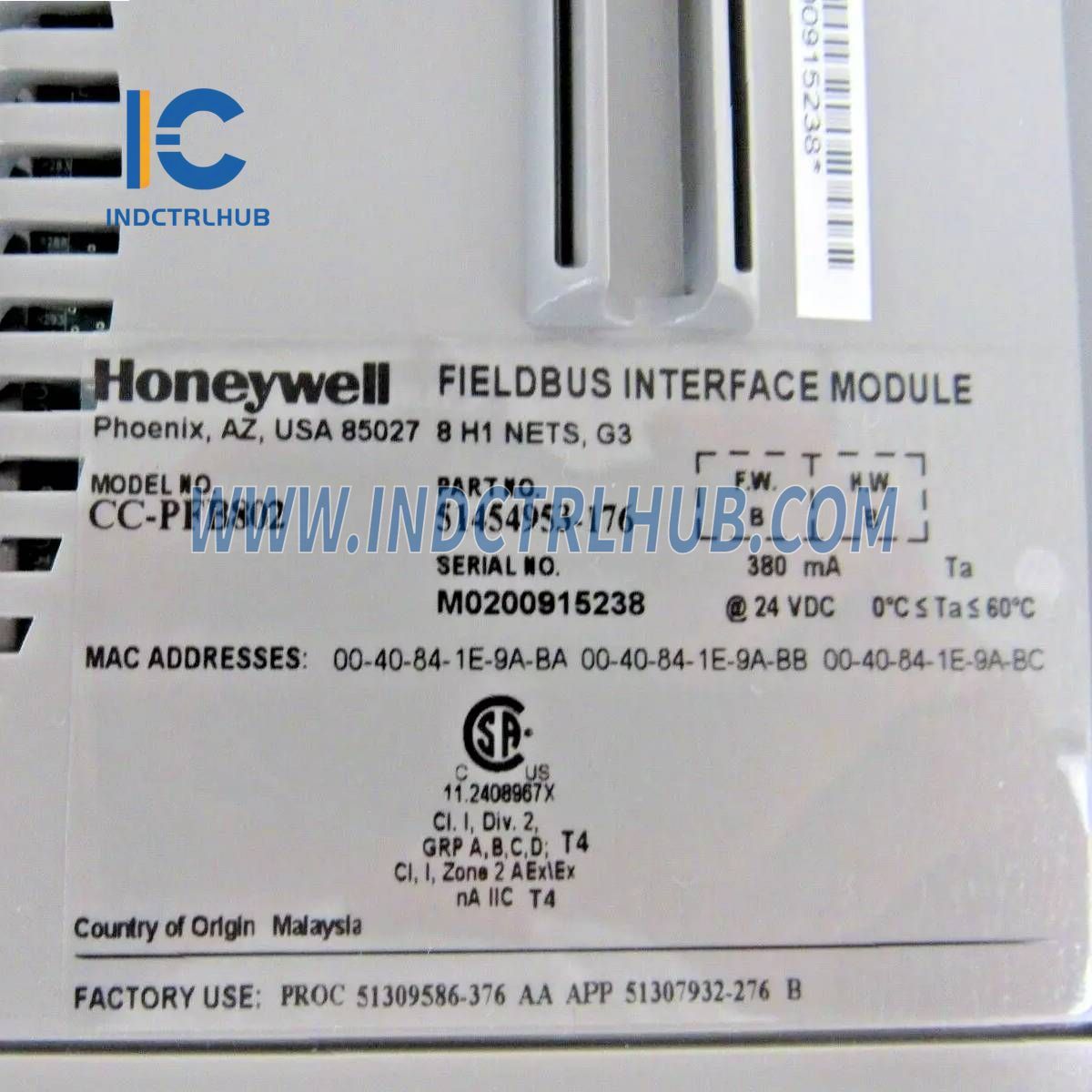

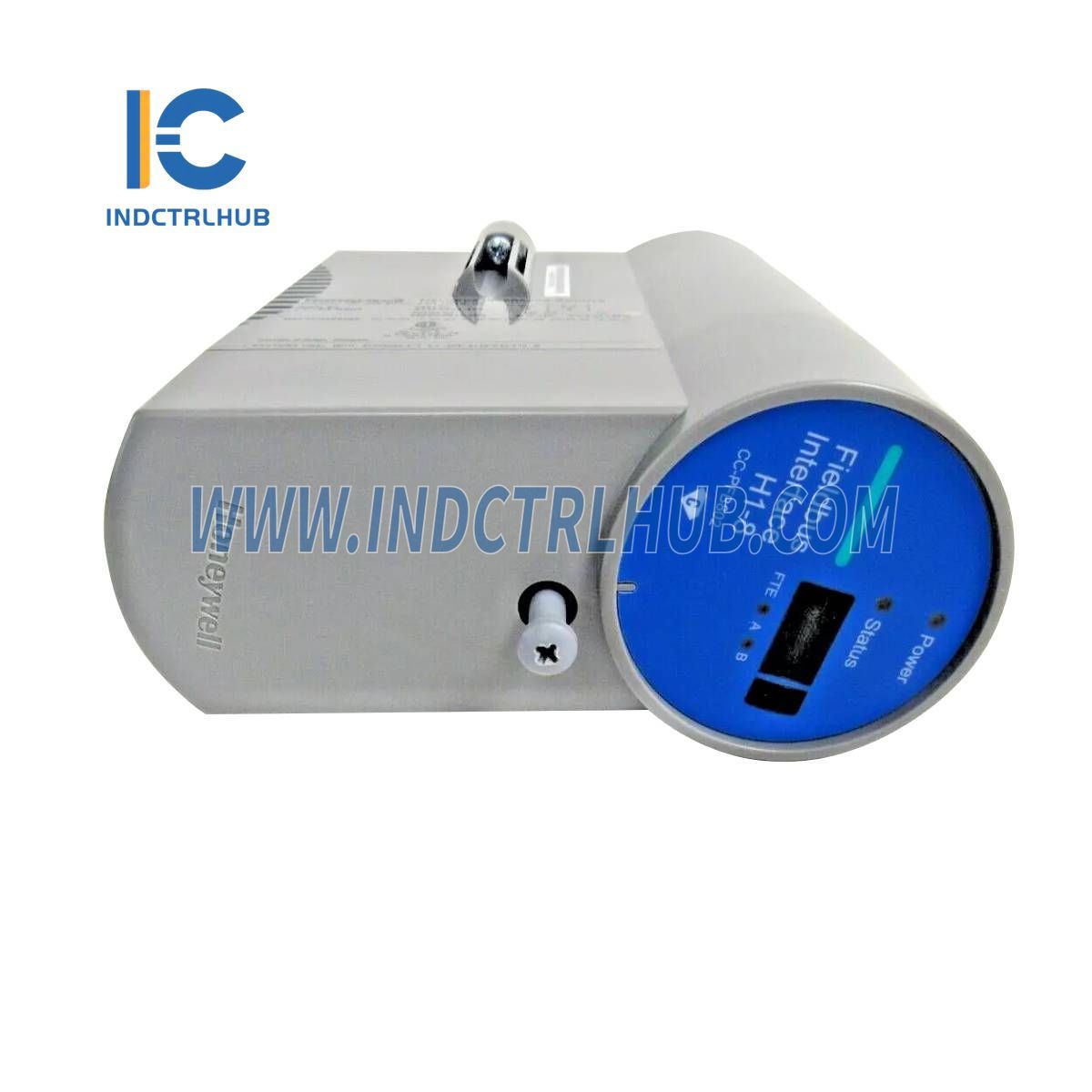

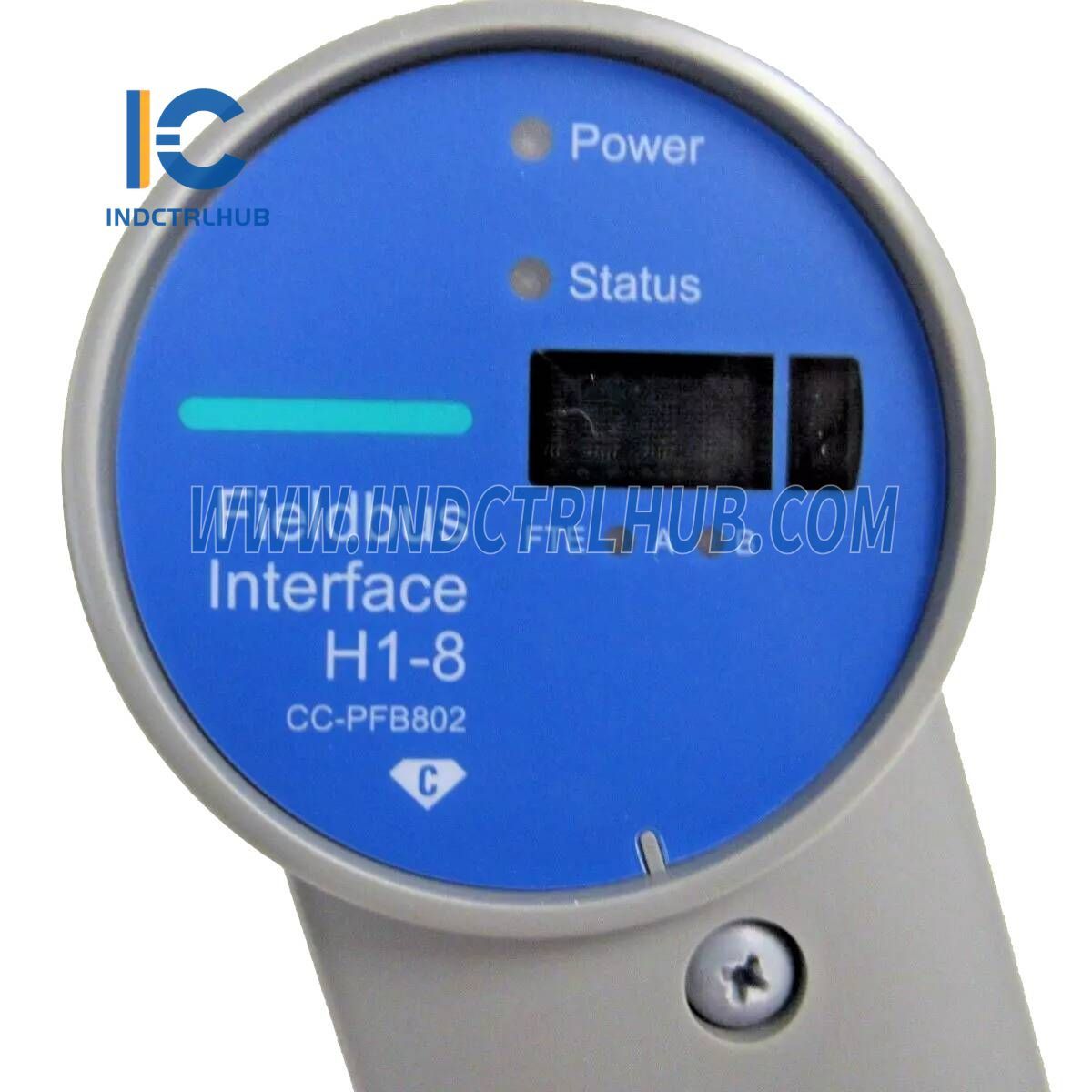

The Honeywell CC-PFB802 Fieldbus Interface Module is a robust component designed to facilitate communication between FOUNDATION™ Fieldbus devices and Honeywell’s industrial control systems, such as the Experion Process Knowledge System (PKS). Supporting up to eight H1 segments, this module ensures reliable data exchange in process automation applications. With a 24 V DC power supply, wide temperature tolerance, and certifications including CE, ATEX, and FM, it is engineered for safe and efficient operation in demanding industrial environments.
Technical Information
| Parameter | Specifications |
|---|---|
| Manufacturer | Honeywell |
| Model Number | CC-PFB802 |
| Part Number | 51454953-176 |
| Description | Fieldbus Interface Module |
| Supported Protocol | FOUNDATION™ Fieldbus |
| Number of H1 Segments | 8 |
| Power Supply | 24 V DC |
| Operating Temperature | -40°C to +70°C (-40°F to +158°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Humidity | 5% to 95% RH (non-condensing) |
| Dimensions (HxWxD) | 12.7 cm x 12.7 cm x 12.7 cm (5 x 5 x 5 in) |
| Weight | 0.8 kg (1.76 lb) |
| Certificates | CE, ATEX, FM |
Specific Configuration
- Model/Part Number: CC-PFB802 (51454953-176)
- Configuration Details:
- No additional suffix or option codes specified beyond model and part number, indicating a standard configuration
