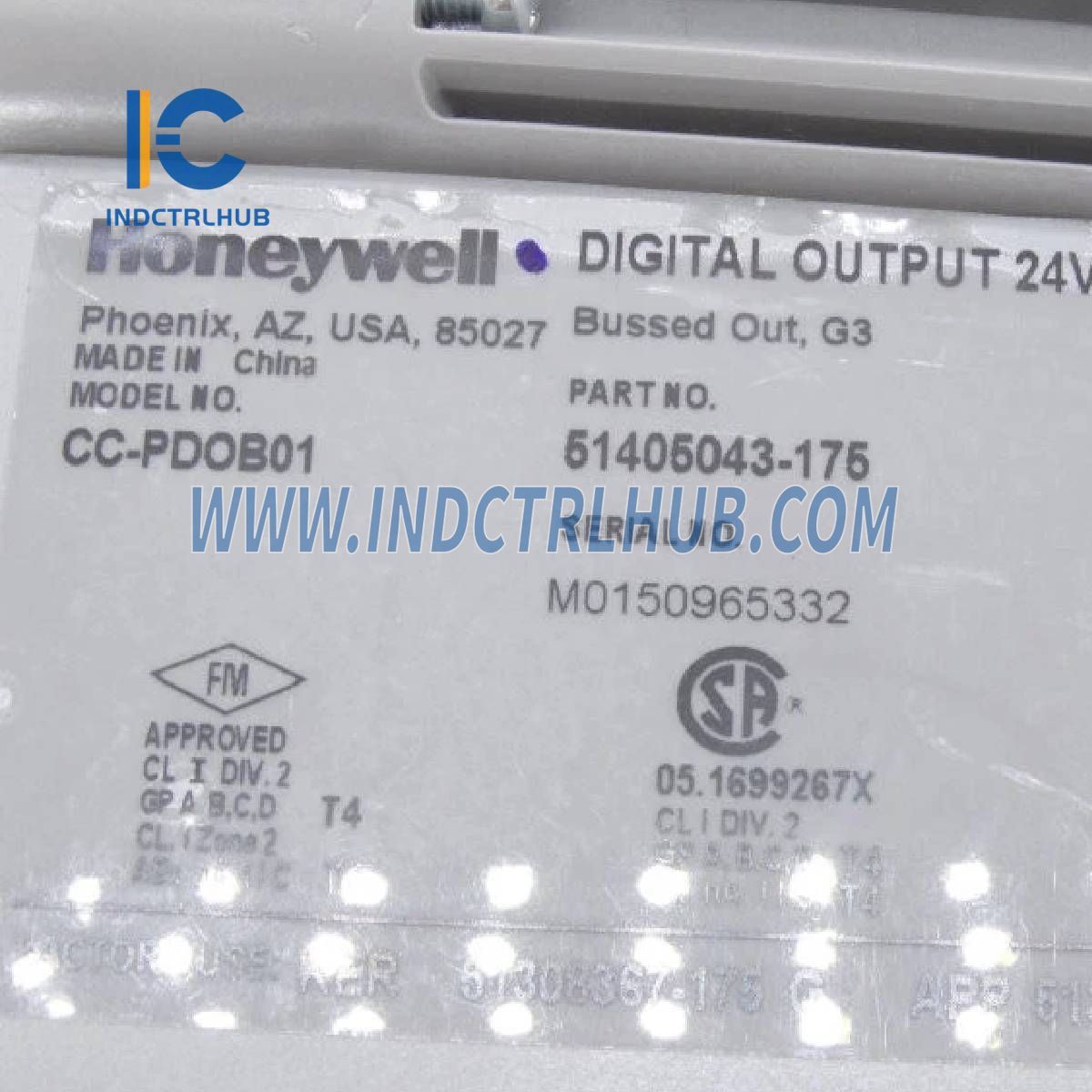

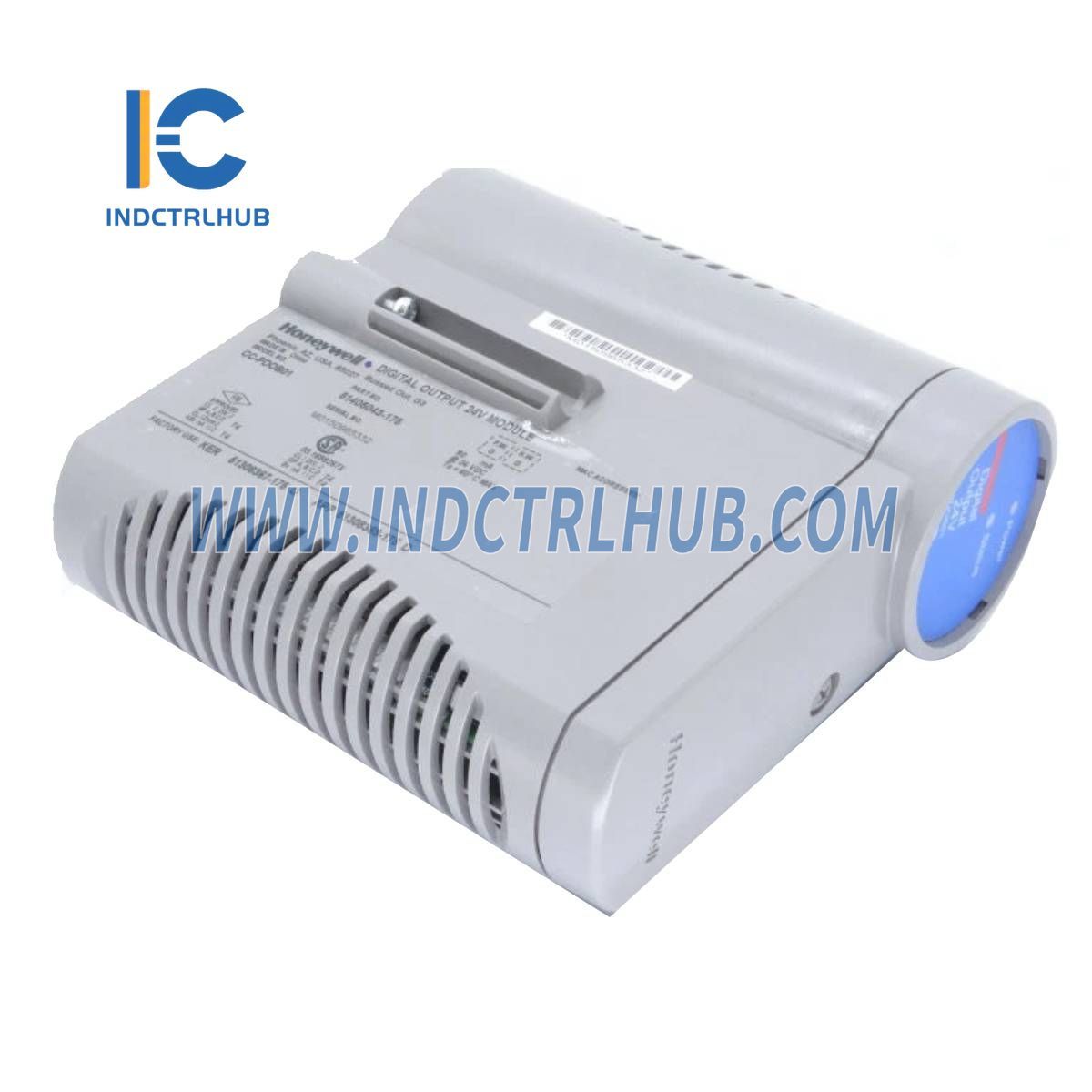

Honeywell CC-PDOB01 Digital Output Field Isolated Bussed Output

Honeywell CC-PDOB01 Digital Output Field Isolated Bussed Output

  • Manufacturer: Honeywell

  • Product No.: CC-PDOB01

  • Condition:1000 in stock

  • Product Type: Digital Output

  • Product Origin: USA

  • Payment: T/T, Western Union

  • Weight: 1000g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

General Information

Manufacturer

Honeywell

Model/Part Number

CC-PDOB01

Description

Digital Output, Field Isolated, Bussed Output

Technical Specifications

Parameter

Specification

Input/Output Model

CC-PDOB01 - 24V Digital Output, Field Isolated, Bussed Output

IOTA Models

Non-Redundant: CC-TDOB01 (9”)  Redundant: CC-TDOB11 (12”)

Output Channels

32

Output Type

Source

Load Voltage

15 - 30 VDC Maximum

Load Current (Absolute Maximum)

Per Channel: 0.5A  Per 8 Channels: 4A (No Short), 3A (One Short), 1.5A (Two Shorts)  Per Module: 6A

Galvanic Isolation

1500 VAC RMS or ±1500 VDC

On-State Voltage

24 V (typ) at 0.5A load current

Off-State Voltage

0 VDC max (3.3 VDC max indicated under no-load condition)

Off-State Leak Current

5.0 µA (max)

Turn-On/Turn-Off Time

10 ms (max)

Gap (0 current) of Output to Field on Switchover

None (0 ms) (applies to Redundancy only)

Output Voltage Drop

Source Voltage – 150 mV maximum



View full details

Product Description

General Information

Manufacturer

Honeywell

Model/Part Number

CC-PDOB01

Description

Digital Output, Field Isolated, Bussed Output

Technical Specifications

Parameter

Specification

Input/Output Model

CC-PDOB01 - 24V Digital Output, Field Isolated, Bussed Output

IOTA Models

Non-Redundant: CC-TDOB01 (9”)  Redundant: CC-TDOB11 (12”)

Output Channels

32

Output Type

Source

Load Voltage

15 - 30 VDC Maximum

Load Current (Absolute Maximum)

Per Channel: 0.5A  Per 8 Channels: 4A (No Short), 3A (One Short), 1.5A (Two Shorts)  Per Module: 6A

Galvanic Isolation

1500 VAC RMS or ±1500 VDC

On-State Voltage

24 V (typ) at 0.5A load current

Off-State Voltage

0 VDC max (3.3 VDC max indicated under no-load condition)

Off-State Leak Current

5.0 µA (max)

Turn-On/Turn-Off Time

10 ms (max)

Gap (0 current) of Output to Field on Switchover

None (0 ms) (applies to Redundancy only)

Output Voltage Drop

Source Voltage – 150 mV maximum
