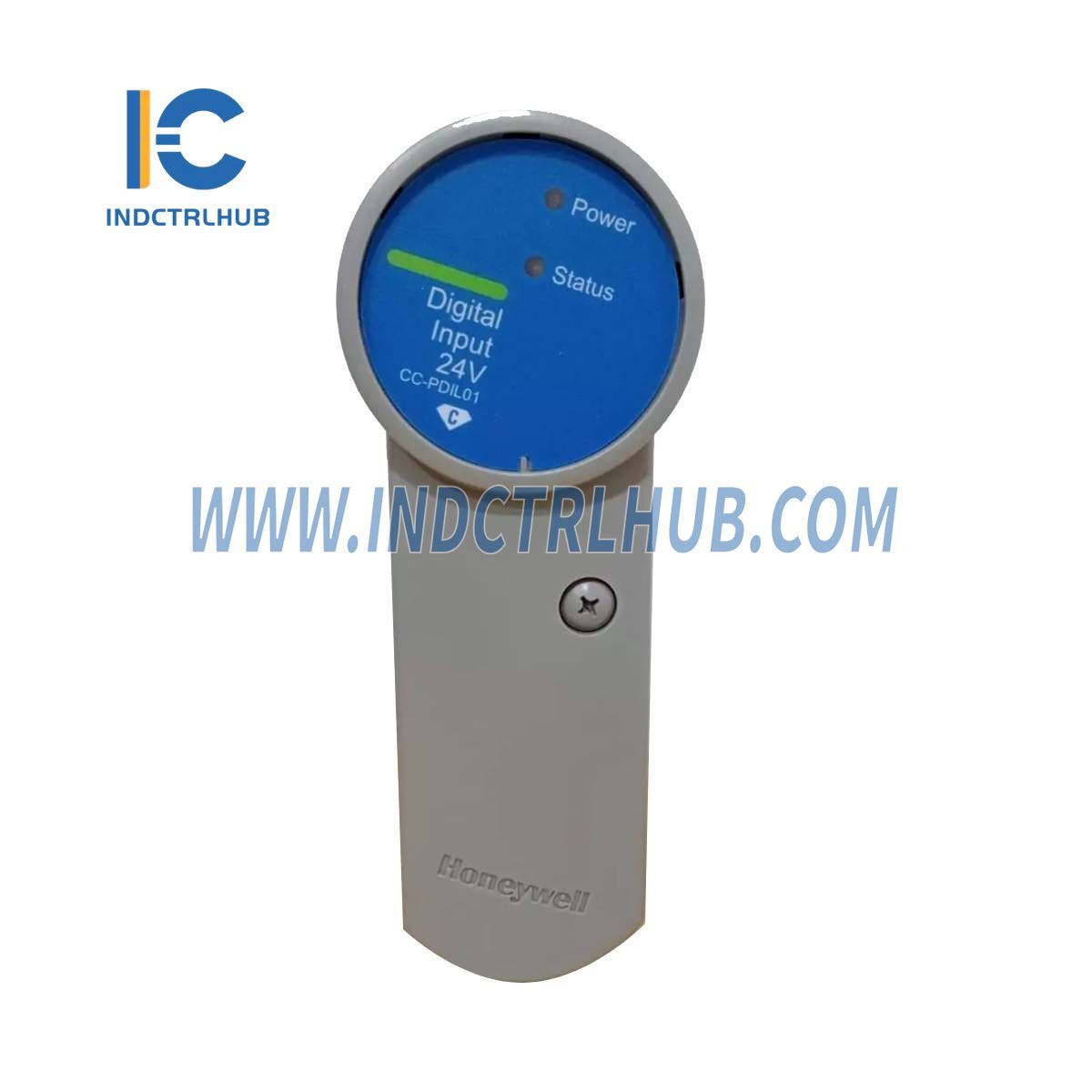

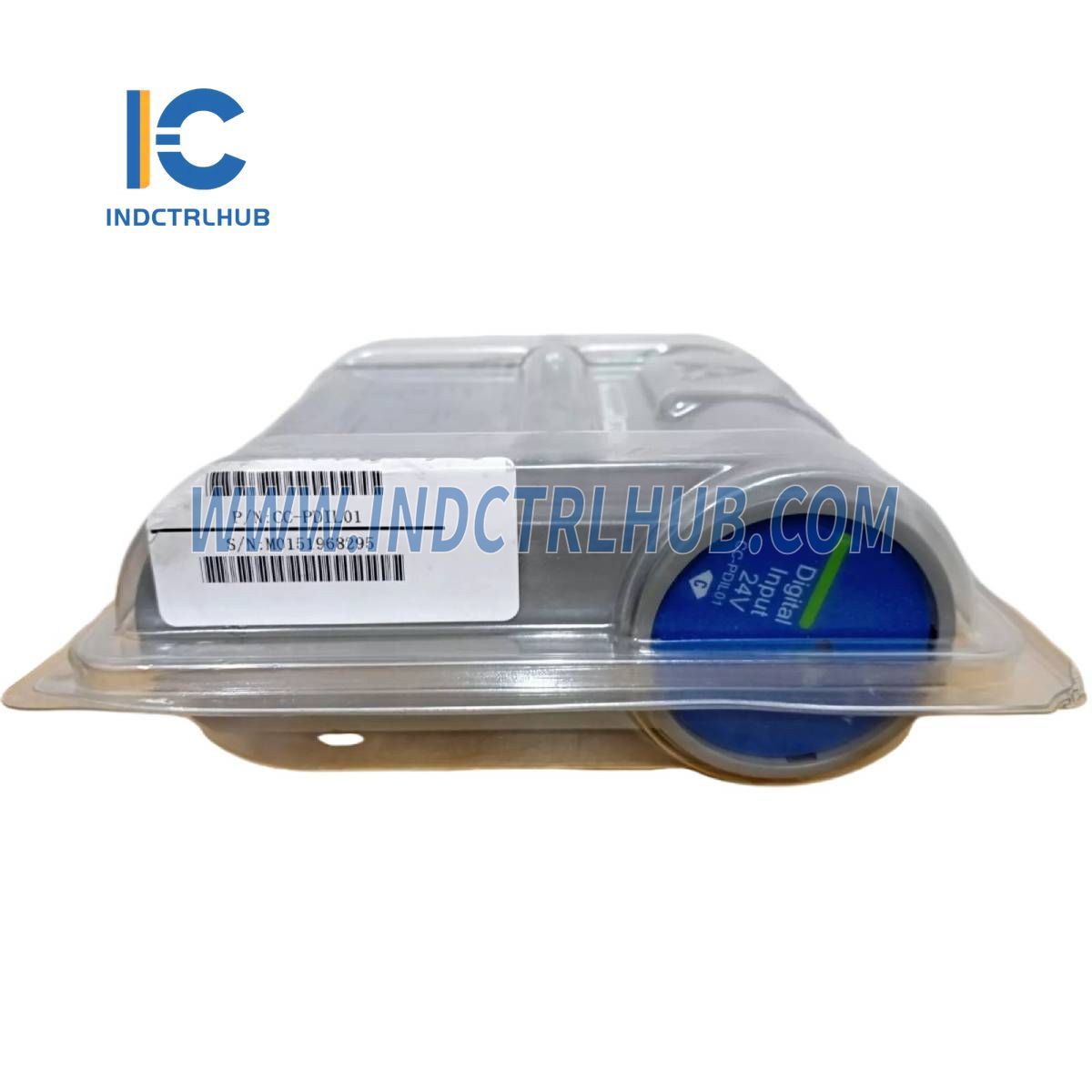

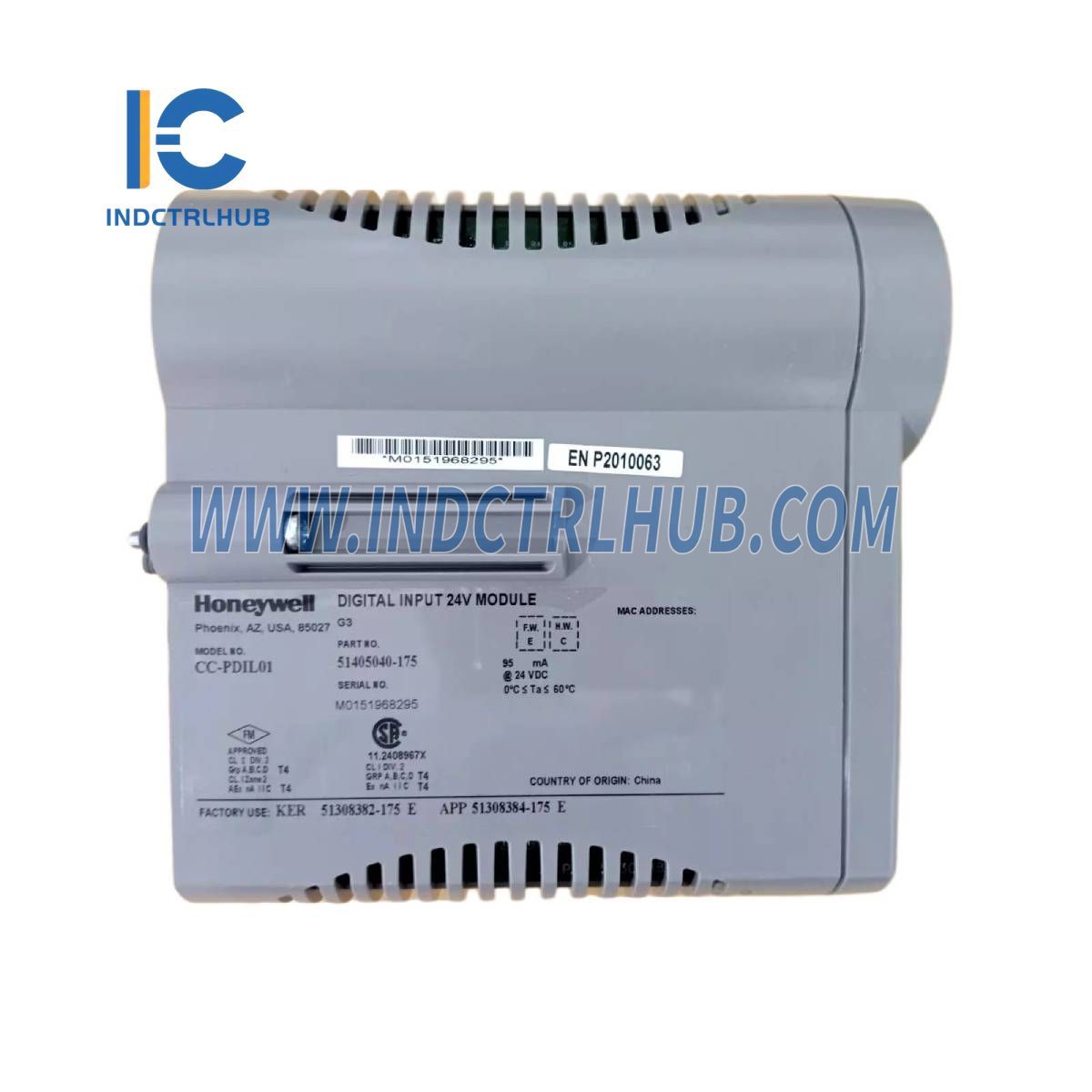

Honeywell CC-PDIL01 Digital Input 24VDC

Honeywell CC-PDIL01 Digital Input 24VDC

  • Manufacturer: Honeywell

  • Product No.: CC-PDIL01

  • Condition:1000 in stock

  • Product Type: Digital Input 24VDC

  • Product Origin: USA

  • Payment: T/T, Western Union

  • Weight: 1000g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

General Information

Manufacturer

Honeywell

Model/Part Number

CC-PDIL01

Description

Digital Input 24VDC

Technical Specifications

Parameter

Specification

Input/Output Model

CC-PDIL01 - 24V Digital Input

IOTA Models

Non-Redundant: CC-TDIL01 (9”), CC-GDIL21 (6”)  Redundant: CC-TDIL11 (12”), CC-GDIL11 (12”), CC-GDIL01 (12” for expansion)  Expander: CC-SDXX01 GI-IS I/O Expander (12”)

Input Channels

32

Galvanic Isolation (any input terminal voltage referenced to common)

1500 VAC RMS or ±1500 VDC

Isolation Technique

Optical (in IOM)

DI Power Voltage Range

18 to 30 VDC

ON Sense Voltage/Current

13 VDC (min) or 3 mA (min)

OFF Sense Voltage/Current

5 VDC (max) or 1.2 mA (max)

Input Impedance

4.2 kΩ

Absolute Delay Across Input Filter and Isolation

5 ms ± 20%

Field Resistance for Guaranteed ON Condition

300 Ω max @ 15 VDC

Field Resistance for Guaranteed OFF Condition

30 kΩ min @ 30 VDC



View full details

Product Description

General Information

Manufacturer

Honeywell

Model/Part Number

CC-PDIL01

Description

Digital Input 24VDC

Technical Specifications

Parameter

Specification

Input/Output Model

CC-PDIL01 - 24V Digital Input

IOTA Models

Non-Redundant: CC-TDIL01 (9”), CC-GDIL21 (6”)  Redundant: CC-TDIL11 (12”), CC-GDIL11 (12”), CC-GDIL01 (12” for expansion)  Expander: CC-SDXX01 GI-IS I/O Expander (12”)

Input Channels

32

Galvanic Isolation (any input terminal voltage referenced to common)

1500 VAC RMS or ±1500 VDC

Isolation Technique

Optical (in IOM)

DI Power Voltage Range

18 to 30 VDC

ON Sense Voltage/Current

13 VDC (min) or 3 mA (min)

OFF Sense Voltage/Current

5 VDC (max) or 1.2 mA (max)

Input Impedance

4.2 kΩ

Absolute Delay Across Input Filter and Isolation

5 ms ± 20%

Field Resistance for Guaranteed ON Condition

300 Ω max @ 15 VDC

Field Resistance for Guaranteed OFF Condition

30 kΩ min @ 30 VDC



Download PDF file here:

Click to Download PDF
