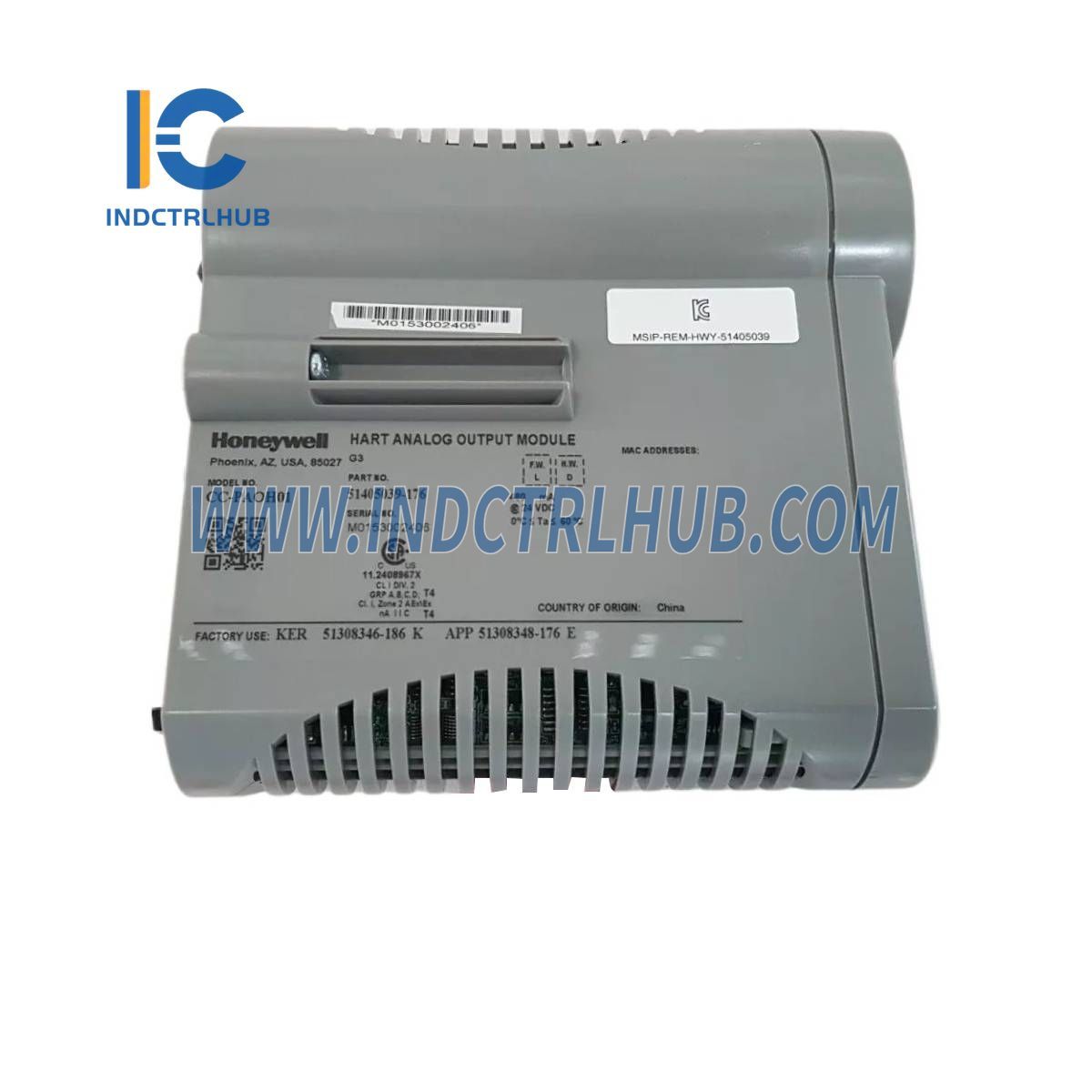

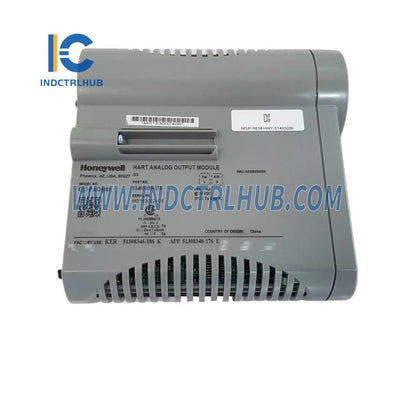

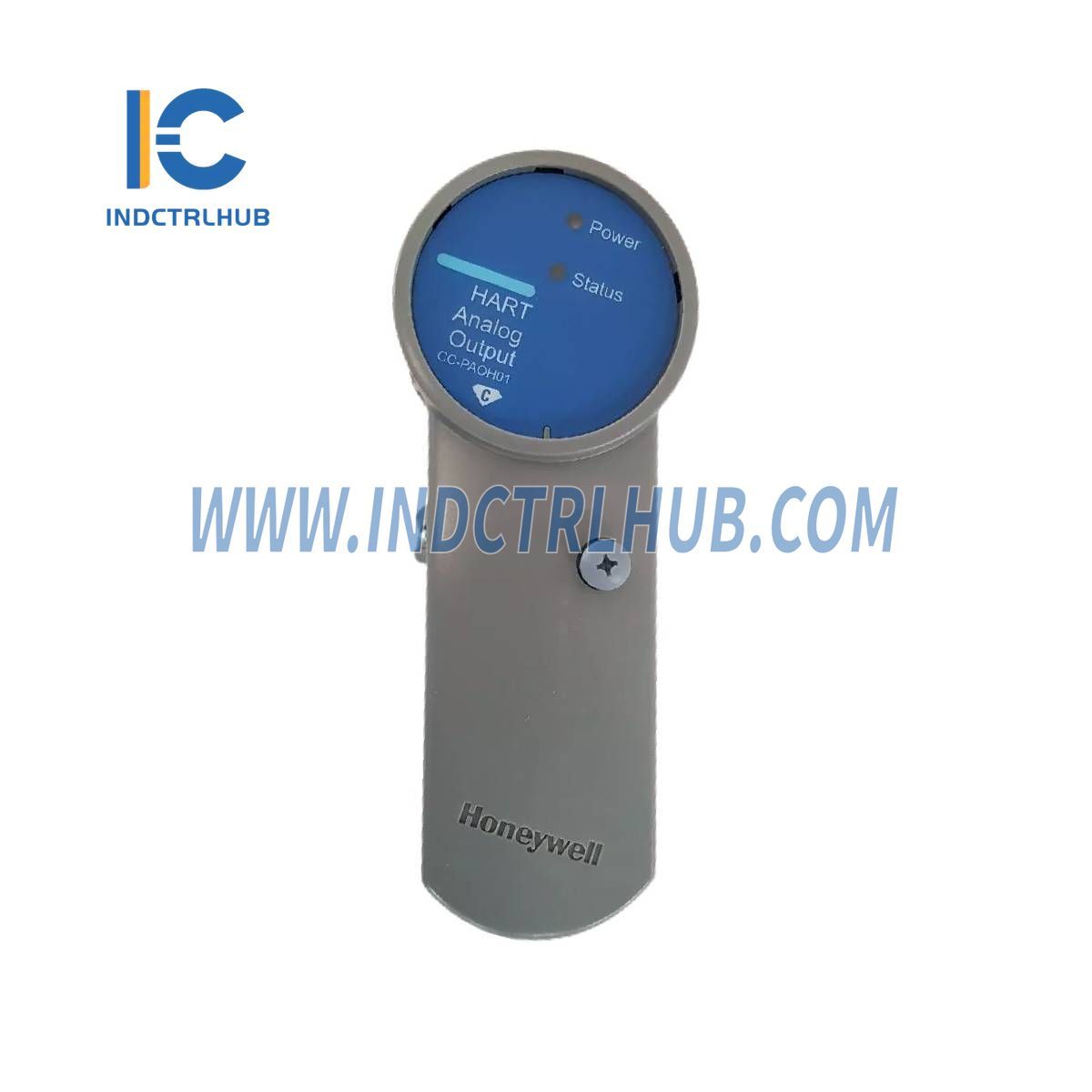

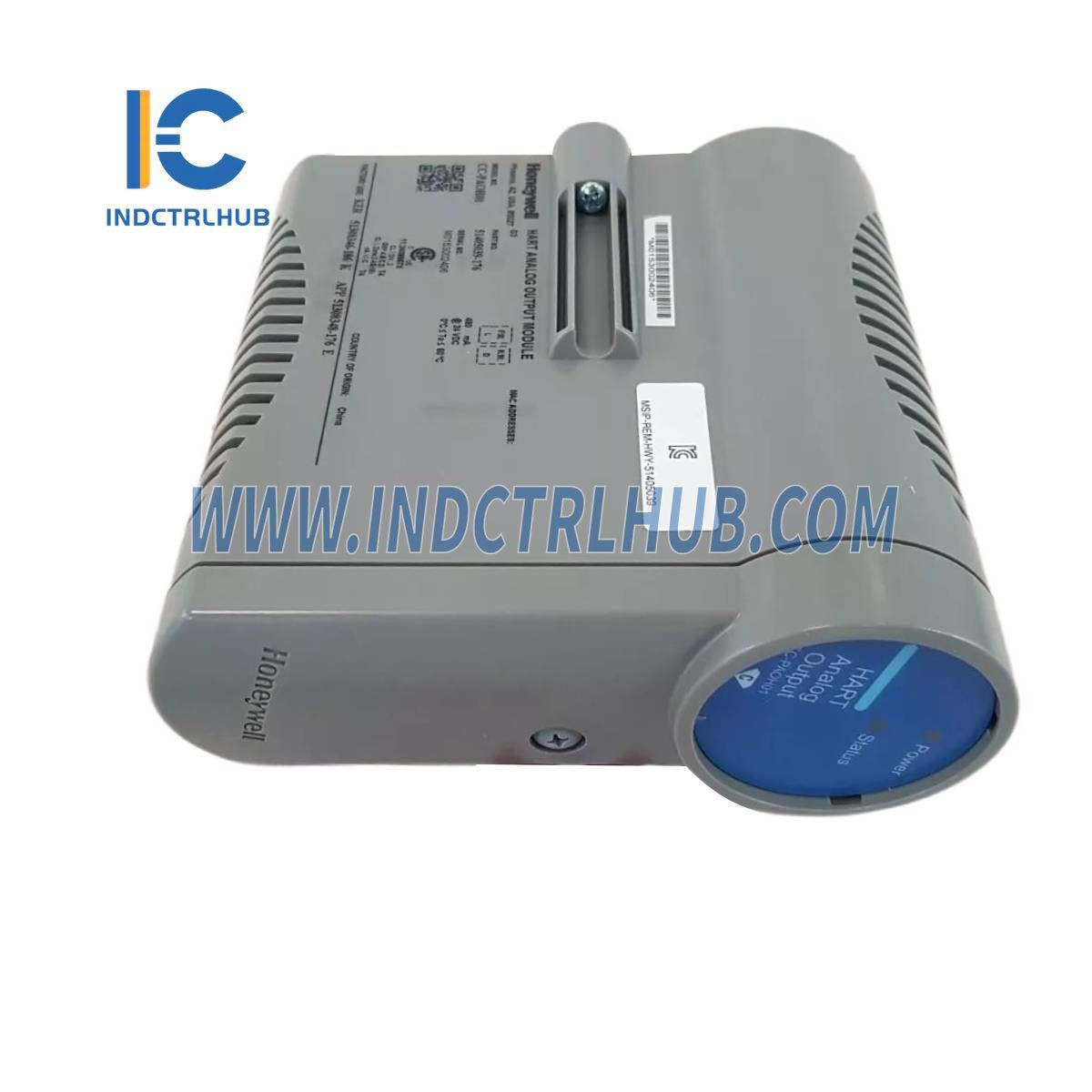

Honeywell CC-PAOH01 Analog Output with HART

Honeywell CC-PAOH01 Analog Output with HART

  • Manufacturer: Honeywell

  • Product No.: CC-PAOH01

  • Condition:1000 in stock

  • Product Type: Analog Output with HART

  • Product Origin: USA

  • Payment: T/T, Western Union

  • Weight: 1000g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

General Information

Manufacturer

Honeywell

Model/Part Number

CC-PAOH01

Description

Analog Output with HART

Technical Specifications

Parameter

Specification

Input/Output Model

CC-PAOH01 - High-Level Analog Output with HART

IOTA Models

Non-Redundant: CC-TAOX01 (6”), CC-GAOX21 (6”)  Redundant: CC-TAOX11 (12”), CC-GAOX11 (12”)

Output Type

4-20 mA

Output Channels

16

Output Ripple

< 100 mV peak-to-peak at power line frequency, across 250 Ω load

Output Temperature Drift

0.005% of Full Scale/°C

Output Readback Accuracy

±4% of Full Scale

Output Current Linearity

± 0.05% of Full Scale nominal

Resolution

± 0.05% of Full Scale

Calibrated Accuracy

± 0.35% of Full Scale (25°C) including linearity

Directly Settable Output Current Range

0 mA, 2.9 mA to 21.1 mA

Maximum Resistive Load (24 V supply = 22 VDC through 28 VDC)

800 ohms

Maximum Output Compliant Voltage (24 V supply = 22 VDC through 28 VDC)

16 V

Maximum Open Circuit Voltage

22 V

Response Time (DAC input code to output)

Settles to within 1% of final value within 80 ms

Gap (0 mA) of Output to Field on Switchover

10 ms maximum (applies to Redundancy only)
