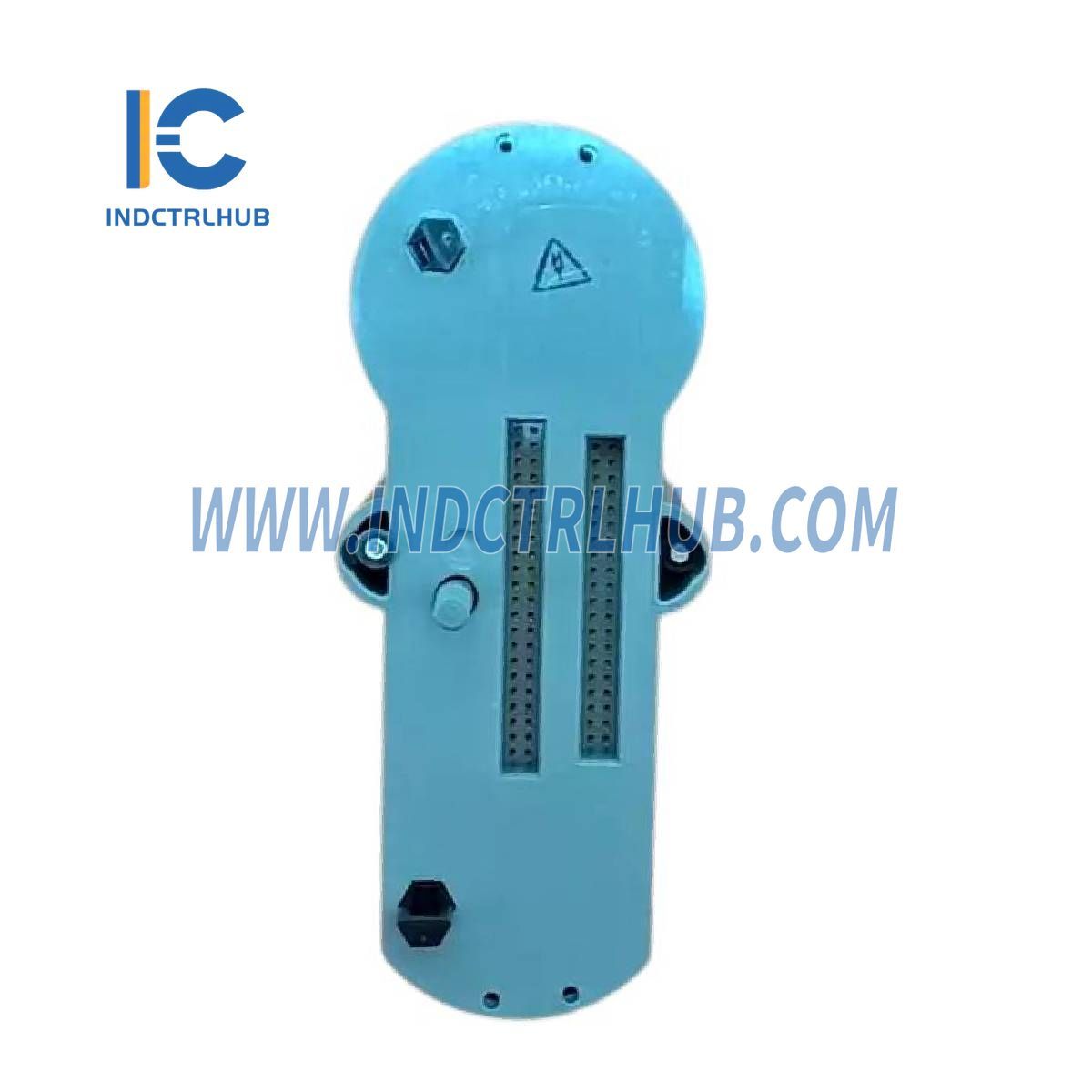

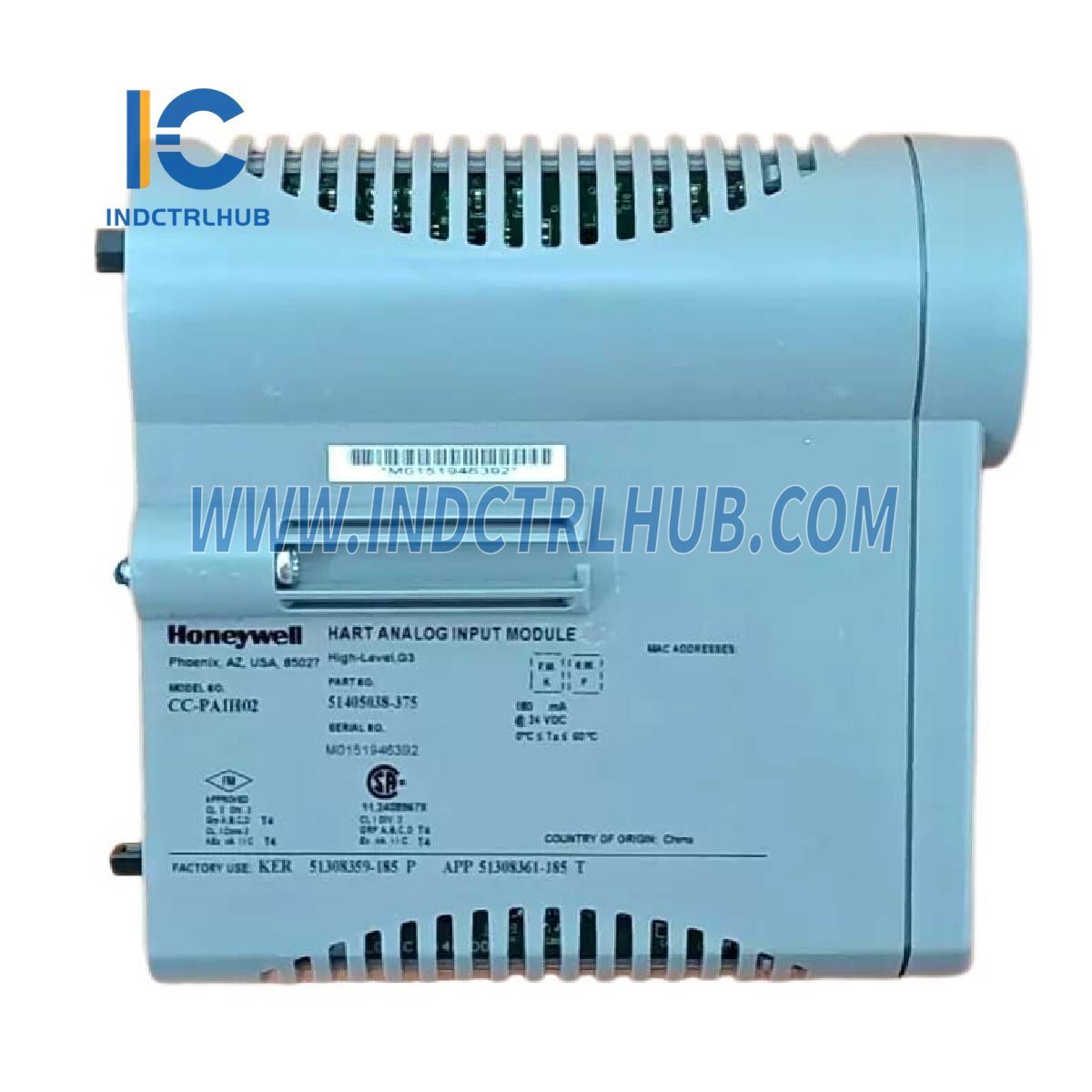

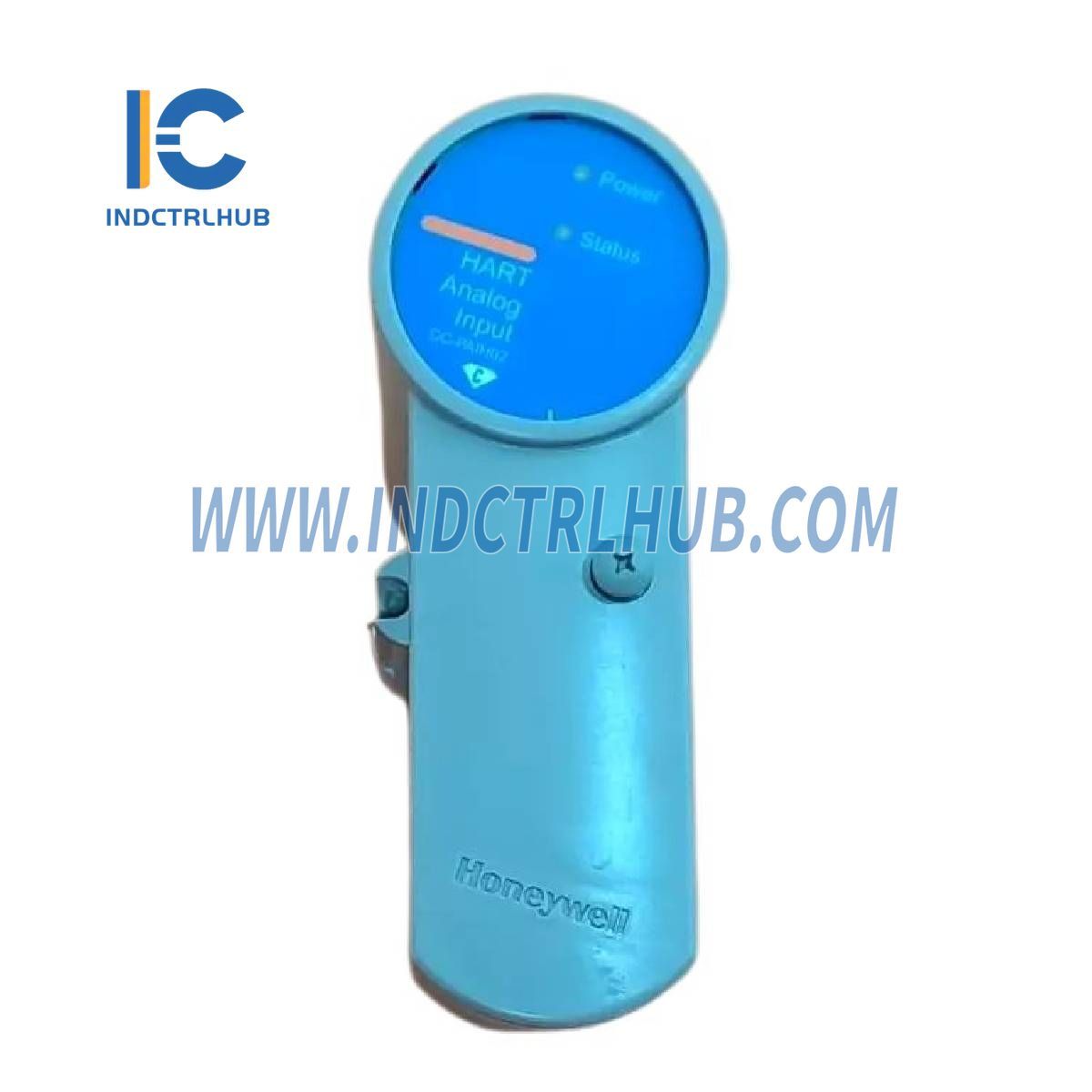

Honeywell CC-PAIH02 High-Level Analog Input with HART

Honeywell CC-PAIH02 High-Level Analog Input with HART

  • Manufacturer: Honeywell

  • Product No.: CC-PAIH02

  • Condition:1000 in stock

  • Product Type: High-Level Analog Input with HART

  • Product Origin: USA

  • Payment: T/T, Western Union

  • Weight: 1000g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

General Information

Manufacturer

Honeywell

Model/Part Number

CC-PAIH02

Description

High-Level Analog Input with HART

Technical Specifications

Parameter

Specification

Input/Output Model

CC-PAIH02 - High-Level Analog Input with HART

IOTA Models

Non-Redundant: CC-TAIX01, CC-GAIX21, CC-TAID01  Redundant: CC-TAIX11, CC-GAIX11, CC-TAID11

Input Type

Voltage, current (2-wire or self-powered transmitters)

Input Channels

16 Channels (12 Single Ended / 4 Differential)

Common Mode Rejection Ratio (DC to 60 Hz, 500 Ω source imbalance)

70 dB

Common Mode Voltage (DC to 60 Hz)

-6 to +5 V peak

A/D Converter Resolution

16 bits

Input Range

0 to 5 V, 1 to 5 V, 0.4 to 2 V, 4-20 mA (through 250 Ω)

Normal Mode Rejection Ratio (at 60 Hz)

19 dB

Normal Mode Filter Response

Single-pole RC, -3 dB @ 6.5 Hz

Maximum Normal Mode Input (Differential Inputs, No Damage)

± 30 Volts

Crosstalk (DC to 60 Hz, Channel-to-Channel)

-60 dB

Input Impedance (Voltage Inputs)

> 10 MΩ (powered)

Input Scan Rate

50 ms

Hardware Accuracy (@ CMV = 0 V)

± 0.075% of full-scale (23.5°± 2°C)  ± 0.15% of full-scale (0 to 60°C)

Transmitter Field Power Conditioning

Individually Protected Current Limiting Circuits for Class 1, Div 2 non-incendive interfacing. No fusing required




View full details

Product Description

General Information

Manufacturer

Honeywell

Model/Part Number

CC-PAIH02

Description

High-Level Analog Input with HART

Technical Specifications

Parameter

Specification

Input/Output Model

CC-PAIH02 - High-Level Analog Input with HART

IOTA Models

Non-Redundant: CC-TAIX01, CC-GAIX21, CC-TAID01  Redundant: CC-TAIX11, CC-GAIX11, CC-TAID11

Input Type

Voltage, current (2-wire or self-powered transmitters)

Input Channels

16 Channels (12 Single Ended / 4 Differential)

Common Mode Rejection Ratio (DC to 60 Hz, 500 Ω source imbalance)

70 dB

Common Mode Voltage (DC to 60 Hz)

-6 to +5 V peak

A/D Converter Resolution

16 bits

Input Range

0 to 5 V, 1 to 5 V, 0.4 to 2 V, 4-20 mA (through 250 Ω)

Normal Mode Rejection Ratio (at 60 Hz)

19 dB

Normal Mode Filter Response

Single-pole RC, -3 dB @ 6.5 Hz

Maximum Normal Mode Input (Differential Inputs, No Damage)

± 30 Volts

Crosstalk (DC to 60 Hz, Channel-to-Channel)

-60 dB

Input Impedance (Voltage Inputs)

> 10 MΩ (powered)

Input Scan Rate

50 ms

Hardware Accuracy (@ CMV = 0 V)

± 0.075% of full-scale (23.5°± 2°C)  ± 0.15% of full-scale (0 to 60°C)

Transmitter Field Power Conditioning

Individually Protected Current Limiting Circuits for Class 1, Div 2 non-incendive interfacing. No fusing required
