Product Description
General Information
|

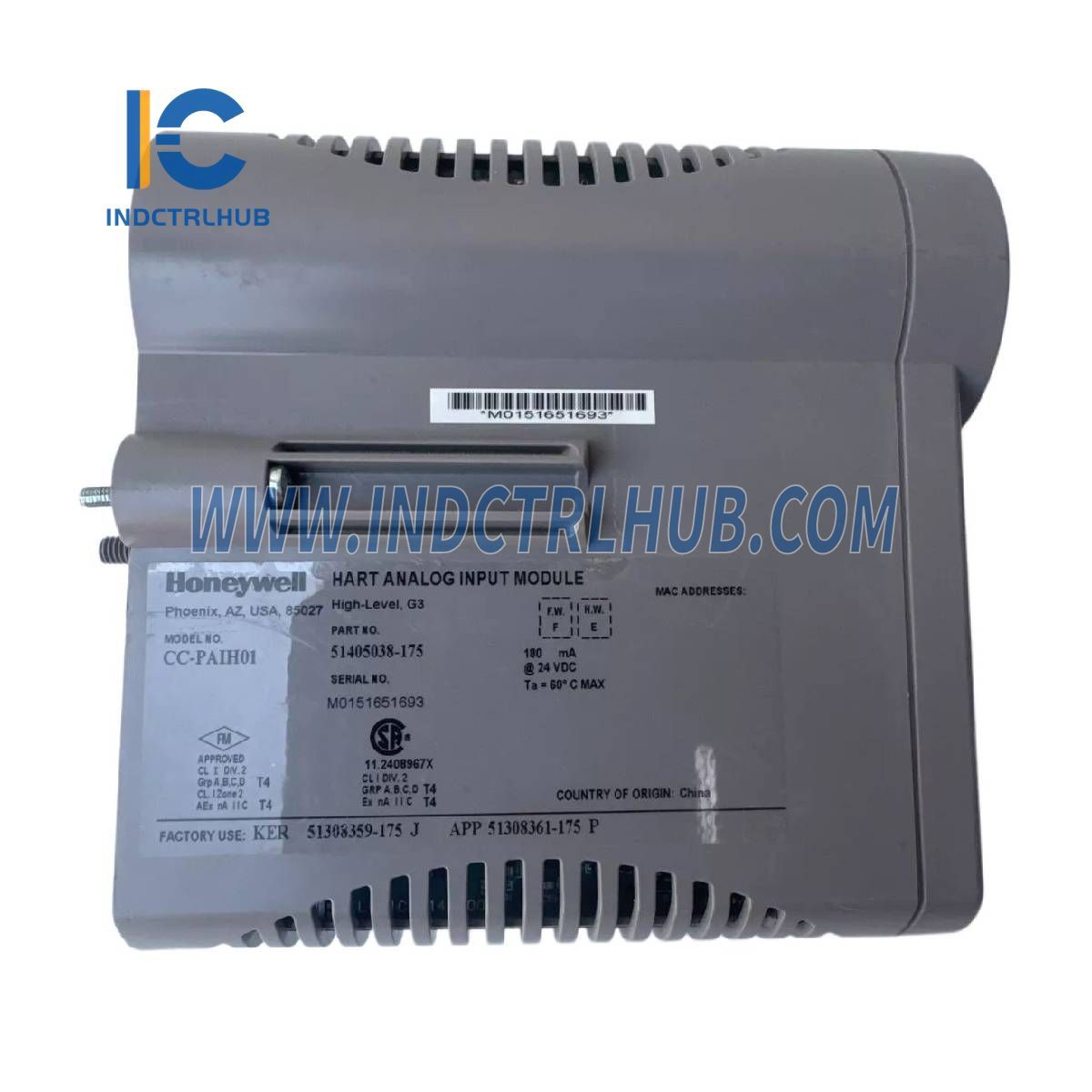

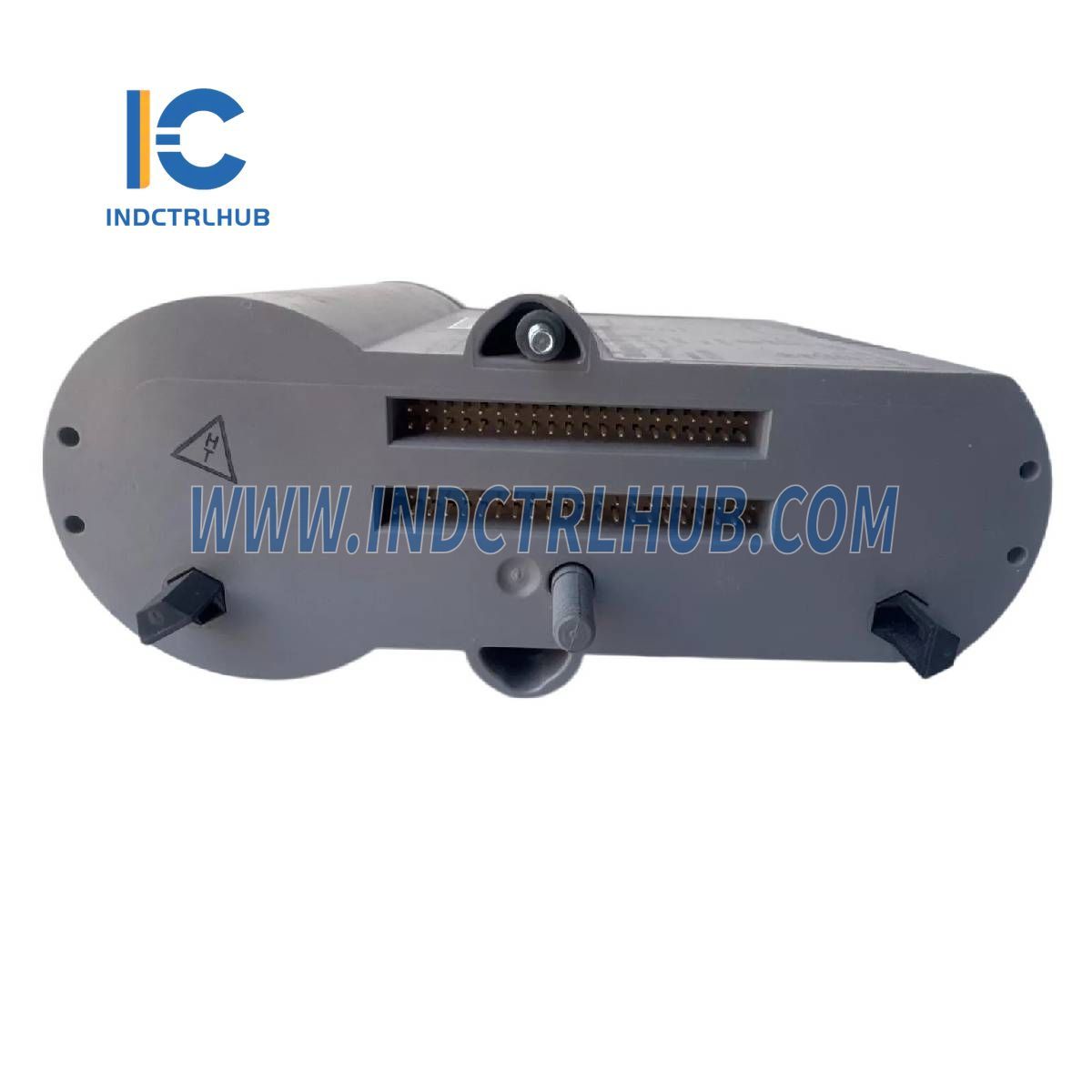

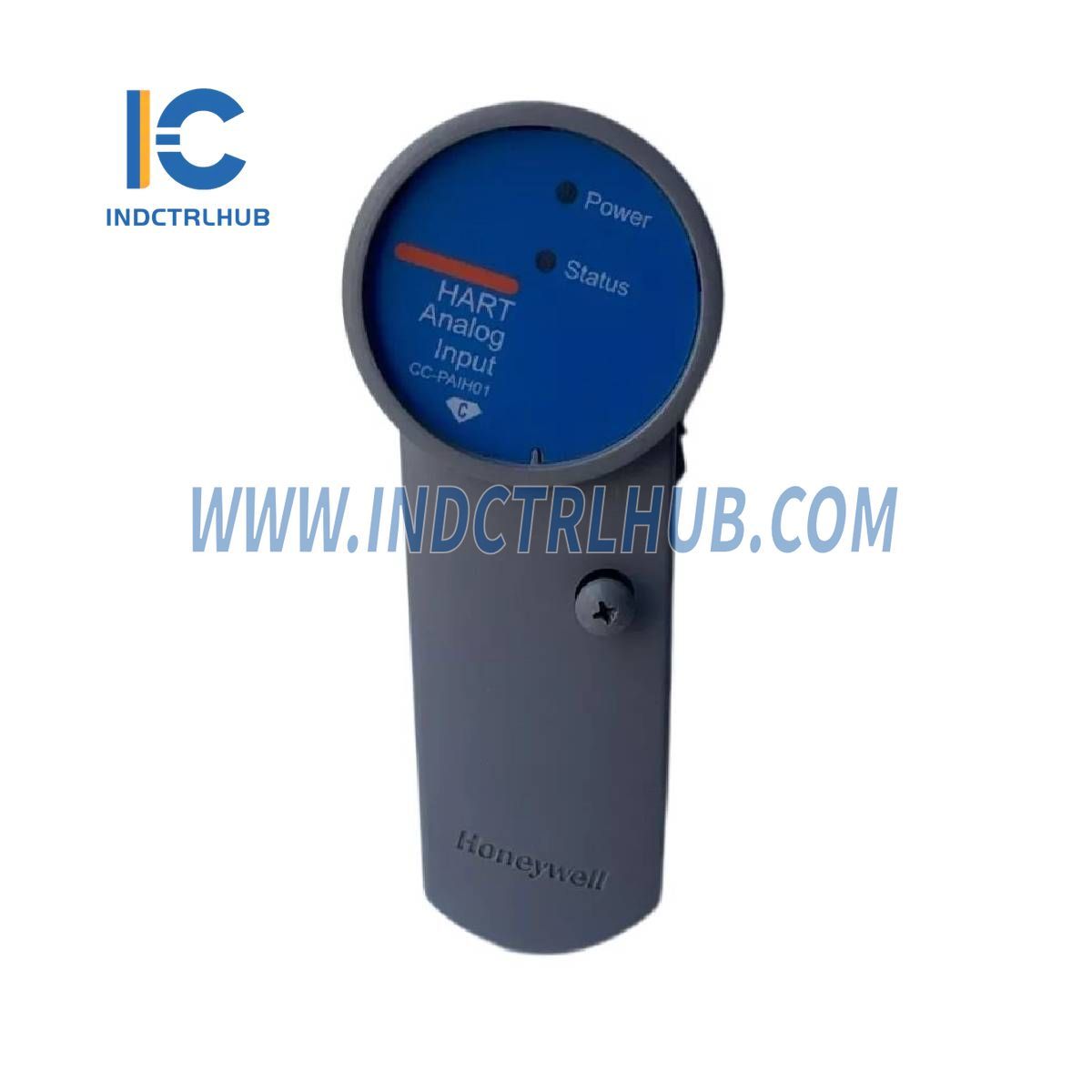

Manufacturer |
Honeywell |
|---|---|
|
Model/Part Number |
CC-PAIH01 |
|
Description |
Analog Input with HART |
Function
The Analog Input Module accepts high-level current or voltage inputs from transmitters and sensing devices.
Notable Features
• Extensive self-diagnostics
• Optional redundancy
• Open Wire Detection
• Supplies non-incendive field power
• HART-capable, multivariable instruments with multiple modems for fast data collection
• Fast loop scan
• PV protection through open wire detection diagnostic
• Open-wire Bad PV Detection
Detail Specifications – Analog Input with HART
|
Parameter |
Specification |
|---|---|
|
Input / Output Model |
CC-PAIH02 - High-Level Analog Input with HART |
|
IOTA Models |
Non-Redundant: CC-TAIX01, CC-GAIX21, CC-TAID01 Redundant: CC-TAIX11, CC-GAIX11, CC-TAID11 |
|
Input Type |
Voltage, current (2-wire or self-powered transmitters) |
|
Input Channels |
16 Channels (12 Single-Ended / 4 Differential) |
|
Common Mode Rejection Ratio (500 Ω source imbalance, DC to 60 Hz) |
70 dB |
|
Common Mode Voltage (DC to 60 Hz) |
-6 to +5 V peak |
|
A/D Converter Resolution |
16 bits |
|
Input Range |
0 to 5 V, 1 to 5 V, 0.4 to 2 V, 4-20 mA (through 250 Ω) |
|
Normal Mode Rejection Ratio (at 60 Hz) |
19 dB |
|
Normal Mode Filter Response |
Single-pole RC, -3 dB @ 6.5 Hz |
|
Maximum Normal Mode Input (Differential Inputs, No Damage) |
±30 Volts |
|
Crosstalk (DC to 60 Hz, Channel-to-Channel) |
-60 dB |
|
Input Impedance (Voltage Inputs) |
>10 MΩ powered |
|
Input Scan Rate |
50 ms |
|
Hardware Accuracy (@ CMV = 0 V) |
±0.075% of full-scale (23.5°±2°C) ±0.15% of full-scale (0 to 60°C) |
|
Transmitter Field Power Conditioning |
Individually Protected Current Limiting Circuits for Class 1, Div 2 non-incendive interfacing. No fusing required |
