Product Description
Product Overview

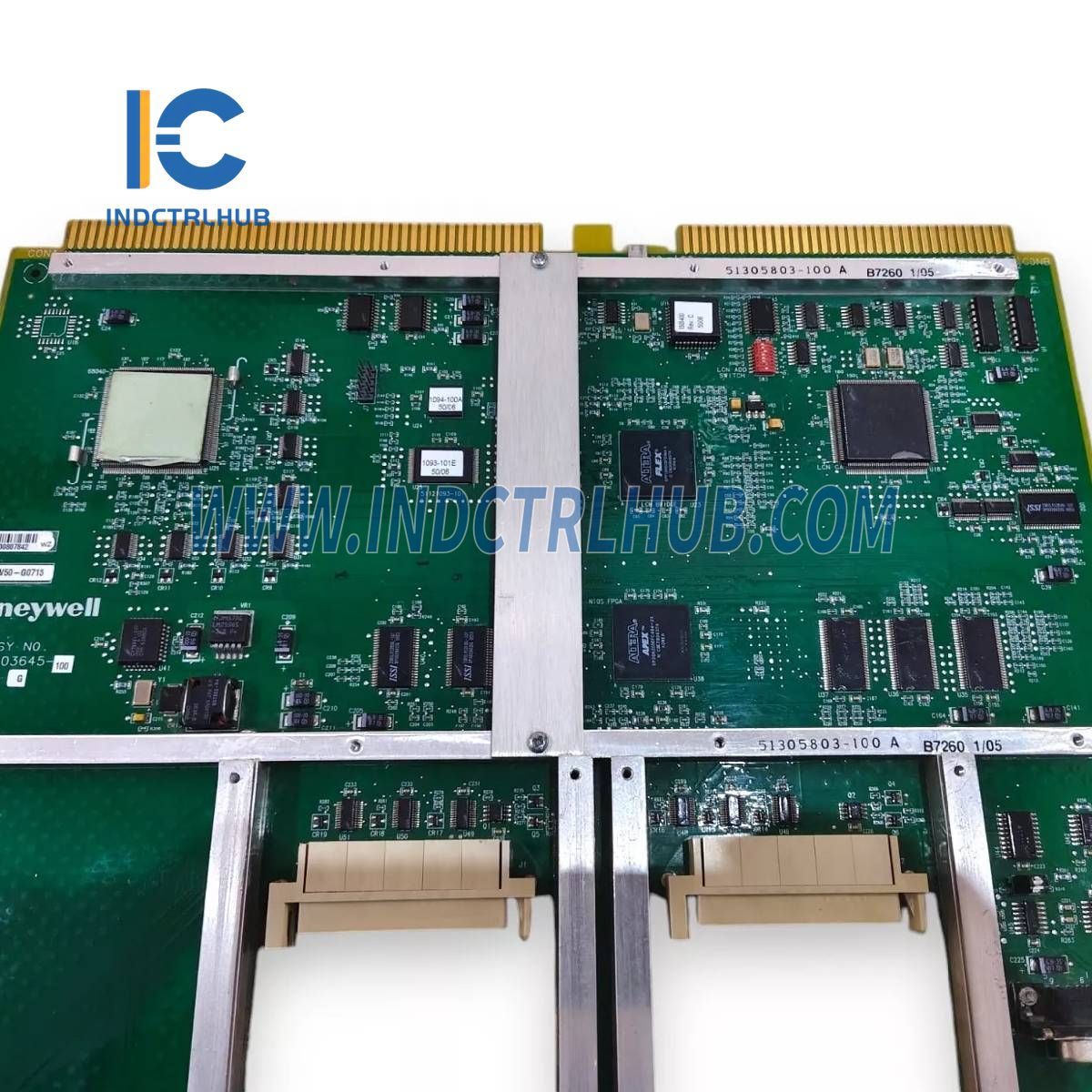

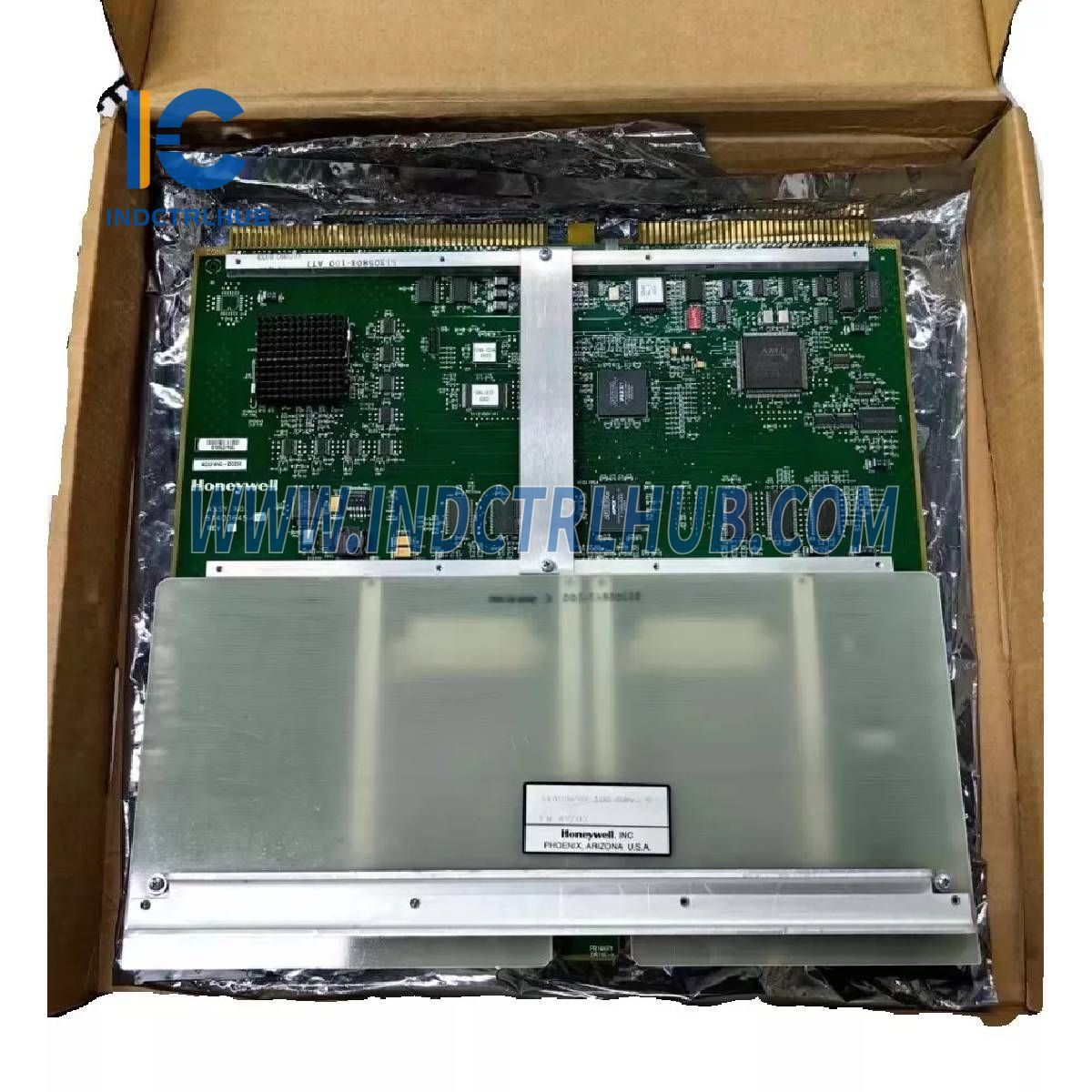

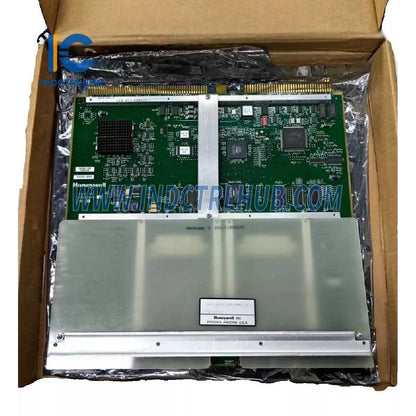

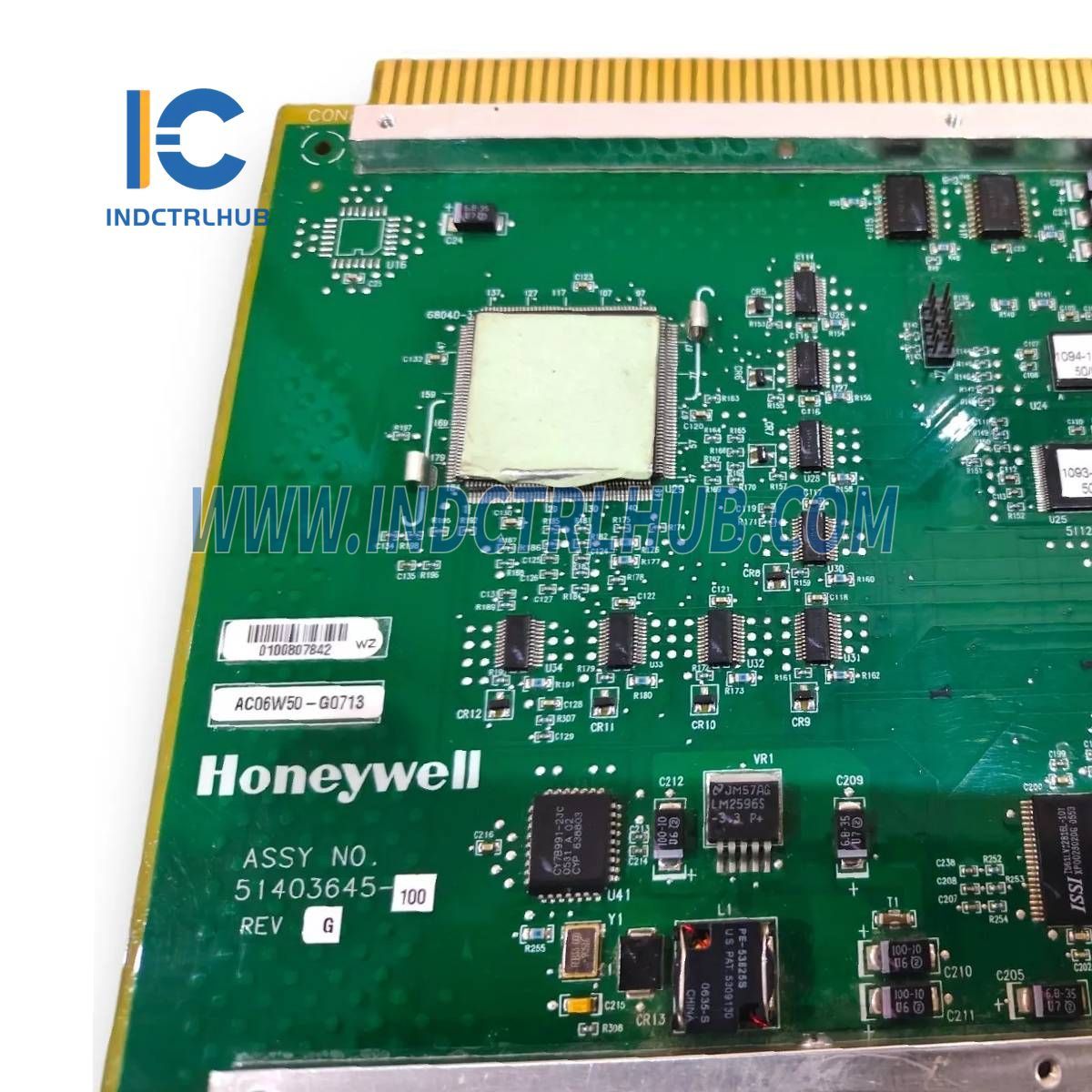

The Honeywell 51403645-100 is an SBHM (Single Board History Module) designed for use within Honeywell’s TDC 3000 Distributed Control System (DCS), commonly deployed in the Process Manager (PM), Advanced Process Manager (APM), or High Performance Process Manager (HPM) systems. Manufactured by Honeywell, a leader in automation solutions, this module consolidates the processor, SCSI interface, and storage media onto a single board, providing historical data logging and management capabilities. It is suited for industrial applications in oil and gas, chemical processing, and power generation, offering reliable data storage for process analysis and regulatory compliance, with a capacity of 1.8 GB per logical drive and support for dual logical drives.
Technical Information
| Item | Specifications |
|---|---|
| Manufacturer | Honeywell |
| Series | TDC 3000 (PM / APM / HPM) |
| Model/Part Number | 51403645-100 |
| Description | SBHM - Single Board History Module |
| Storage Capacity | 1.8 GB per logical drive (dual drive support) |
| Interface | SCSI (integrated on-board) |
| Power Supply | 5 V AC |
| Operating Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
| Dimensions | 114 mm L x 64 mm W x 38 mm H (4.5 in x 2.5 in x 1.5 in) |
| Weight | 0.23 kg (0.5 lb) |
