Product Description

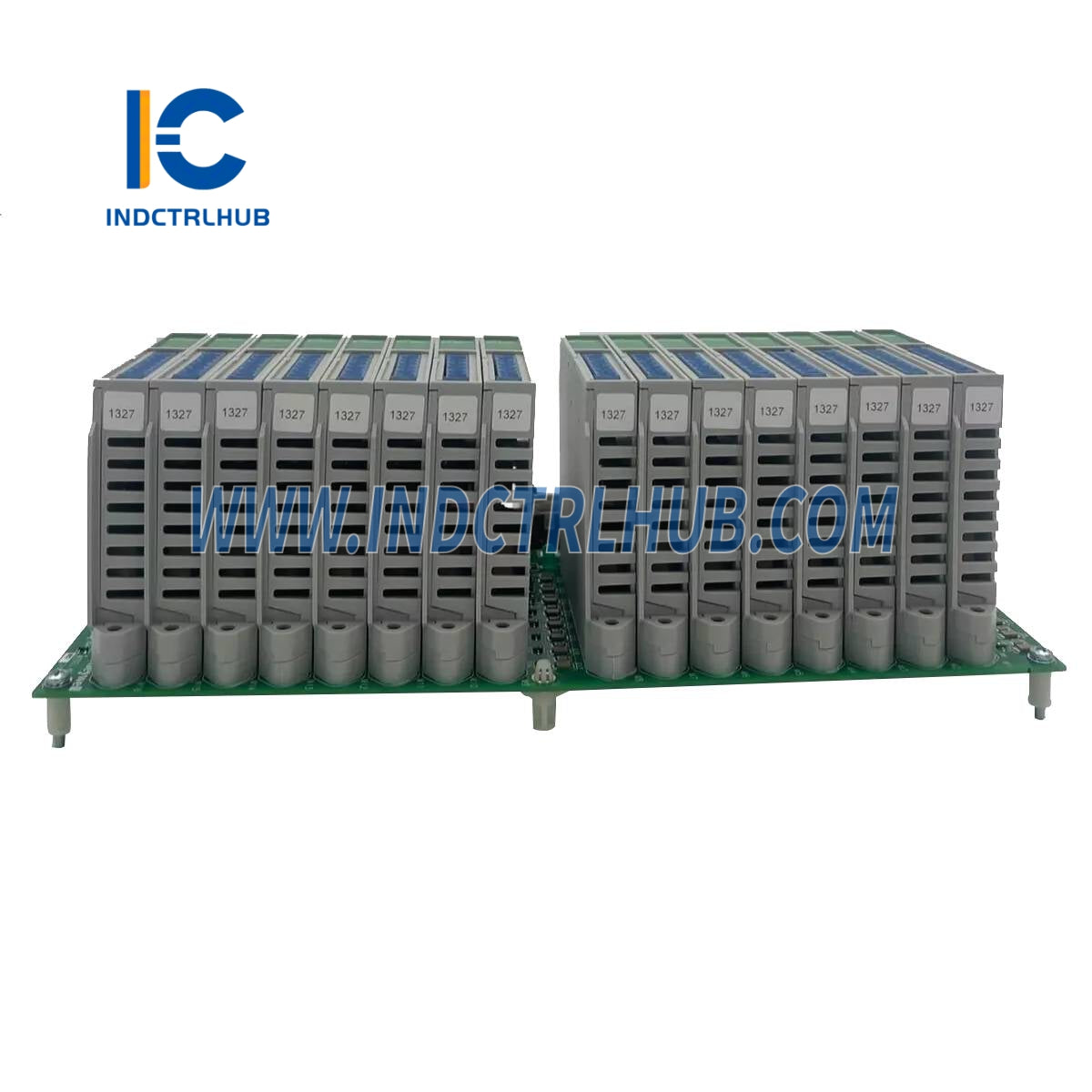

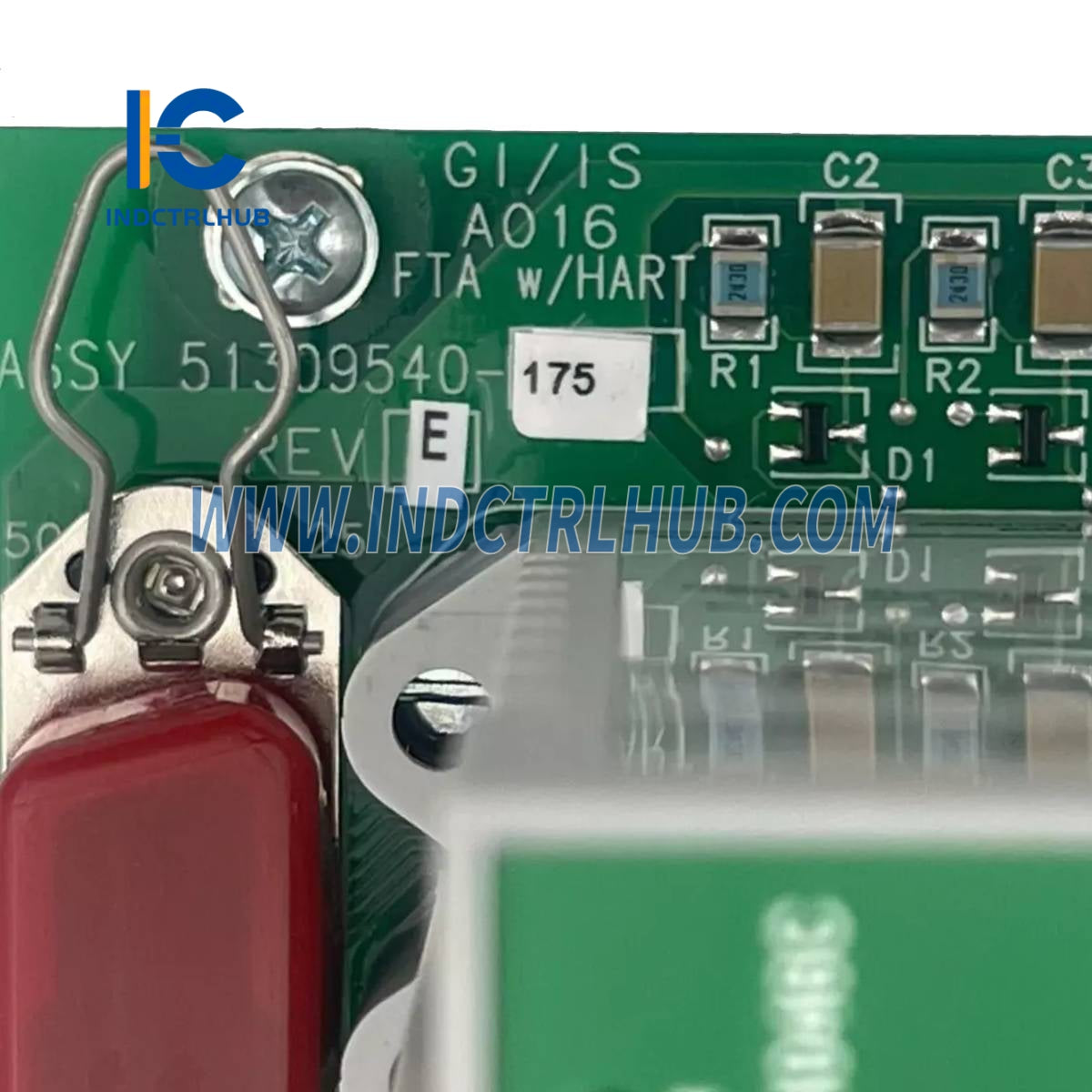

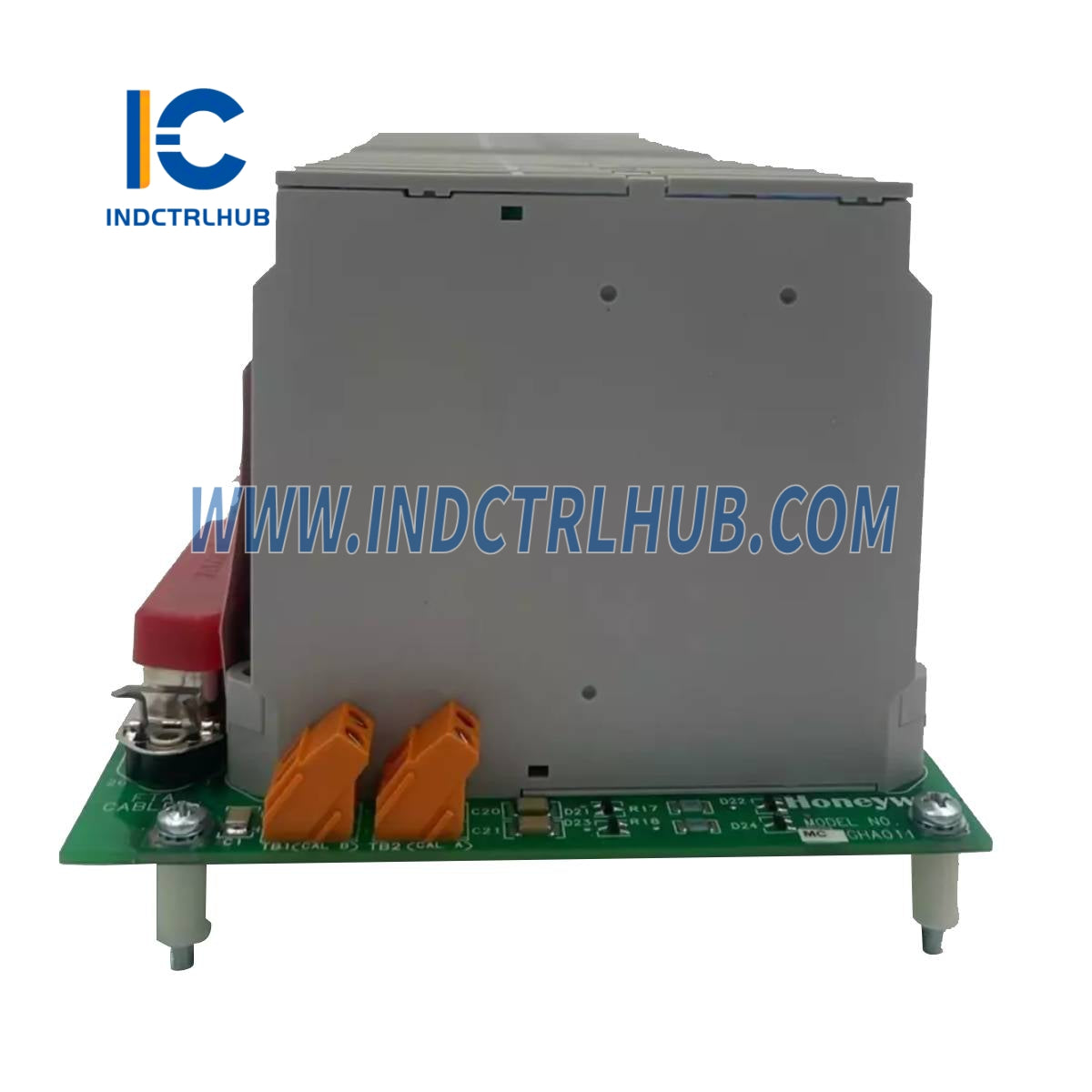

Honeywell MC-TAIL02 51309540-175 Low Level Analog Input FTA
Product Overview
- The Honeywell MC-TAIL02 51309540-175 is a Low Level Analog Input Field Termination Assembly (FTA) designed for use in Honeywell’s Universal Control Network (UCN) within the TDC 3000 and Experion Process Knowledge System (PKS) platforms. This module supports the acquisition of low-level analog signals, such as those from thermocouples or millivolt sources, with up to 8 input channels. It is ideal for industrial automation applications requiring precise monitoring of low-level signals in distributed control systems.
Technical Specifications
- The MC-TAIL02 has the following specifications based on standard characteristics for this model:
| Specification | Details |
|---|---|
| Model/Part Number | MC-TAIL02 51309540-175 |
| Manufacturer | Honeywell |
| Description | Low Level Analog Input FTA (8 Inputs) |
| Series | TDC 3000 / Experion PKS |
| Input Channels | 8 channels |
| Input Types | Thermocouple, mV |
| Terminals | Screw-type or compression terminals |
| Power Supply | 24 VDC nominal (via I/O rack) |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Weight | Approx. 0.5 kg |
Additional Details
- The MC-TAIL02 includes the following additional information based on its standard use and documentation:
- Function: Facilitates the connection and processing of low-level analog input signals, such as thermocouples or millivolt inputs, for accurate data acquisition in control systems.
- Mounting: Installs in TDC 3000 or Experion PKS I/O rack, connected to I/O processors via standard FTA cables (up to 50 meters in length).
- Compatibility: Compatible with Honeywell’s TDC 3000 Process Manager, Experion PKS C300 Controller, and related low-level analog input processors.
- Configuration: Configured via Honeywell’s control system software; supports open thermocouple detection for data integrity. Redundancy is not supported.
- Certifications: Meets UL, CE, and ATEX standards for industrial environments.
- Part Type: Available as new, surplus, or refurbished (depending on supplier).
- Features: Compact design for efficient rack space utilization; robust construction for reliable performance in harsh industrial conditions.
Note: Specifications for the MC-TAIL02 51309540-175 are compiled from industry sources and supplier documentation for similar Honeywell FTA modules, as specific details for this model are limited. For precise details, refer to Honeywell’s official technical documentation or contact a certified supplier.
