Product Description
Product Overview
Manufacturer: Honeywell
Model/Part Number: 51308112-100

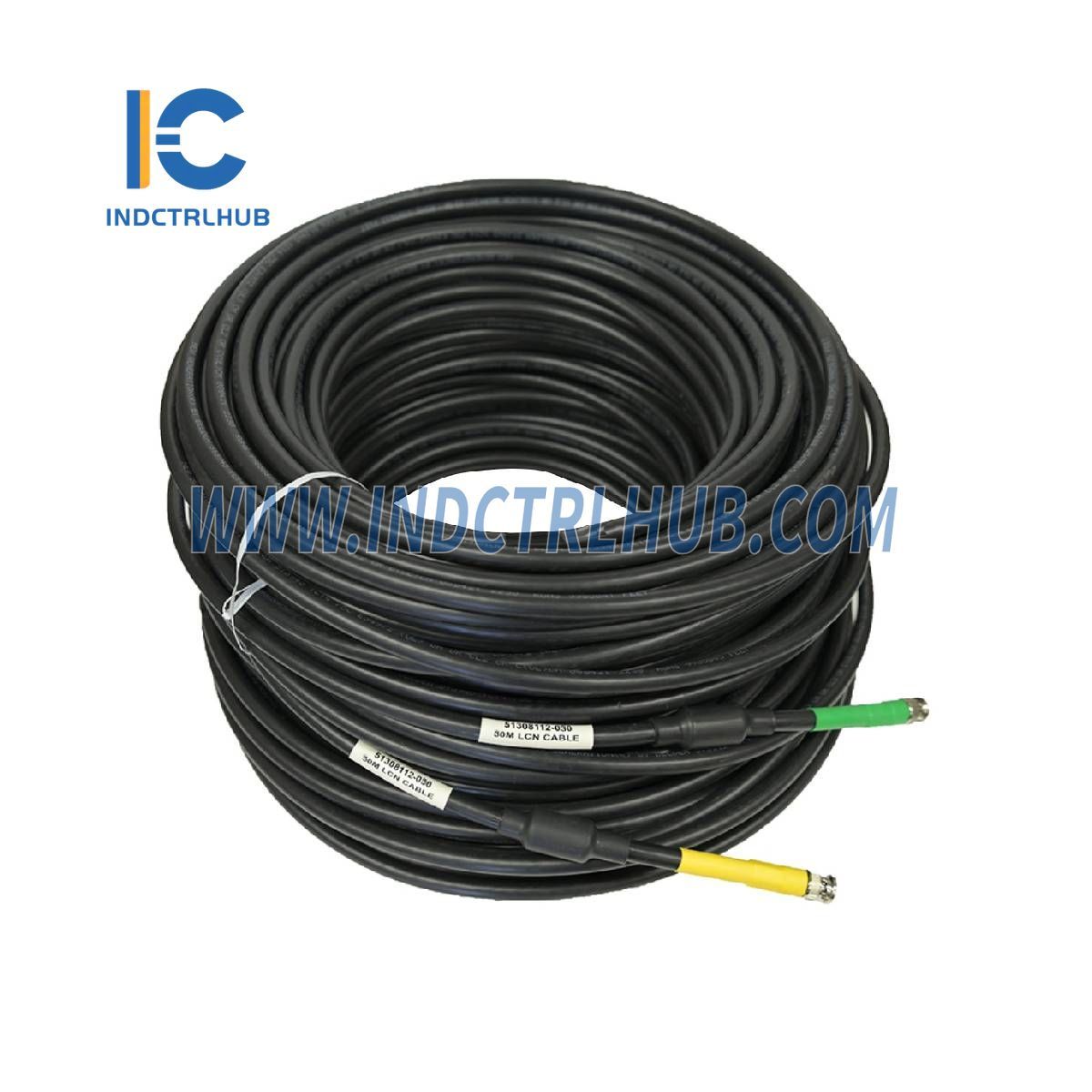

Description: LCN Coax Cable Components
The Honeywell 51308112-100 is part of the LCN Coax Cable Components designed for reliable communication within Local Control Networks (LCN). The system includes coaxial cables, connectors, and termination resistors to ensure proper signal transmission and integrity.
Technical Specifications
Cable Specifications
| Specification |
Value |
| Maximum Cable Length |
300 meters (984 feet) |
| Minimum Cable Length Between Nodes |
2 meters (78 inches) |
| Cable Type |
LCN Coaxial-Cable Set (System Cables) |
Available Cable Lengths
| Honeywell Part Number |
Length (meters) |
| 51308112-003 |
3 meters |
| 51308112-008 |
8 meters |
| 51308112-015 |
15 meters |
| 51308112-030 |
30 meters |
| 51308112-050 |
50 meters |
| 51308112-100 |
100 meters |
| 51308112-200 |
200 meters |
| 51308112-XXX |
Variable length (Max: 300 meters) |
Installation Guidelines
- Each cable set consists of two cables, marked A & B, which must remain correctly matched across all nodes.
-
Minimum cable length between nodes: Use Honeywell Part Number 51308111-002, which includes two cables (Cable A & Cable B).
- Ensure cables are not crossed or substituted with unauthorized alternatives.
Connectors & Termination
| Component |
Part Number |
Notes |
| BNC Tee-Connectors |
51190728-105 |
Not interchangeable with Data Hiway connectors |
| Termination Resistors |
30732052-001 |
Required at each end of both coaxial cables |
