Product Description
Product Overview

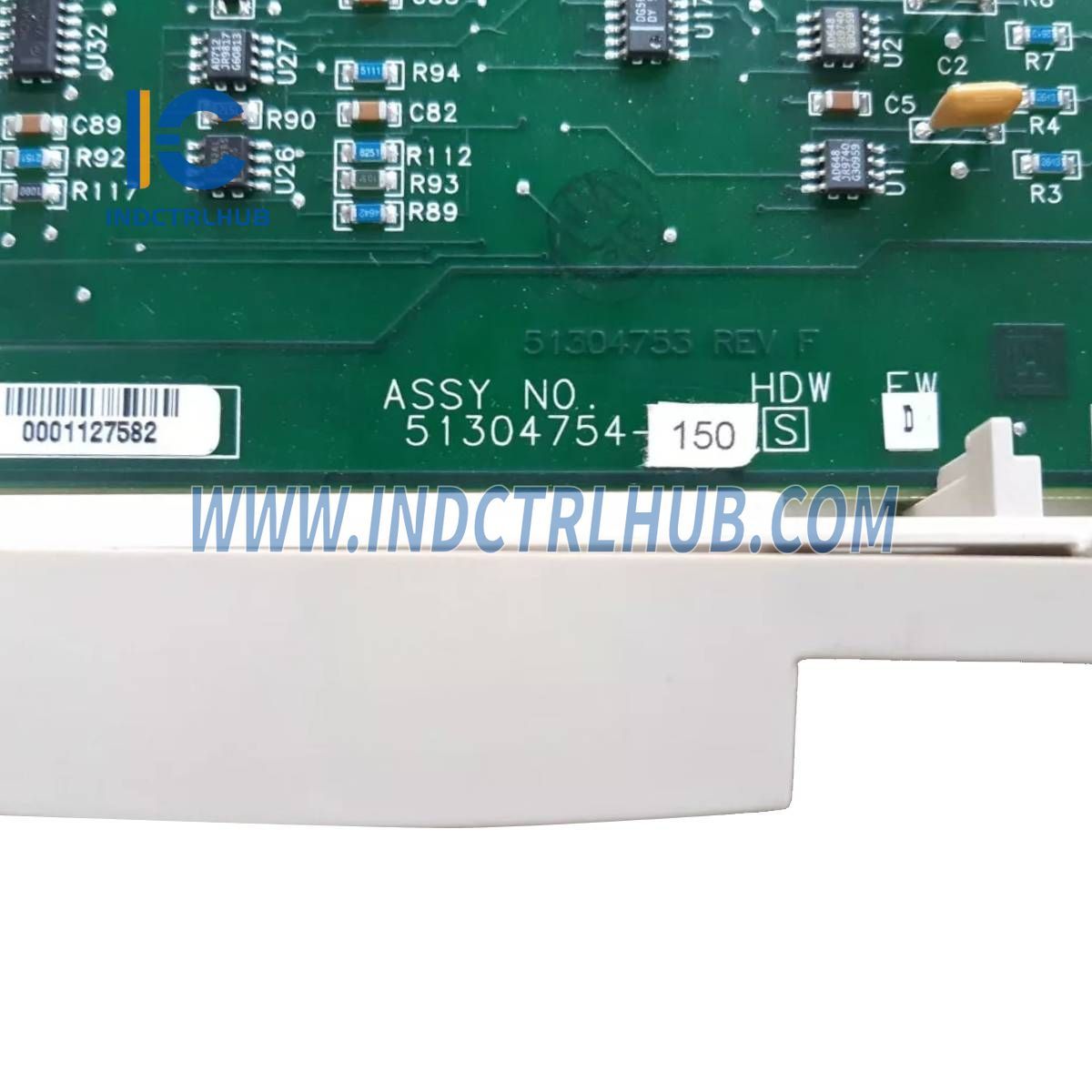

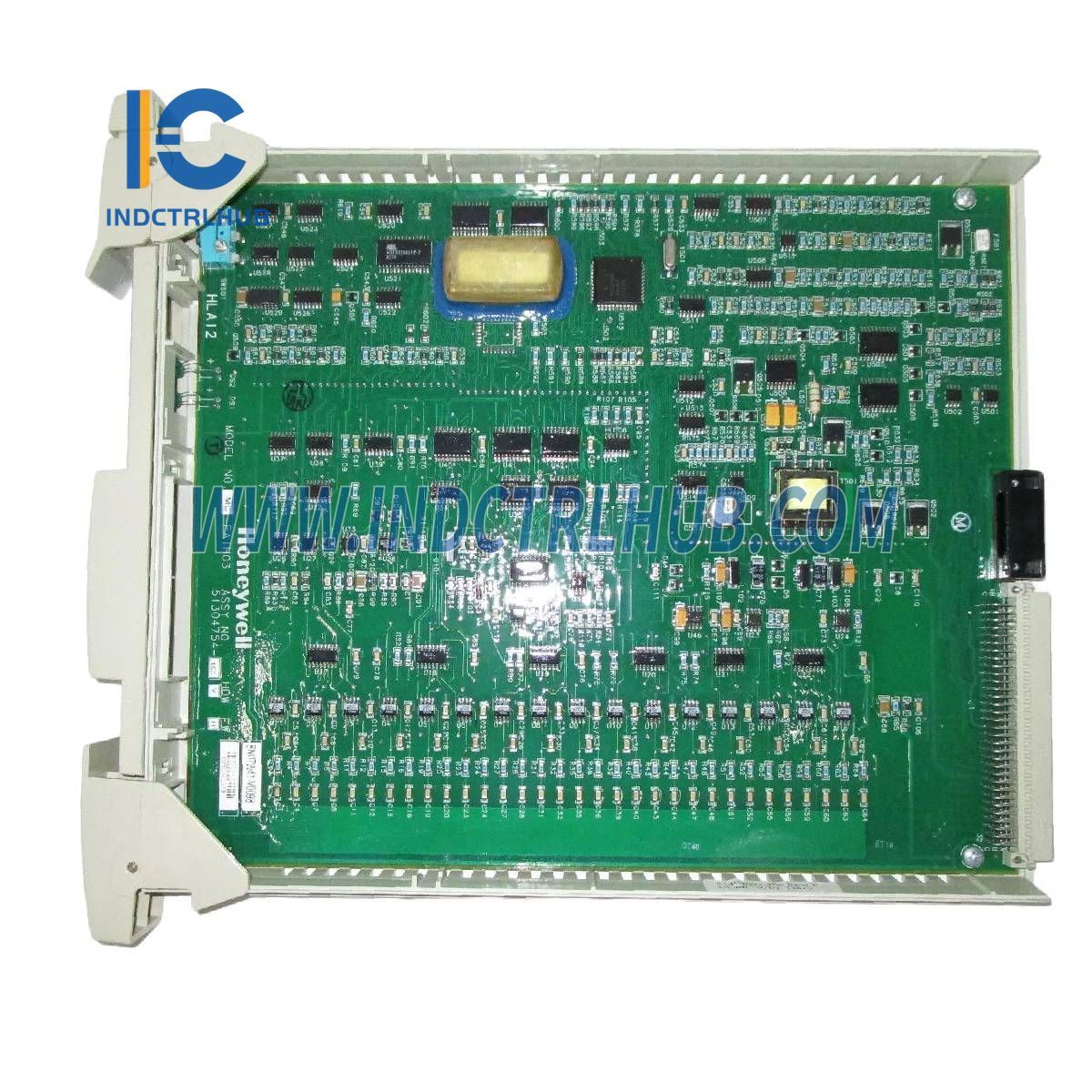

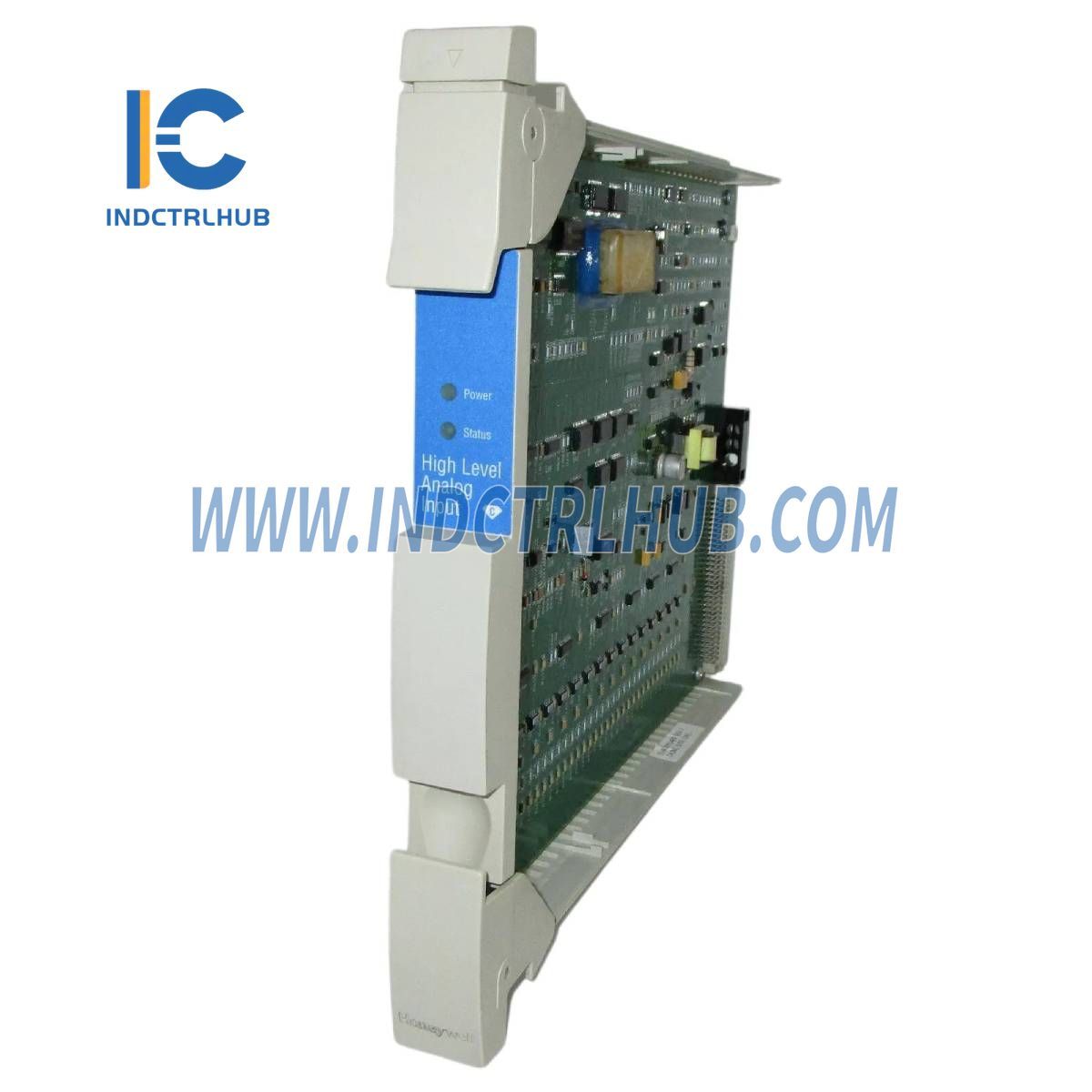

The Honeywell 51304754-150, designated as the MC-PAIH03, is a High Level Analog Input (HLAI) Processor Module designed for industrial automation within Honeywell’s Experion Process Knowledge System (PKS) or TDC 3000 control systems. Manufactured by Honeywell, a leader in process control solutions, this module features 16 differential analog input channels, capable of processing high-level signals such as 4-20 mA, 0-5 V, 1-5 V, and 0.4-2 V from field devices like transmitters and sensors. It is suited for applications in manufacturing, oil and gas, power generation, chemical processing, and water treatment, offering high precision, fast sampling, and robust integration with field termination assemblies (FTAs) for reliable signal processing.
Technical Information
| Item | Specifications |
|---|---|
| Manufacturer | Honeywell |
| Series | Experion PKS / TDC 3000 |
| Model/Part Number | 51304754-150 (MC-PAIH03) |
| Description | High Level Analog Input (HLAI) Processor Module |
| Input Channels | 16 (differential) |
| Input Types | 4-20 mA (via 250 Ω resistor), 0-5 V, 1-5 V, 0.4-2 V |
| Input Scan Rate | 4 samples per second per channel (250 ms window for all channels) |
| A/D Converter Resolution | 16 bits (14 bits used) |
| Hardware Accuracy | ±0.075% full-scale at 23.5 ± 2°C, ±0.15% full-scale at 0-50°C |
| Operating Temperature | 0 °C to +50 °C (32 °F to +122 °F) |
| Dimensions | 24.1 cm L x 14 cm W x 6.4 cm H (9.5 in x 5.5 in x 2.5 in) |
| Weight | 0.68 kg (1.5 lb) |
