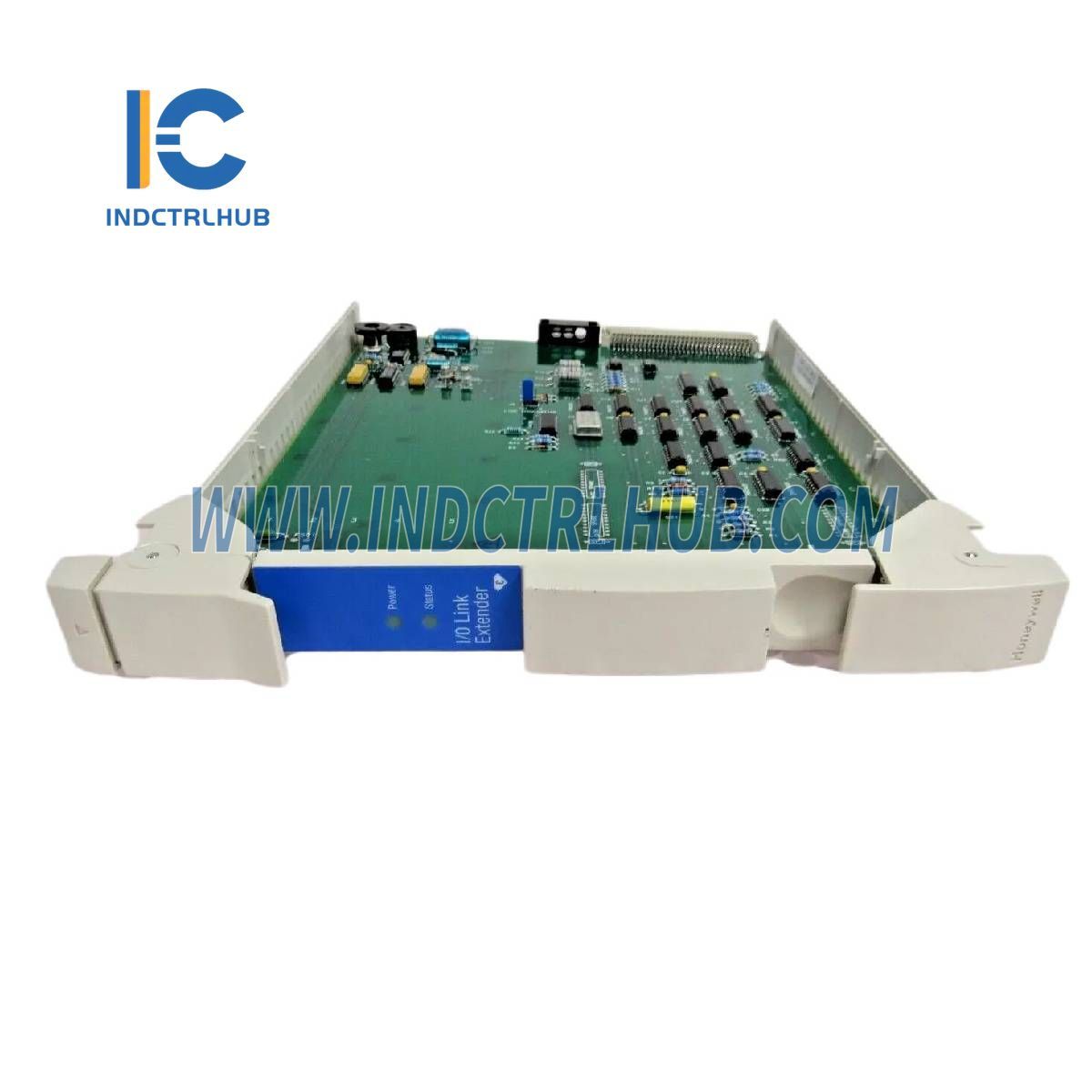

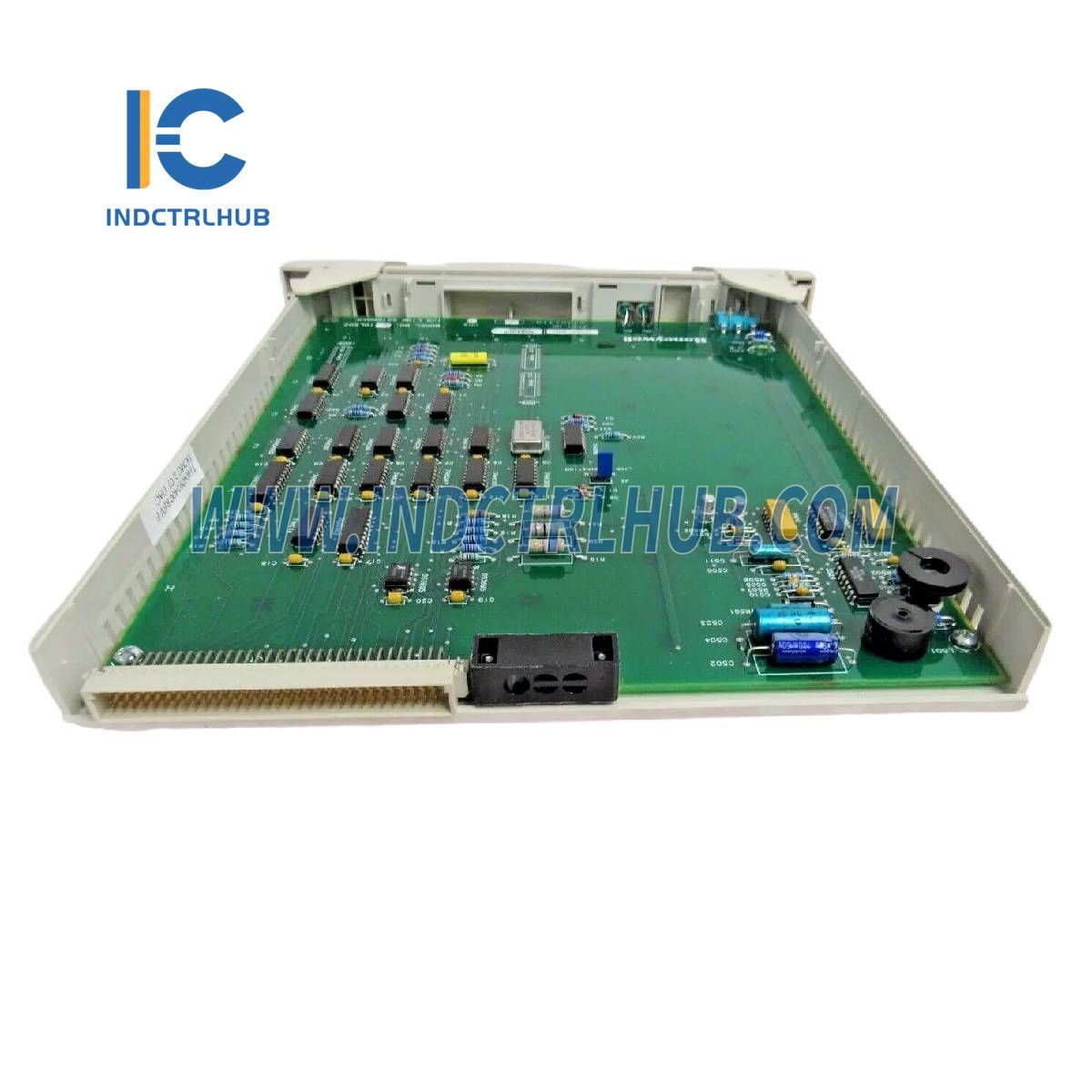

Honeywell 51304419-150 TDC 3000 Digital Output Module

Honeywell 51304419-150 TDC 3000 Digital Output Module

  • Manufacturer: Honeywell

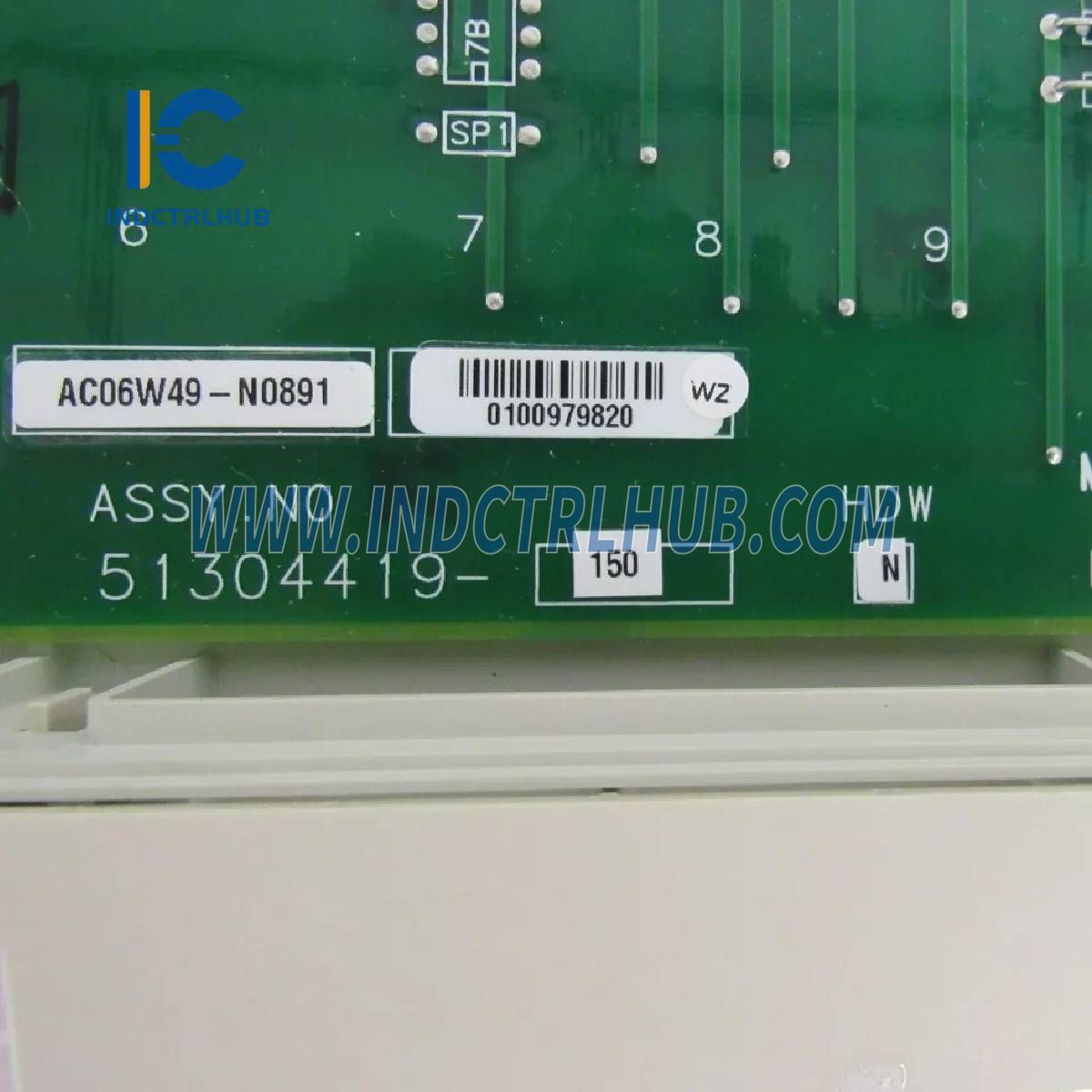

  • Product No.: 51304419-150

  • Condition:1000 in stock

  • Product Type: TDC 3000 Digital Output Module

  • Product Origin: USA

  • Payment: T/T, Western Union

  • Weight: 450g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

Product Overview

The Honeywell 51304419-150 is a Digital Output Module designed for the TDC 3000 (Total Distributed Control) system, a legacy distributed control system used in industrial automation. This module, identified as the MC-PDOY22, provides 32 digital output channels to interface with field devices such as relays, solenoids, or actuators, enabling precise control in process automation applications. It is engineered for reliability and compatibility within the TDC 3000 architecture.

Technical Specifications

The 51304419-150 has the following specifications based on standard characteristics for this model:

Item Specification
Model/Part Number 51304419-150 (MC-PDOY22)
Manufacturer Honeywell
Description TDC 3000 Digital Output Module
Series TDC 3000
Output Channels 32 digital outputs
Output Type Open collector (sinking), 24 VDC
Output Voltage 10-30 VDC
Output Current 0.5 A per point, 8 A per module maximum
Power Supply 5 VDC (from TDC 3000 backplane)
Operating Temperature 0°C to 60°C (32°F to 140°F)
Weight 0.45 kg

Additional Details

The 51304419-150 includes the following additional information based on its standard use and documentation:

Category Details
Function Controls field devices via 32 digital output channels
Mounting Installs in TDC 3000 I/O rack or chassis
Compatibility TDC 3000 controllers (e.g., HPM, APM) and FTA (Field Termination Assembly)
Indicators Status monitored via TDC 3000 system diagnostics
Certifications Meets UL and CSA standards (NRTL/C certified)
Part Type New, surplus, or refurbished (depending on supplier)



View full details

Product Description

Product Overview

The Honeywell 51304419-150 is a Digital Output Module designed for the TDC 3000 (Total Distributed Control) system, a legacy distributed control system used in industrial automation. This module, identified as the MC-PDOY22, provides 32 digital output channels to interface with field devices such as relays, solenoids, or actuators, enabling precise control in process automation applications. It is engineered for reliability and compatibility within the TDC 3000 architecture.

Technical Specifications

The 51304419-150 has the following specifications based on standard characteristics for this model:

Item Specification
Model/Part Number 51304419-150 (MC-PDOY22)
Manufacturer Honeywell
Description TDC 3000 Digital Output Module
Series TDC 3000
Output Channels 32 digital outputs
Output Type Open collector (sinking), 24 VDC
Output Voltage 10-30 VDC
Output Current 0.5 A per point, 8 A per module maximum
Power Supply 5 VDC (from TDC 3000 backplane)
Operating Temperature 0°C to 60°C (32°F to 140°F)
Weight 0.45 kg

Additional Details

The 51304419-150 includes the following additional information based on its standard use and documentation:

Category Details
Function Controls field devices via 32 digital output channels
Mounting Installs in TDC 3000 I/O rack or chassis
Compatibility TDC 3000 controllers (e.g., HPM, APM) and FTA (Field Termination Assembly)
Indicators Status monitored via TDC 3000 system diagnostics
Certifications Meets UL and CSA standards (NRTL/C certified)
Part Type New, surplus, or refurbished (depending on supplier)
