Product Description
Product Overview

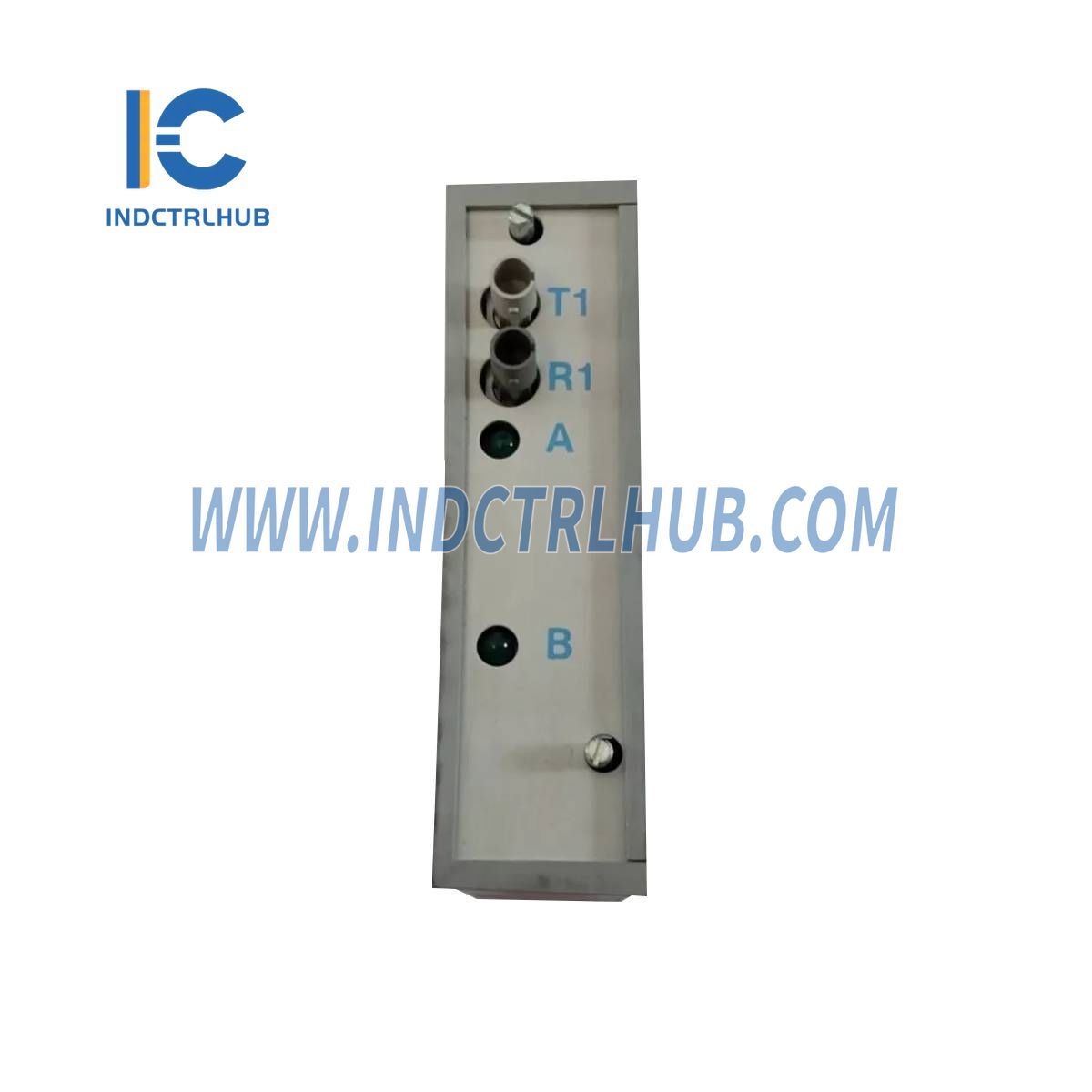

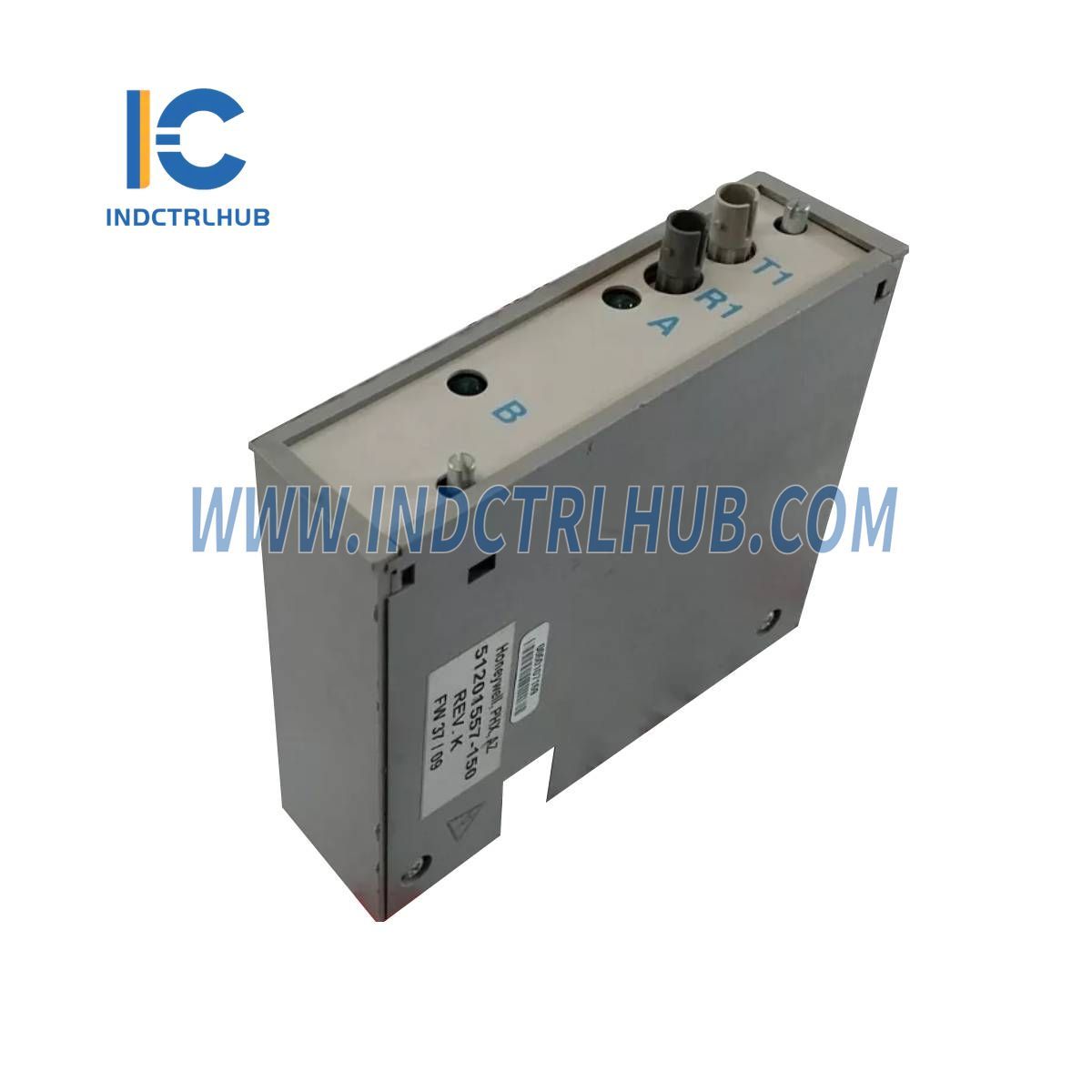

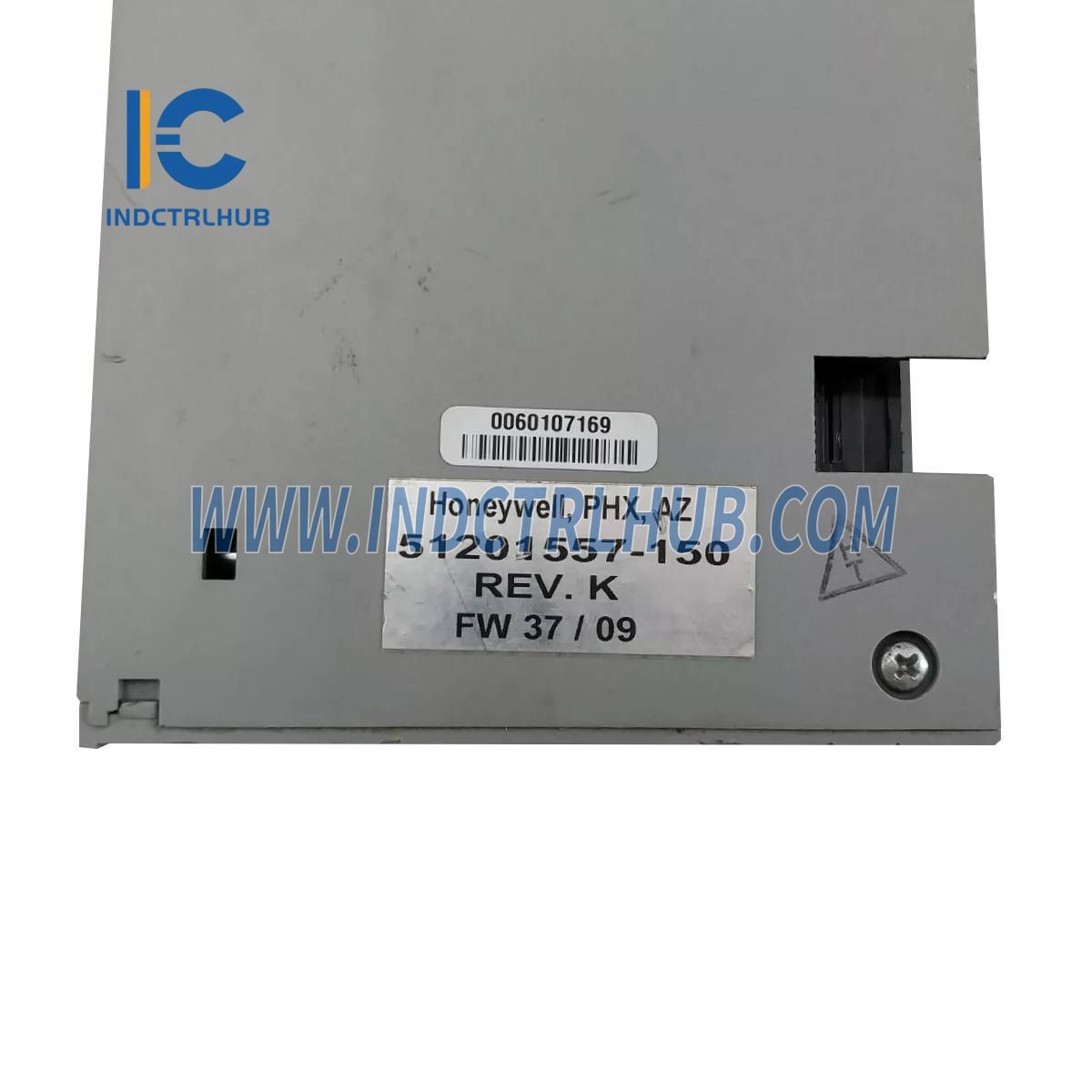

The Honeywell 51201557-150 is a Standard I/O Link Extender Coupler designed for industrial automation systems, specifically within Honeywell’s TDC 3000 and Experion Process Knowledge System (PKS) platforms. This module extends the I/O Link communication bus using fiber optic cables, enabling reliable data transfer between controllers and remote I/O processors over distances up to 1.3 kilometers. It ensures robust connectivity in distributed control environments.
Technical Specifications
The 51201557-150 has the following specifications based on standard characteristics for this model:
| Item | Specification |
|---|---|
| Model/Part Number | 51201557-150 |
| Manufacturer | Honeywell |
| Description | Standard I/O Link Extender Coupler |
| Series | TDC 3000 / Experion PKS |
| Extension Distance | Up to 1.3 km (standard version) |
| Fiber Optic Ports | 2 ST-type connectors (transmit and receive) |
| Power Supply | 24 VDC nominal (via I/O rack) |
| Power Consumption | 5 W |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Weight | 0.3 kg |
Additional Details
The 51201557-150 includes the following additional information based on its standard use and documentation:
| Category | Details |
|---|---|
| Function | Extends I/O Link communication via fiber optics |
| Mounting | Installs in TDC 3000 or Experion I/O rack |
| Compatibility | TDC 3000 Process Manager, Experion C300 Controller, I/O Link Extender Cards (e.g., 51304419-150) |
| Configuration | Requires two units per link (one at each end) with matching I/O Link Extender cards |
| Certifications | Meets UL, CE, and ATEX standards |
| Part Type | New, surplus, or refurbished (depending on supplier) |
