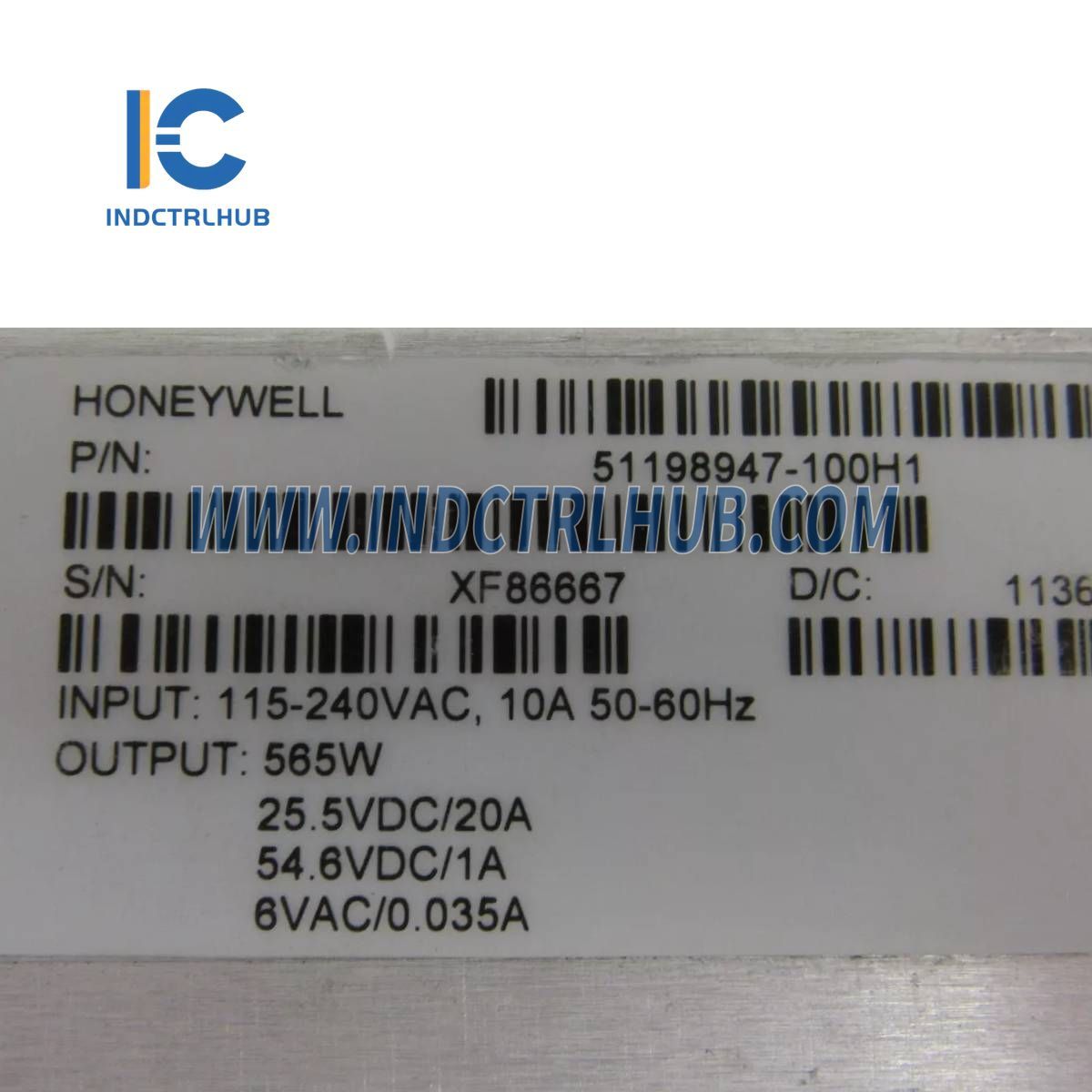

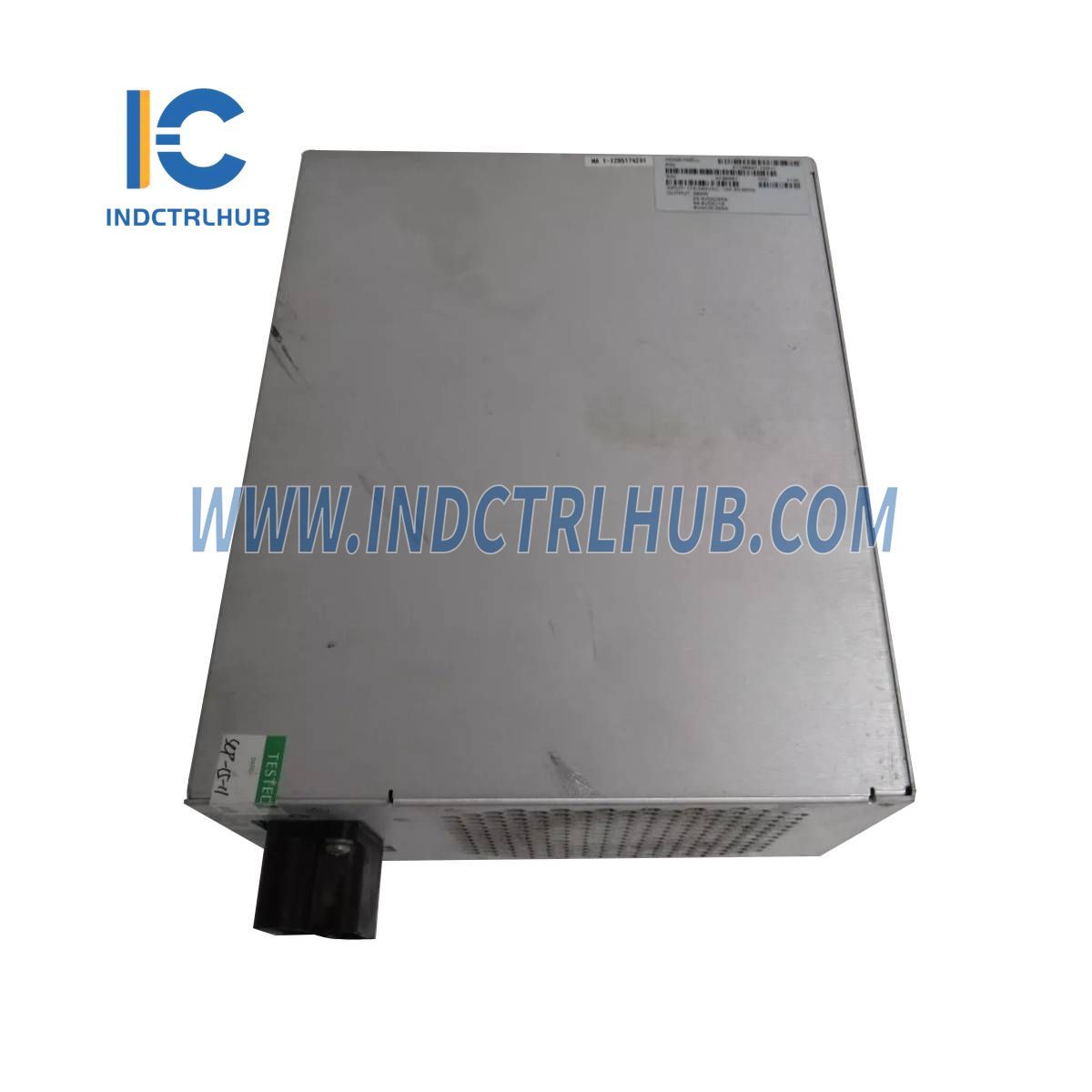

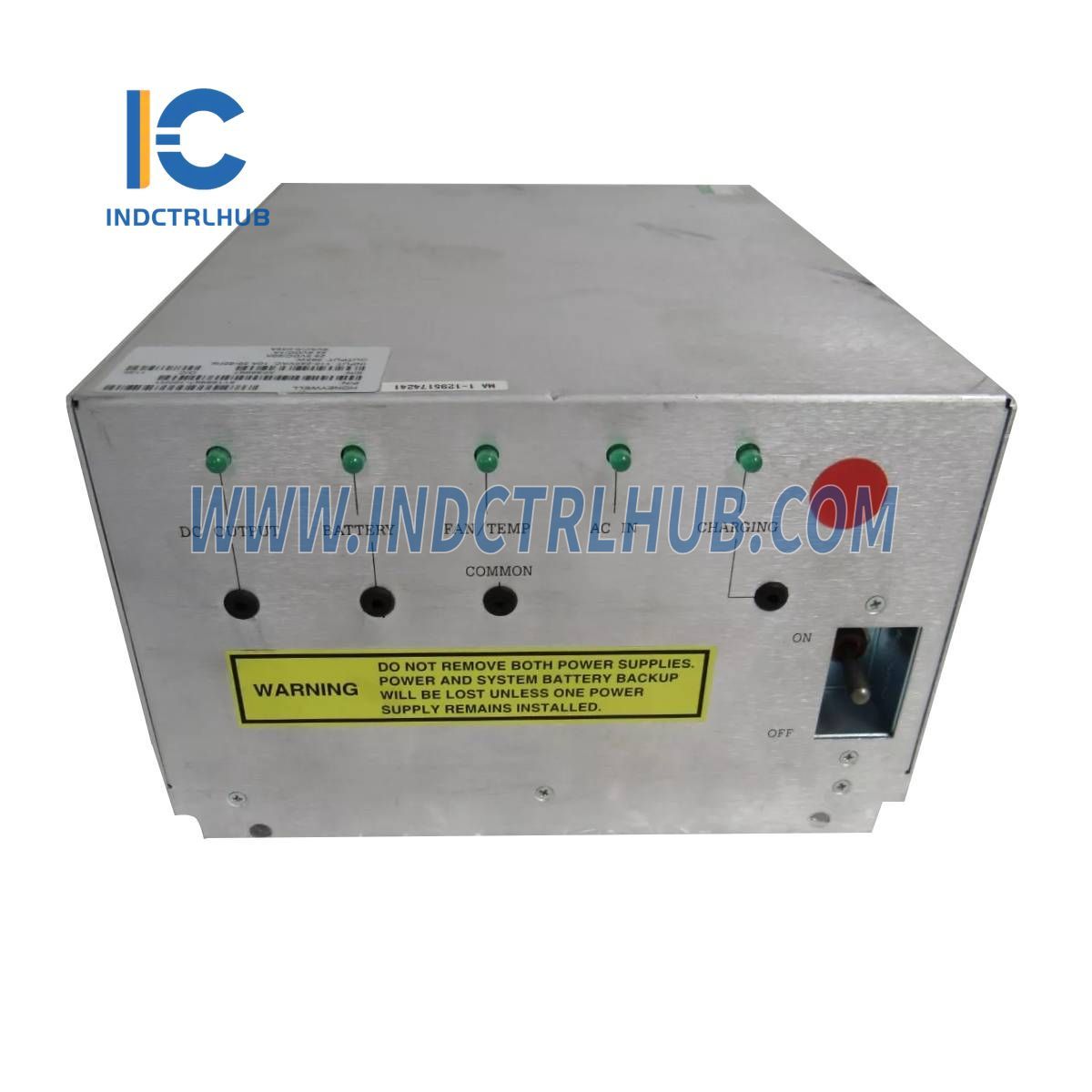

Honeywell 51198947-100H HPM Power Supply Module

Honeywell 51198947-100H HPM Power Supply Module

  • Manufacturer: Honeywell

  • Product No.: 51198947-100H

  • Condition:1000 in stock

  • Product Type: HPM Power Supply Module

  • Product Origin: USA

  • Payment: T/T, Western Union

  • Weight: 500g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

Product Overview

The Honeywell 51198947-100H is an HPM Power Supply Module designed to provide stable and reliable power to Honeywell’s industrial control systems, specifically within the Process Manager (PM), Advanced Process Manager (APM), and High Performance Process Manager (HPM) frameworks. Manufactured by Honeywell, a leader in automation solutions, this module supports a wide AC input range (85-264 V AC) and delivers regulated DC output (25.25 V DC at 10 A), with compatibility for 48 V DC battery backup and charging capabilities. It is suited for applications in oil and gas, chemical processing, and power generation, featuring CE compliance, a compact design, and a one-year warranty from suppliers like Topbrands PLC Limited. This power supply ensures uninterrupted operation of critical DCS components such as I/O processors and Field Termination Assemblies (FTAs).

Technical Information

Item Specifications
Manufacturer Honeywell
Series PM / APM / HPM
Model/Part Number 51198947-100H
Description HPM Power Supply Module
Input Voltage 85-264 V AC or 48 V DC (battery compatible)
Output Voltage 25.25 V DC (10 A load, AC input); 24.25 V DC (battery input)
Additional Output 6 V AC (35 mA, line-frequency synchronization)
Battery Charging Included circuit for 48 V battery
Operating Temperature -20 °C to +55 °C (-4 °F to +131 °F) full load; derates to +65 °C
Dimensions 100 mm L x 100 mm W x 50 mm H (3.94 in x 3.94 in x 1.97 in)
Weight 0.5 kg (1.1 lb)



View full details

Product Description

Product Overview

The Honeywell 51198947-100H is an HPM Power Supply Module designed to provide stable and reliable power to Honeywell’s industrial control systems, specifically within the Process Manager (PM), Advanced Process Manager (APM), and High Performance Process Manager (HPM) frameworks. Manufactured by Honeywell, a leader in automation solutions, this module supports a wide AC input range (85-264 V AC) and delivers regulated DC output (25.25 V DC at 10 A), with compatibility for 48 V DC battery backup and charging capabilities. It is suited for applications in oil and gas, chemical processing, and power generation, featuring CE compliance, a compact design, and a one-year warranty from suppliers like Topbrands PLC Limited. This power supply ensures uninterrupted operation of critical DCS components such as I/O processors and Field Termination Assemblies (FTAs).

Technical Information

Item Specifications
Manufacturer Honeywell
Series PM / APM / HPM
Model/Part Number 51198947-100H
Description HPM Power Supply Module
Input Voltage 85-264 V AC or 48 V DC (battery compatible)
Output Voltage 25.25 V DC (10 A load, AC input); 24.25 V DC (battery input)
Additional Output 6 V AC (35 mA, line-frequency synchronization)
Battery Charging Included circuit for 48 V battery
Operating Temperature -20 °C to +55 °C (-4 °F to +131 °F) full load; derates to +65 °C
Dimensions 100 mm L x 100 mm W x 50 mm H (3.94 in x 3.94 in x 1.97 in)
Weight 0.5 kg (1.1 lb)
