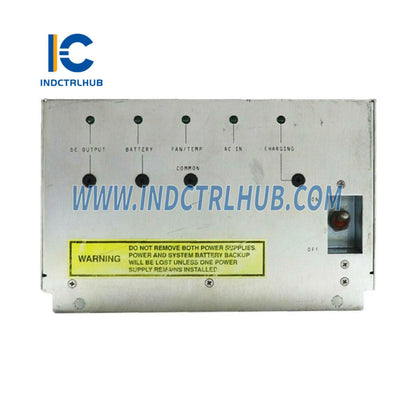

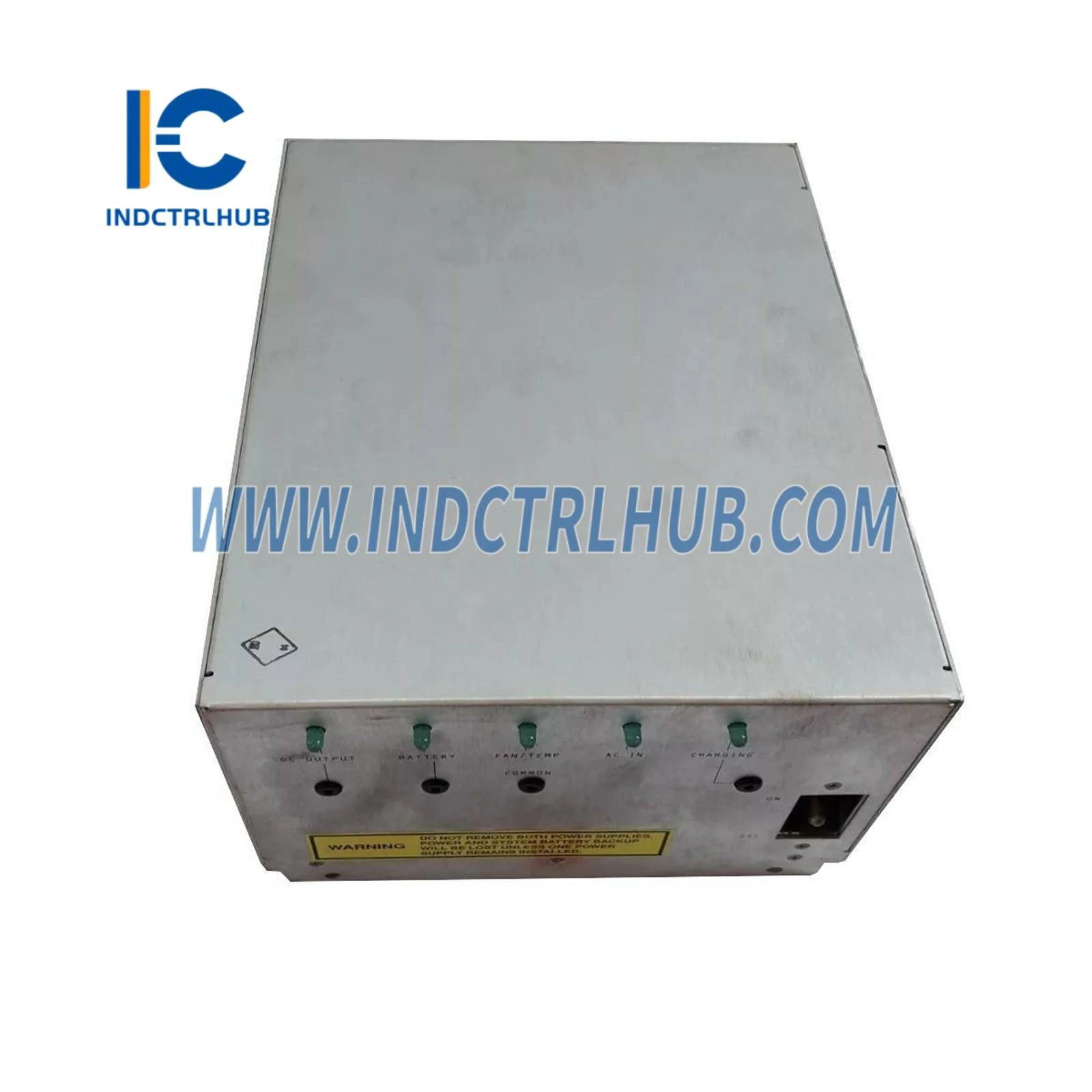

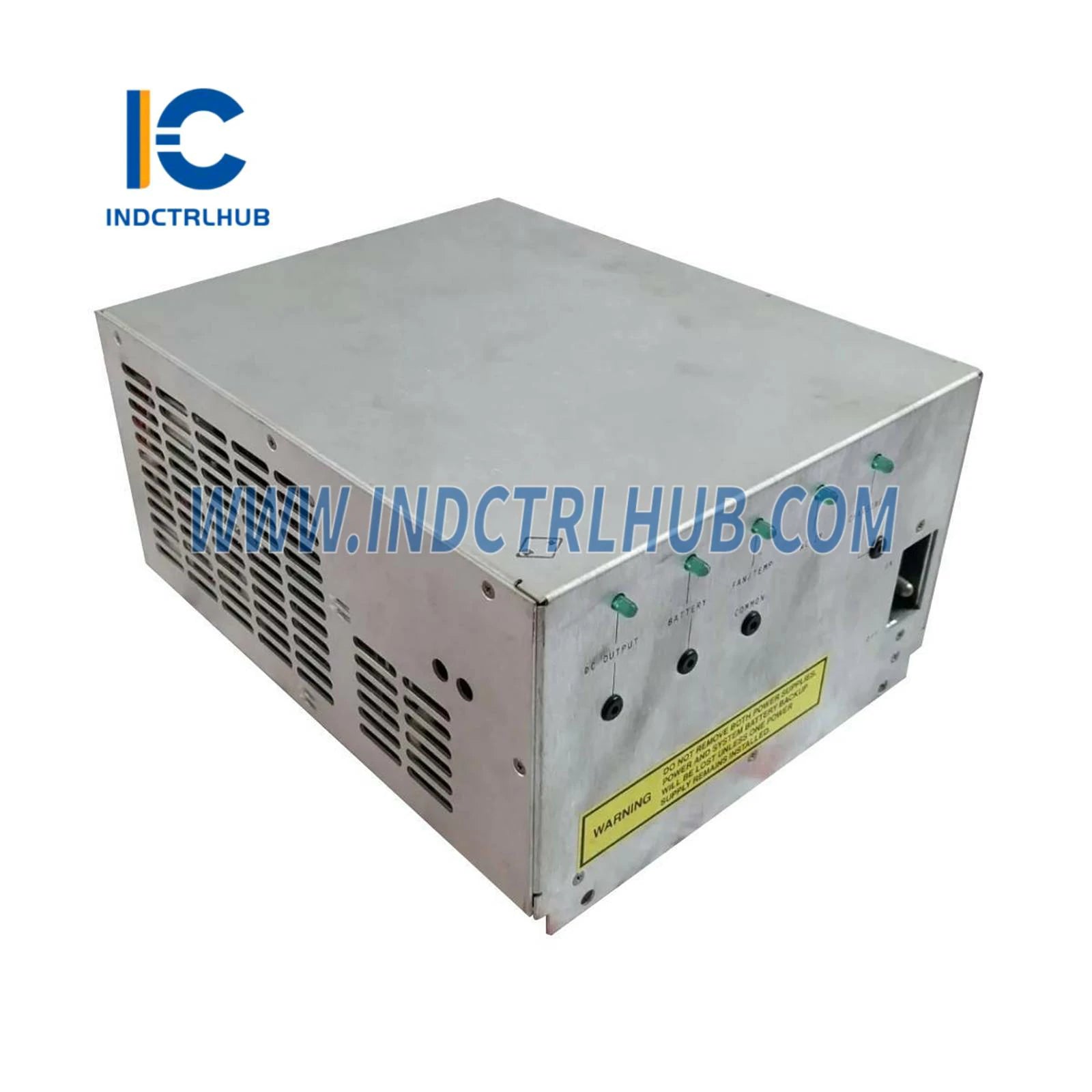

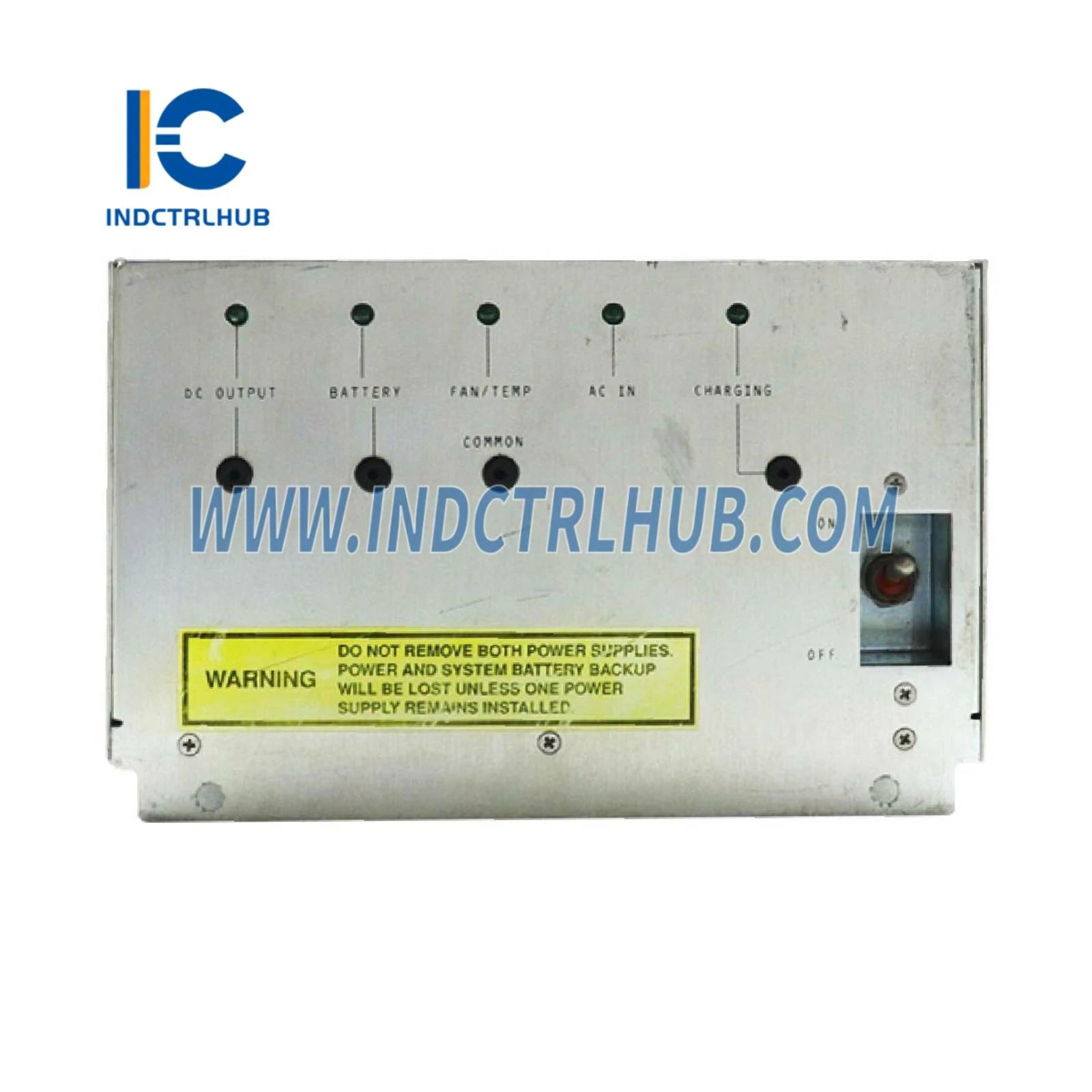

Honeywell 51198947-100B HPM Power Supply
Product Overview
- The Honeywell 51198947-100B is a High-Performance Process Manager (HPM) Power Supply module designed for use in Honeywell’s Universal Control Network (UCN) equipment cabinets, supporting Process Manager (PM), Advanced Process Manager (APM), and HPM systems within the TDC 3000 and Experion Process Knowledge System (PKS) platforms. This AC/DC power supply operates with AC line or 48 VDC battery inputs, includes a battery charging circuit, and is CE-compliant. It is critical for powering UCN systems in industrial automation applications across industries such as oil and gas, chemical, and manufacturing.
Technical Specifications
- The 51198947-100B has the following specifications based on standard characteristics for this model:
[](https://www.6gcontrols.com/products/honeywell-51198947-100-hpm-power-supply-brand-new/)
| Specification | Details |
|---|---|
| Model/Part Number | 51198947-100B |
| Manufacturer | Honeywell |
| Description | HPM Power Supply, AC/DC Output |
| Series | TDC 3000 / Experion PKS (PM, APM, HPM) |
| Input Voltage | 85 to 264 VAC or 48 VDC (battery) |
| Output Voltage | 25.25 VDC at 10 A (AC line) 24.25 VDC (48 VDC battery) 6 VAC at 35 mA (line-frequency synchronization) |
| Output Current | 10 A (nominal) |
| Battery Charging | Includes 48 VDC battery charging circuit |
| Operating Temperature | -20°C to +55°C (-4°F to +131°F) at full load Derating above 55°C at 0.5 A/°C up to +65°C (149°F) |
| Dimensions | Approx. 100 x 100 x 50 mm |
| Weight | Approx. 0.5 kg |
Additional Details
- The 51198947-100B includes the following additional information based on its standard use and documentation:
- Function: Delivers stable power to UCN equipment cabinets, supporting redundant configurations with dedicated power sources for enhanced system reliability. Provides line-frequency synchronization for system coordination.
- Mounting: Installs in UCN equipment cabinets for PM, APM, or HPM systems, designed for easy integration and replacement.
- Compatibility: Compatible with Honeywell’s TDC 3000 and Experion PKS systems; serves as a replacement for earlier models like 51109684-100 and 51198651-100.
- Configuration: CE-compliant, unlike earlier models (e.g., 51109684-100); supports parallel operation of multiple power supplies for increased capacity.
- Certifications: Meets CE, RoHS, UL, and CSA standards for industrial environments.
