Product Description
General Information
|
Manufacturer |
Honeywell |
|---|---|
|
Model/Part Number |
10313/1/1 |
|
Description |

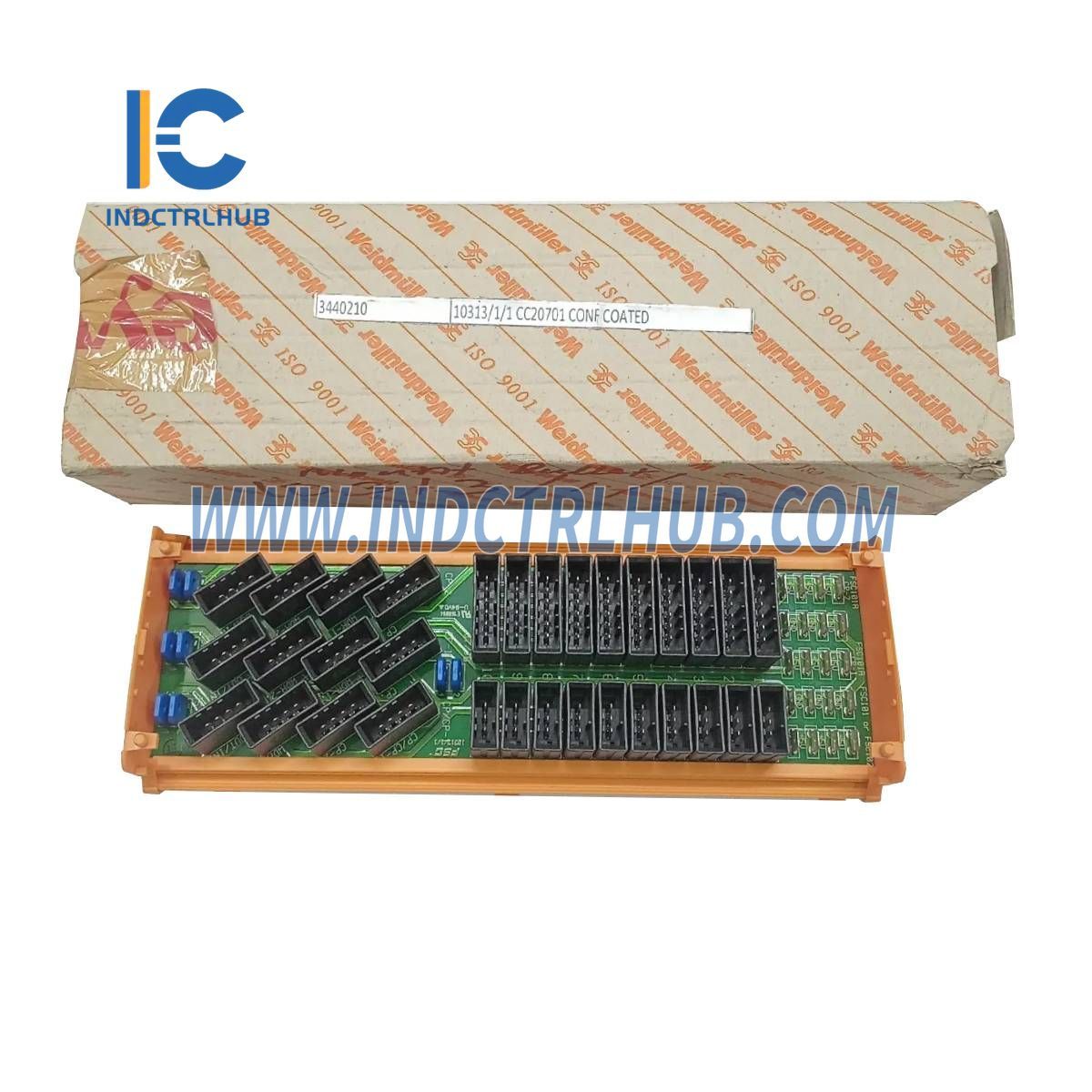

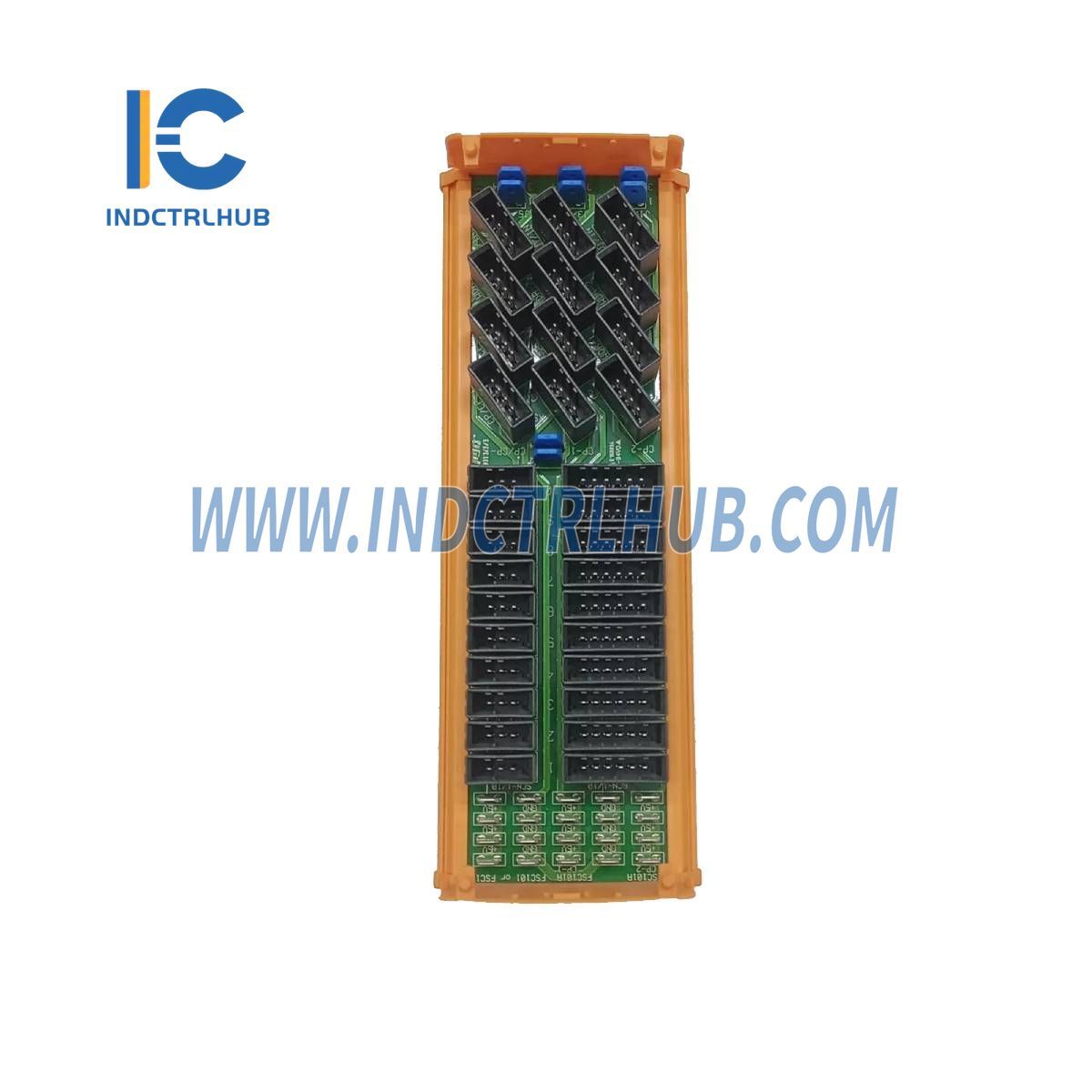

5 V DC and Watchdog Distribution Module |
Technical Data
|
Parameter |
Specification |
|---|---|
|
Type Number |
10313/1/1 (207011) |
|
Approvals |
CE, TÜV |
|
UL Approval |
Pending |
|
Power |
|
|
Current Consumption |
None (included in I/O module data sheets) |
|
Max. Current on Faston Pin |
4 A |
|
Max. Current on I/O Connector Pin |
2 A |
|
Physical Dimensions |
240 x 87 x 60 mm (L x W x H) 9.45 x 3.43 x 2.36 in (L x W x H) |
|
DIN EN Rails |
TS32 / TS35 x 7.5 |
|
Used Rail Length |
241 mm (9.49 in) |
