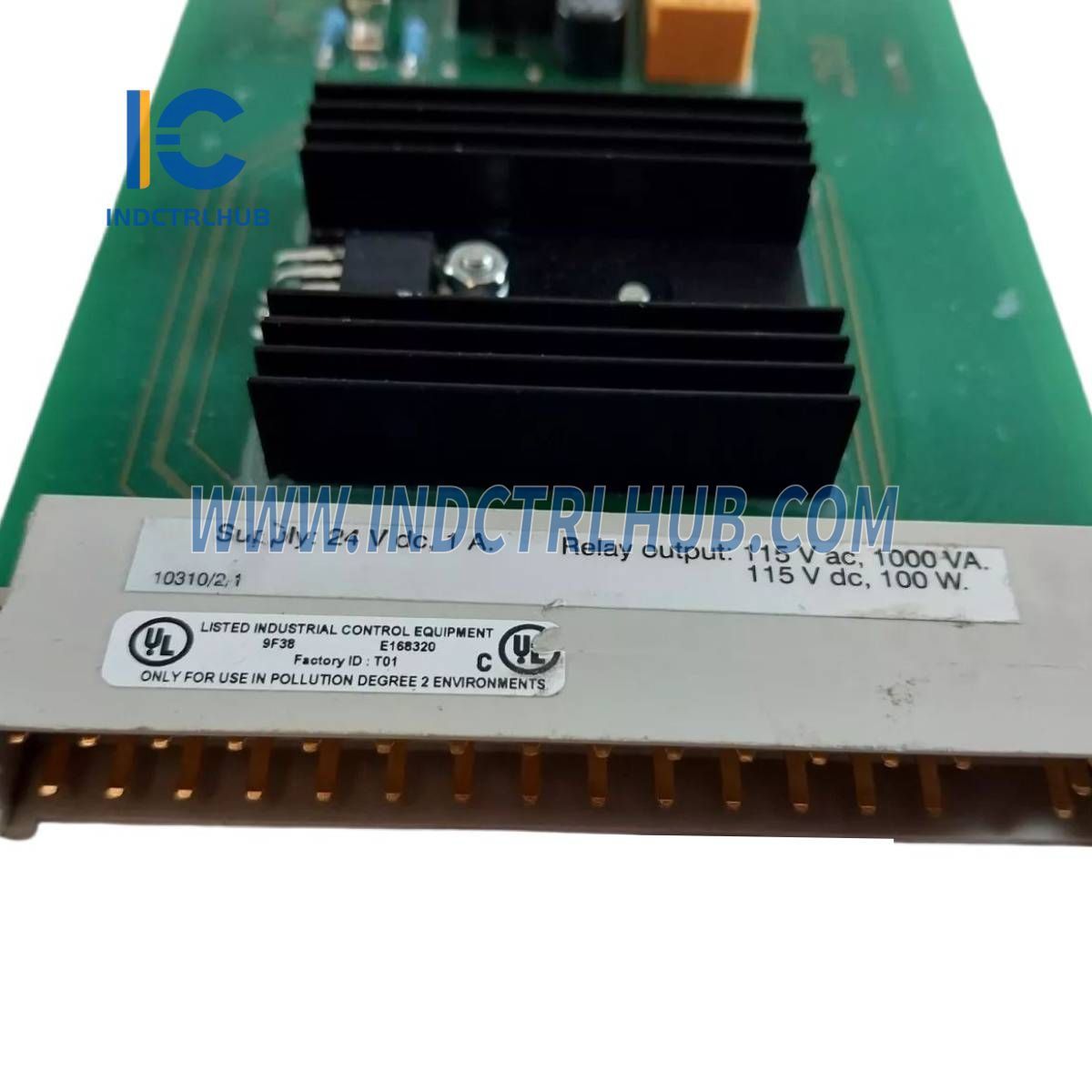

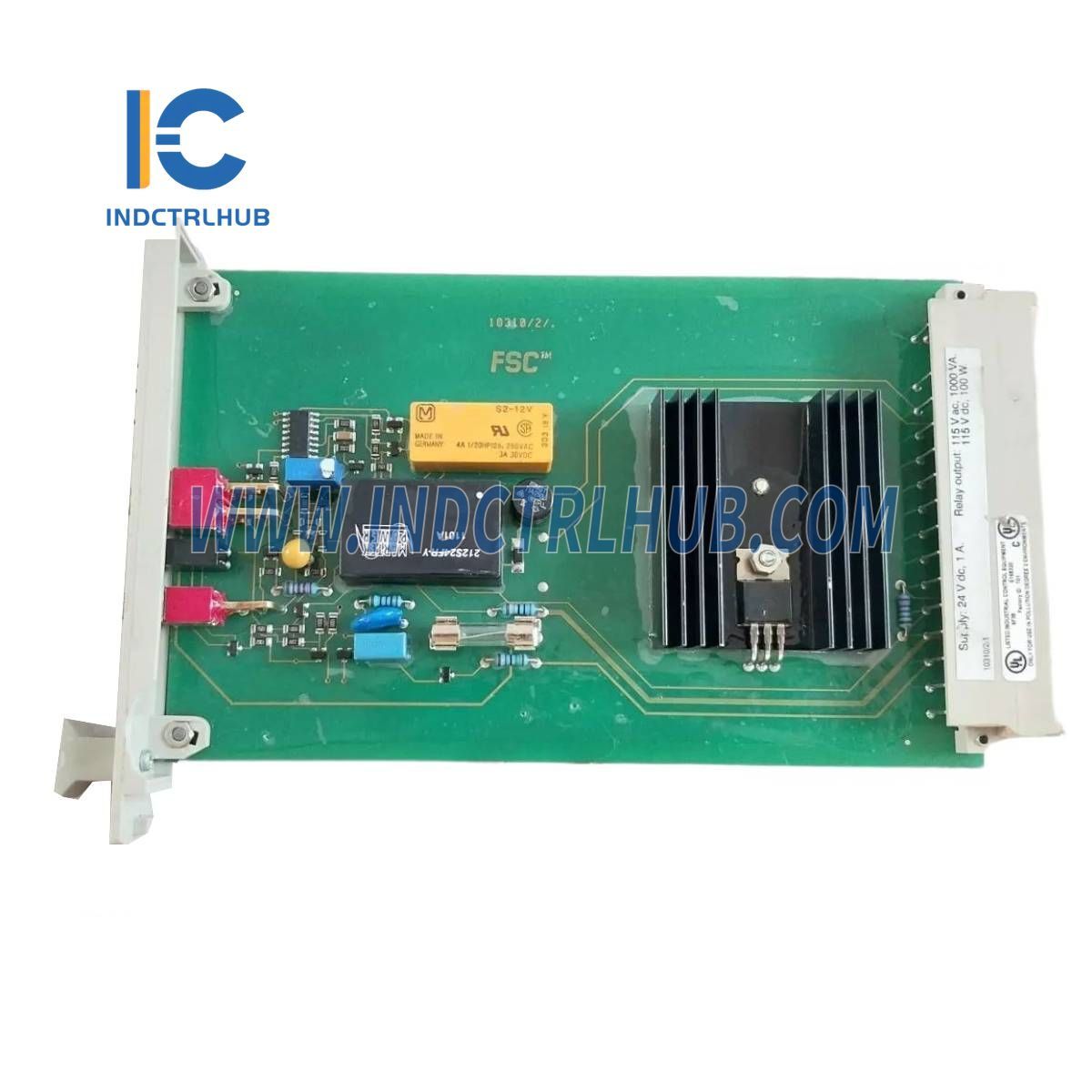

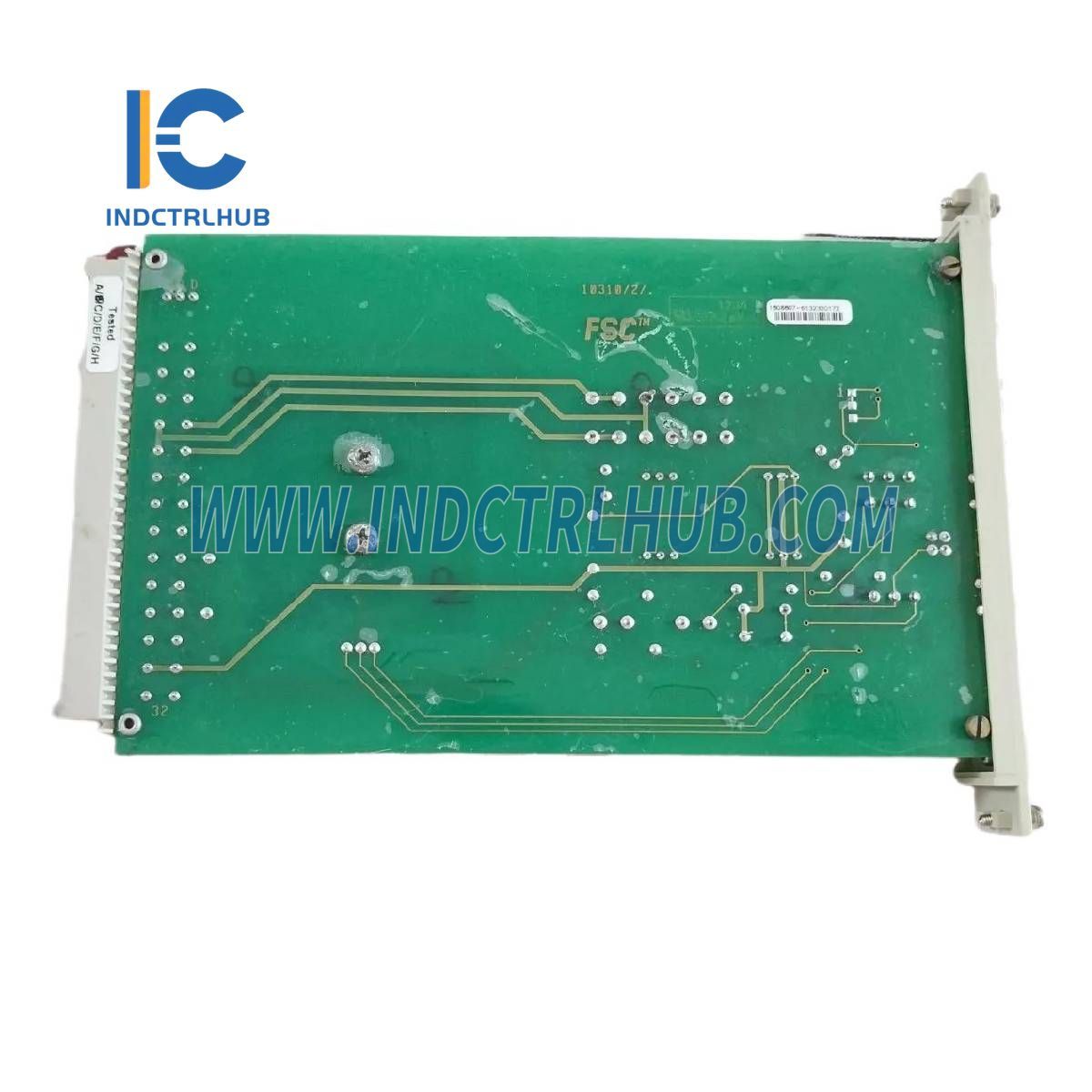

Product Description
General Information
|
Manufacturer |
Honeywell |
|---|---|
|
Model/Part Number |
10310/2/1 |
|
Description |
Earth Leakage Detector |
|
Type Number |
10310/2/1 (10800) |
|
Approvals |
CE, UL |
Power Specifications
|
Parameter |
Specification |
|---|---|
|
Supply Voltage |
24 V DC (max. 30 V DC) |
|
Supply Current |
Max. 60 mA |
Reset (Rst) Input
|
Parameter |
Specification |
|---|---|
|
Rst24 Input Voltage |
18 - 70 V DC |
|
Rst110 Input Voltage |
40 - 130 V DC |
|
Rst24 Input Current |
1.1 mA at 24 V DC |
|
Rst110 Input Current |
2.5 mA at 110 V DC |
Earth Fault Detection
|
Parameter |
Specification |
|---|---|
|
Earth Voltage |
-12 V DC (no earth fault) |
|
Earth Fault Threshold |
-30 to +125 V DC (earth fault) |
|
Max. Earth Current |
5.5 mA (± 1 mA) 25.0 mA (± 5 mA) |
Output Contact
|
Parameter |
Specification |
|---|---|
|
Max. Output Voltage |
115 V DC |
|
Max. Output Current |
2 A |
Relay Contacts
|
Parameter |
Specification |
|---|---|
|
Initial Contact Resistance |
30 mΩ |
|
Max. Current |
5 A |
|
Max. Switched Voltage |
250 V DC / 250 V AC |
|
Max. Switched Load |
100 W / 1000 VA |
|
Expected Life - Electrical |
100,000 switch operations |
|
Expected Life - Mechanical |
200,000,000 switch operations |
Module & Rack Coding
|
Parameter |
Specification |
|---|---|
|
Module Code |
Holes A5, A11 |
|
Rack Code |
Large pins A5, A11 |
