Product Description
Product Overview
Manufacturer: Honeywell
Model/Part Number: 10302/1/1

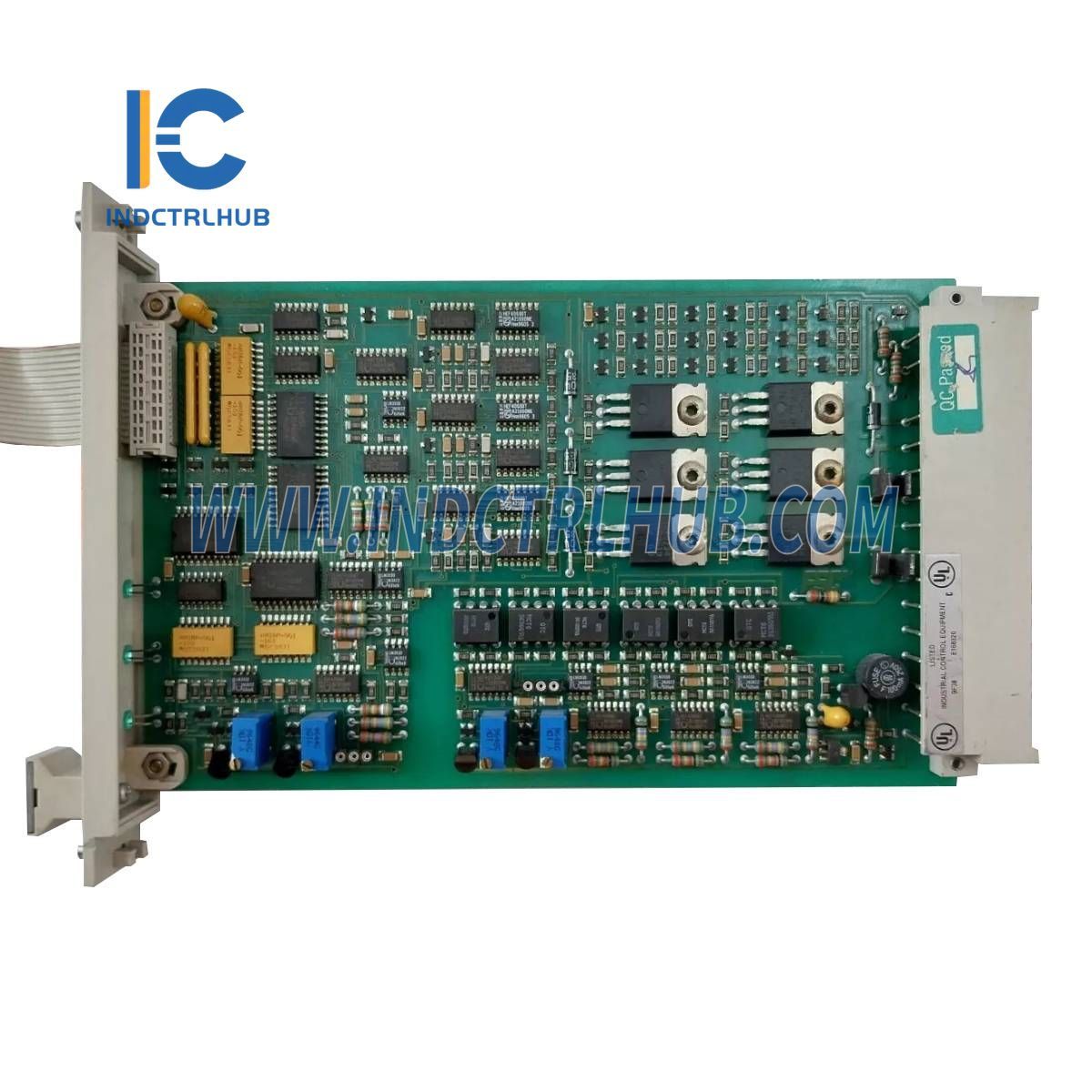

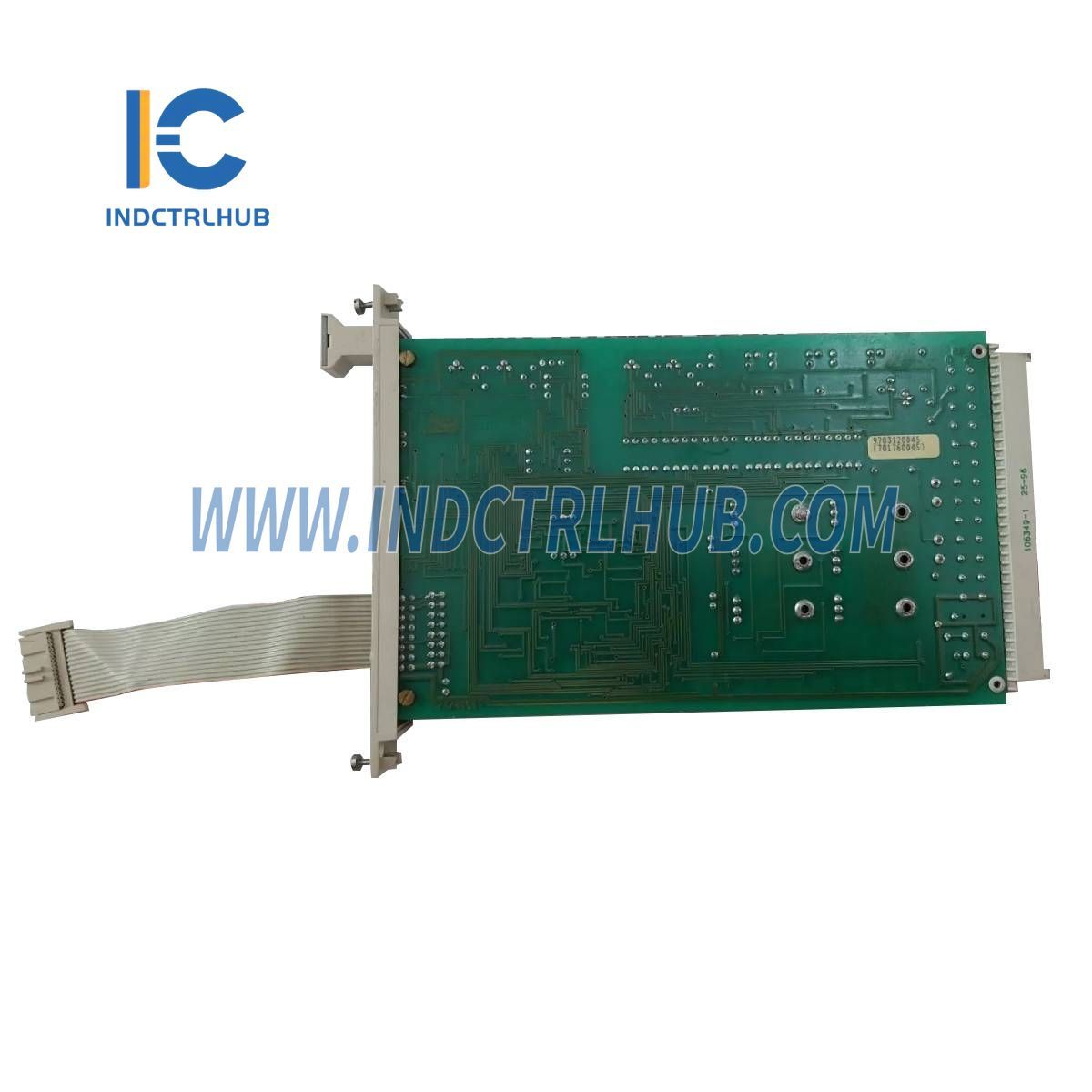

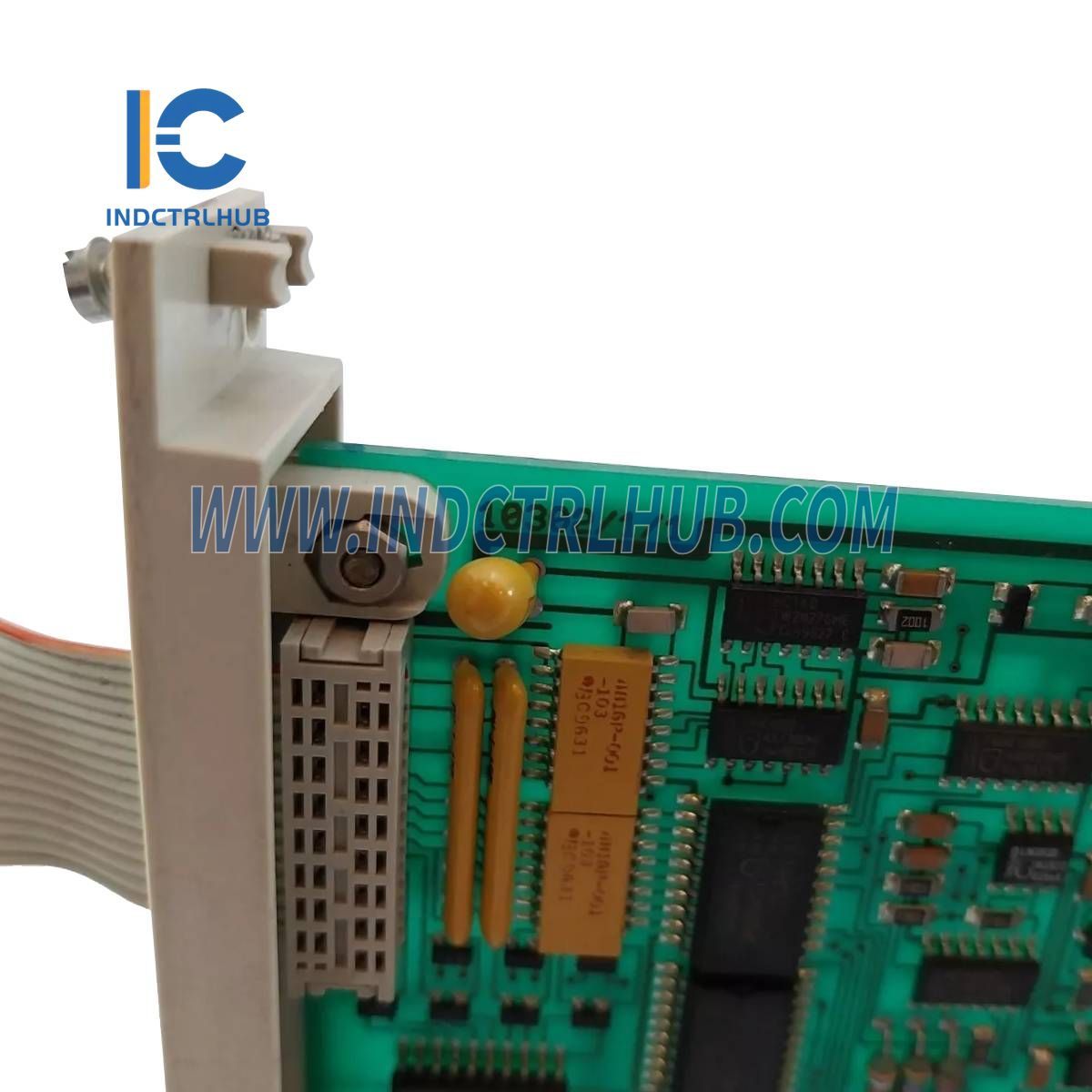

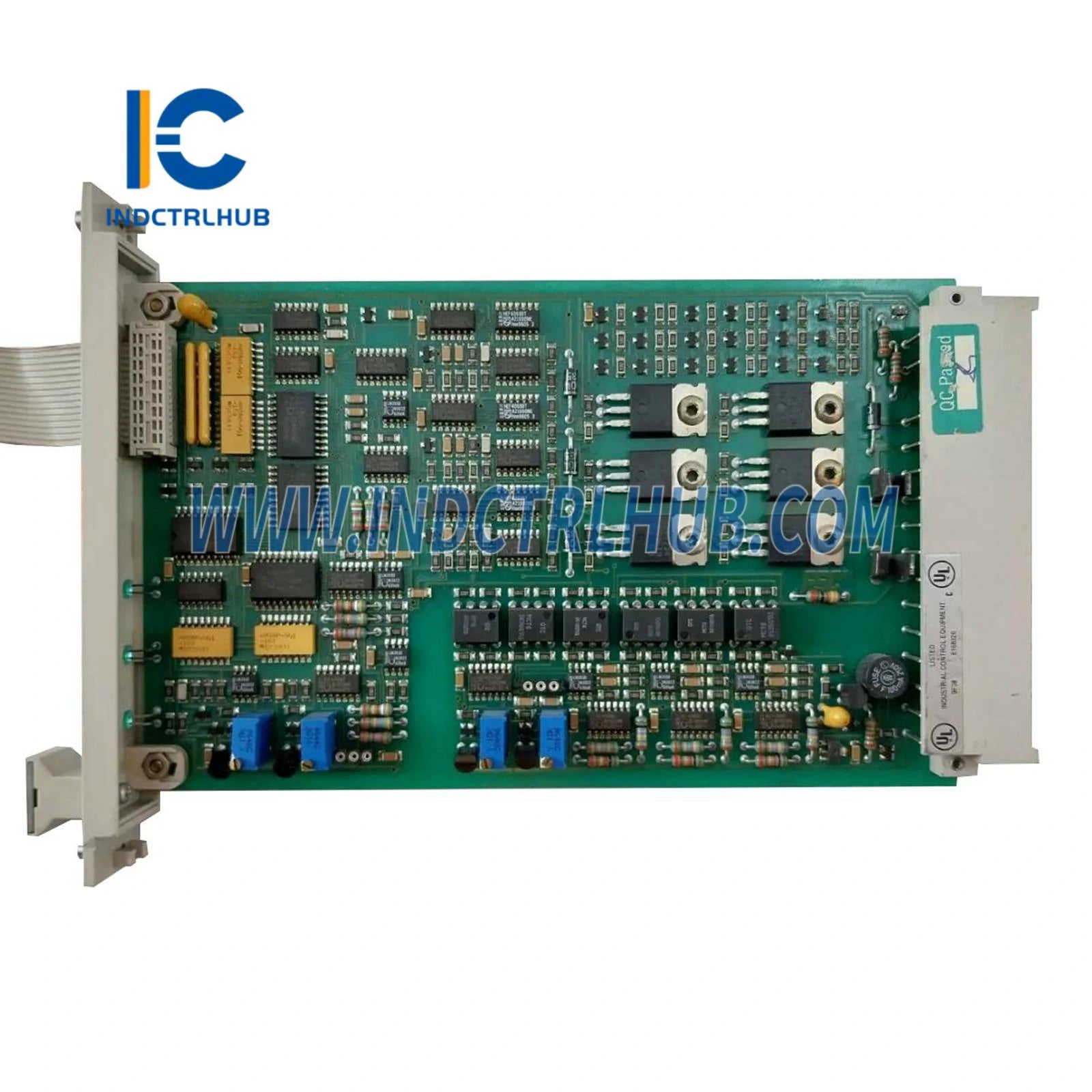

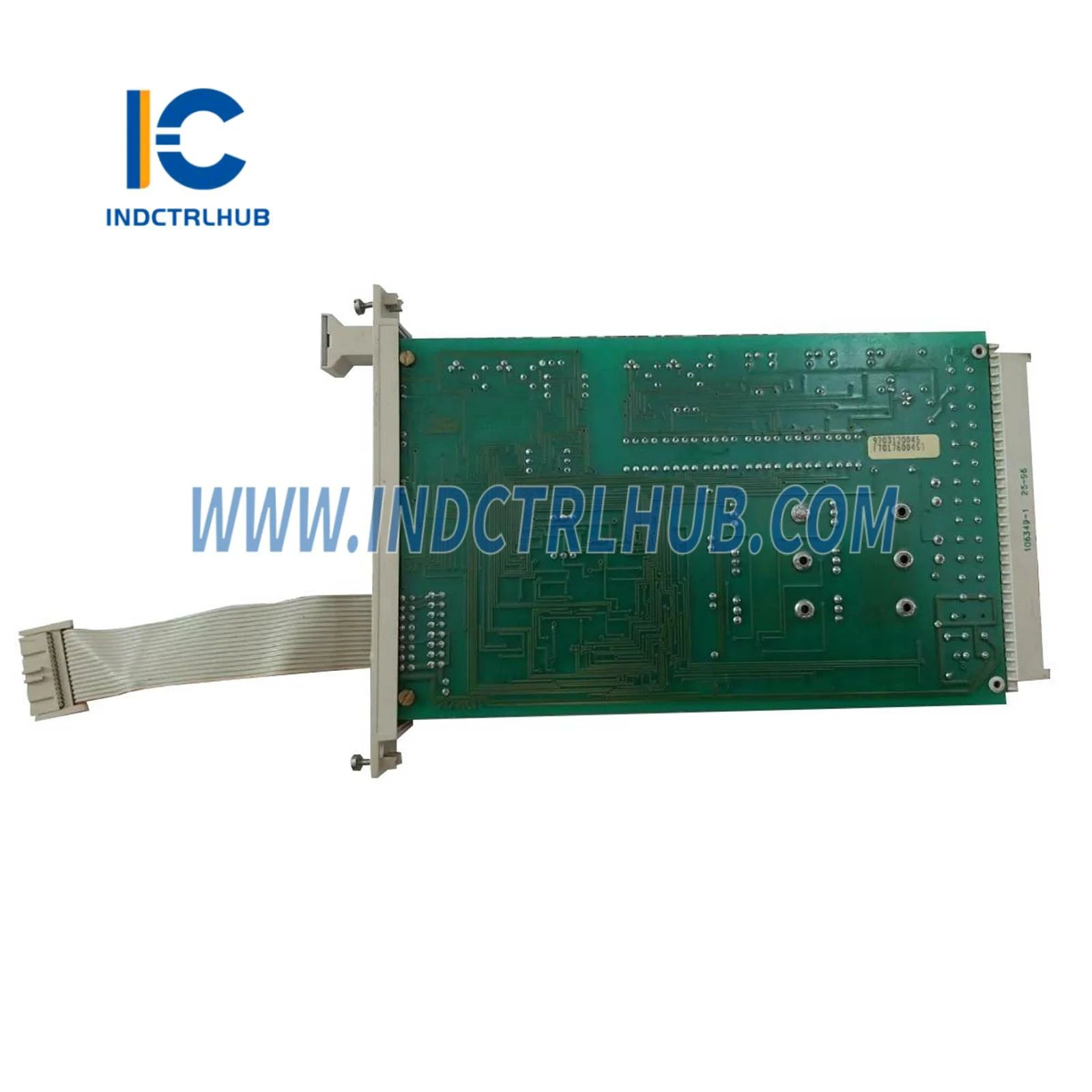

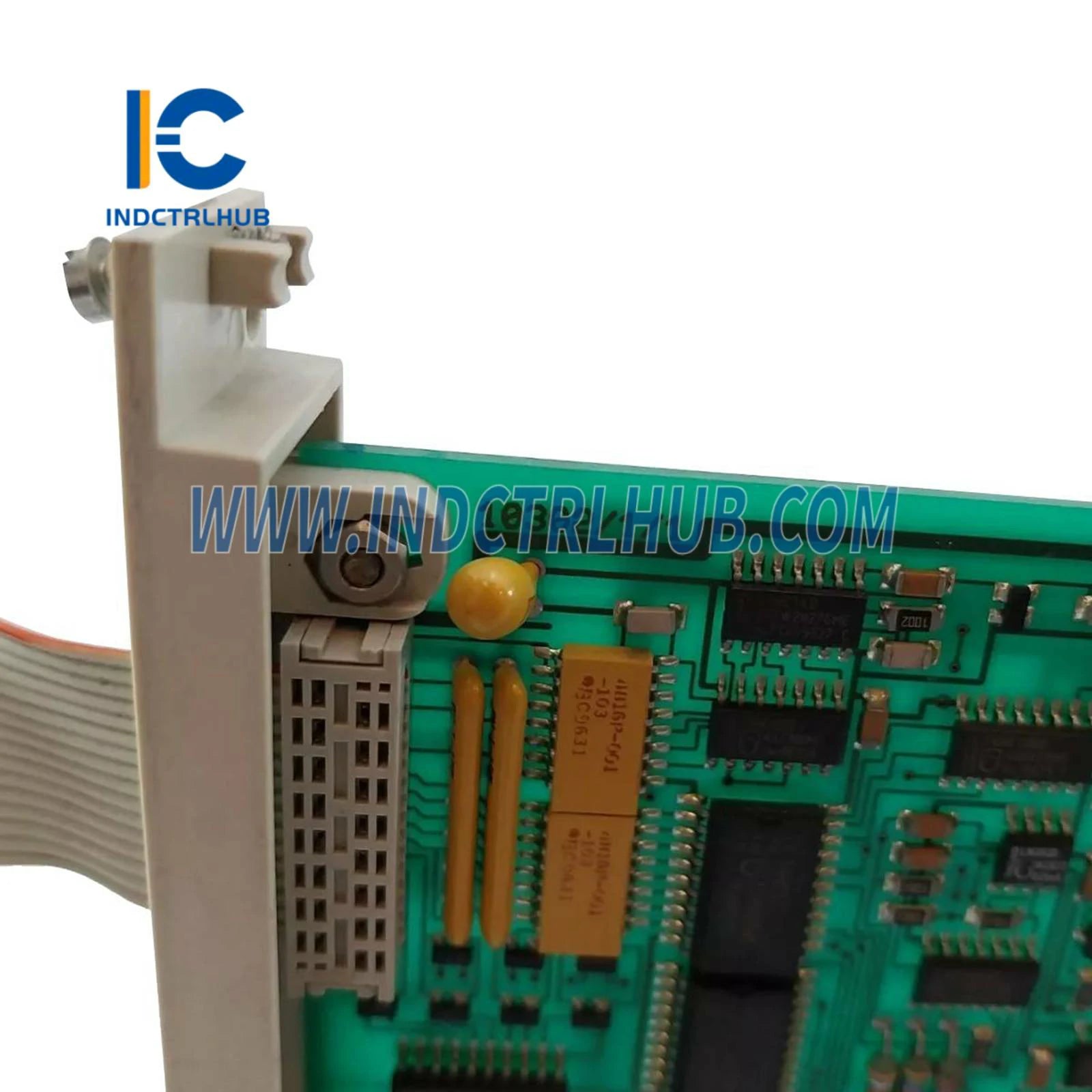

Description: Watchdog Repeater Module
Description
The 10302/1/1 Watchdog Repeater Module monitors the 5 VDC and 24 VDC power supplied to I/O modules. The watchdog output of the repeater is connected to the watchdog input of output modules whose power supply is being monitored, ensuring system reliability and fault detection.
Technical Data
General Information
| Specification |
Details |
| Type Number |
10302/1/1 |
| Approvals |
CE, TUV, UL |
| Software Versions |
All |
| Space Requirements |
4 TE, 3 HE (4 HP, 3U) |
Power Requirements
| Specification |
Details |
| 5 VDC Power Consumption |
35 mA (without WDROUT output current) |
| 24 VDC Power Consumption |
25 mA |
| WDG1 + WDG2 Input Current |
0.1 mA |
| WDR OUT Maximum Output Current |
900 mA |
Key Coding
| Specification |
Details |
| Module Code |
Holes A27, Pins C11, C23, C27 |
| Rack Code |
Blind Spots C3, C19, C31, Large Pins A27 |
