Product Description
Product Overview

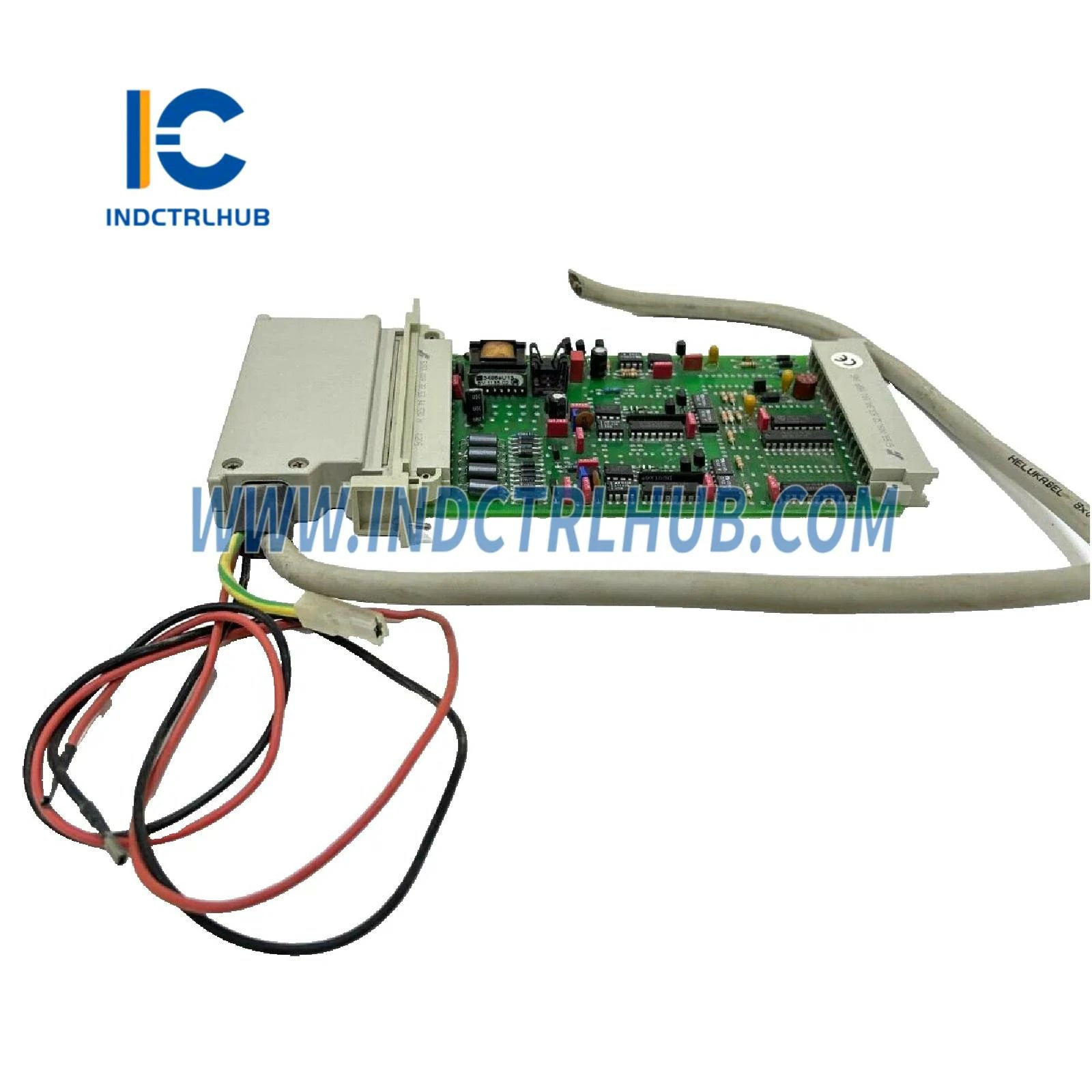

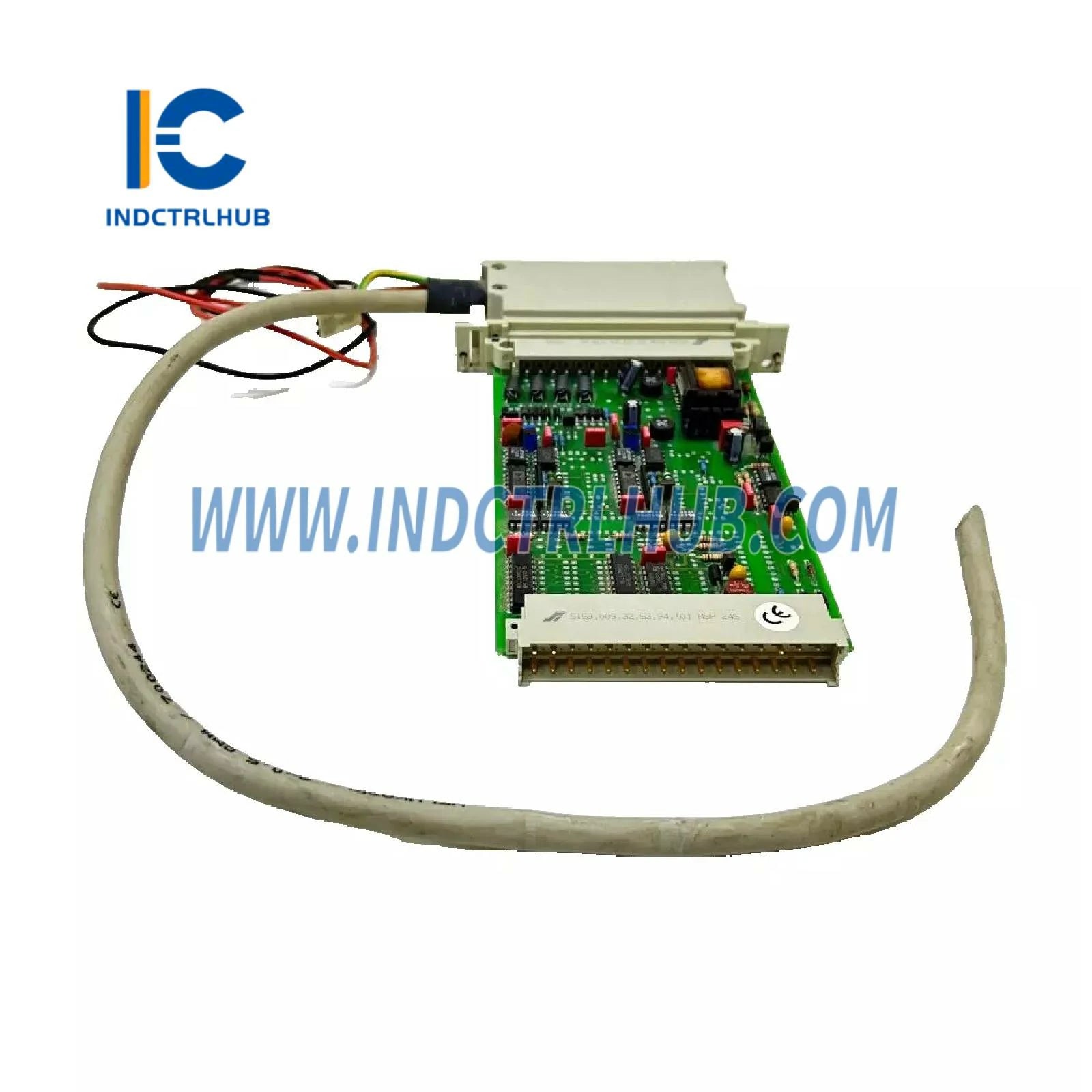

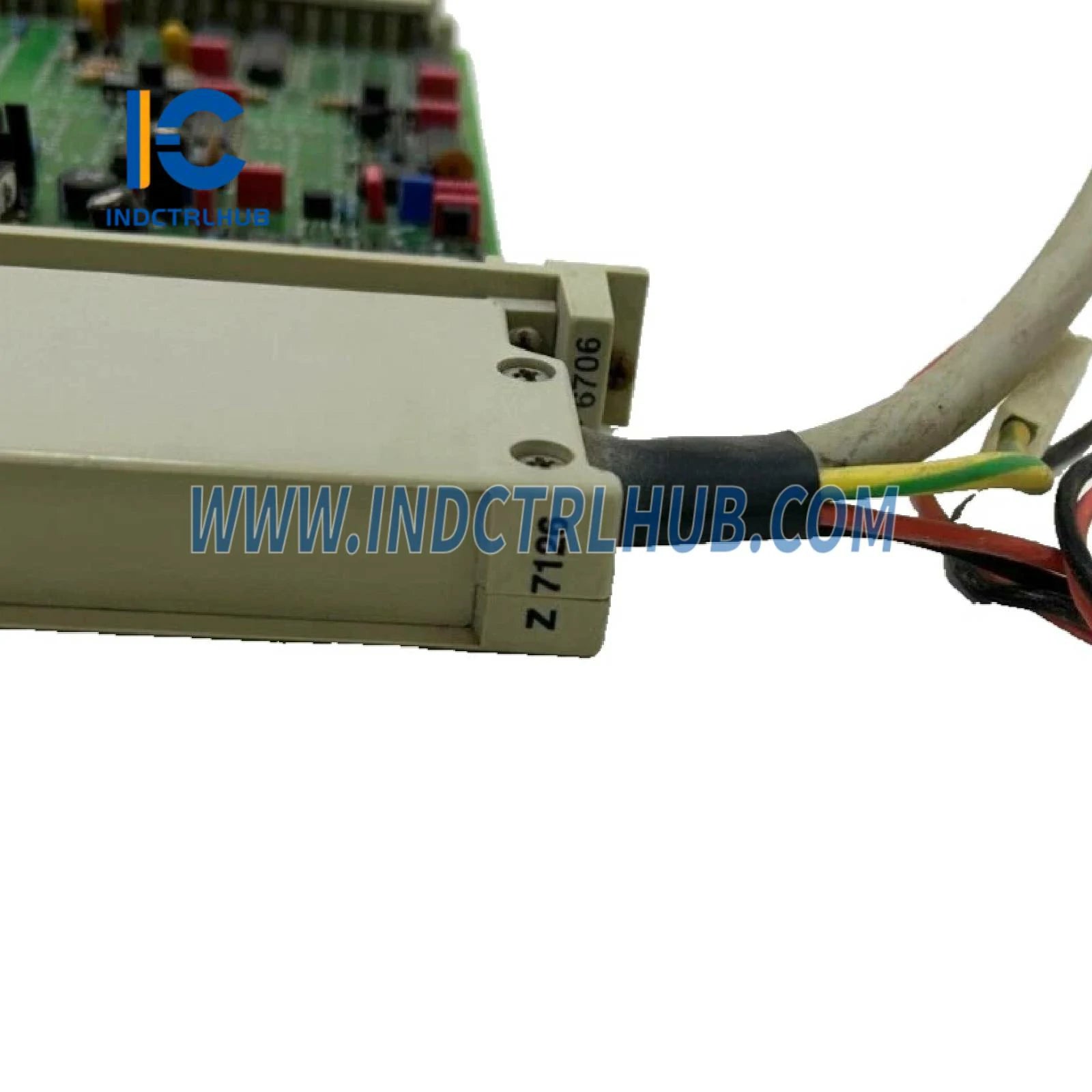

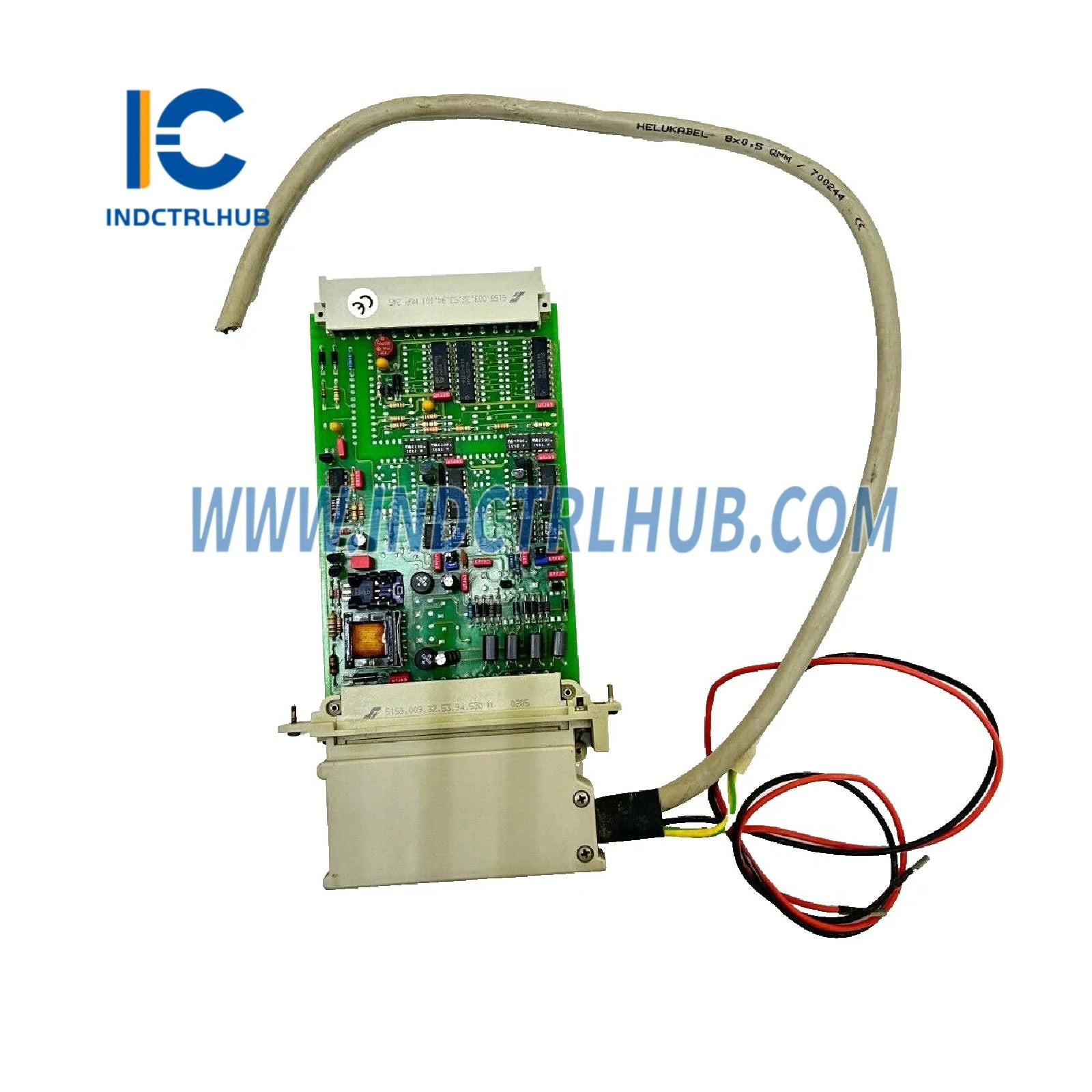

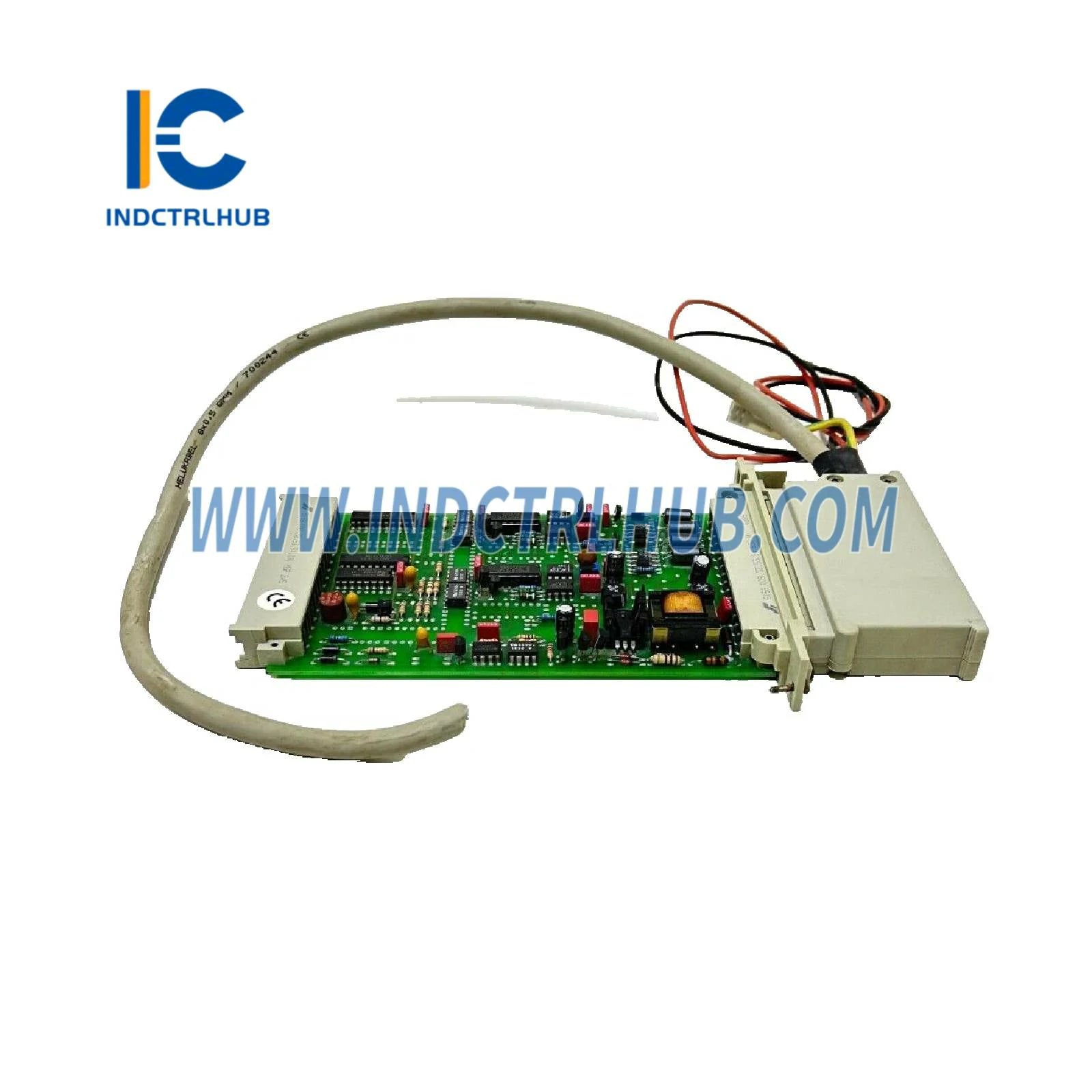

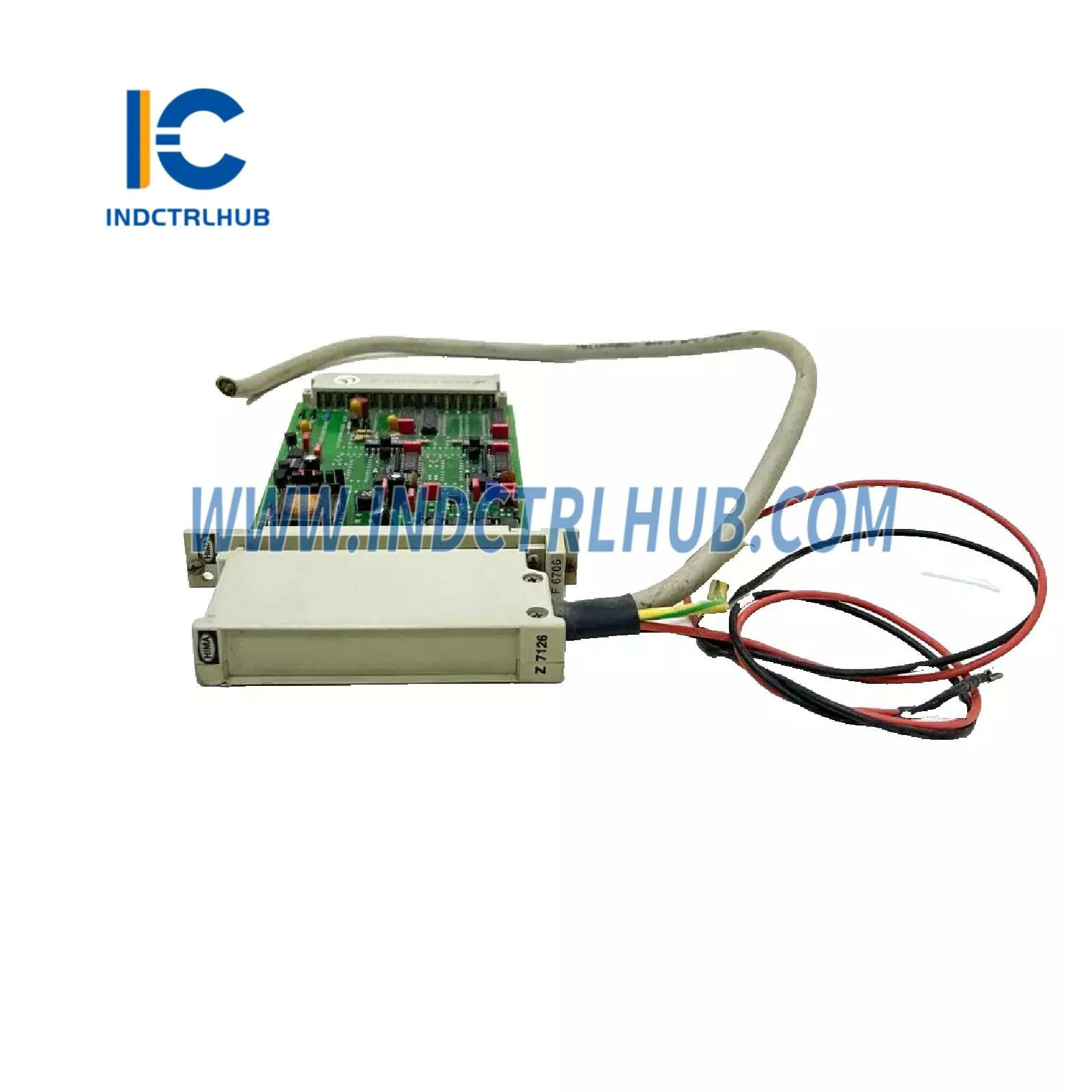

The HIMA Z7126/6705/C15/RSER is a Cable Plug designed as an accessory for HIMA safety-related systems, likely associated with the HIQuad or HIMatrix series. Manufactured by HIMA, this plug facilitates reliable connection of field devices or sensors to a specific module (potentially an analog or digital I/O module indicated by "6705"), featuring a 15-meter cable length ("C15") and possibly RS485 serial communication capabilities ("RSER"). It is deployed in industrial applications such as oil & gas, chemical processing, and power generation, supporting safety integrity levels up to SIL 3 per IEC 61508 when used within specified system constraints.
Technical Specifications
The Z7126/6705/C15/RSER has the following specifications based on standard characteristics and inferred details:
| Item | Specification |
|---|---|
| Model/Part Number | Z7126/6705/C15/RSER |
| Manufacturer | HIMA |
| Description | Cable Plug |
| Cable Length | 15 m (15000 mm) |
| Cable Type | Multi-core cable, possibly shielded for RS485 |
| Connector Type | Plug-in connector |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Weight | 0.8 kg (1.76 lbs) |
Additional Details
The Z7126/6705/C15/RSER includes the following additional information based on its inferred use and documentation:
| Category | Details |
|---|---|
| Function | Connects field devices or sensors to HIMA modules, possibly with RS485 communication |
| Mounting | Plugs into compatible HIMA module ports |
| Compatibility | HIMA HIQuad or HIMatrix systems (likely F6705 analog output module) |
| Features | 15-meter cable length, durable design, potential RS485 serial interface |
| Certifications | SIL 3 per IEC 61508 (system-dependent) |
