Product Description
Product Overview

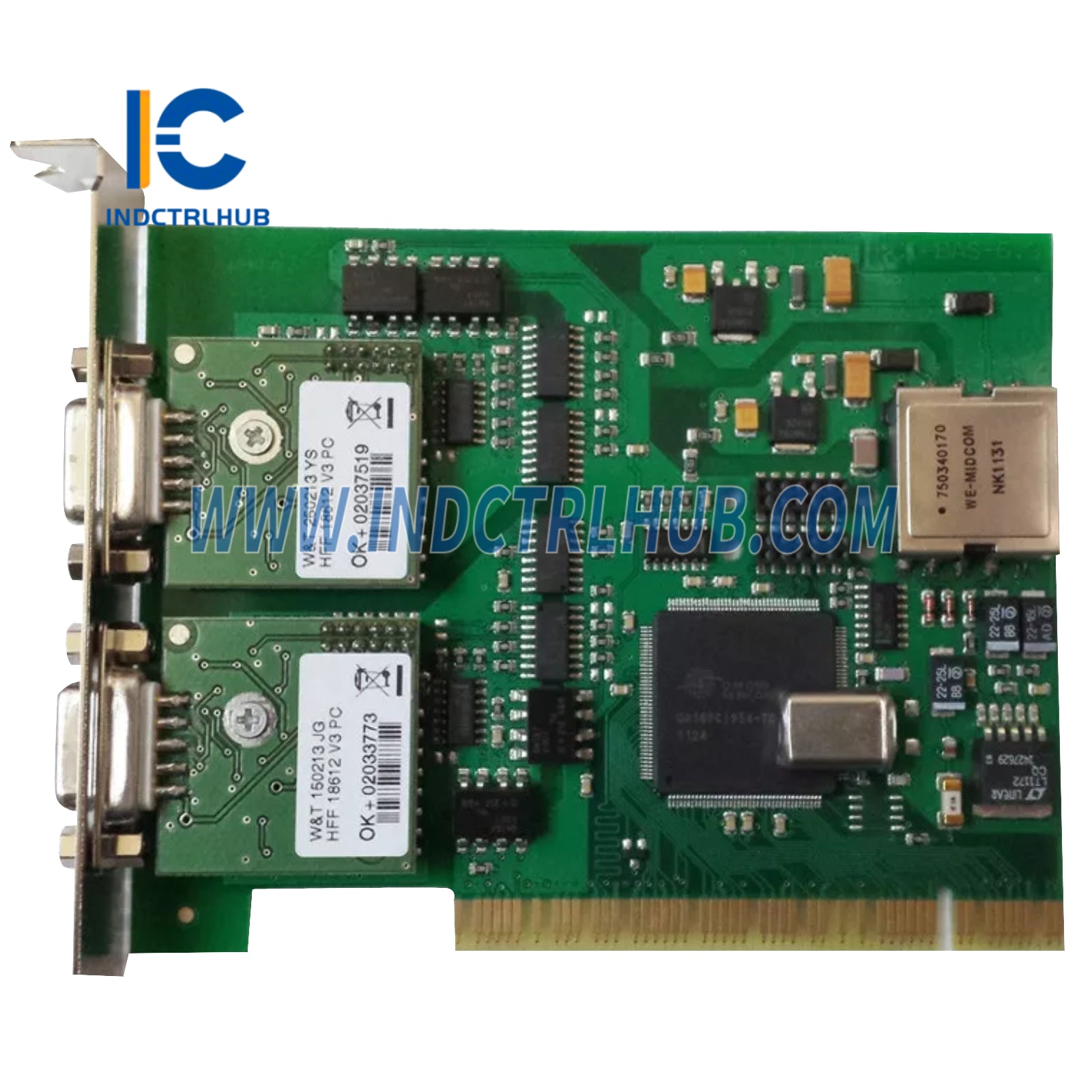

The HIMA RS485-PCI is an Interface Card designed for integration into HIMA safety-related systems, providing RS485 serial communication capabilities via a PCI slot. Manufactured by HIMA, this card enables reliable data exchange between HIMA controllers and external devices using the RS485 protocol, commonly used in industrial automation. It is deployed in applications such as oil & gas, chemical processing, and power generation, supporting safety integrity levels up to SIL 3 per IEC 61508 when part of a certified system.
Technical Specifications
The RS485-PCI has the following specifications based on standard characteristics for this type of component:
| Item | Specification |
|---|---|
| Model/Part Number | RS485-PCI |
| Manufacturer | HIMA |
| Description | RS485 Interface Card (PCI) |
| Interface | RS485 |
| Bus Type | PCI |
| Baud Rate | Up to 115.2 kbps (typical for RS485) |
| Power Supply | Via PCI slot (5 V DC) |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Weight | 0.2 kg (0.44 lbs) |
Additional Details
The RS485-PCI includes the following additional information based on its inferred use and documentation:
| Category | Details |
|---|---|
| Function | Enables RS485 communication between HIMA systems and external devices |
| Mounting | Installs in a PC or controller PCI slot |
| Compatibility | HIMA HIQuad, HIMatrix, or PLC systems with RS485 support |
| Features | Supports multi-drop RS485 networks, robust signal integrity |
| Certifications | SIL 3 per IEC 61508 (system-dependent) |
