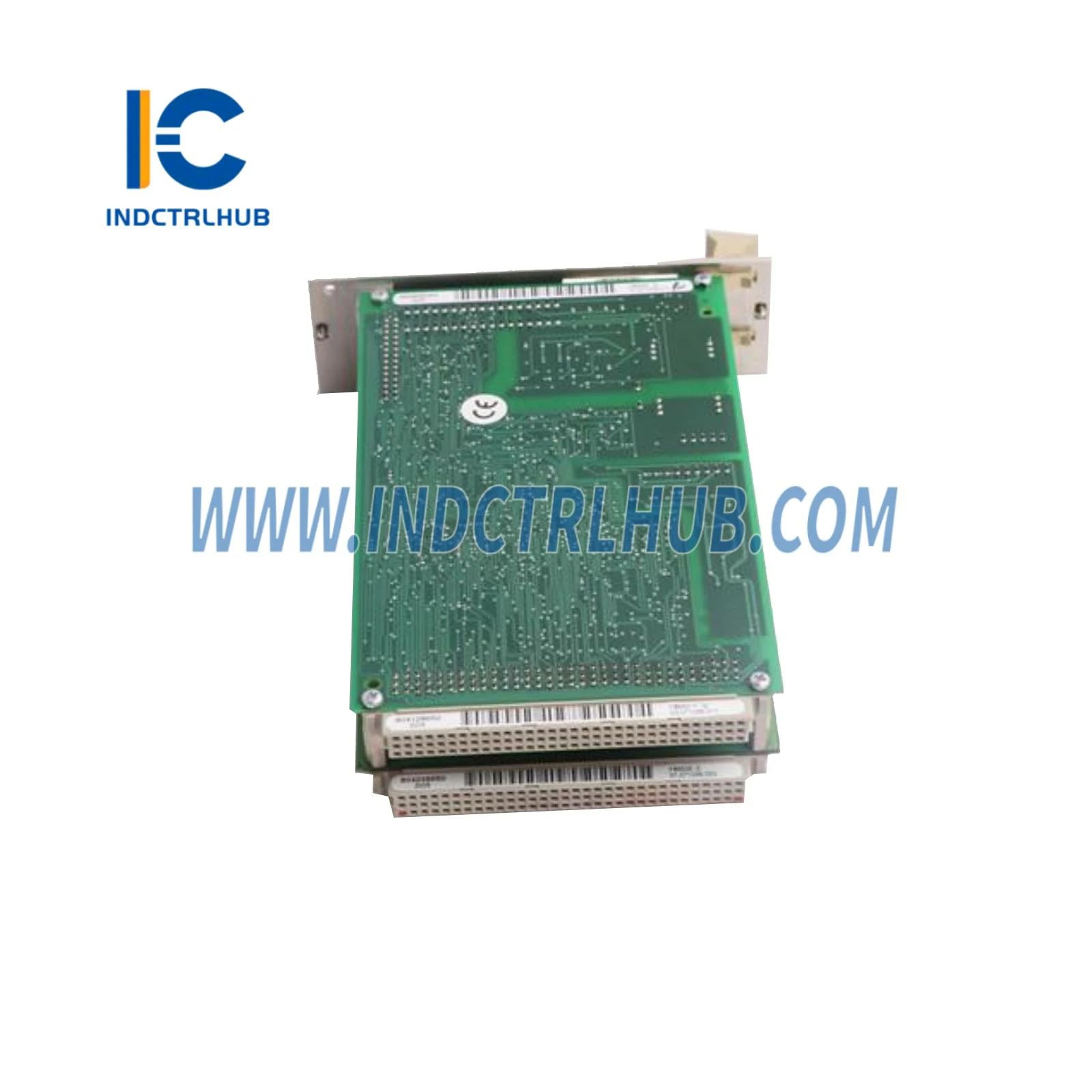

Product Description
Product Details
|
Manufacturer |
HIMA |
|---|---|
|
Model/Part Number |
F8560X |
|
Description |
Central Module |
Technical Specifications
|
Attribute |
Specification |
|---|---|
|
Usage |
PES H51q-MS, -HS, -HRS |
|
Safety Standard |
SIL 3 (IEC 61508) |
|
Microprocessors |
2x Intel 386EX, 32-bit |
|
Clock Frequency |
25 MHz |
|
Memory per Microprocessor |
- Operating System: Flash-EPROM 1 MB - User Program: Flash-EPROM 1 MB * - Data Storage: SRAM 1 MB * (* Degree of utilization depends on the operating system version) |
|
Interfaces |
2 Serial Interfaces (RS 485, electrically isolated) |
|
Diagnostic Display |
4-digit matrix display with selectable information |
|
Error Switch-Off |
Safety-related watchdog with output (24V DC, loadable up to 500 mA, short-circuit proof) |
|
Construction |
2 European standard PCBs, 1 PCB for diagnostic display circuits |
|
Space Requirements |
8 SU |
|
Operating Data |
5V DC, 2A |
