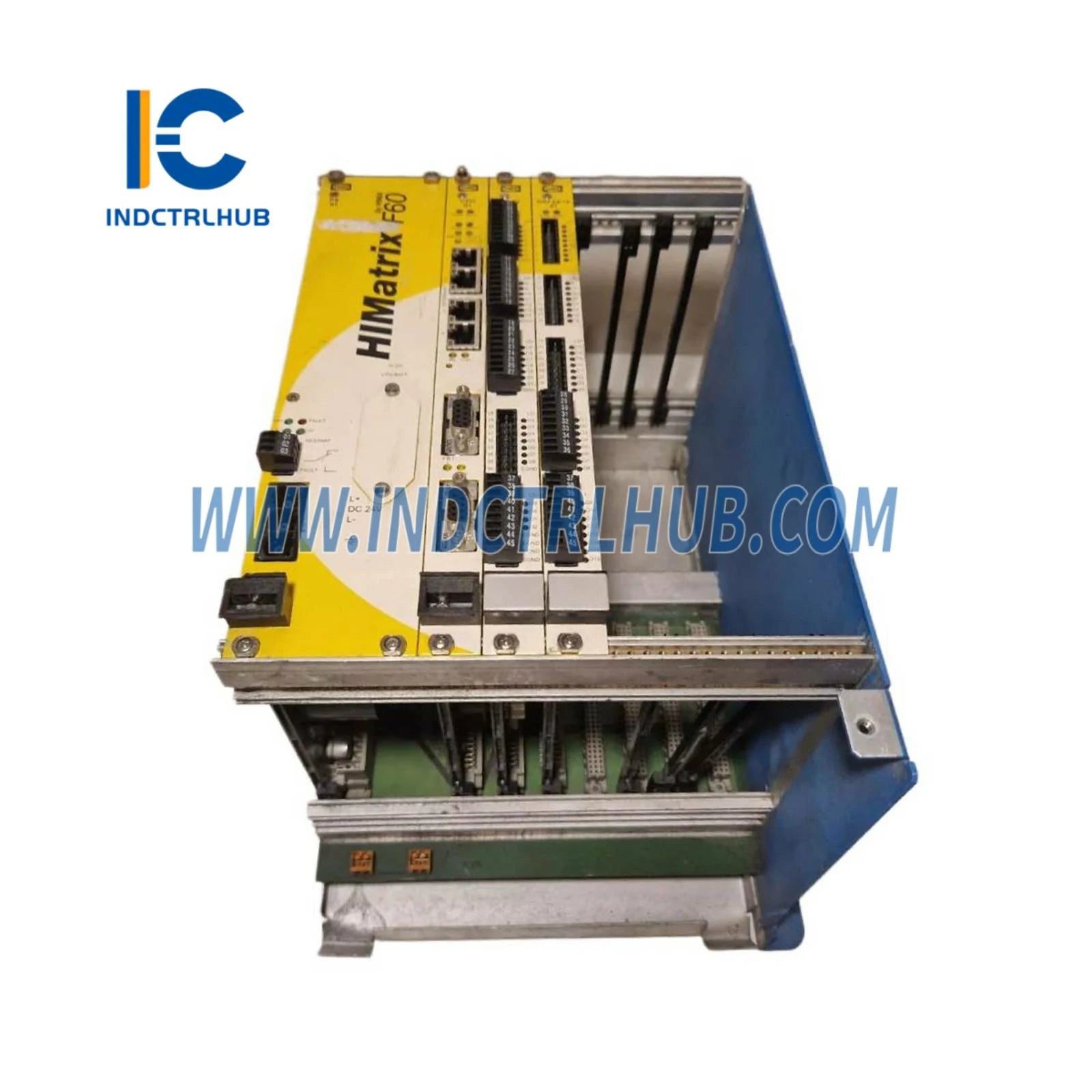

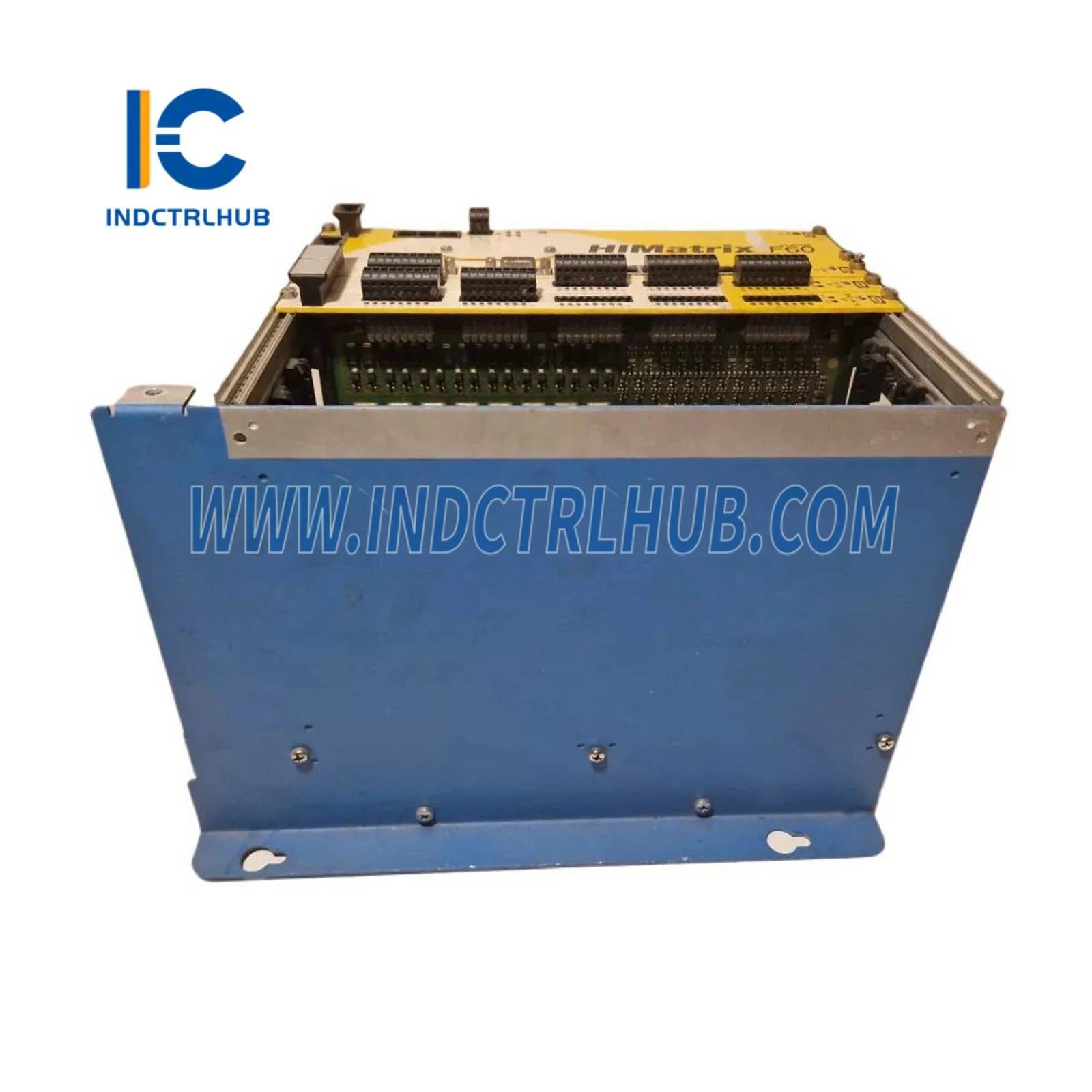

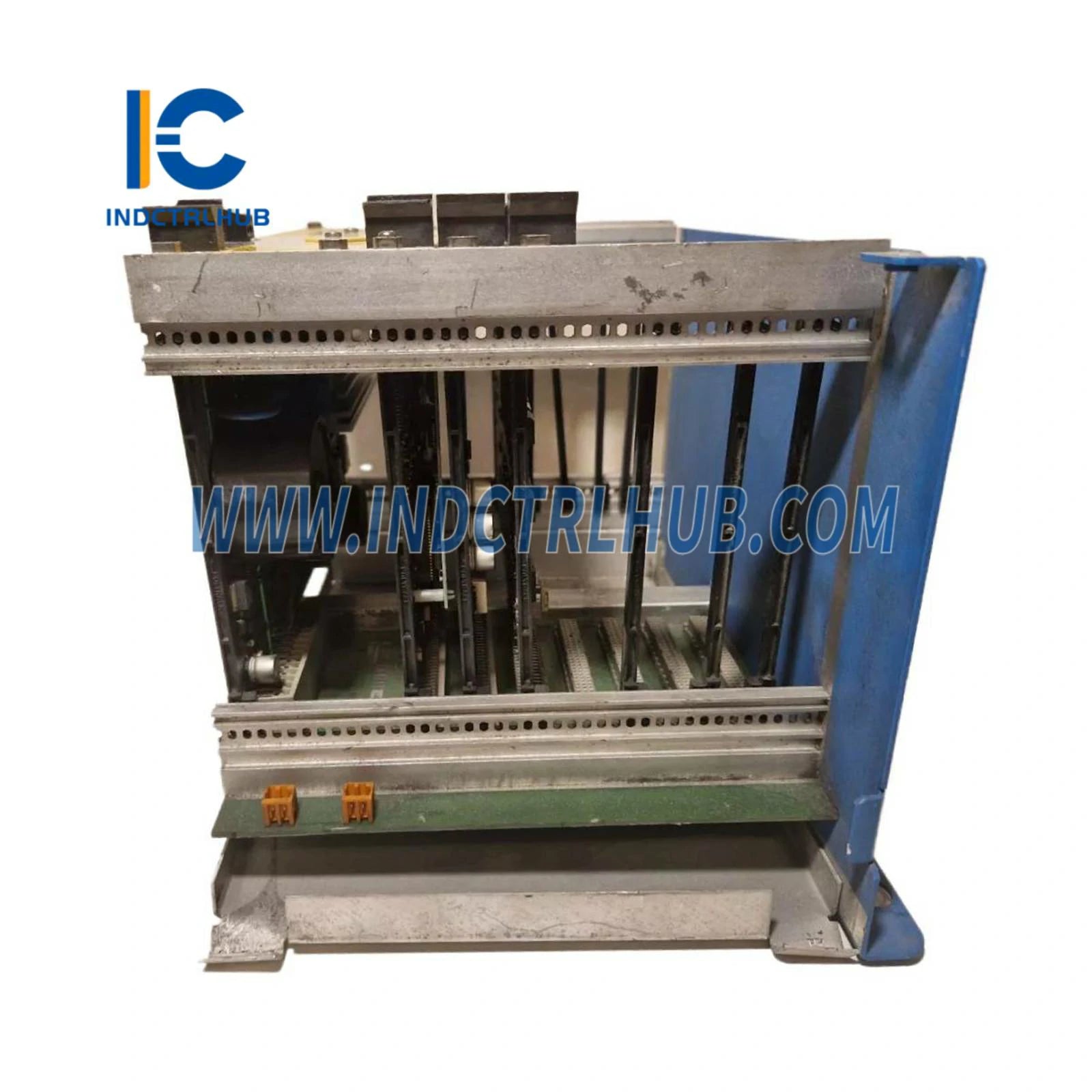

Product Description
Product Details
|
Manufacturer |
HIMA |
|---|---|
|
Model/Part Number |
F60 DIO 24/16 |
|
Description |
Safety-Related Controller |
Technical Specifications
General Specifications
|
Attribute |
Specification |
|---|---|
|
Operating Voltage |
24 VDC (-15% to +20%), rPP ≤ 15% |
|
Operating Data |
24 VDC / 380 mA 3.3 VDC / 150 mA |
|
Ambient Temperature |
0 to +60 °C |
|
Storage Temperature |
-40 to +85 °C |
|
Space Requirement |
6 RU, 4 HP |
|
Weight |
260 g |
Digital Input Specifications
|
Attribute |
Specification |
|---|---|
|
Number of Inputs |
24 (galvanically separated) |
|
Input Voltage (Nominal) |
24 VDC |
|
High-Level Voltage |
10 to 30 V |
|
Low-Level Voltage |
Max. 5 V |
|
High-Level Input Current |
2 mA at 10 V, 5 mA at 24 V |
|
Low-Level Input Current |
1 mA at 5 V |
|
Switching Point |
Typ. 7.5 V |
|
Supply |
3 x 20 V / 100 mA (at 24 V), short-circuit-proof |
Digital Output Specifications
|
Attribute |
Specification |
|---|---|
|
Number of Outputs |
16 (galvanically separated) |
|
Output Voltage |
18.4 to 26.8 VDC |
|
Internal Voltage Drop |
Max. 2 V at 2 A |
|
Output Current (at 30°C) |
2 A per channel Max. 8 A per module (permanently short-circuit proof) |
|
Minimum Load |
2 mA per channel |
|
Leakage Current (Low Level) |
Max. 1 mA at 2 V |
