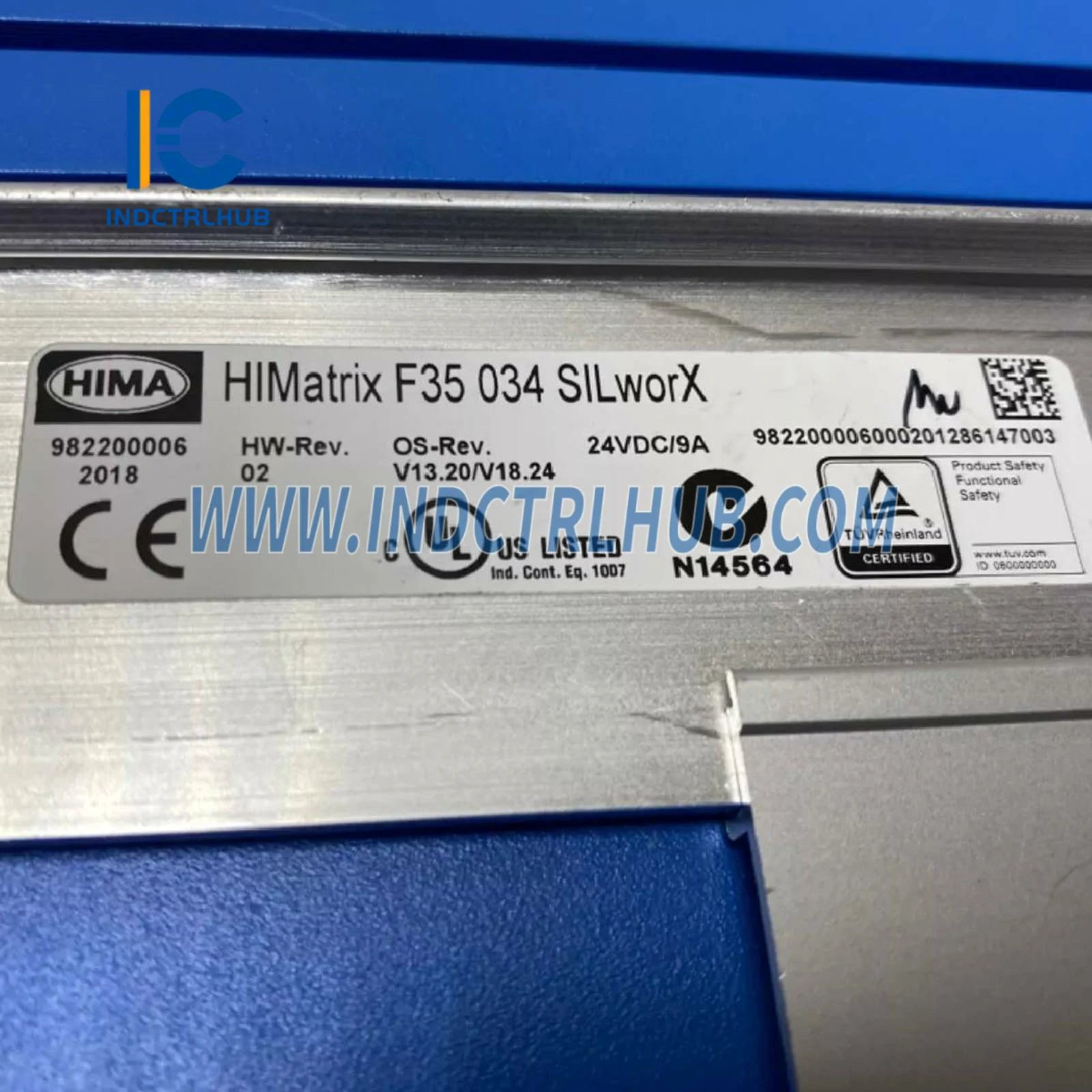

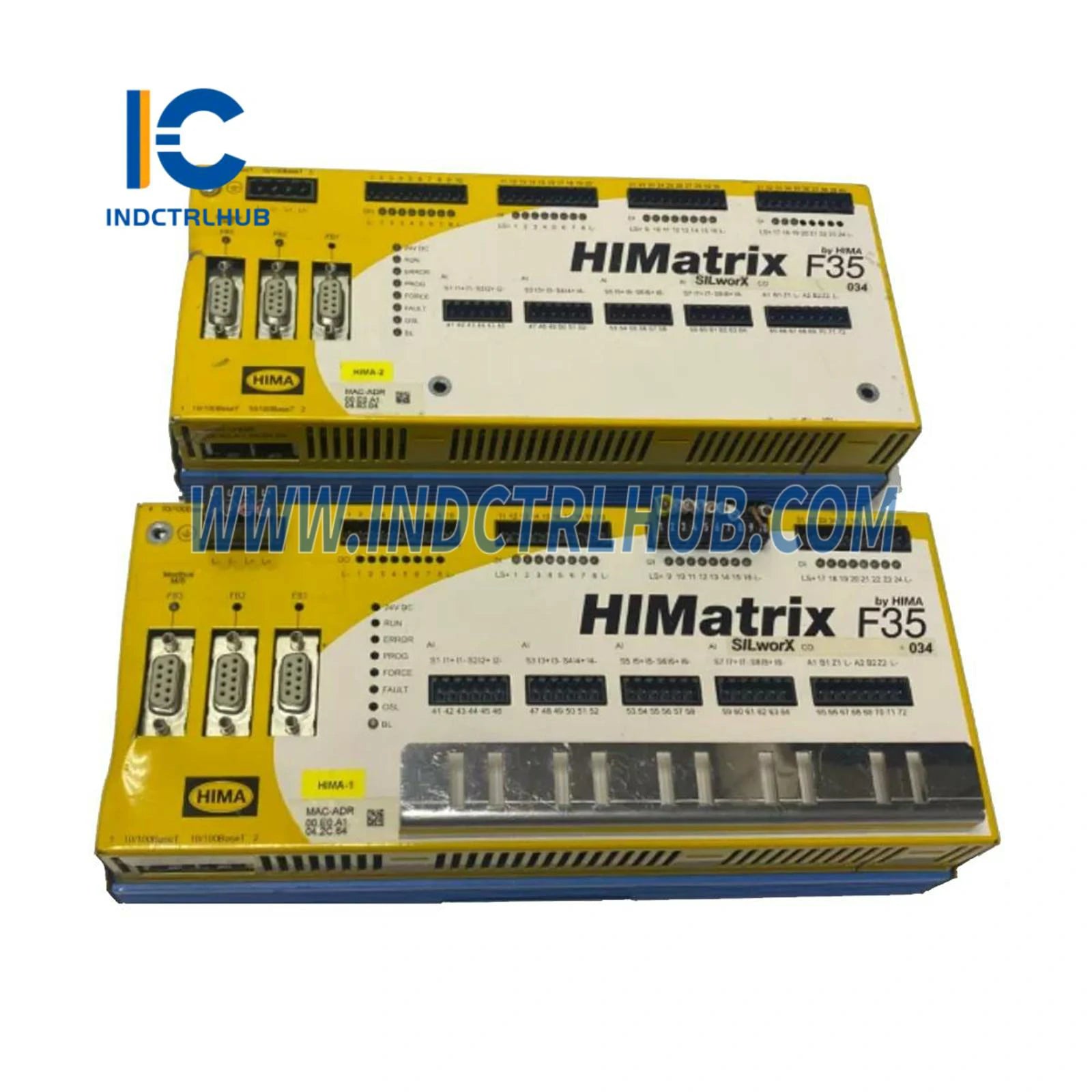

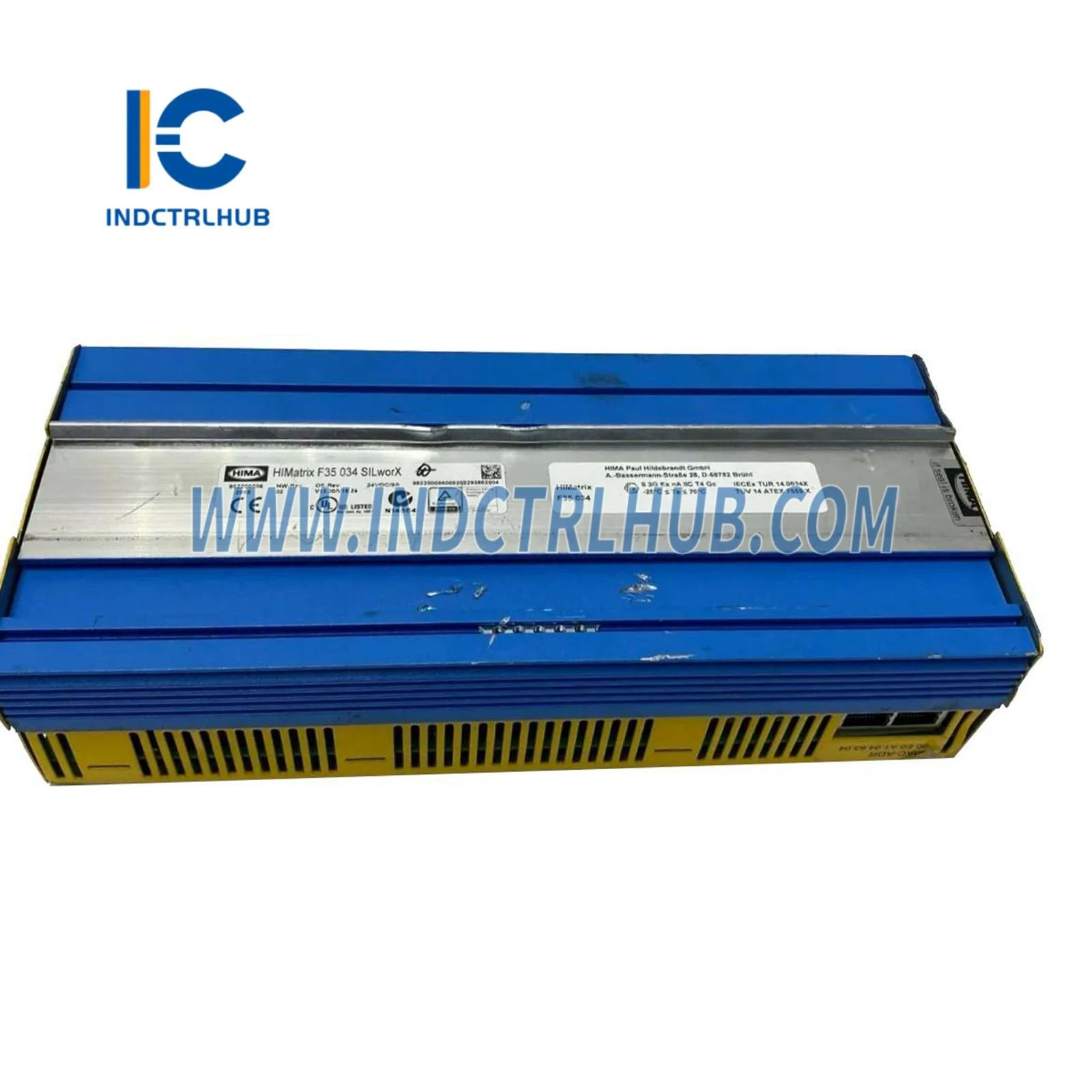

HIMA F35 034 Safety-Related Controller

HIMA F35 034 Safety-Related Controller

  • Manufacturer: HIMA

  • Product No.: F35 034

  • Condition:1000 in stock

  • Product Type: Safety-Related Controller

  • Product Origin: Germany

  • Payment: T/T, Western Union

  • Weight: 1200g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

General Information

Manufacturer

HIMA

Model/Part Number

F35 034

Description

Safety-Related Controller

Technical Specifications

Specification

Details

Total Program & Data Memory

5 MB (less 64 kB for CRCs)

Response Time

≥ 6 ms

Ethernet Interfaces

4 x RJ-45, 10BASE-T/100BASE-Tx with integrated switch

Fieldbus Interfaces

3 x 9-pole D-sub  - FB1 & FB2: With pluggable fieldbus submodule  - FB3: RS485 for Modbus (master/slave) or ComUserTask

Operating Voltage

24 VDC, -15…+20 %, rPP ≤ 15 % (from a power supply unit with safe insulation per IEC 61131-2)

Current Input

- Max: 9 A (with full load)  - Idle: 0.5 A

External Fuse

10 A time-lag (T)

Buffer for Date/Time

Gold capacitor

Operating Temperature

0…+60 °C

Storage Temperature

-40…+85 °C

Type of Protection

IP20

Dimensions (without plug)

- Width: 257 mm (with housing screws)  - Height: 114 mm (with fixing bolt)  - Depth: 97 mm (with earthing screw)

Weight

Approx. 1.2 kg



View full details

Product Description

General Information

Manufacturer

HIMA

Model/Part Number

F35 034

Description

Safety-Related Controller

Technical Specifications

Specification

Details

Total Program & Data Memory

5 MB (less 64 kB for CRCs)

Response Time

≥ 6 ms

Ethernet Interfaces

4 x RJ-45, 10BASE-T/100BASE-Tx with integrated switch

Fieldbus Interfaces

3 x 9-pole D-sub  - FB1 & FB2: With pluggable fieldbus submodule  - FB3: RS485 for Modbus (master/slave) or ComUserTask

Operating Voltage

24 VDC, -15…+20 %, rPP ≤ 15 % (from a power supply unit with safe insulation per IEC 61131-2)

Current Input

- Max: 9 A (with full load)  - Idle: 0.5 A

External Fuse

10 A time-lag (T)

Buffer for Date/Time

Gold capacitor

Operating Temperature

0…+60 °C

Storage Temperature

-40…+85 °C

Type of Protection

IP20

Dimensions (without plug)

- Width: 257 mm (with housing screws)  - Height: 114 mm (with fixing bolt)  - Depth: 97 mm (with earthing screw)

Weight

Approx. 1.2 kg
