Product Description
General Information
|
Manufacturer |
HIMA |
|---|---|
|
Model/Part Number |

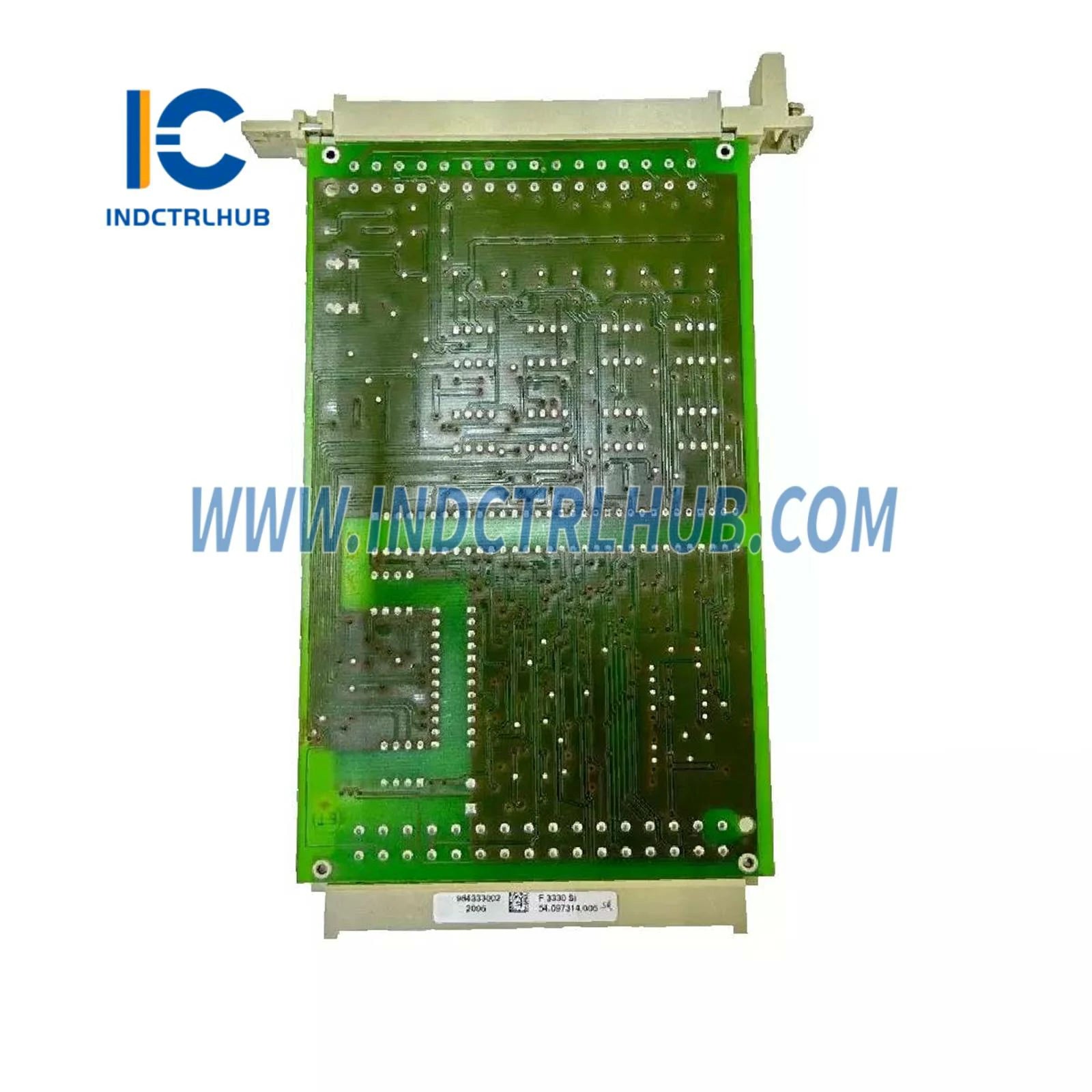

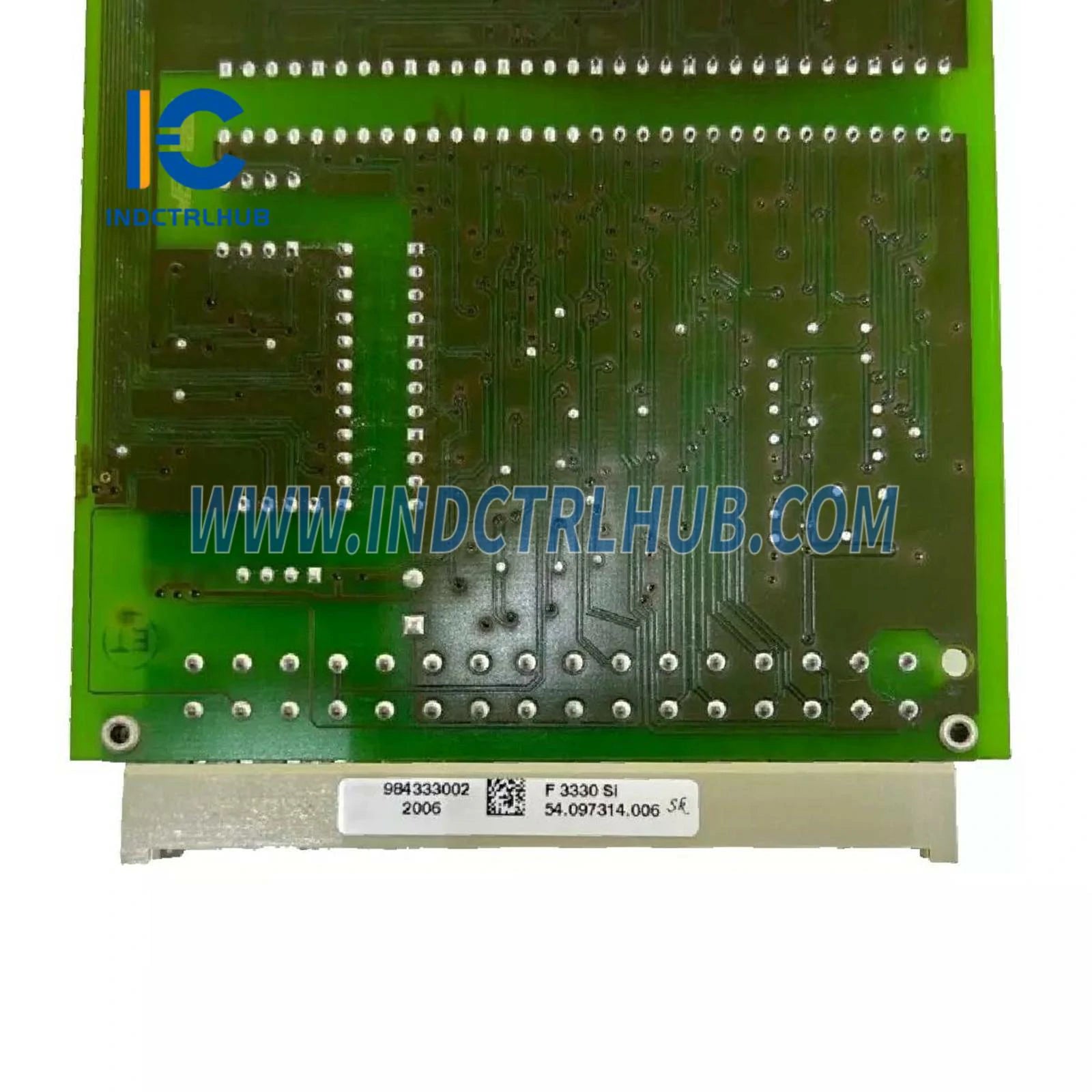

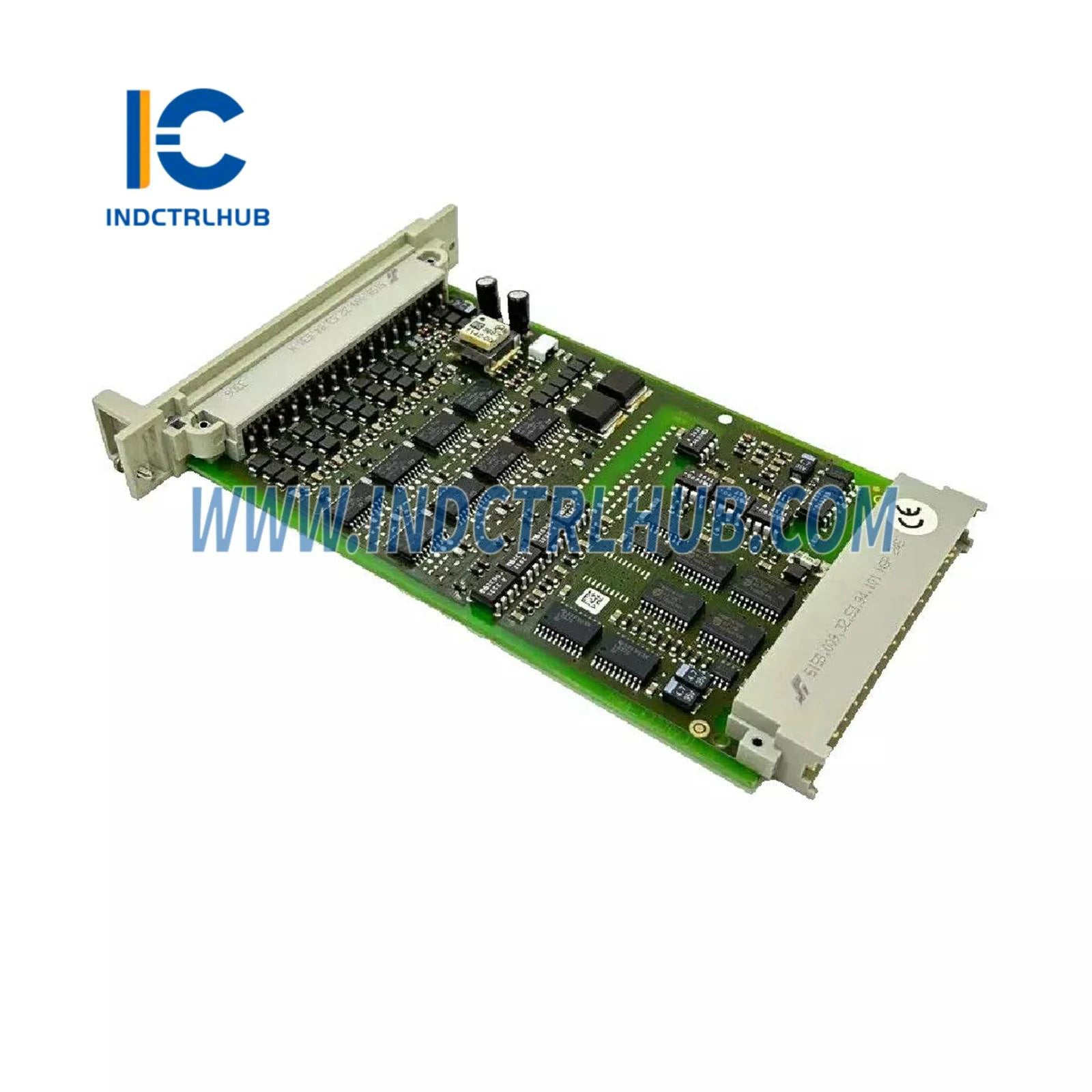

F3330 |
|
Description |
Output Module (Safety-Related) |
Technical Specifications
|
Specification |
Details |
|---|---|
|
Load Types |
Resistive or inductive load up to 500 mA (12 W), Lamp connection up to 4 W |
|
Safety Features |
Integrated safety shutdown, Safe isolation, No output signal with L- supply break |
|
Requirement Class |
AK 1 … 6 |
|
Automatic Test Routines |
Reading back of output signals, Walking-bit test, Switching capability of test signal |
|
Outputs |
500 mA, Short circuit proof |
|
Internal Voltage Drop |
Max. 2 V at 500 mA load |
|
Admissible Line Resistance |
Max. 11 Ohm (in + out) |
|
Undervoltage Tripping |
≤ 16 V |
|
Short Circuit Current Operating Point |
0.75 … 1.5 A |
|
Output Leakage Current |
Max. 350 µA |
|
Output Voltage (Reset State) |
Max. 1.5 V |
|
Test Signal Duration |
Max. 200 µs |
|
Space Requirement |
4 TE |
|
Operating Data |
5 V DC: 110 mA, 24 V DC: 180 mA (additional load) |
