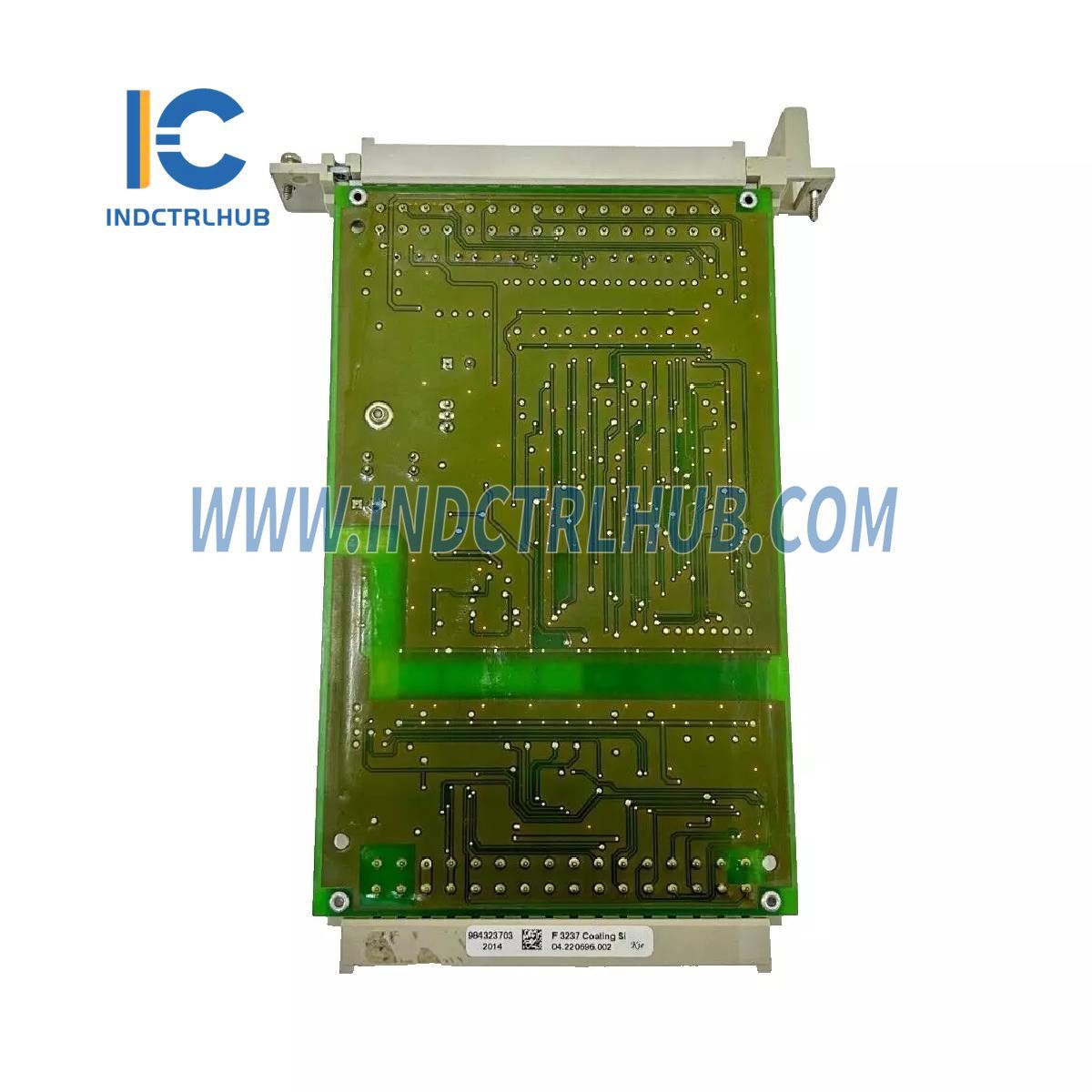

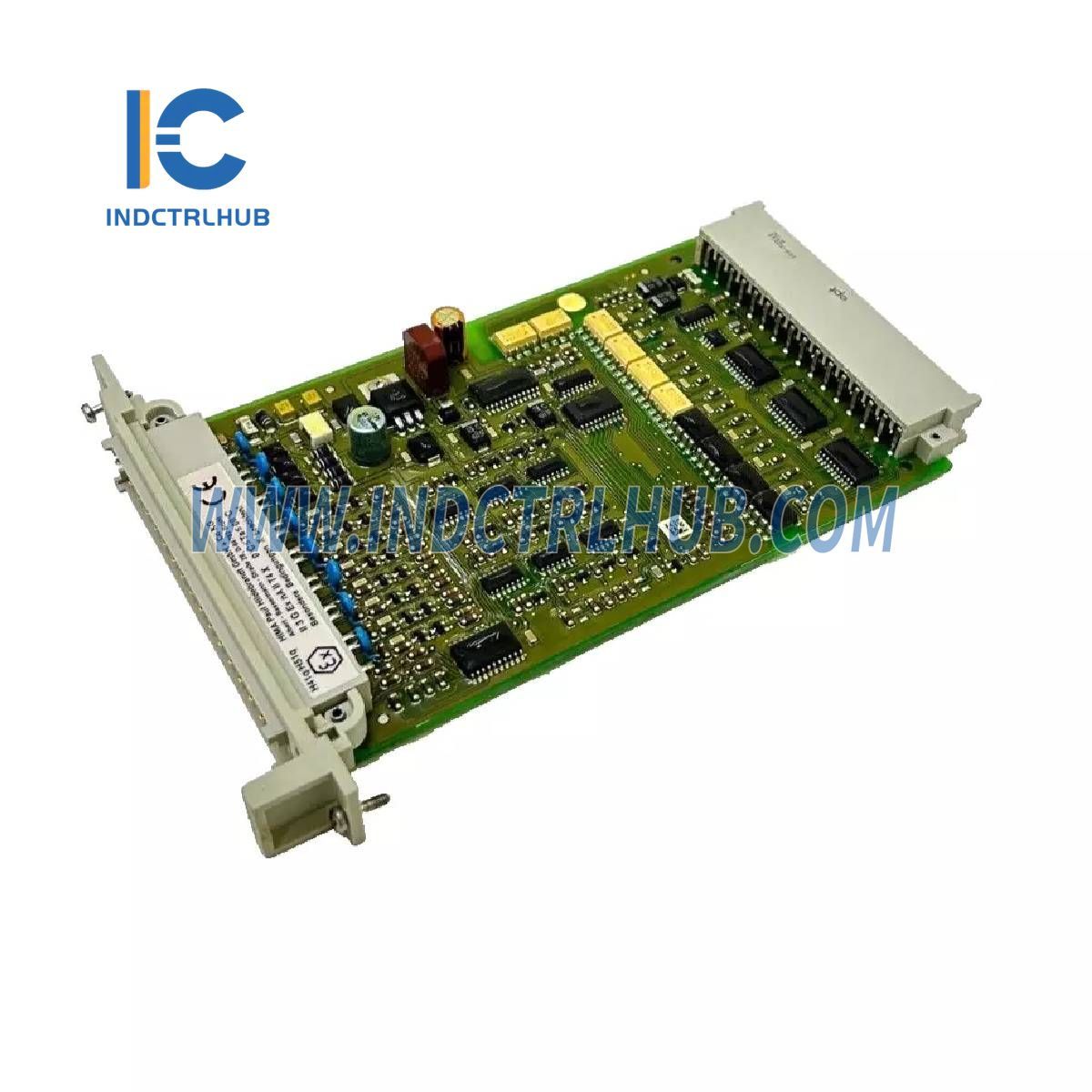

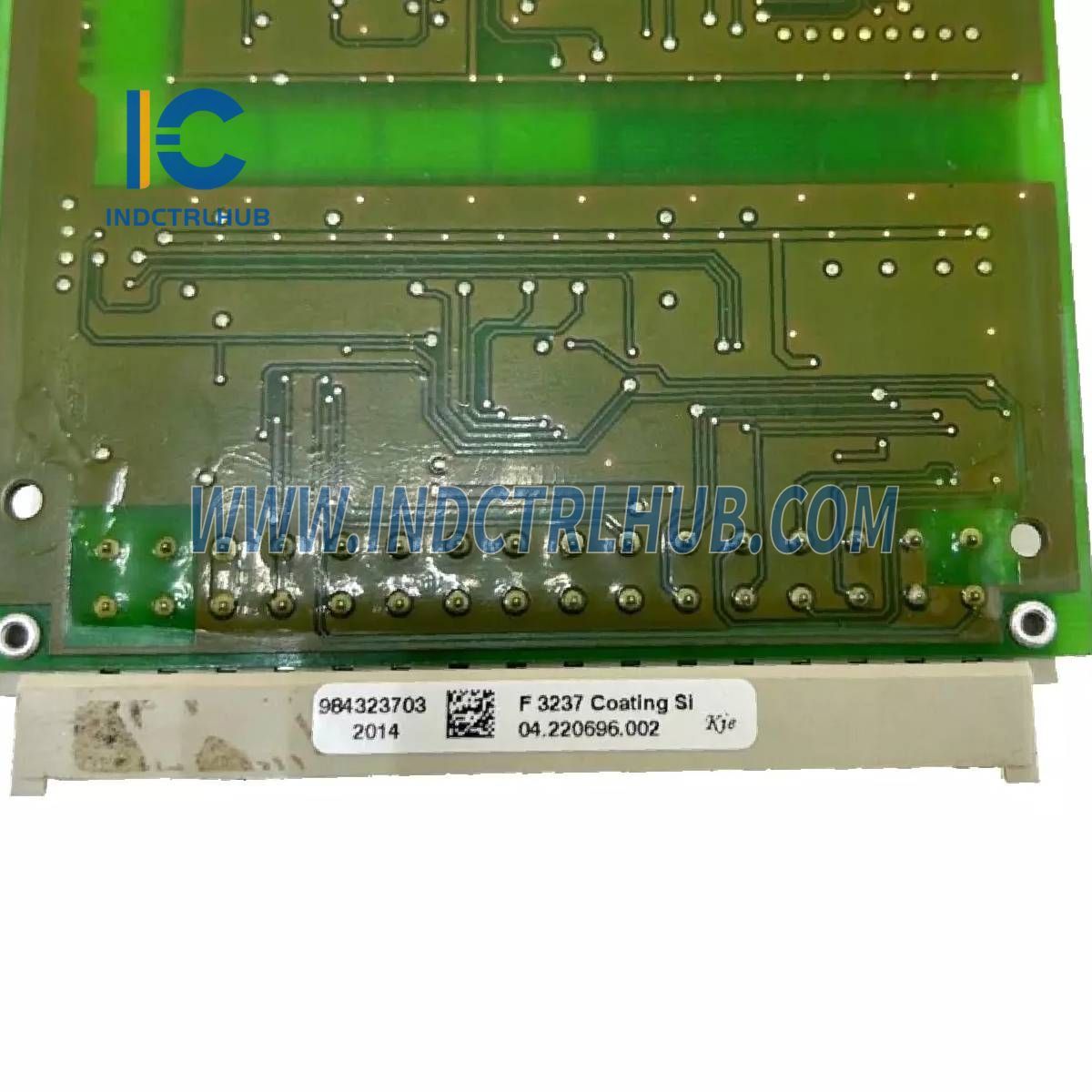

HIMA F3237 8-Fold Input Module

HIMA F3237 8-Fold Input Module

  • Manufacturer: HIMA

  • Product No.: F3237

  • Condition:1000 in stock

  • Product Type: 8-Fold Input Module

  • Product Origin: Germany

  • Payment: T/T, Western Union

  • Weight: 1000g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

General Information

Manufacturer

HIMA

Model/Part Number

F3237

Description

8-Fold Input Module

Functionality & Features

 The module is automatically tested during operation.

 Main test routines include:

 Switch-on and switch-off capability.

 Crosstalk of input circuits using the walking 0 test.

 Functionality of input filters.

 Correct function of the module.

 Detection of short circuits and wire breaks in the sensor line.

 LED functions are not tested.

 Compatible software building block: HB-RTE-. (Refer to the operating system description for the latest version).


Technical Specifications

Specification

Details

Switching Time

Approx. 10 ms

Operating Points IE

- 0 Signal: 0.35 ≤ IE ≤ 1.2 mA   - 1 Signal: 2.1 ≤ IE ≤ 6.0 mA  - Wire Break: ≤ 0.28 mA  - Short Circuit: ≥ 6.5 mA

Line Impedance

≤ 50 Ohm (acc. to DIN 19234)

Line Length

≤ 1000 m (∅ = 0.5 mm²)

Supply Voltage (US)

8.2 V

Shunt Resistor (R*

681 Ohm; 1 %; 0.25 W (R17 … R24, Part No. 00 0751681)

Space Requirement

4 TE

Operating Data

- 5V: 90 mA  - 24V: 170 mA



View full details

Product Description

General Information

Manufacturer

HIMA

Model/Part Number

F3237

Description

8-Fold Input Module

Functionality & Features

 The module is automatically tested during operation.

 Main test routines include:

 Switch-on and switch-off capability.

 Crosstalk of input circuits using the walking 0 test.

 Functionality of input filters.

 Correct function of the module.

 Detection of short circuits and wire breaks in the sensor line.

 LED functions are not tested.

 Compatible software building block: HB-RTE-. (Refer to the operating system description for the latest version).


Technical Specifications

Specification

Details

Switching Time

Approx. 10 ms

Operating Points IE

- 0 Signal: 0.35 ≤ IE ≤ 1.2 mA   - 1 Signal: 2.1 ≤ IE ≤ 6.0 mA  - Wire Break: ≤ 0.28 mA  - Short Circuit: ≥ 6.5 mA

Line Impedance

≤ 50 Ohm (acc. to DIN 19234)

Line Length

≤ 1000 m (∅ = 0.5 mm²)

Supply Voltage (US)

8.2 V

Shunt Resistor (R*

681 Ohm; 1 %; 0.25 W (R17 … R24, Part No. 00 0751681)

Space Requirement

4 TE

Operating Data

- 5V: 90 mA  - 24V: 170 mA
