Product Description
Product Details

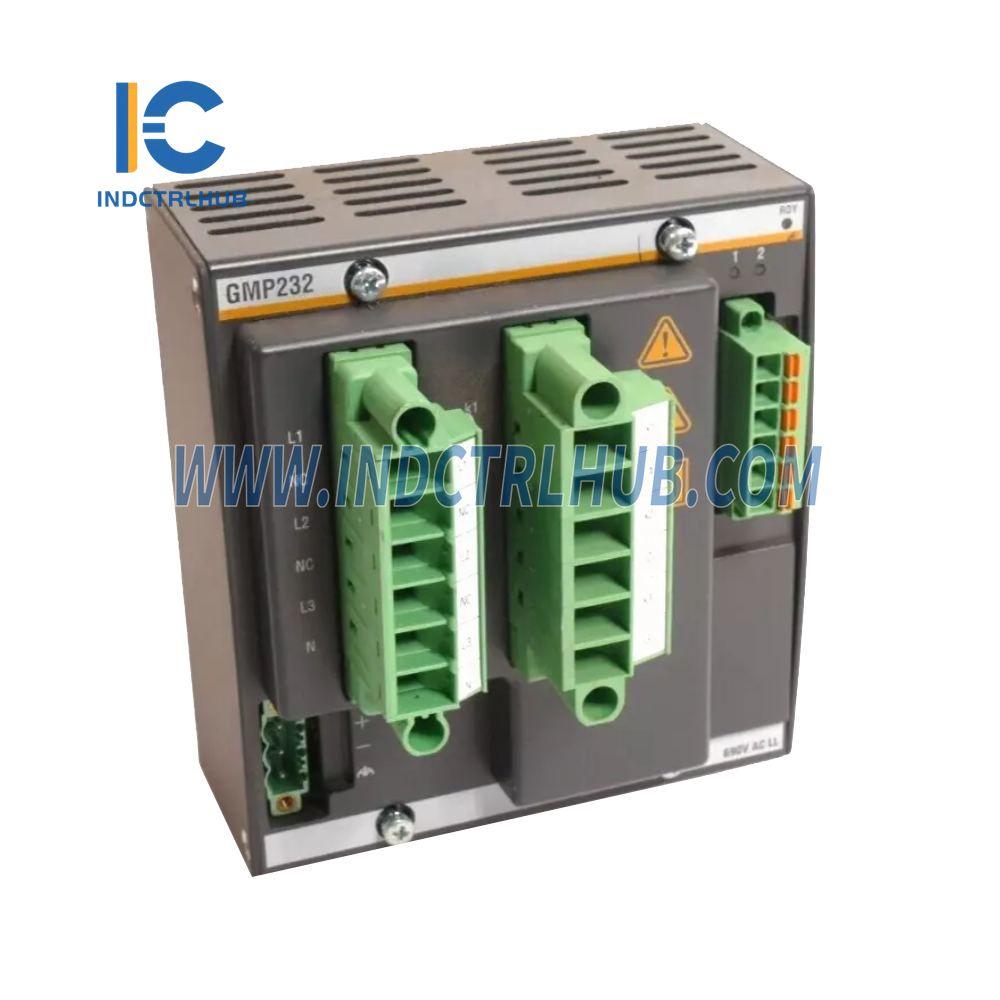

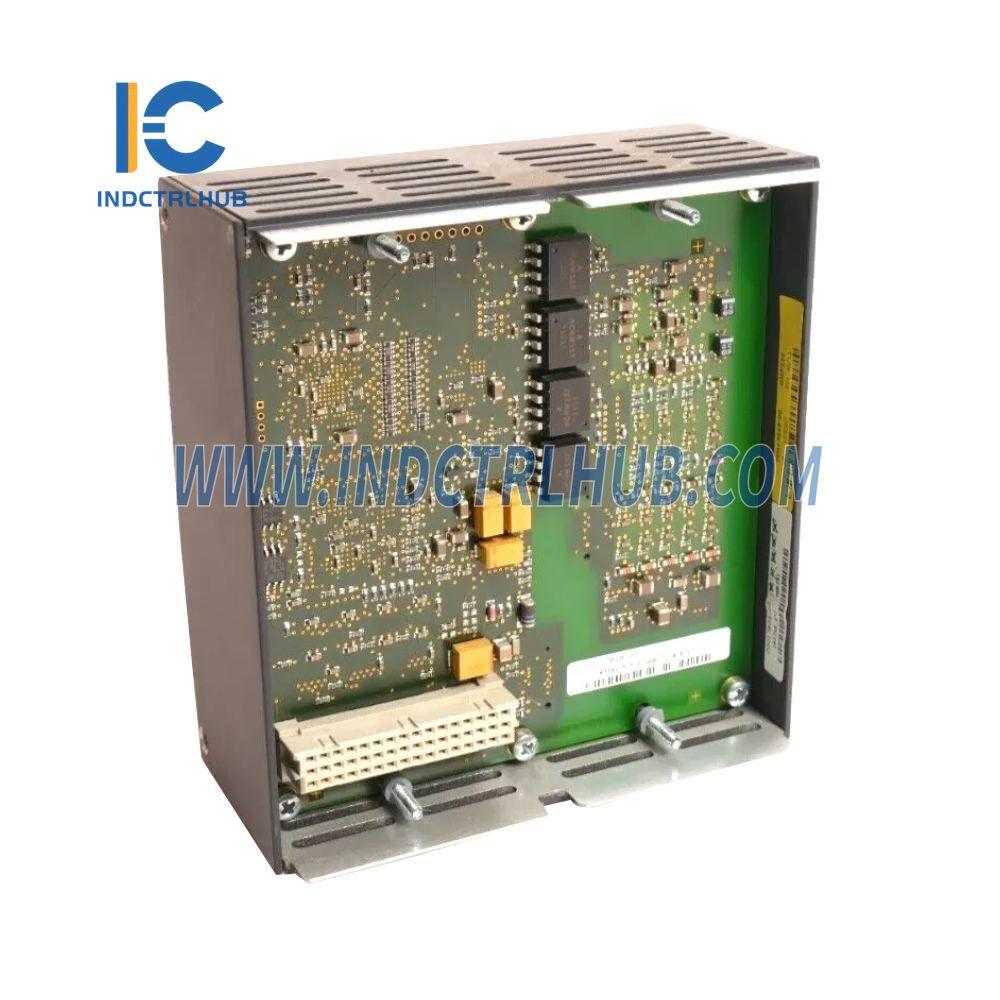

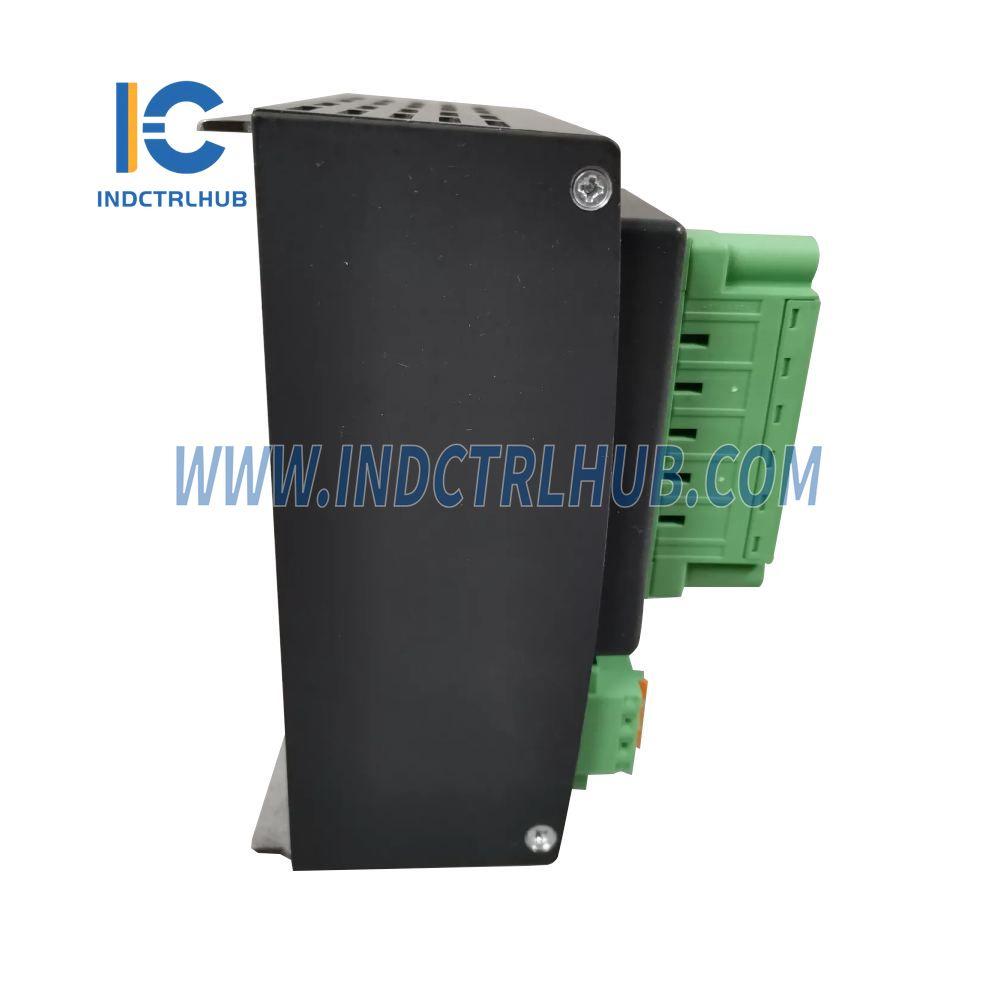

- Manufacturer: BACHMANN
- Model/Part Number: GMP232
- Description: Grid measurement and protection module
Key Features
-
Measurement of:
- Current
- Voltage
- Frequency
- Power
- Power Factor
- Phase Angle
- Direct connection to input voltages up to 690 VL-L, RMS
- Measurement of grid harmonics up to the 50th (power quality)
- Monitoring/Protection functions for grid and generator protection
- Direct relay outputs for circuit-breaker/trip circuits
- Integrated real-time data recorder
- Integrated event logging
- 4Q energy counter
- Measured value simulation
Electrical Safety
| Parameter | Specification |
|---|---|
| Product Standard | IEC/EN61131-2 |
| Generic Standard | IEC/EN60664-1 |
| Pollution Degree | 2 |
| Overvoltage Category | 3 |
| Test Surge Voltage | 6 kV |
| Protection Class | 2 |
| Approvals / Certificates | CE, UL/cUL, CCC, Marine GL, DNV, LR, ABS, BV, BDEW:2008, FGW TR3:2011, FGW TR8:2011, VDE AR-N-4105:2011 |
Ambient Conditions
- Operating Temperature: -30 to +60 °C
- Relative Air Humidity: 5 to 95 % (no condensation), 5 to 95 % (with condensation)
- Storage Temperature: -40 to +85 °C
- Maximum Operating Height: 2,000 m above sea level (up to 4,500 m on request)
Power Supply
-
Backplane Power Supply:
- +5 V | ≤ 260 mA
- +15 V | ≤ 20 mA
- -15 V | ≤ 16 mA
- External Power Supply: 24 V | ≤ 87 mA
System Requirements
- Hardware: All M1 CPU families apart from ME203, SK1 backplane not required
- Software: M-Base 3.85 / SolutionCenter 1.85 or higher
Model Variants
- Grid measurement and protection module; includes 3x In 690V, 3x In 5A, 2x Out Relay 24/48V DC, 230V AC, U-, I-, P-, Q-, f-measurement, 4Q-energy metering, integrated monitoring/protection functions, harmonic analysis, integrated real-time data recorder (16 channels), and sequence of event log with real-time stamp
