Product Description
Product Overview

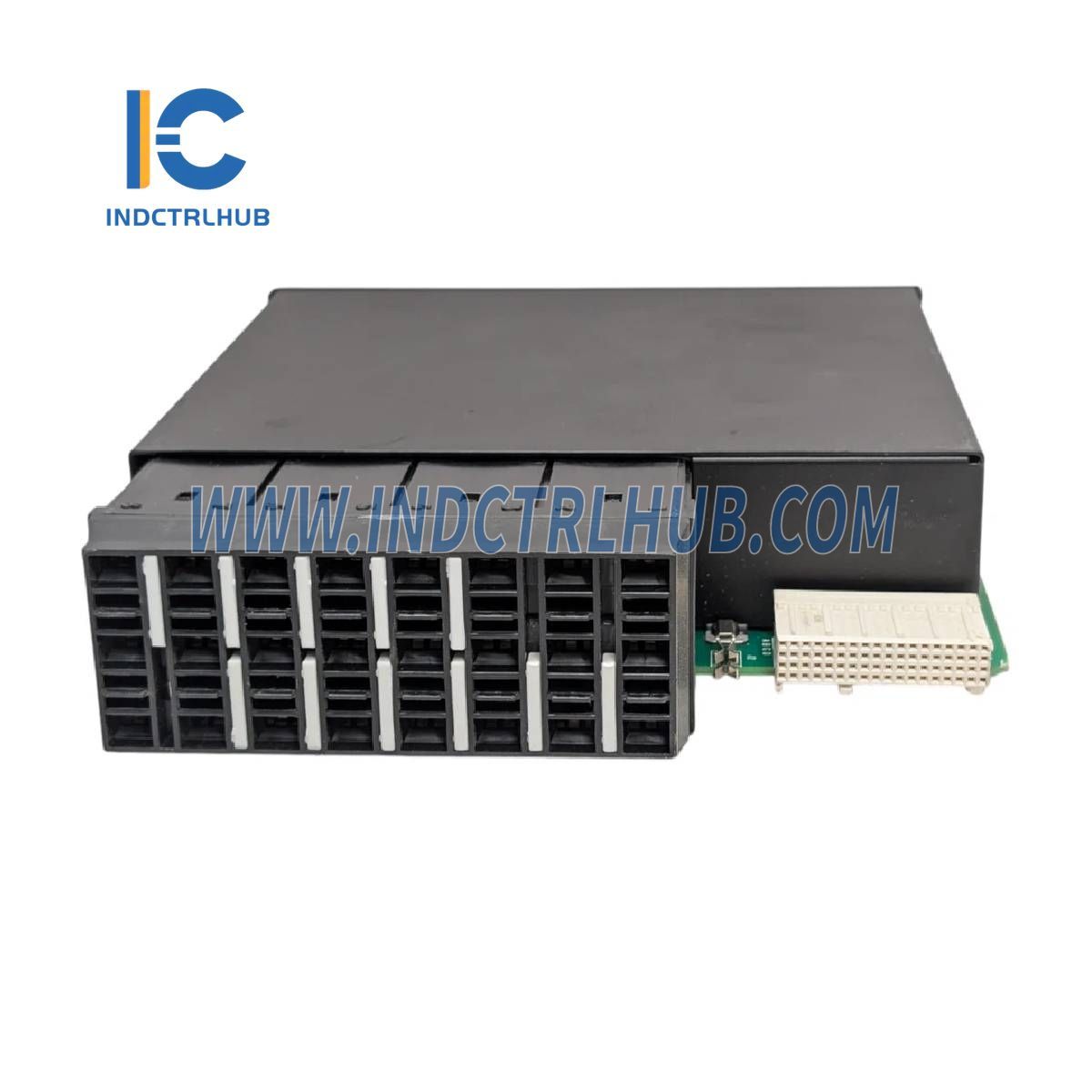

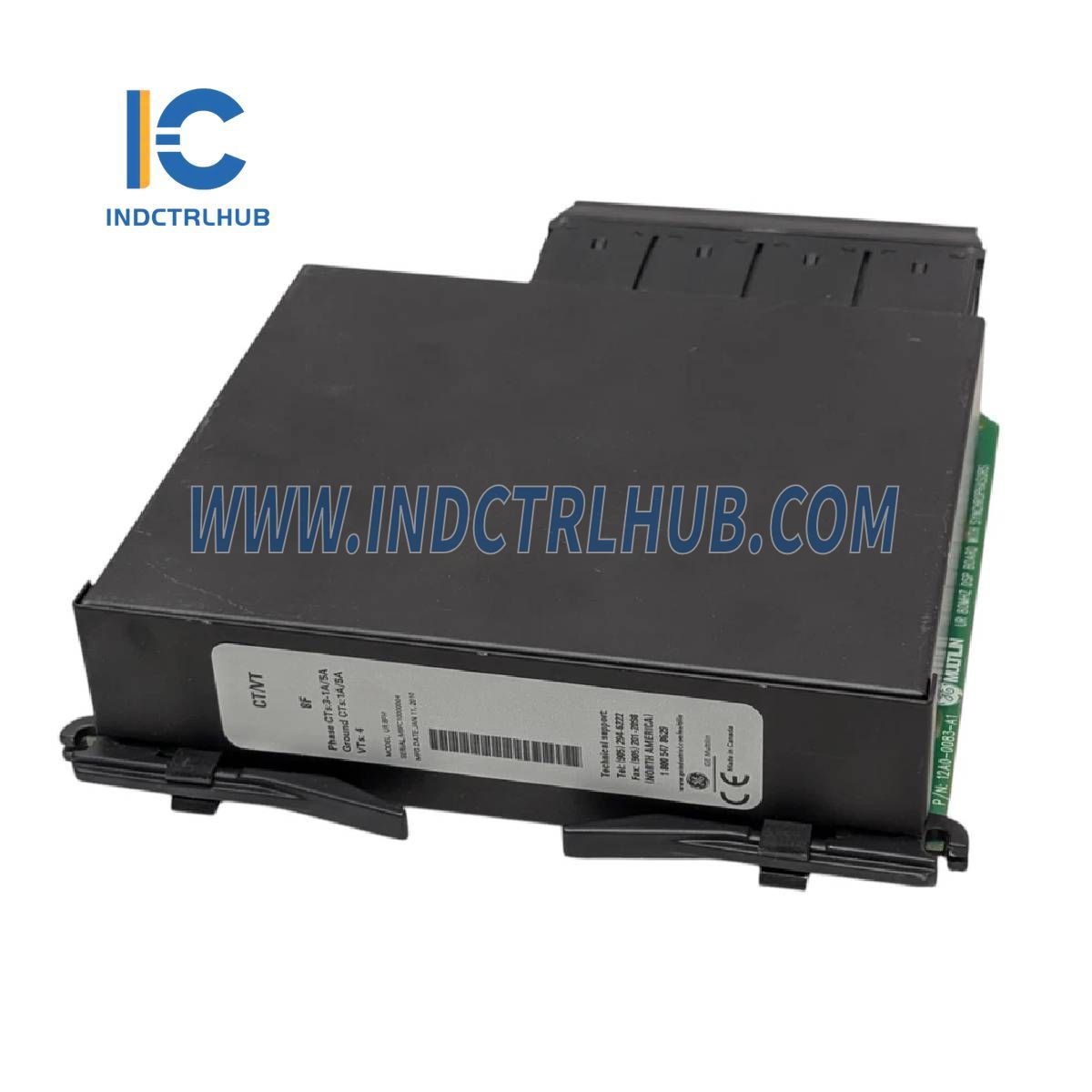

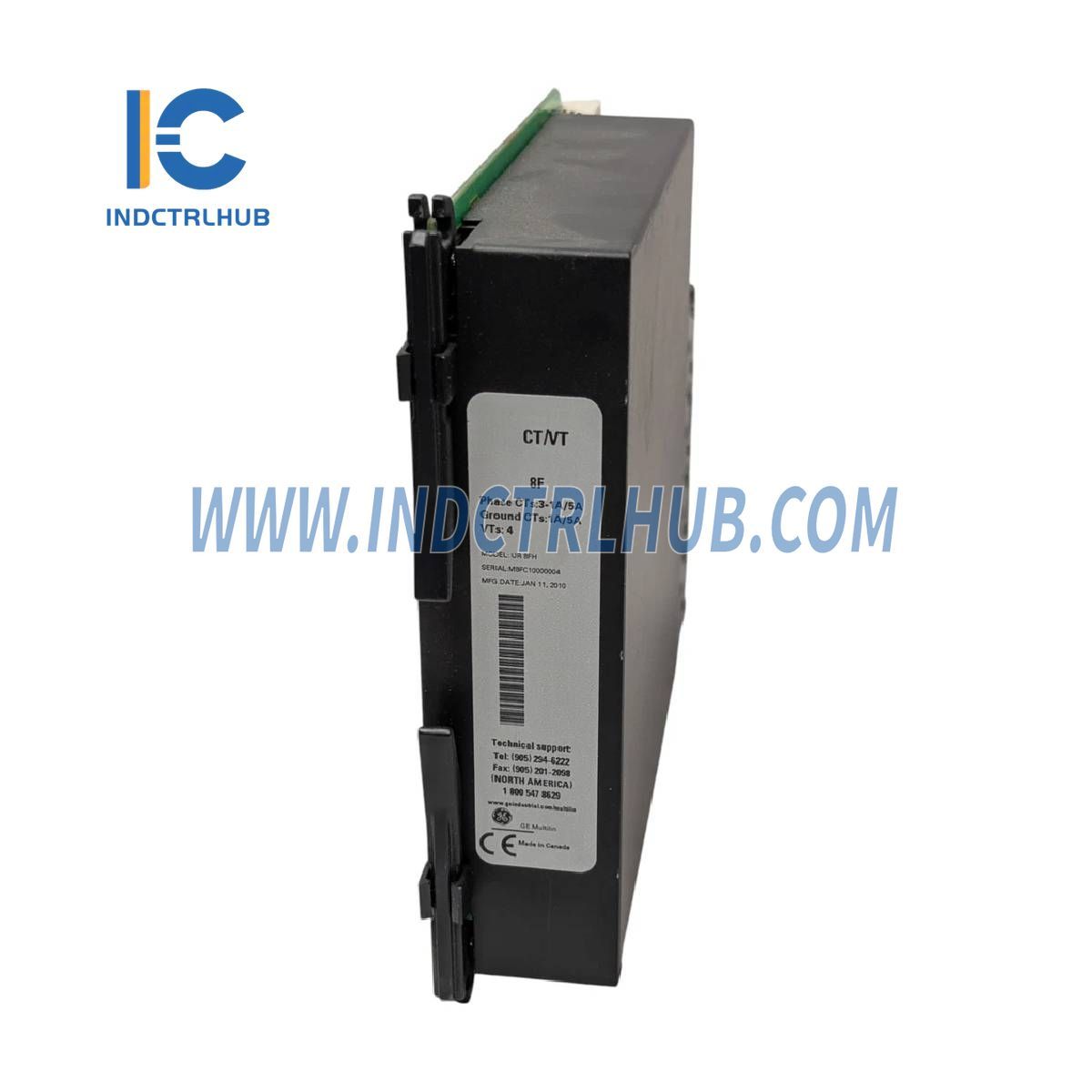

The General Electric UR8FH is a CT/VT Module designed for the GE Multilin UR (Universal Relay) Series. Manufactured by GE, now part of GE Vernova’s Grid Solutions, this module equips UR relays with current and voltage transformer inputs, enabling precise monitoring and protection of AC power systems. It is tailored for industrial and utility applications, including power generation, oil and gas, and electrical distribution, offering robust signal scaling and data generation for relay operations in systems requiring reliable current and voltage management.
Technical Information
| Item | Specifications |
|---|---|
| Manufacturer | General Electric (GE) / GE Vernova |
| Series | Multilin UR Series |
| Model/Part Number | UR8FH |
| Description | CT/VT Module |
| CT Configuration | 3 x 1A/5A Phase CTs, 1 x 1A/5A Ground CT |
| VT Configuration | 4 Voltage Transformer Inputs |
| Input Channels | Voltage or contact inputs on channels 1-4 or 5-8 |
| Dimensions | Approx. 15 cm L x 18 cm W x 4 cm H (5.9” x 7.1” x 1.6”) |
| Operating Temperature | -40 °C to +60 °C (-40 °F to +140 °F), typical for UR Series |
