Product Description
Product Overview

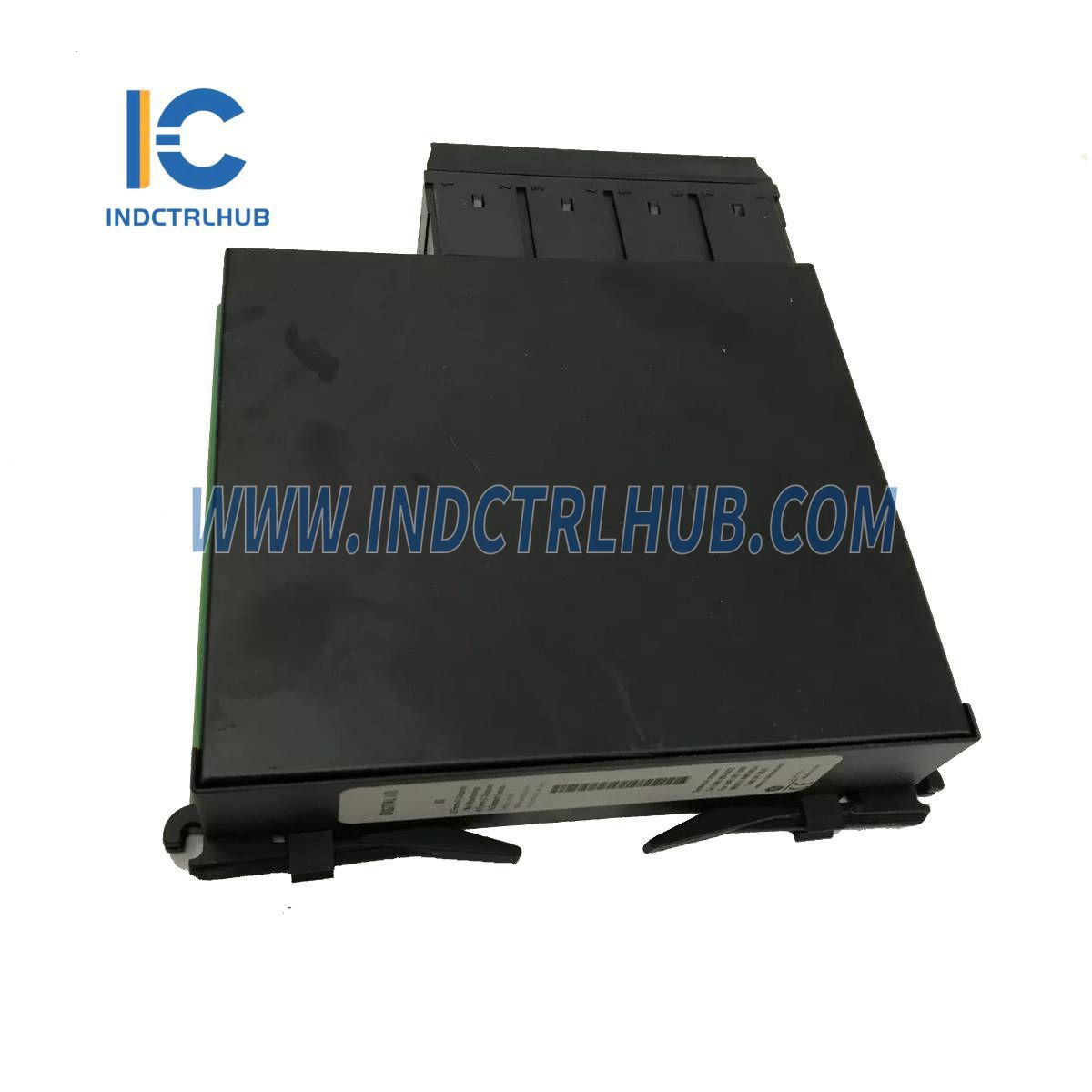

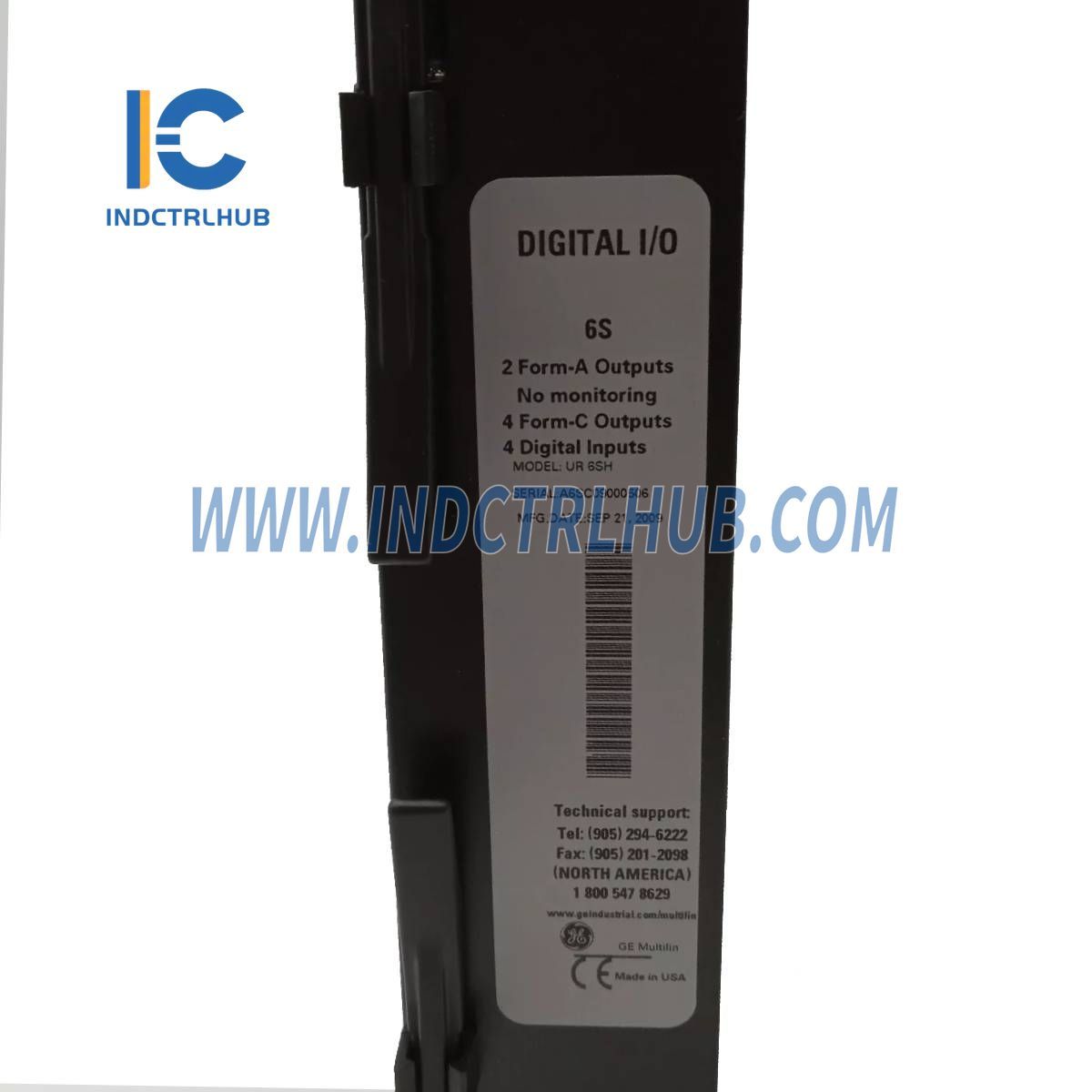

The General Electric UR6SH is a Digital I/O Module designed for integration into the GE Multilin Universal Relay (UR) Series. It provides digital input and output capabilities to enhance protection, control, and monitoring within industrial power systems. This module, identified by its "6S" order code, is tailored for specific interfacing needs in UR relays deployed in applications such as feeder protection, transformer management, or bus differential systems.
Technical Specifications
The UR6SH has the following specifications based on standard characteristics for this model within the UR Series:
| Item | Specification |
|---|---|
| Model | UR6SH |
| Manufacturer | General Electric |
| Description | Digital I/O Module |
| Series | GE Multilin Universal Relay (UR) |
| Configuration | 8 Form-C outputs |
| Output Type | Form-C (normally open/normally closed) relay contacts |
| Output Contact Rating | 10 A at 250 VAC / 10 A at 30 VDC (resistive load) |
| Operating Temperature | -40°C to 60°C (-40°F to 140°F) |
| Weight | 0.45 kg |
Additional Details
The UR6SH includes the following additional information based on its standard use and documentation:
| Category | Details |
|---|---|
| Function | Provides 8 Form-C digital outputs for UR Series relays |
| Mounting | Internal to UR Series relay chassis (horizontal or vertical orientation) |
| Compatibility | UR Series relays (e.g., B30, C60, D60, F60, T60) with firmware 4.0x or later |
| Order Code | 6S (indicates 8 Form-C outputs) |
| Certifications | Meets IEC 61850 and IEEE standards for relay applications |
| Part Type | New, surplus, or refurbished |
