Product Description
Product Overview

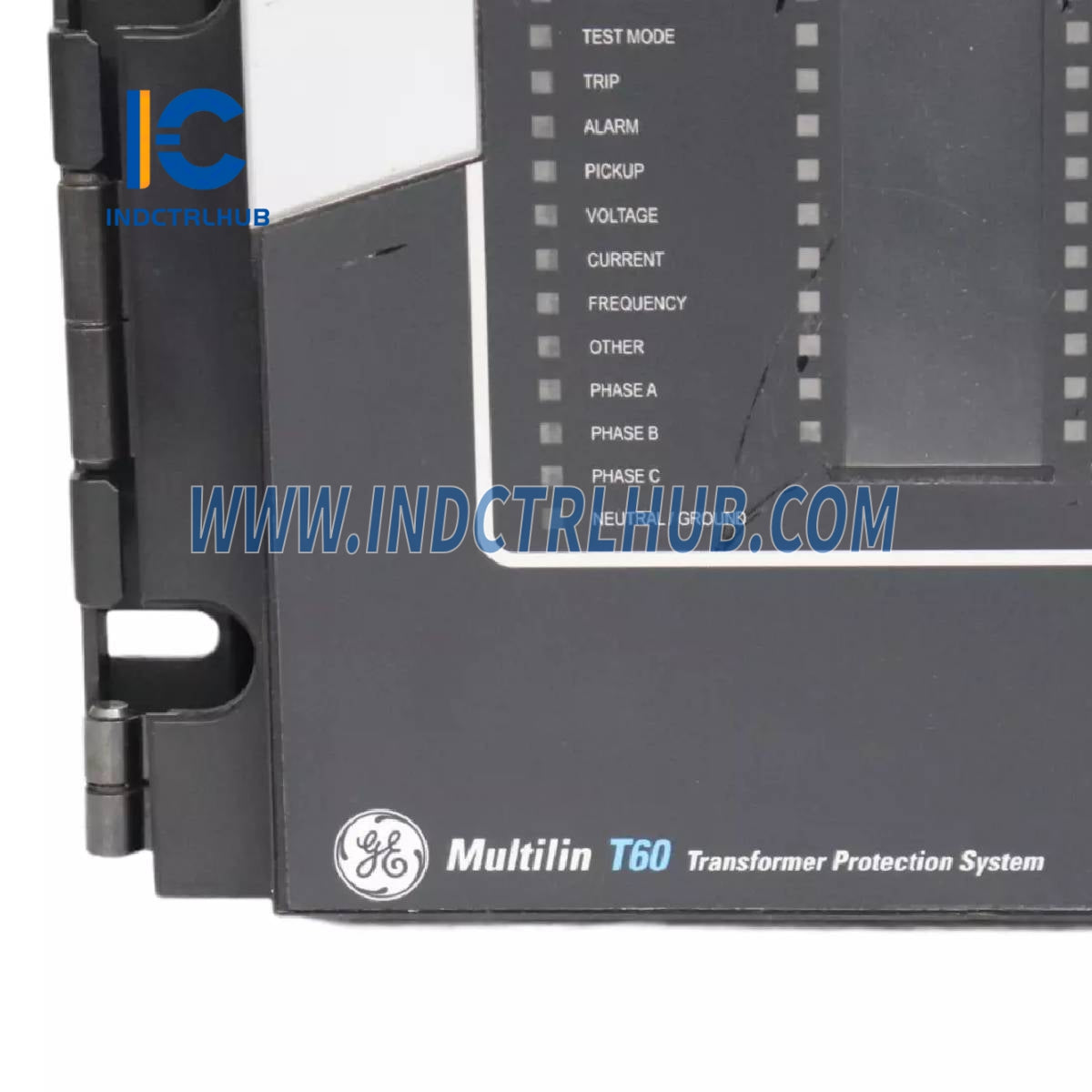

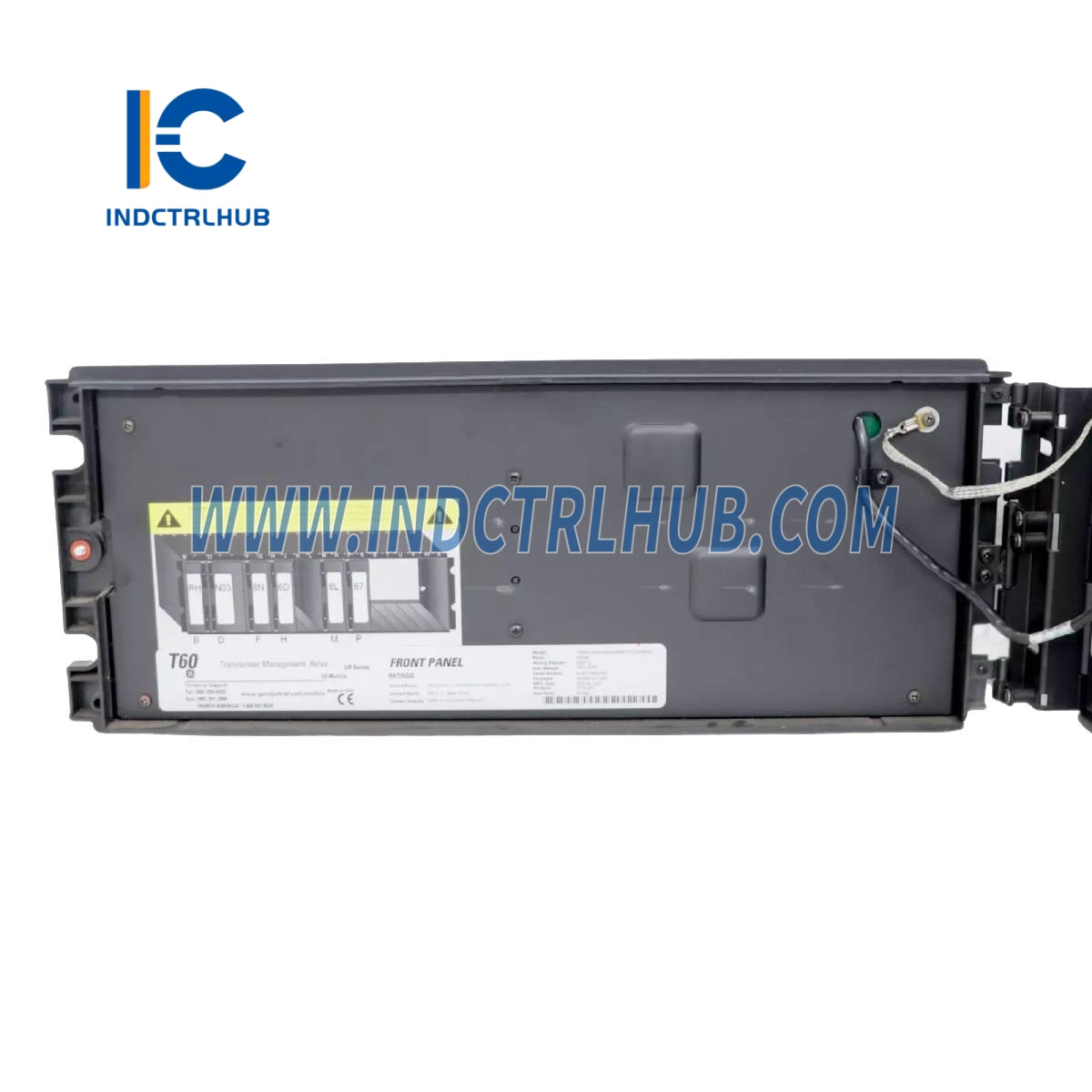

The General Electric T60-G01-HCH-F8H-H67-M8F-P6D-U6D-W6C is a Transformer Protection System from the GE Multilin UR (Universal Relay) Series, designed to safeguard power transformers in industrial and utility settings. Manufactured by General Electric, a global leader in industrial automation and power solutions, this microprocessor-based relay provides comprehensive protection for transformers with two to five windings, including interturn protection capabilities. It continuously monitors critical parameters such as voltage, current, and temperature, detecting faults like overloads, short circuits, and ground faults, and isolates the transformer via protective tripping to prevent damage. The T60 is widely used in power generation plants, substations, and industrial facilities, offering advanced features like a large color LCD display and integrated Phasor Measurement Unit (PMU) functionality for enhanced monitoring and control.
Technical Information
| Item | Specifications |
|---|---|
| Manufacturer | General Electric |
| Series | Multilin UR Series |
| Model/Part Number | T60-G01-HCH-F8H-H67-M8F-P6D-U6D-W6C |
| Description | Transformer Protection System |
| Input Voltage | 24-48 VDC or 100-240 VAC |
| Protection Functions | Overcurrent, differential, thermal, interturn, ground fault |
| Inputs | 8 analog inputs (current/voltage), multiple digital inputs |
| Outputs | Multiple relay outputs for tripping and signaling |
| Communication | Ethernet, RS485, IEC 61850, Modbus |
| Display | Large color LCD |
| Operating Temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
| Dimensions | 178 mm H x 215 mm W x 153 mm D (7.0 in x 8.5 in x 6.0 in) |
| Weight | 4.5 kg (9.9 lb) |
