Product Description
General Information
- Manufacturer: General Electric
- Model/Part Number: PQMII-C

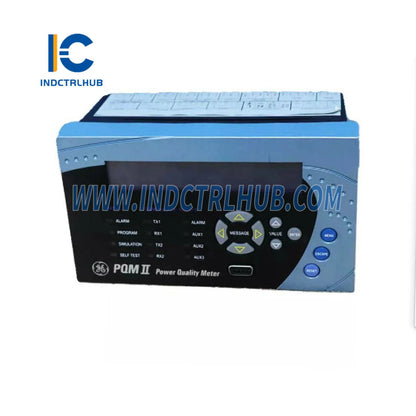

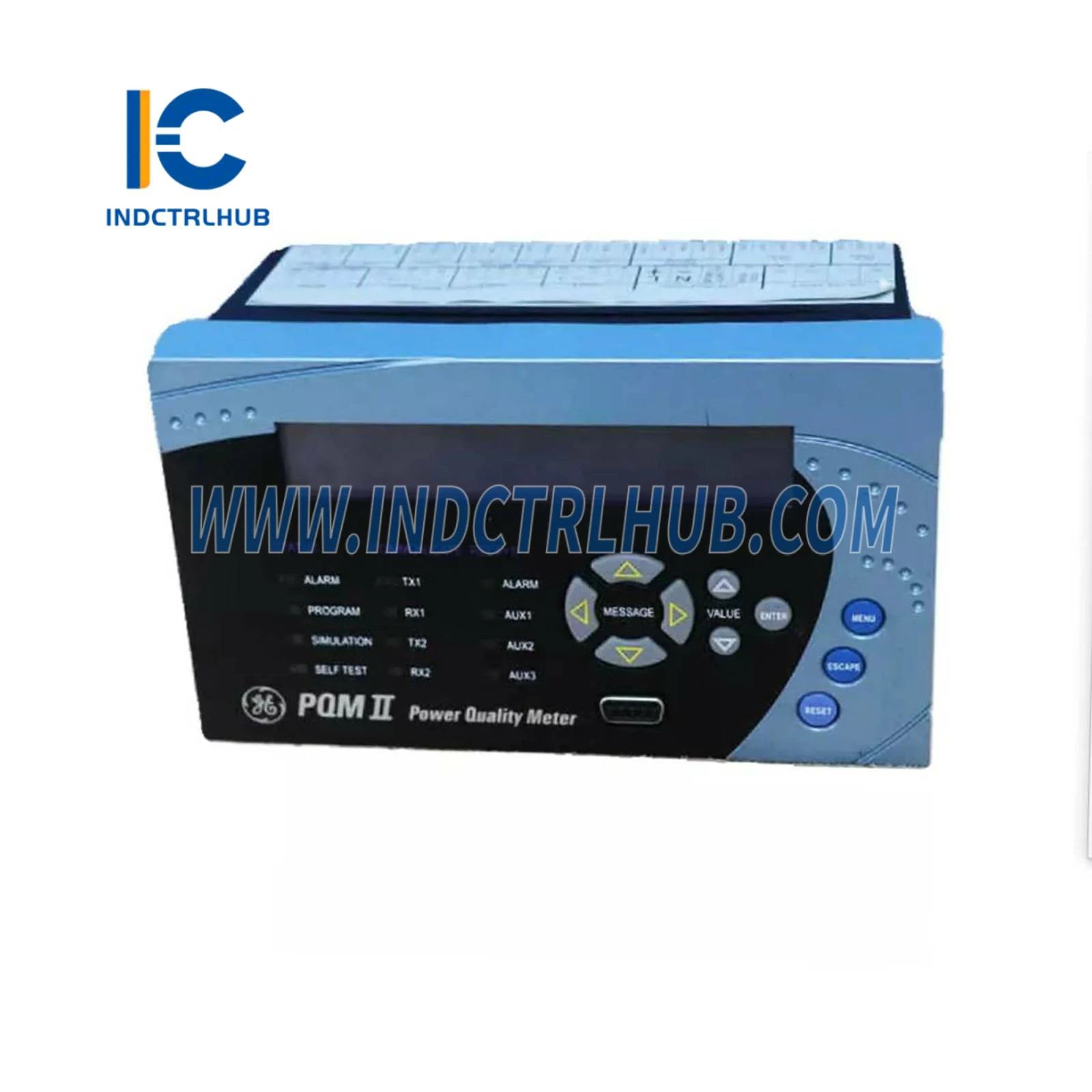

- Description: The General Electric PQMII-C is a Power Quality Meter from GE’s Multilin product line, designed for continuous monitoring and analysis of three-phase electrical systems. It provides detailed measurements of voltage, current, power, and harmonics, enabling the identification and diagnosis of power quality issues. This meter is widely used in industrial, commercial, and utility applications to ensure system reliability and prevent equipment damage due to electrical disturbances.
Technical Specifications
| Specification | Details |
|---|---|
| Type | Power Quality Meter |
| Series | Multilin PQMII |
| Control Power | 90–300 V DC, 70–265 V AC, 50/60 Hz, 20 VA |
| Measurement Capabilities | Voltage, current, frequency, power (real, reactive, apparent), power factor |
| Harmonic Analysis | Up to 63rd harmonic with Total Harmonic Distortion (THD) |
| Communication Ports | Front RS-232 serial port, two rear RS-485 serial ports |
| Display | 40-character illuminated LCD with keypad |
| Operating Temperature | -10°C to +60°C |
| Application | Power quality monitoring in industrial, commercial, and utility systems |
