Product Description
Product Overview

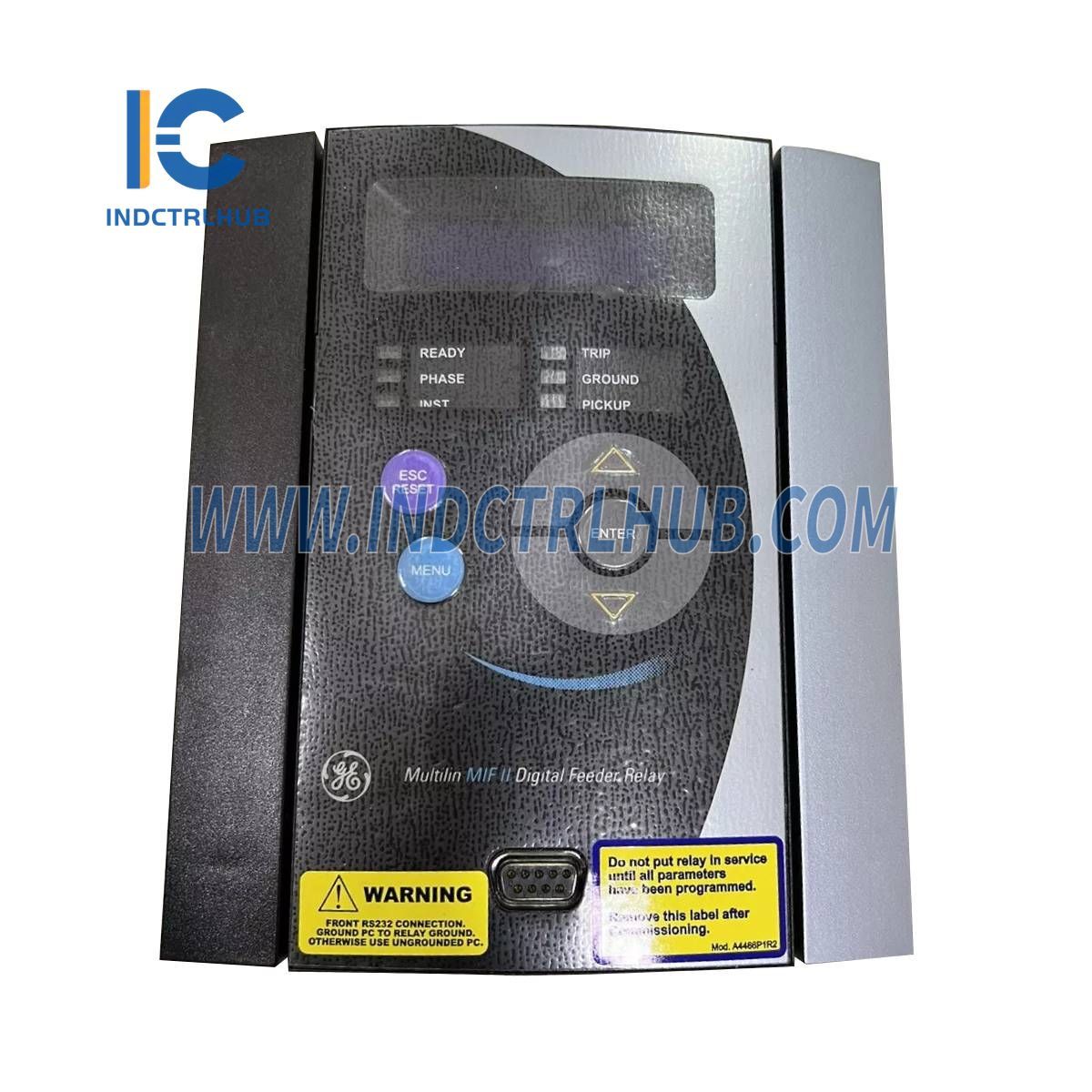

The General Electric MIFIIPI11E10HI00 is a Digital Feeder Relay from the GE Multilin MII Family, designed for primary circuit protection in distribution networks across various voltage levels. Manufactured by GE, now part of GE Vernova’s Grid Solutions, this relay provides reliable protection, control, and monitoring for feeders, as well as backup and auxiliary protection for transformers, generators, and motors. It is engineered for industrial and utility applications in sectors like power generation, manufacturing, and electrical distribution, featuring flexible settings and robust communication capabilities.
Technical Information
| Item | Specifications |
|---|---|
| Manufacturer | General Electric (GE) / GE Vernova |
| Series | Multilin MII Family |
| Model/Part Number | MIFIIPI11E10HI00 |
| Description | Digital Feeder Relay |
| Application | 3 Phase + Ground Relay |
| Curves | IEC Curves |
| Phase CT Rating | 1 A |
| Control Power | 110-250 V DC / 110-230 V AC, 48-62 Hz |
| Digital Inputs | 2 (fixed) |
| Digital Outputs | 6 (fixed, some configurable) |
| Communication Ports | RS232, RS485 (Modbus RTU protocol) |
| Display | 16x2 LCD |
| Operating Temperature | -40 °C to +60 °C (-40 °F to +140 °F), typical for MII series |
Key Features
- Comprehensive Protection: Offers primary feeder protection with IEC trip curves, supporting three-phase and ground fault detection.
- User Interface: Features a 5-button keypad, 16x2 LCD display, and six status LEDs (four user-configurable) for easy navigation and monitoring.
- Communication Capabilities: Includes RS232 and RS485 ports with Modbus RTU protocol, convertible to Ethernet with an external adapter, enhancing remote access.
- Software Integration: Compatible with MII EnerVista™ Setup Software for settings adjustment, metering display, and fault data retrieval.
