Product Description
Product Overview

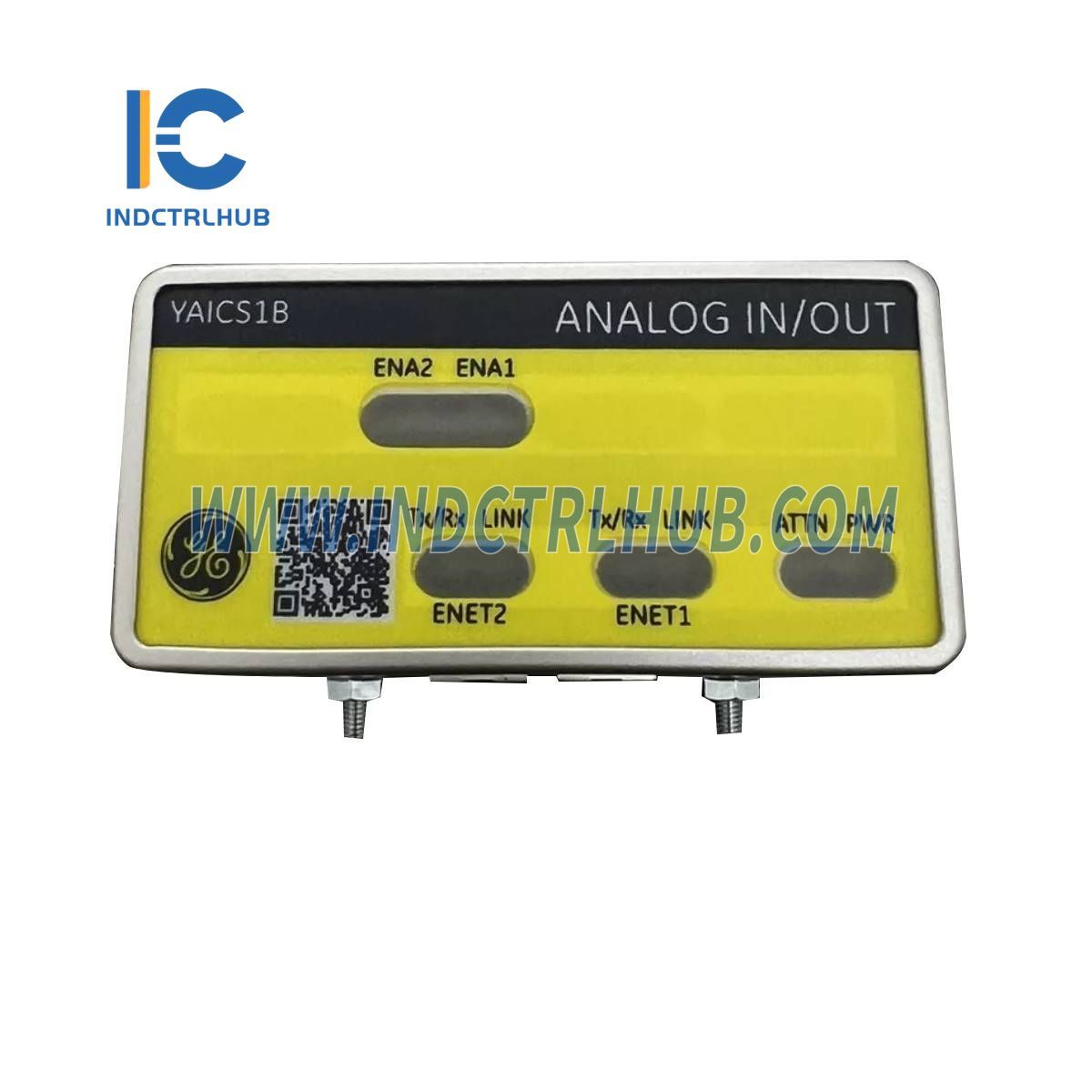

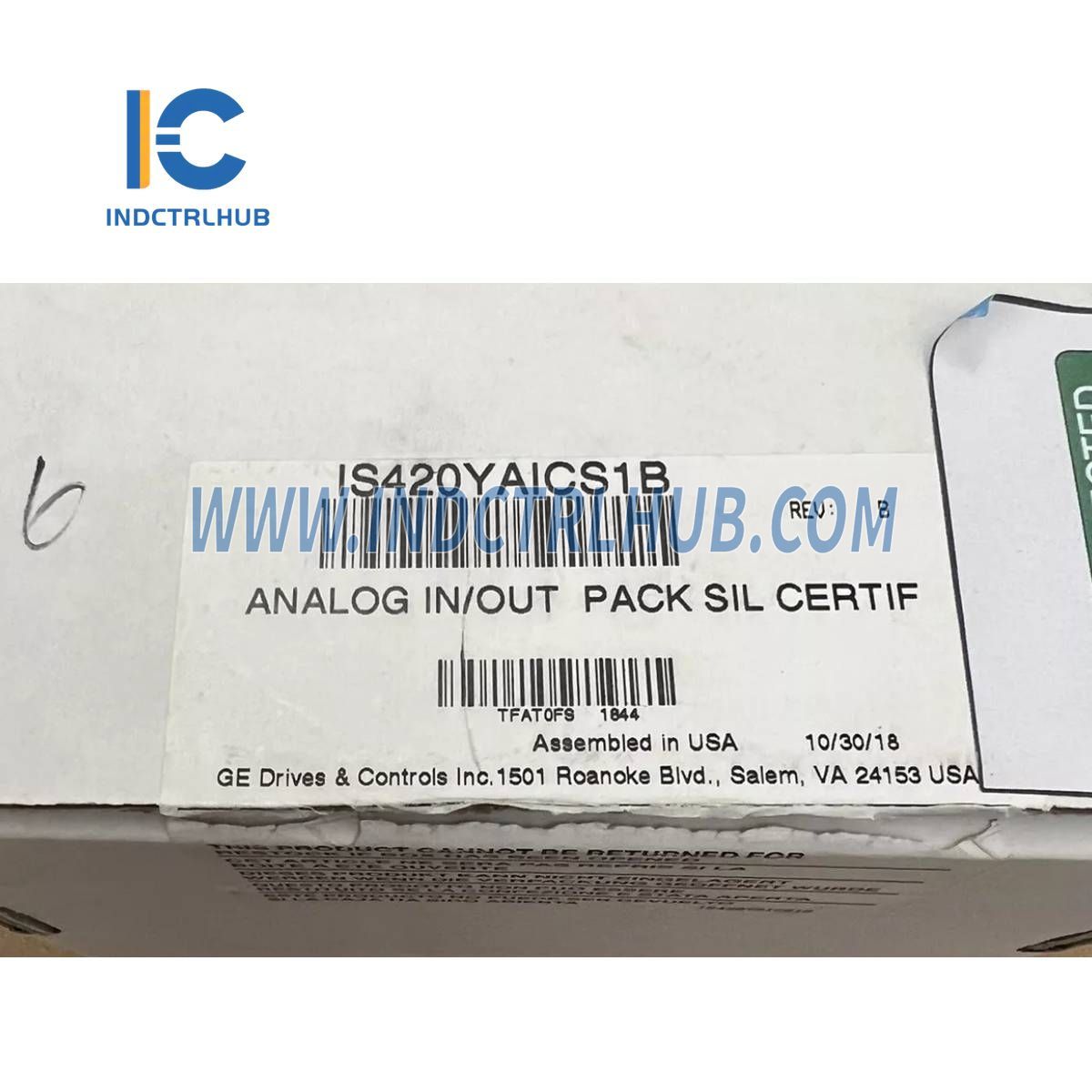

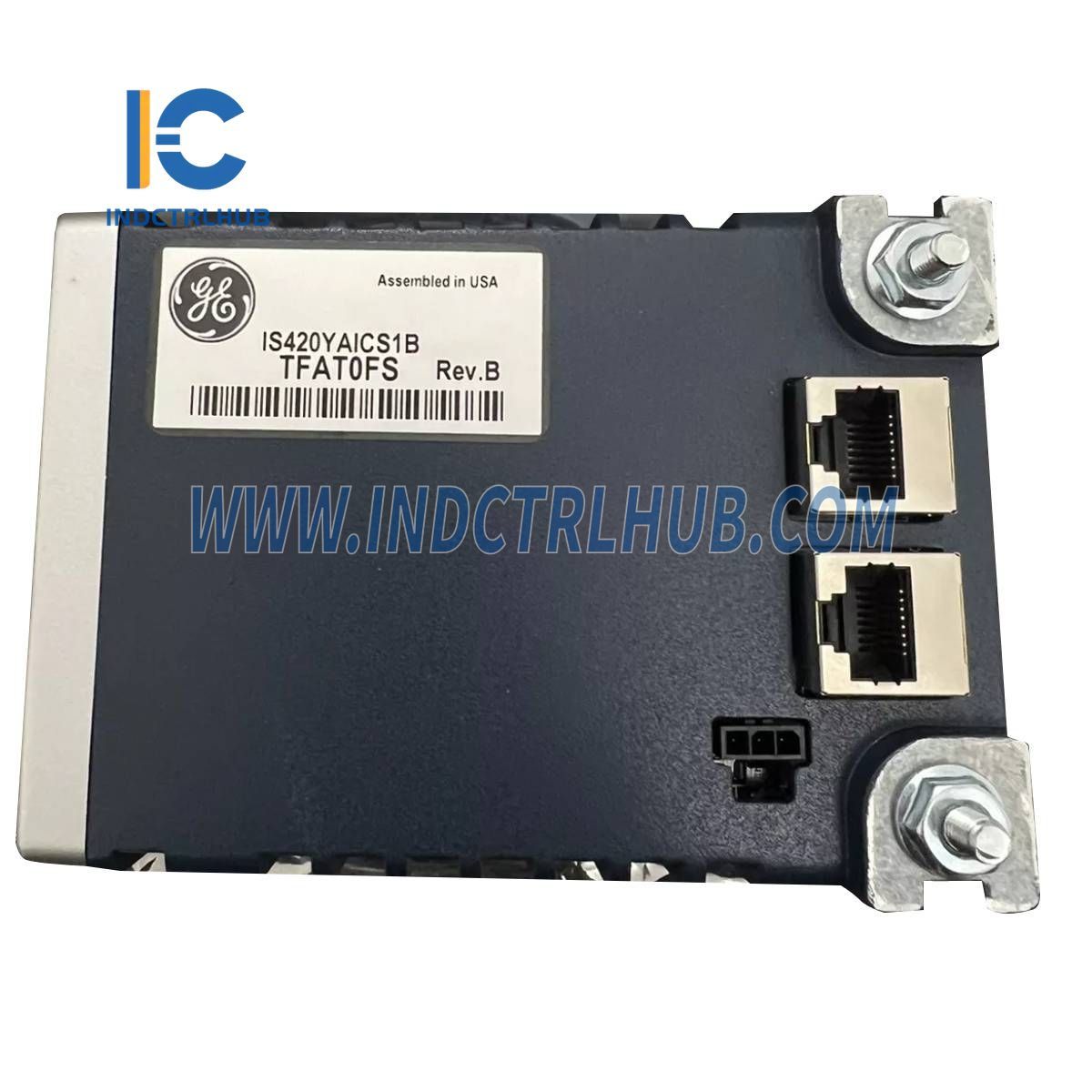

The General Electric IS420YAICS1B is an Analog Input/Output Module designed for the Mark VIe Distributed Control System within the GE Speedtronic family. It provides 10 analog inputs and 2 analog outputs, supporting a variety of signal types for interfacing with field devices in turbine control and balance of plant (BOP) applications. This module is engineered for high-speed processing and reliable operation in industrial automation systems.
Technical Specifications
The IS420YAICS1B has the following specifications based on standard characteristics for this model:
| Item | Specification |
|---|---|
| Model | IS420YAICS1B |
| Manufacturer | General Electric |
| Description | Analog Input/Output Module |
| Series | Mark VIe |
| Inputs | 10 analog inputs |
| Input Types | ±10 VDC, ±5 VDC, 4-20 mA (with external resistor), thermocouple |
| Outputs | 2 analog outputs |
| Output Types | 4-20 mA |
| Resolution | 16 bits |
| Frame Rate | 10 ms |
| Power Requirements | 28 VDC nominal (supplied via terminal board) |
| Operating Temperature | -30°C to 65°C (-22°F to 149°F) |
| Weight | 0.34 kg |
Additional Details
The IS420YAICS1B includes the following additional information based on its standard use and documentation:
| Category | Details |
|---|---|
| Function | Processes analog inputs and outputs for turbine and BOP control |
| Mounting | Connects to Mark VIe terminal boards (e.g., TBAI1B) |
| Compatibility | ControlST software version 6.01 or later |
| Indicators | LEDs: Power, Attention, Link, Activity |
| Communication | Ethernet-based IONet for connection to Mark VIe controllers |
| Certifications | Meets UL, CE, and ATEX standards for industrial use |
| Part Type | New, surplus, or refurbished (depending on supplier) |
