Product Description
Product Overview

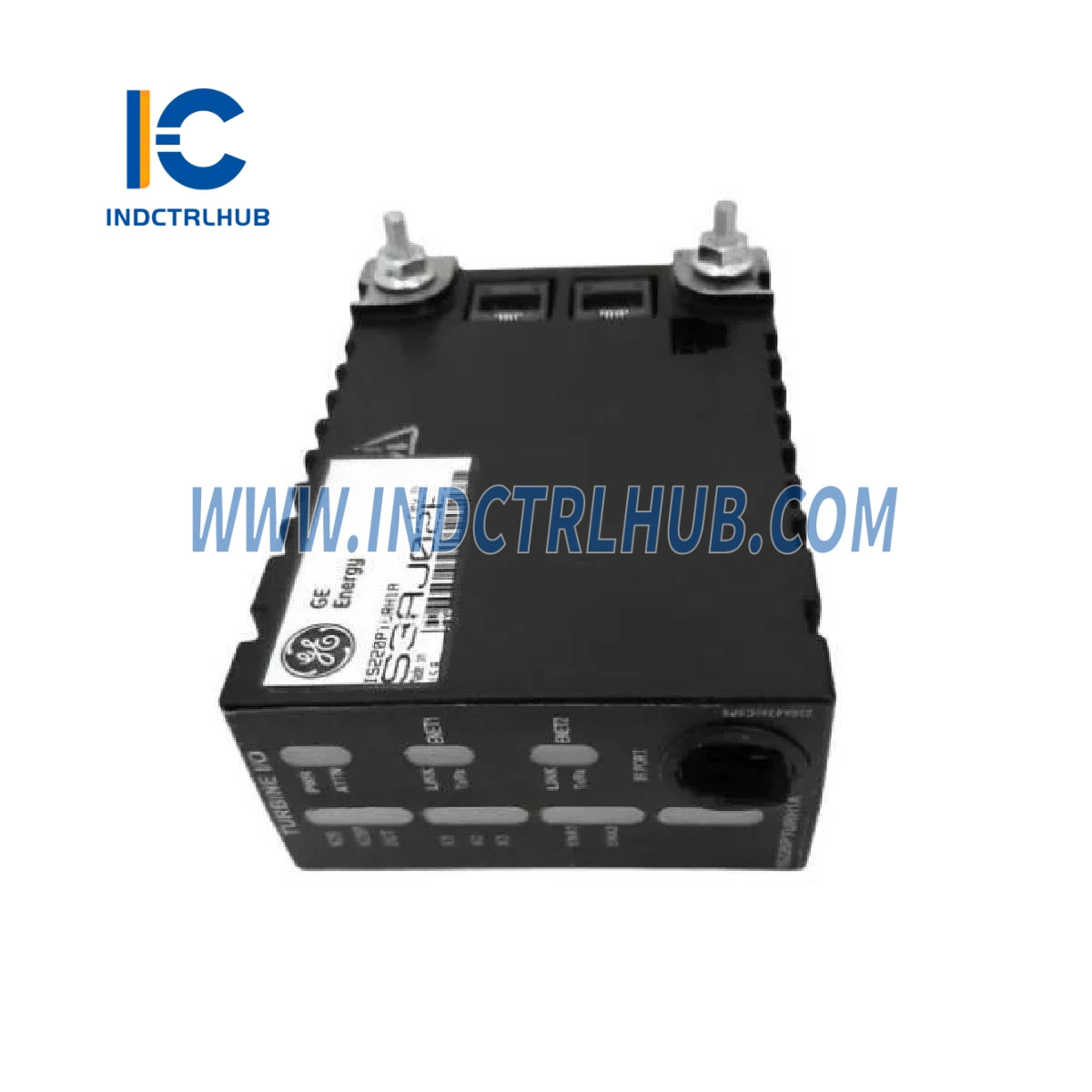

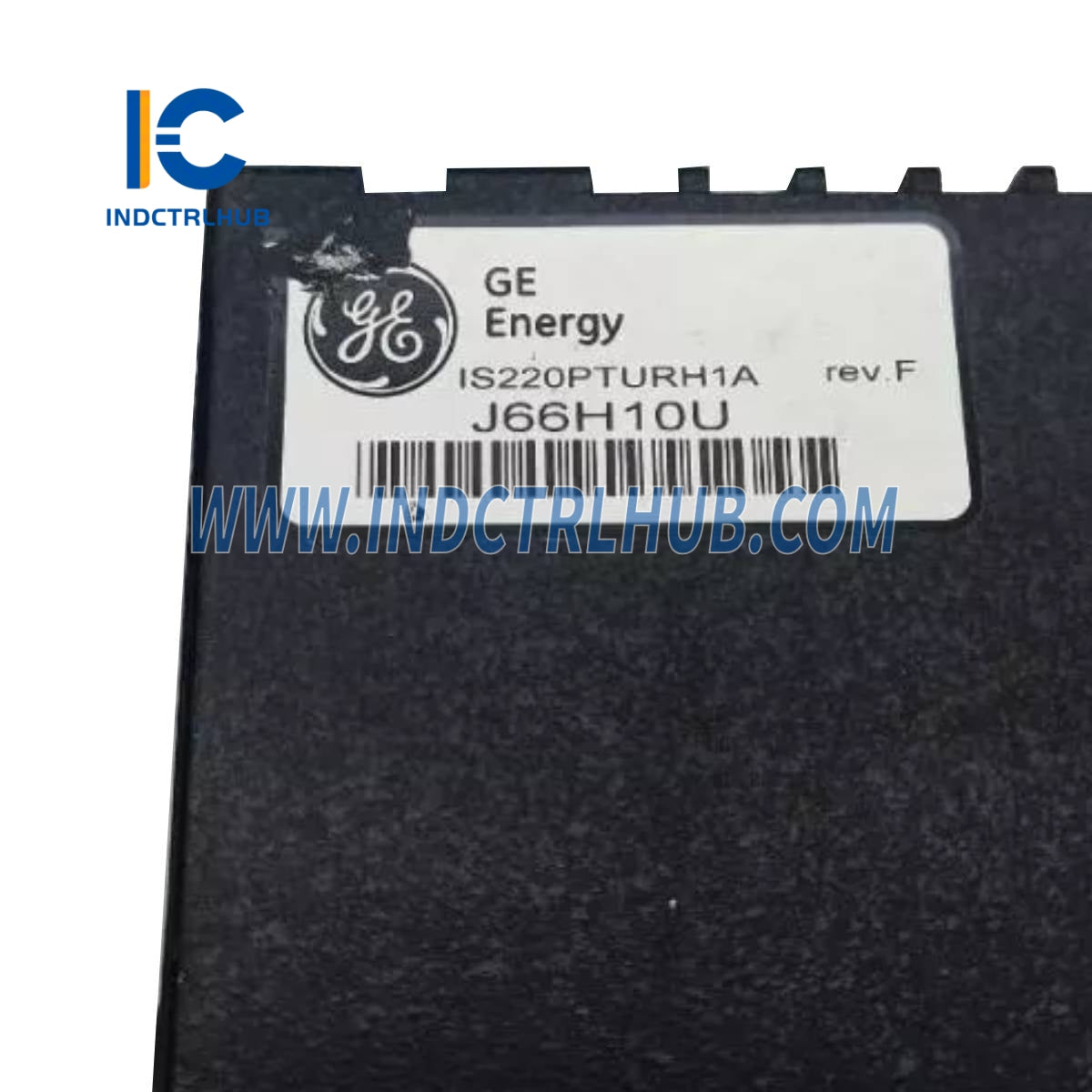

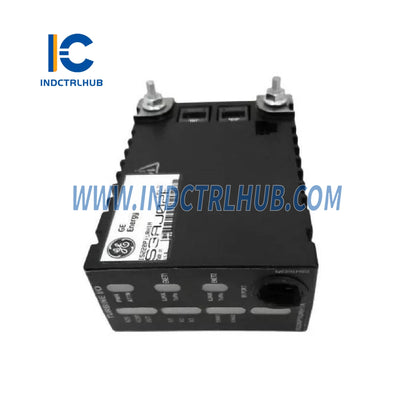

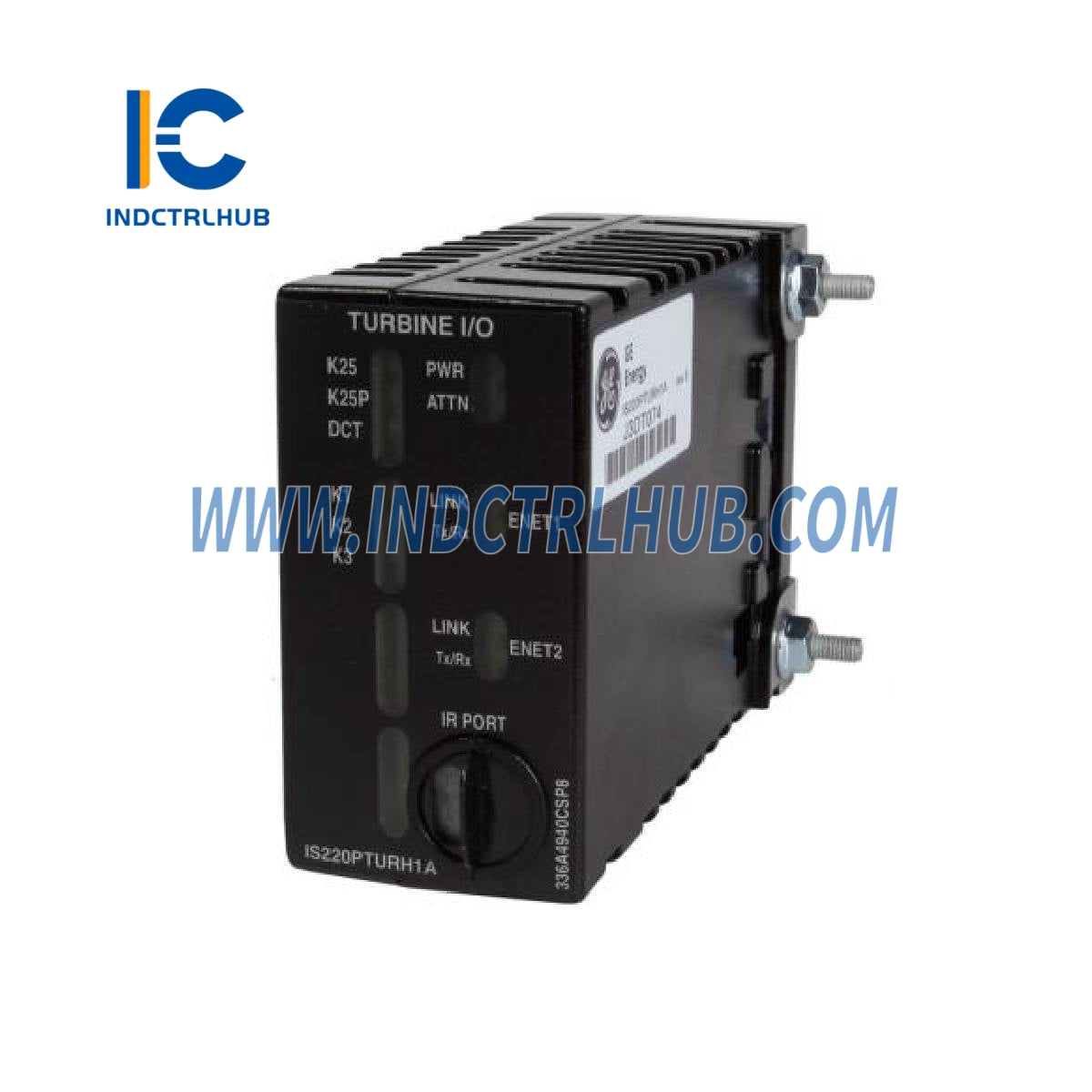

The General Electric IS220PTURH1A is a Turbine Specific Primary Trip I/O Pack designed for the GE Mark VIe Turbine Control System, an advanced platform for managing gas and steam turbines in industrial applications. Manufactured by General Electric, a global leader in industrial automation and power generation solutions, this module provides an electrical interface between a turbine control terminal board (e.g., TTURH1C) and one or two Ethernet networks, serving as a critical component for primary turbine protection. It monitors turbine speed and executes trip functions to prevent overspeed conditions, ensuring operational safety in power plants, oil and gas facilities, and other industrial settings. The IS220PTURH1A features a compact design with a processor board, a turbine-specific board, and an analog acquisition auxiliary board, supporting auto-reconfiguration for seamless integration and reliability.
Technical Information
| Item | Specifications |
|---|---|
| Manufacturer | General Electric |
| Series | Mark VIe |
| Model/Part Number | IS220PTURH1A |
| Description | Turbine Specific Primary Trip I/O Pack |
| Input Voltage | 27.4-28.6 VDC (nominal 28 VDC) |
| Inputs | 4 passive magnetic speed inputs |
| Communication | 2 Ethernet ports (10/100 Mbps) |
| Connector | DC-62 pin connector to terminal board |
| Operating Temperature | -30 °C to +65 °C (-22 °F to +149 °F) |
| Dimensions | 82.6 mm H x 41.9 mm W x 121 mm D (3.25 in x 1.65 in x 4.76 in) |
| Weight | 0.34 kg (0.75 lb) |
