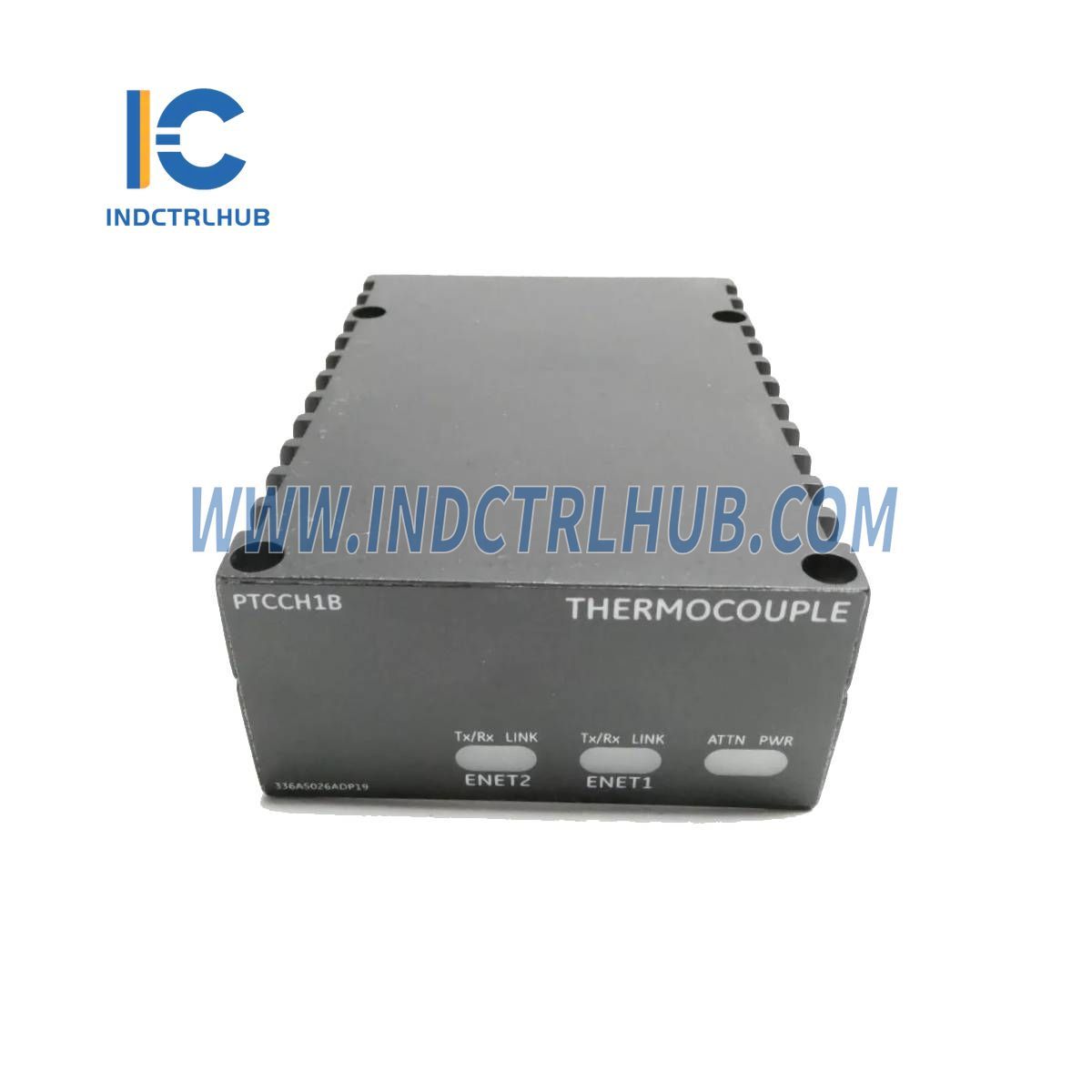

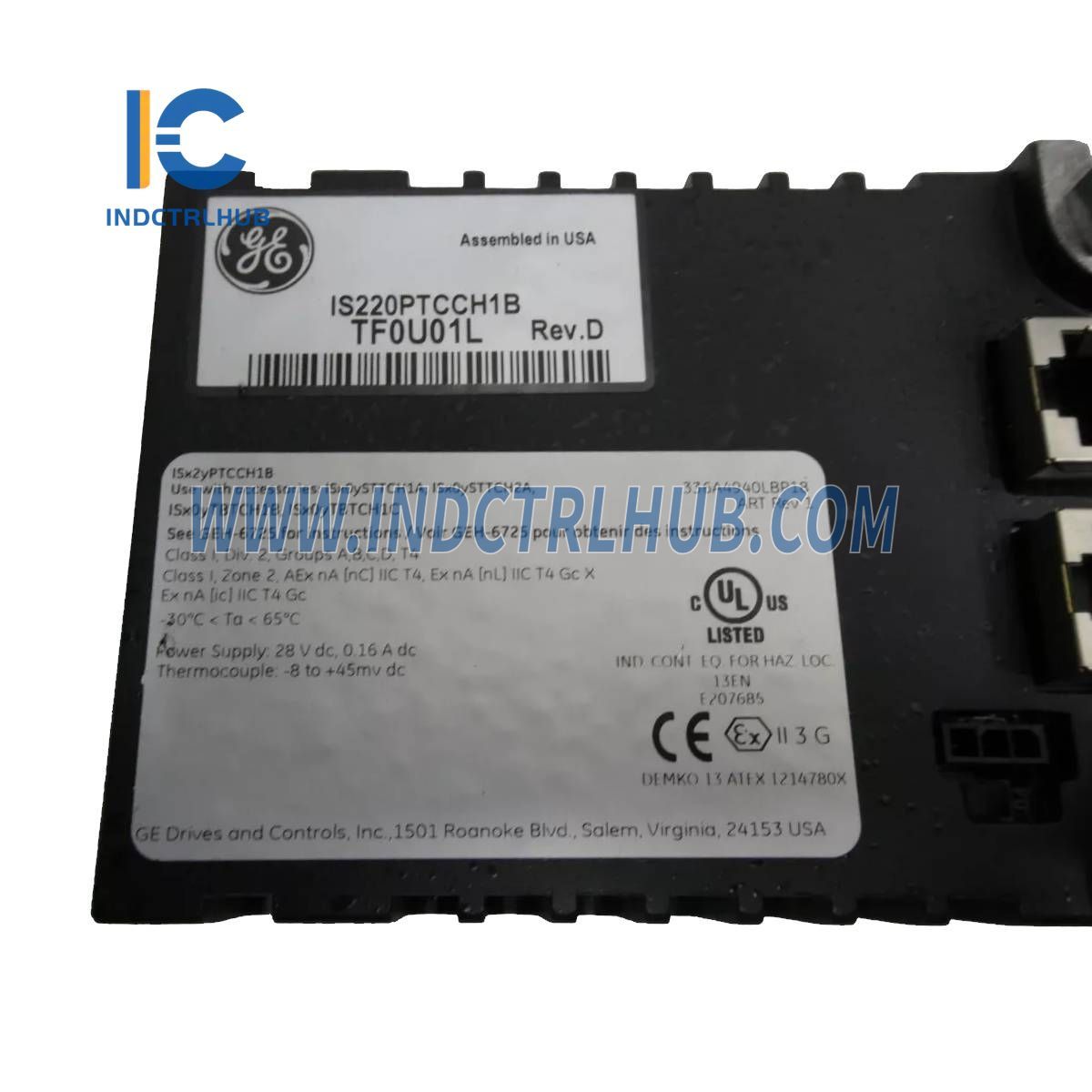

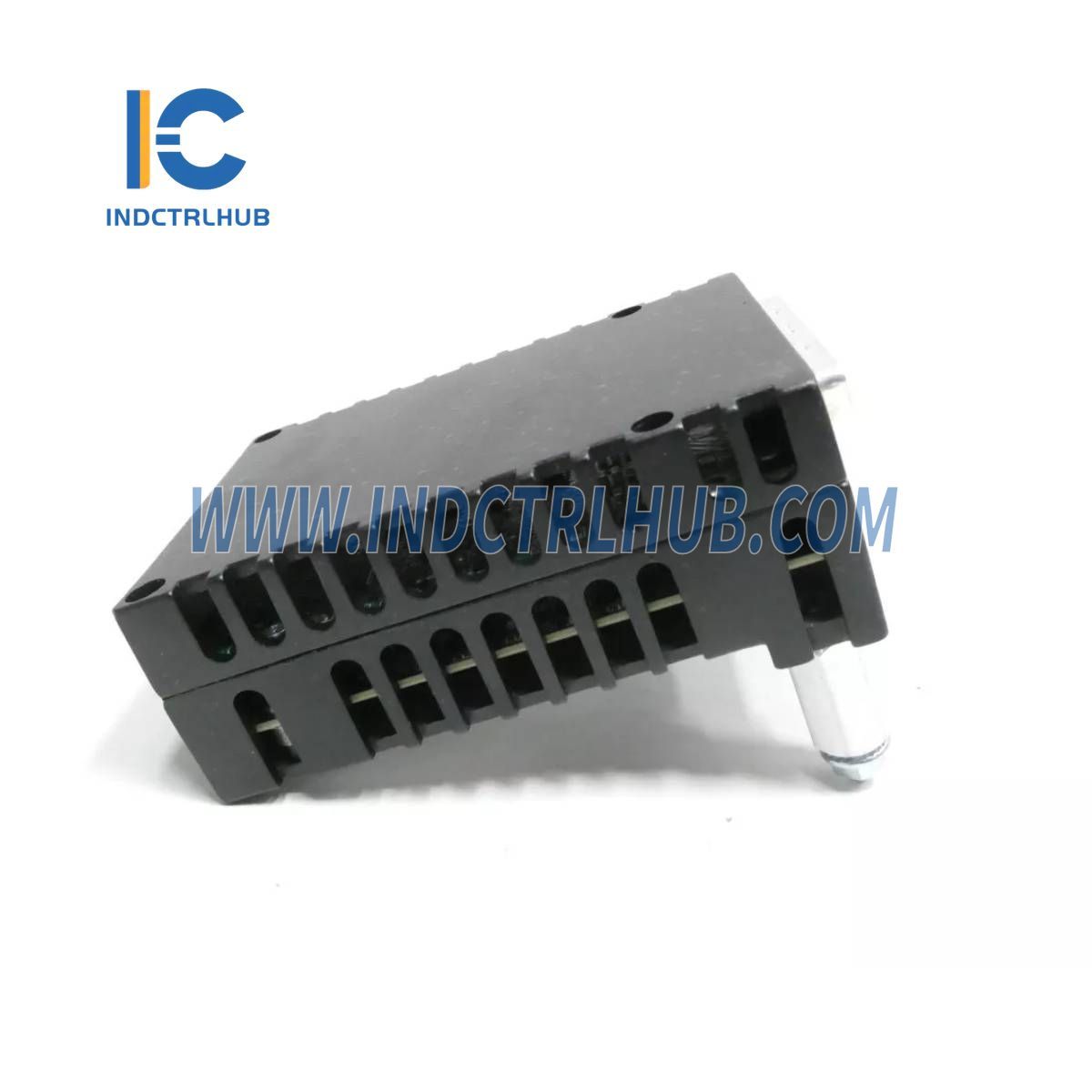

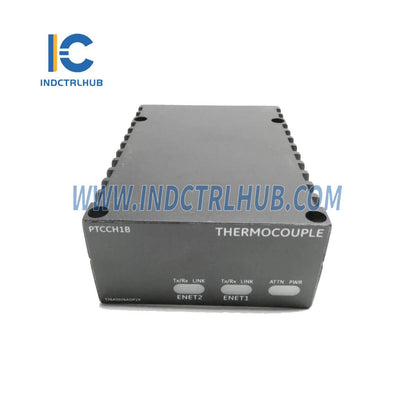

GE IS220PTCCH1B Thermocouple Input Module

GE IS220PTCCH1B Thermocouple Input Module

  • Manufacturer: General Electric

  • Product No.: IS220PTCCH1B

  • Condition:1000 in stock

  • Product Type: Thermocouple Input Module

  • Product Origin: USA

  • Payment: T/T, Western Union

  • Weight: 500g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

General Information

  • Manufacturer: General Electric
  • Model/Part Number: IS220PTCCH1B
  • Description: The General Electric IS220PTCCH1B is a Thermocouple Input Module from the Mark VIe series, designed for use in GE’s Speedtronic turbine control systems. This I/O pack serves as an electrical interface between one or two I/O Ethernet networks and a thermocouple input terminal board, supporting up to 12 thermocouple inputs for temperature monitoring. It includes a processor board common to all Mark VIe distributed I/O packs and an acquisition board specific to thermocouple functions, making it essential for precise turbine control in industrial applications.

Technical Specifications

Specification Details
Type Thermocouple Input Module
Series Mark VIe Speedtronic
Inputs 12 thermocouple inputs
Communication Dual RJ45 Ethernet ports (IONet), 3-pin power input
Output DC-37 pin connector
Operating Temperature -30°C to +65°C
Weight 0.5 kg (1.1 lbs)
Application Turbine control and temperature monitoring in industrial power generation



View full details

Product Description

General Information

  • Manufacturer: General Electric
  • Model/Part Number: IS220PTCCH1B
  • Description: The General Electric IS220PTCCH1B is a Thermocouple Input Module from the Mark VIe series, designed for use in GE’s Speedtronic turbine control systems. This I/O pack serves as an electrical interface between one or two I/O Ethernet networks and a thermocouple input terminal board, supporting up to 12 thermocouple inputs for temperature monitoring. It includes a processor board common to all Mark VIe distributed I/O packs and an acquisition board specific to thermocouple functions, making it essential for precise turbine control in industrial applications.

Technical Specifications

Specification Details
Type Thermocouple Input Module
Series Mark VIe Speedtronic
Inputs 12 thermocouple inputs
Communication Dual RJ45 Ethernet ports (IONet), 3-pin power input
Output DC-37 pin connector
Operating Temperature -30°C to +65°C
Weight 0.5 kg (1.1 lbs)
Application Turbine control and temperature monitoring in industrial power generation
