Product Description
Product Overview

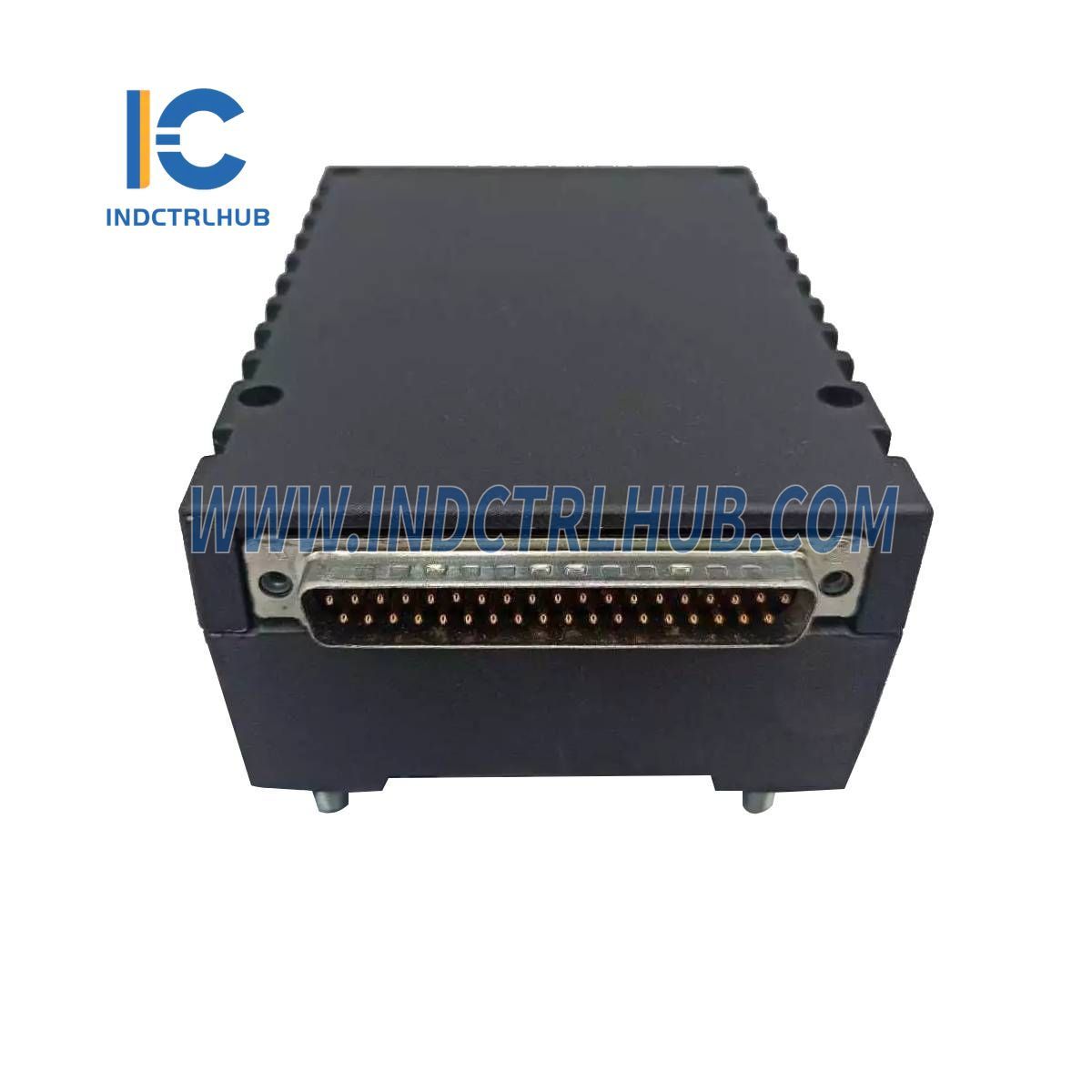

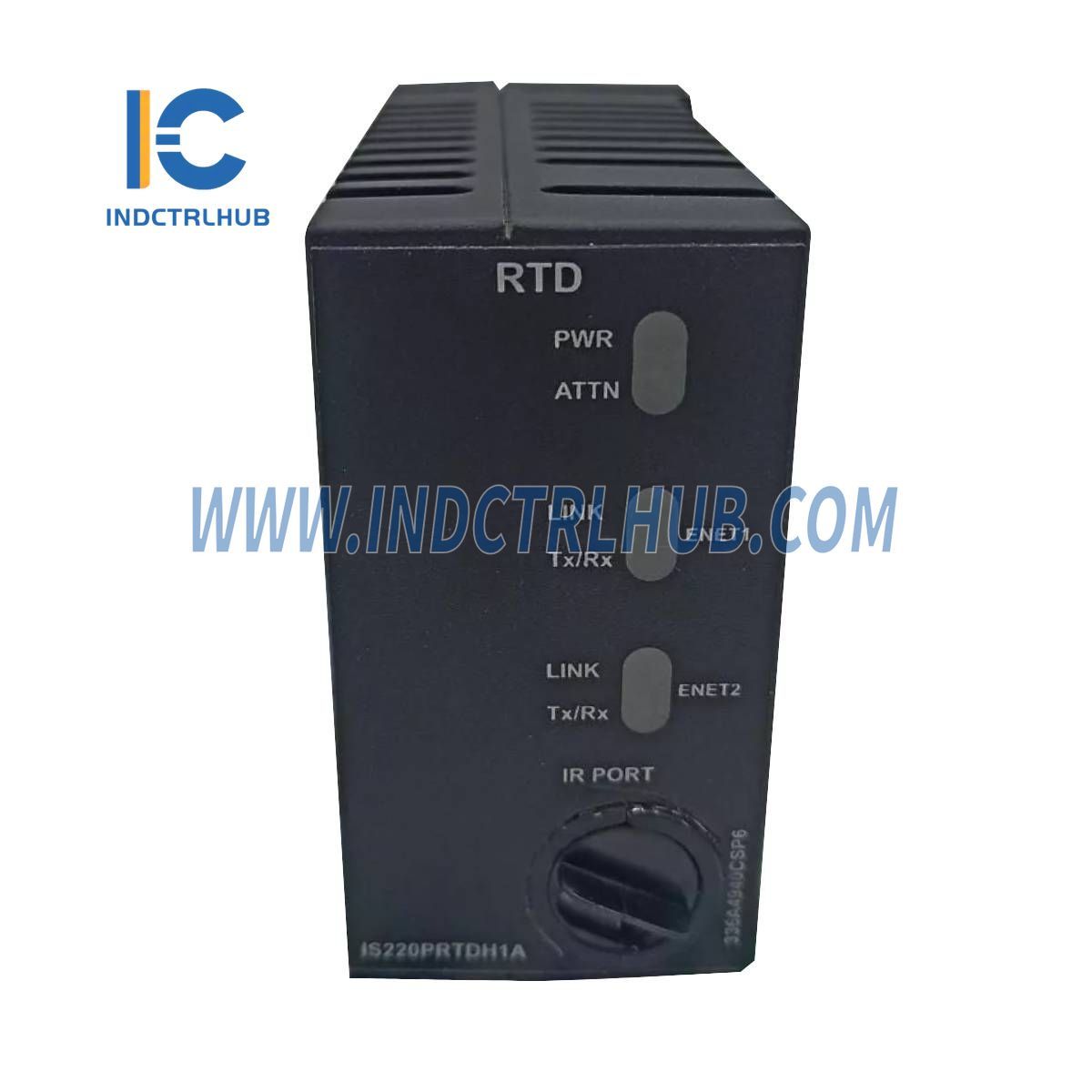

The General Electric IS220PRTDH1A is a Resistance Temperature Device (RTD) Input Module designed for the GE Mark VIe Speedtronic Series, a control system developed for managing industrial gas, steam, and hydro turbines. Manufactured by GE, now under GE Vernova, this I/O pack interfaces with RTD input terminal boards and one or two Ethernet networks, providing precise temperature measurement for turbine and process control. It is suited for industrial applications in power generation, oil and gas, and manufacturing, offering reliable performance in both simplex and redundant configurations.
Technical Information
| Item | Specifications |
|---|---|
| Manufacturer | General Electric (GE) / GE Vernova |
| Series | Mark VIe Speedtronic |
| Model/Part Number | IS220PRTDH1A |
| Description | Resistance Temperature Device (RTD) Input Module |
| Number of Channels | 8 RTD Inputs |
| Power Supply | 27.4 V DC (min), 28.0 V DC (nominal), 28.6 V DC (max) |
| Current | 0.24 A maximum |

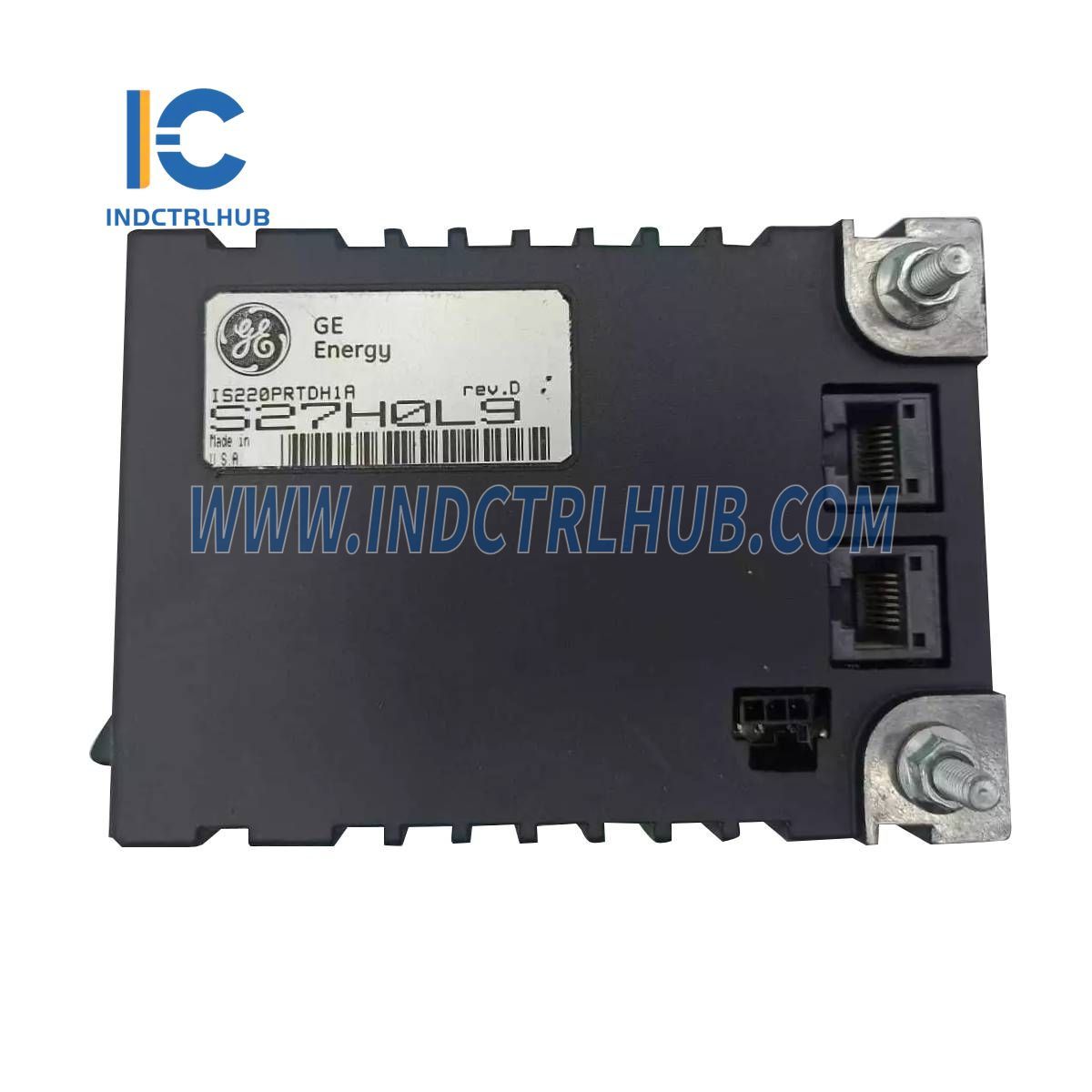

| Ethernet Ports | 2 x RJ45 (dual I/O network connectivity) |
| Ambient Temperature Range | -30 °C to +65 °C (-22 °F to +149 °F) |
| Compatible Terminal Boards | IS200TRTDH2D, IS200SRTDH1A, IS200SRTDH2A |
| Certifications | UL Listed, CE Marked, Class I Div 2 (hazardous locations) |
| Weight | Approx. 4.40 lb (2 kg) before packaging |
