Product Description
General Information
- Manufacturer: General Electric
- Model/Part Number: IS220PDOAH1BC

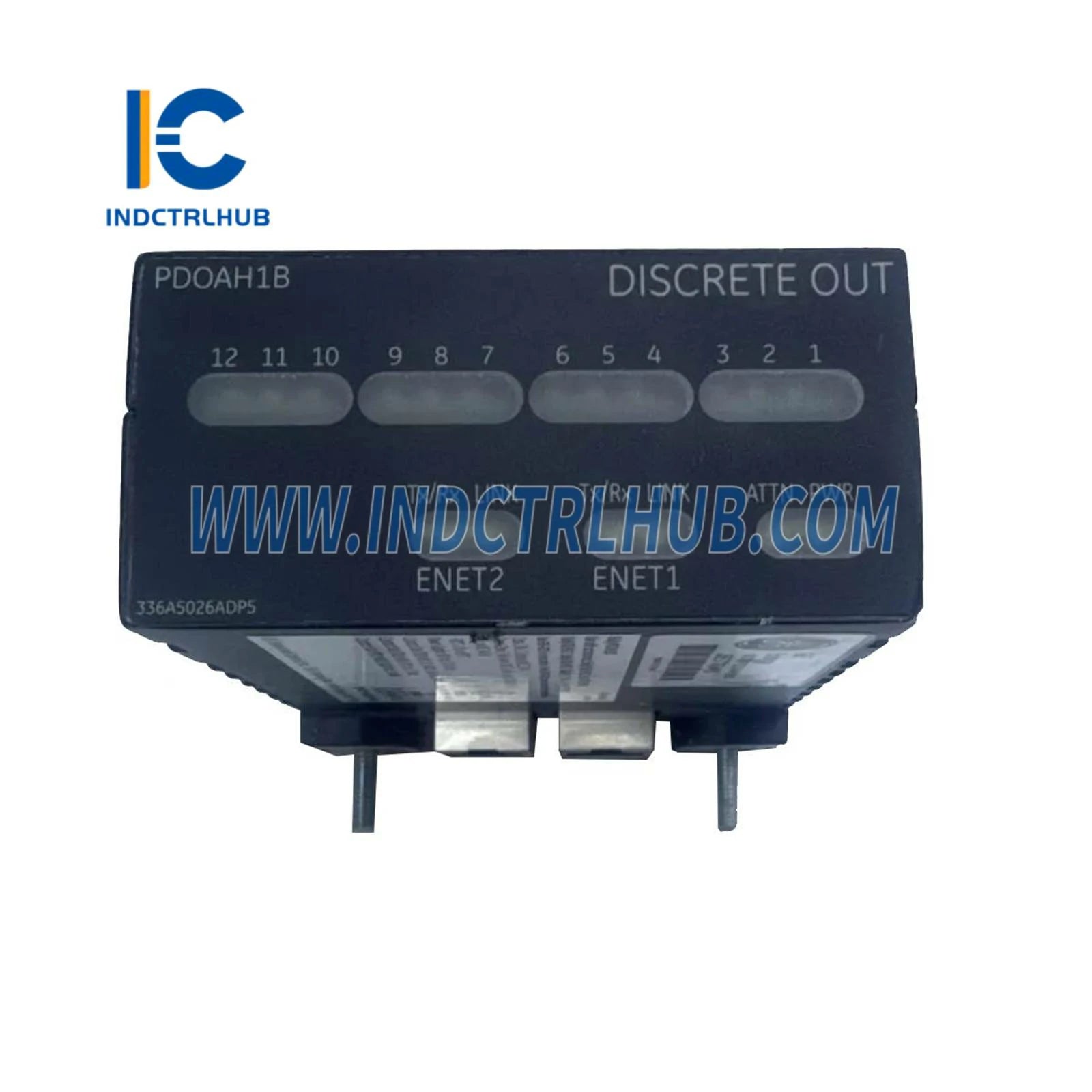

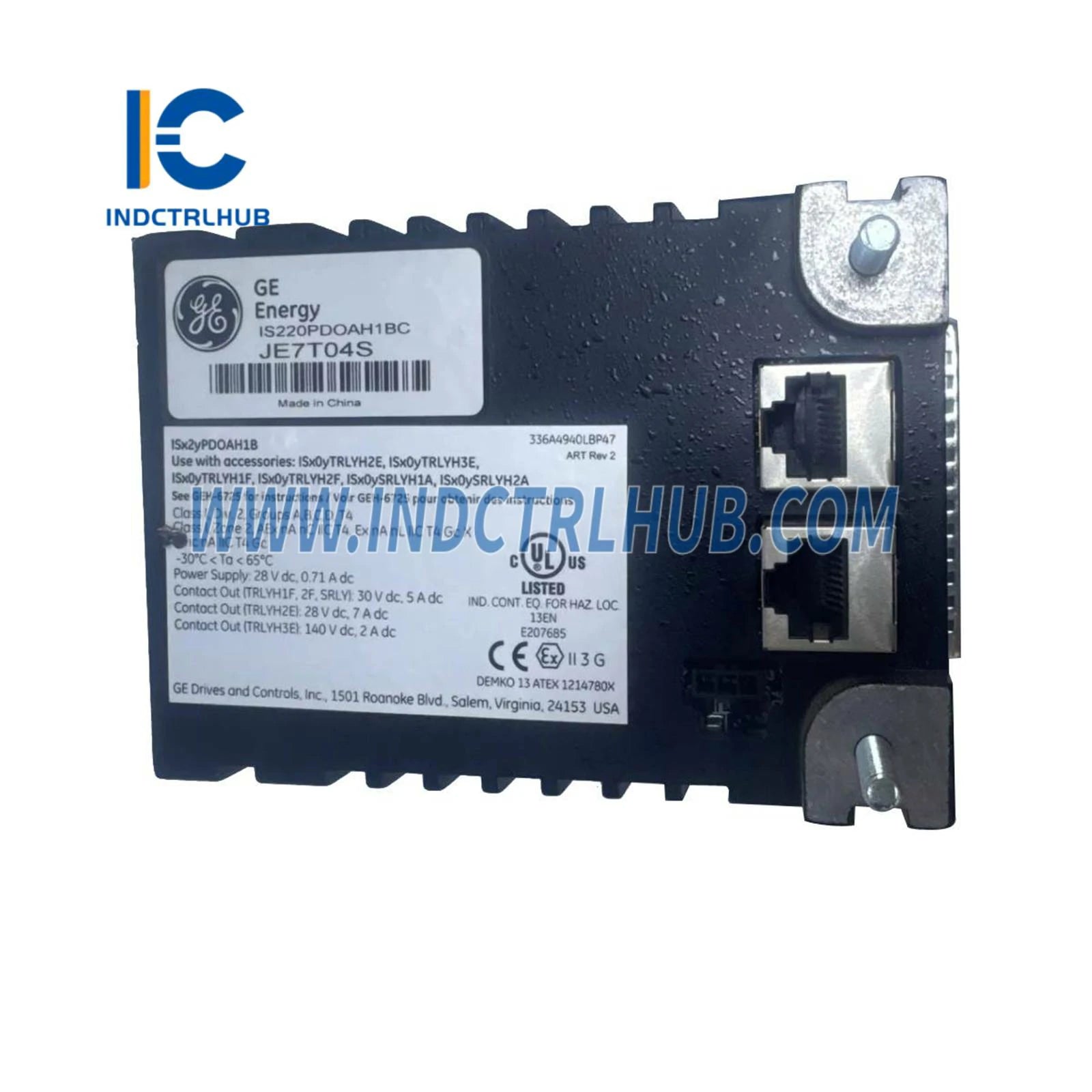

- Description: The General Electric IS220PDOAH1BC is a Discrete Output Pack Module from the Mark VIe series, designed for use in GE’s Speedtronic turbine control systems. This I/O pack serves as an electrical interface between one or two I/O Ethernet networks and a discrete output terminal board, supporting up to 12 relay outputs. It features conformal coating (denoted by the 'C' suffix) for enhanced environmental protection, making it suitable for harsh industrial conditions. The module includes a processor board common to all Mark VIe distributed I/O packs and an acquisition board specific to discrete output functions.
Technical Specifications
| Specification | Details |
|---|---|
| Type | Discrete Output Pack Module |
| Series | Mark VIe Speedtronic |
| Outputs | 12 relay outputs |
| Communication | Dual RJ45 Ethernet ports (IONet), 3-pin power input |

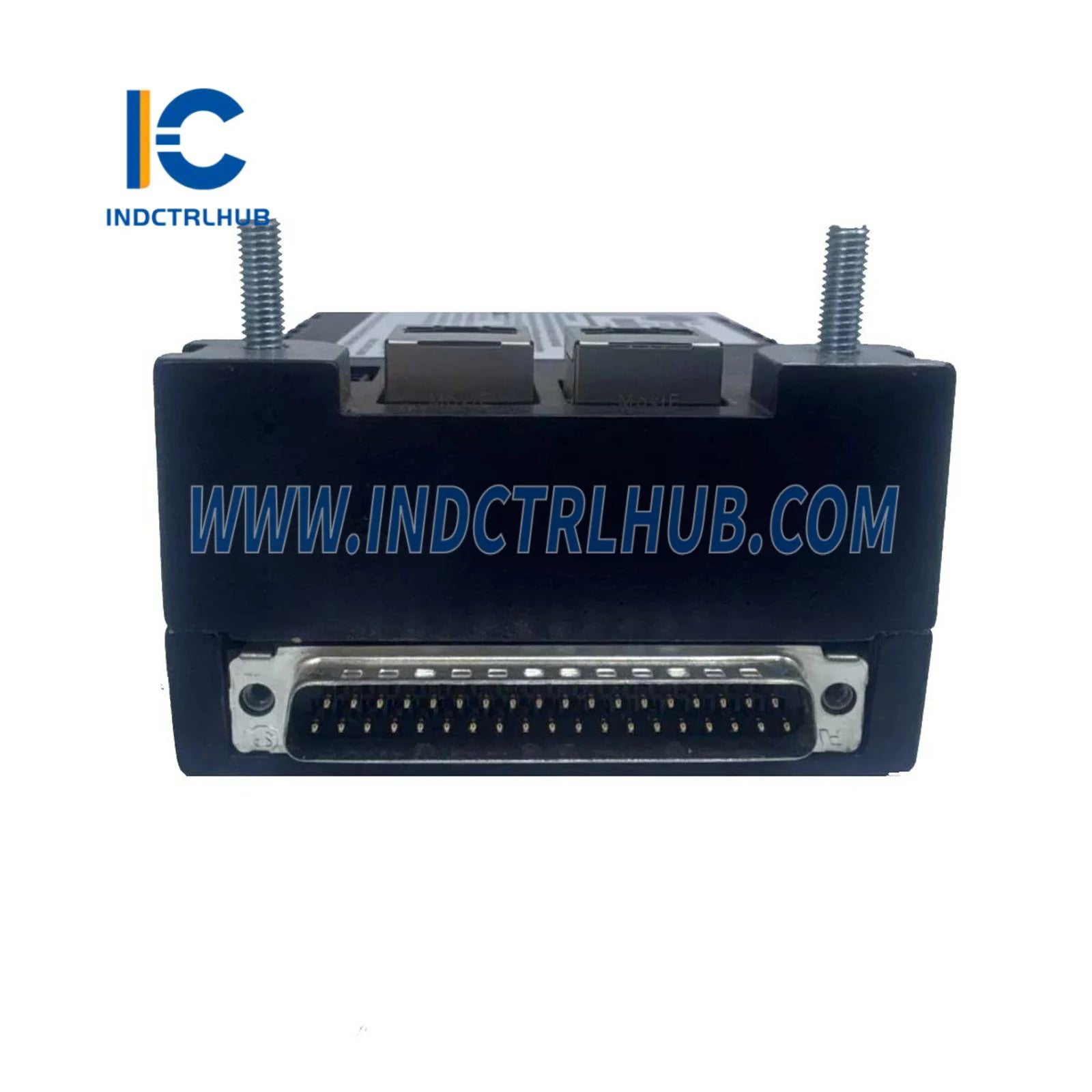

| Output Connector | DC-37 pin connector |
| Power Requirements | 28 V DC nominal |
| Operating Temperature | -30°C to +65°C |
| Special Feature | Conformal coating for protection against moisture, dust, and chemicals |
| Weight | 0.43 kg (0.95 lbs) |
| Application | Turbine control and discrete output management in industrial power generation |
