Product Description
General Information
- Manufacturer: General Electric

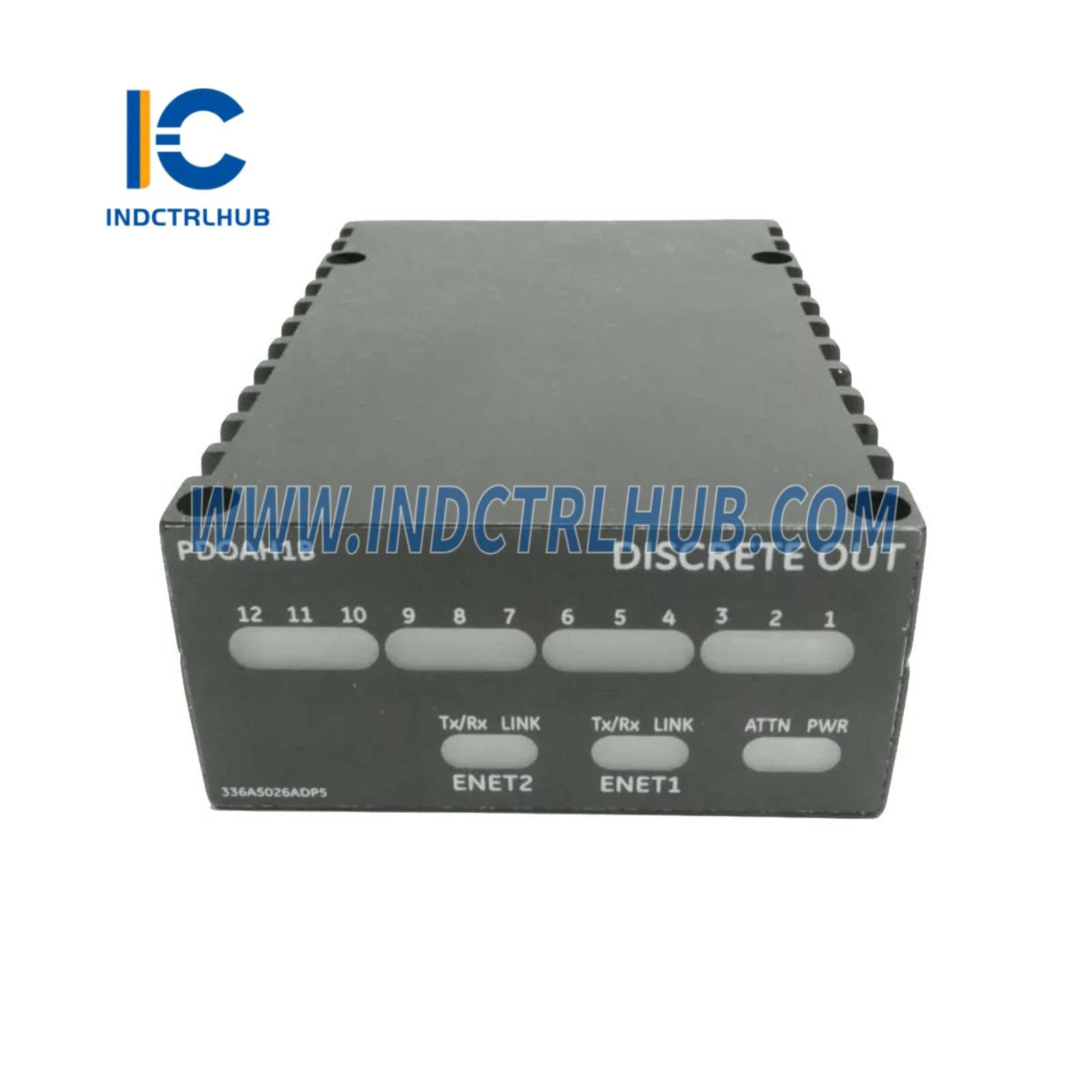

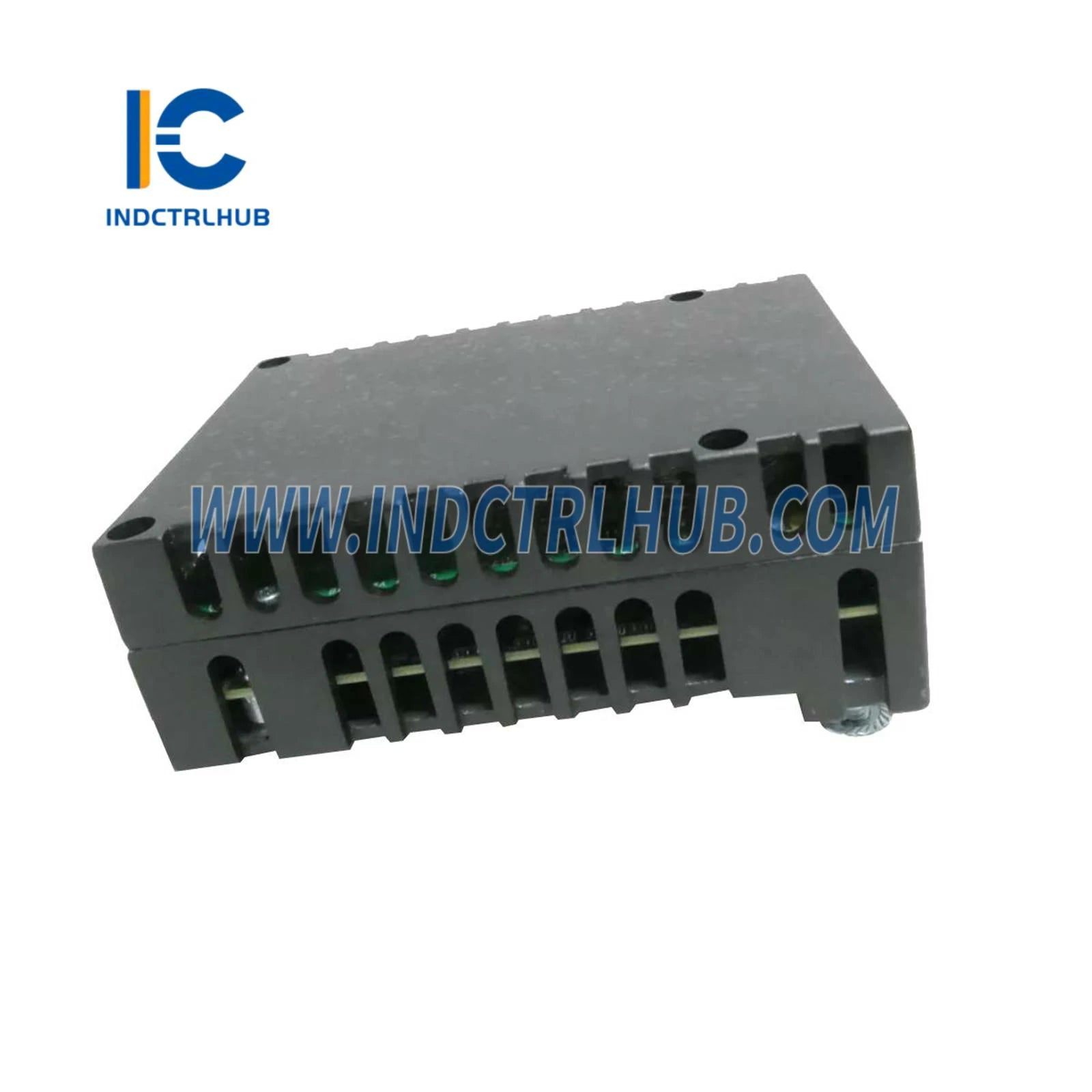

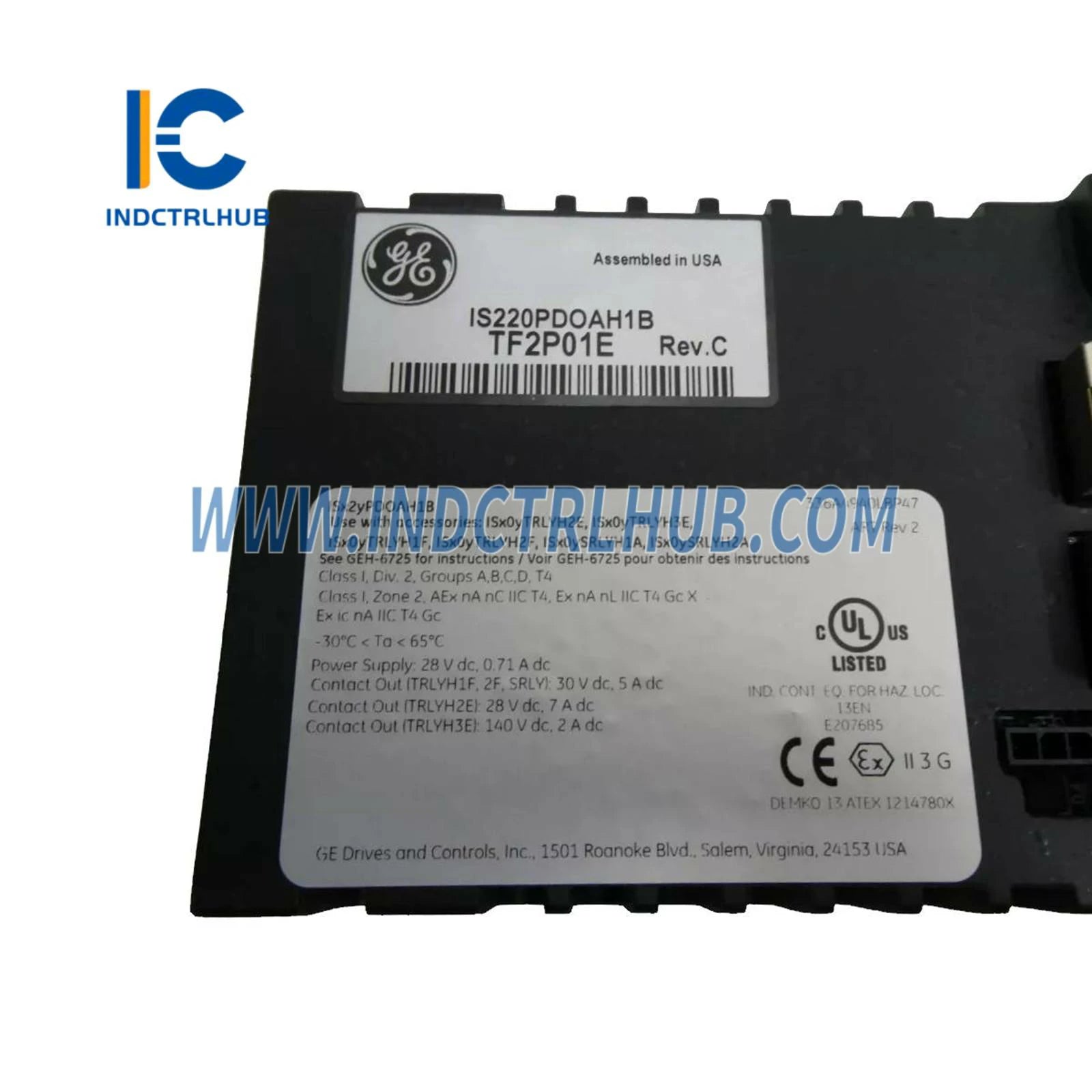

- Model/Part Number: IS220PDOAH1B
- Description: The General Electric IS220PDOAH1B is a Discrete Output Pack Module from the Mark VIe series, designed for use in GE’s Speedtronic turbine control systems. This I/O pack serves as an electrical interface between one or two I/O Ethernet networks and a discrete output terminal board, supporting up to 12 relay outputs. It includes a processor board common to all Mark VIe distributed I/O packs and an acquisition board specific to discrete output functions, making it essential for controlling external devices in turbine applications.
Technical Specifications
| Specification | Details |
|---|---|
| Type | Discrete Output Pack Module |
| Series | Mark VIe Speedtronic |
| Outputs | 12 relay outputs |
| Communication | Dual RJ45 Ethernet ports (IONet), 3-pin power input |
| Output Connector | DC-37 pin connector |
| Power Requirements | 28 V DC nominal |
| Operating Temperature | -30°C to +65°C |
| Weight | 0.43 kg (0.95 lbs) |
| Application | Turbine control and discrete output management in industrial power generation |
