Product Description
Product Overview

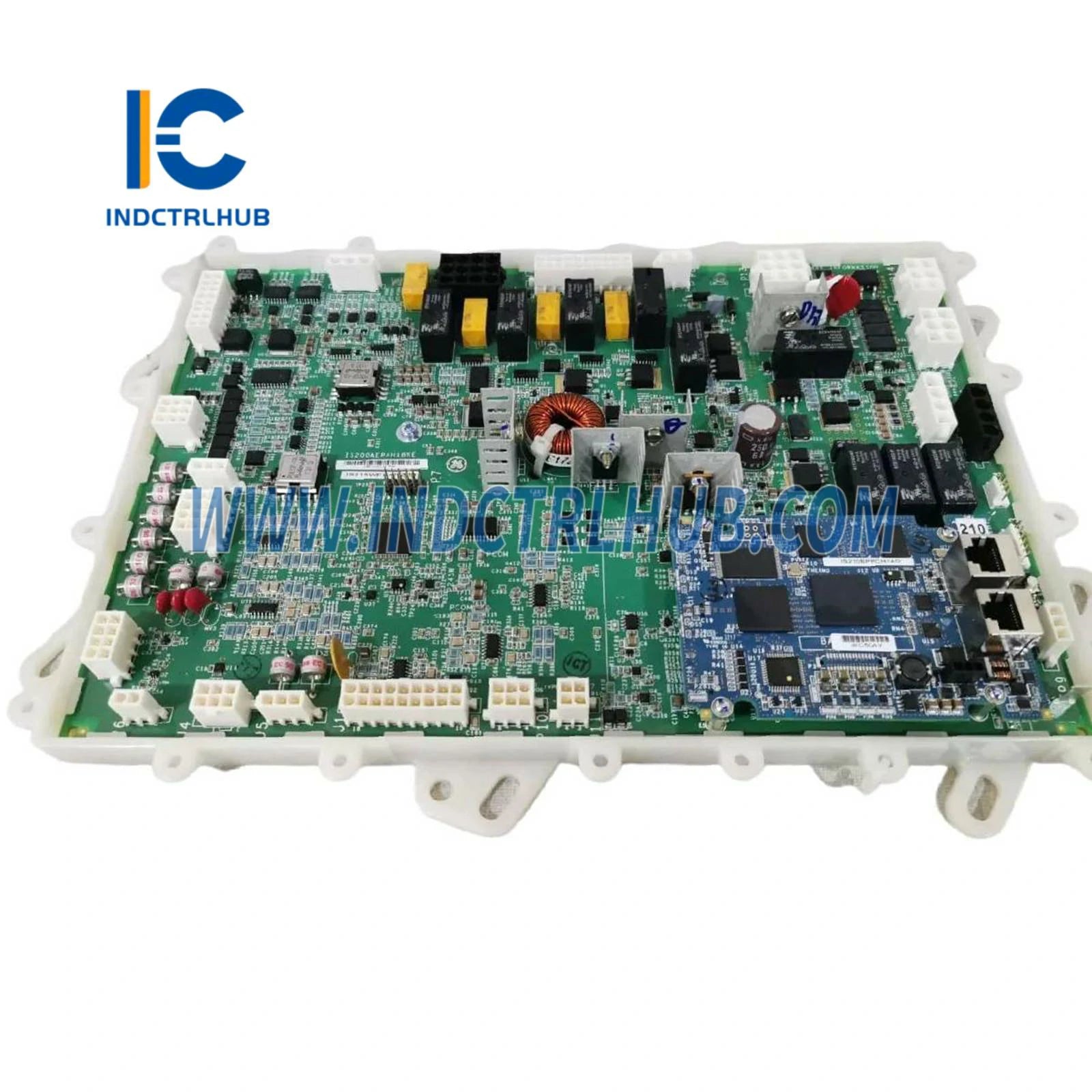

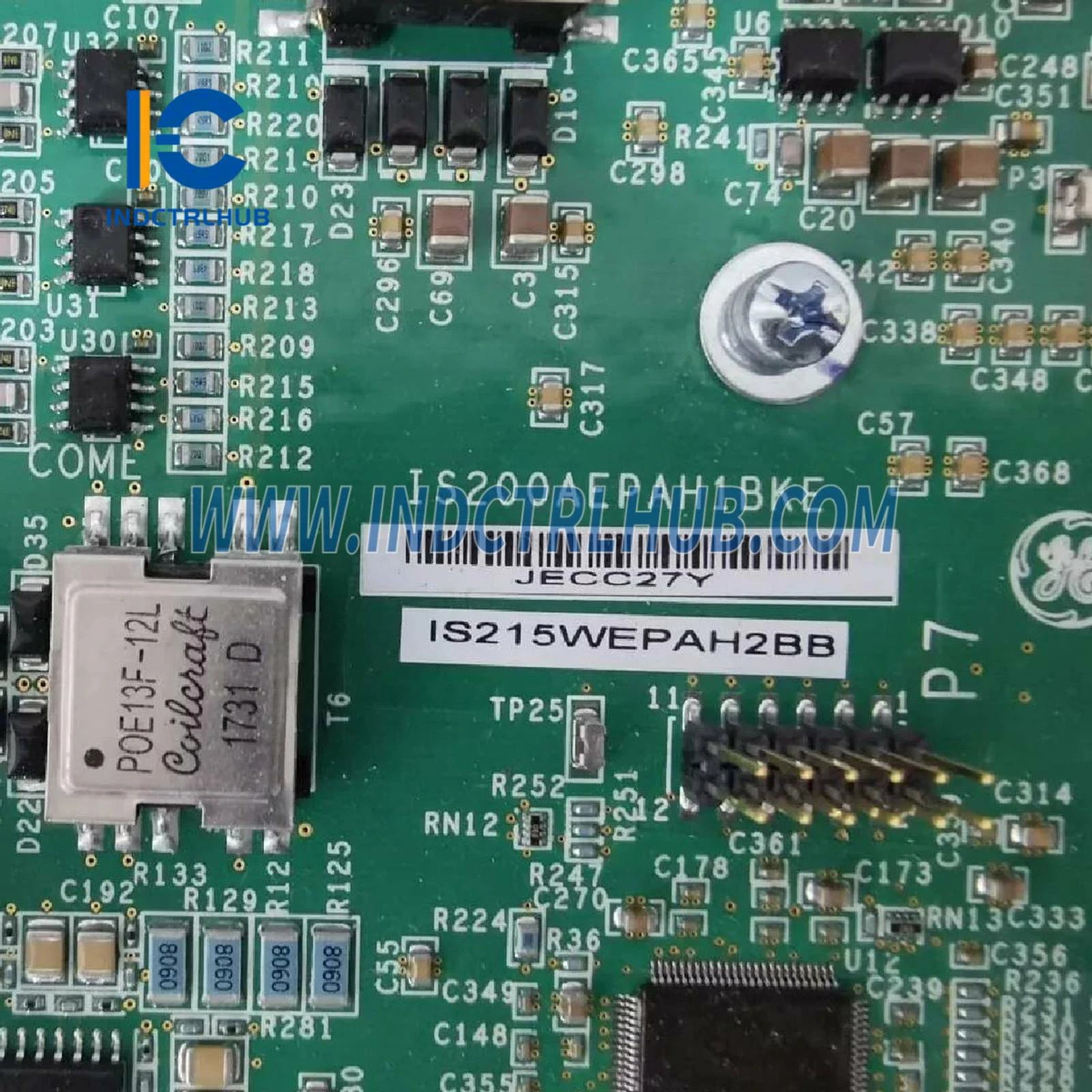

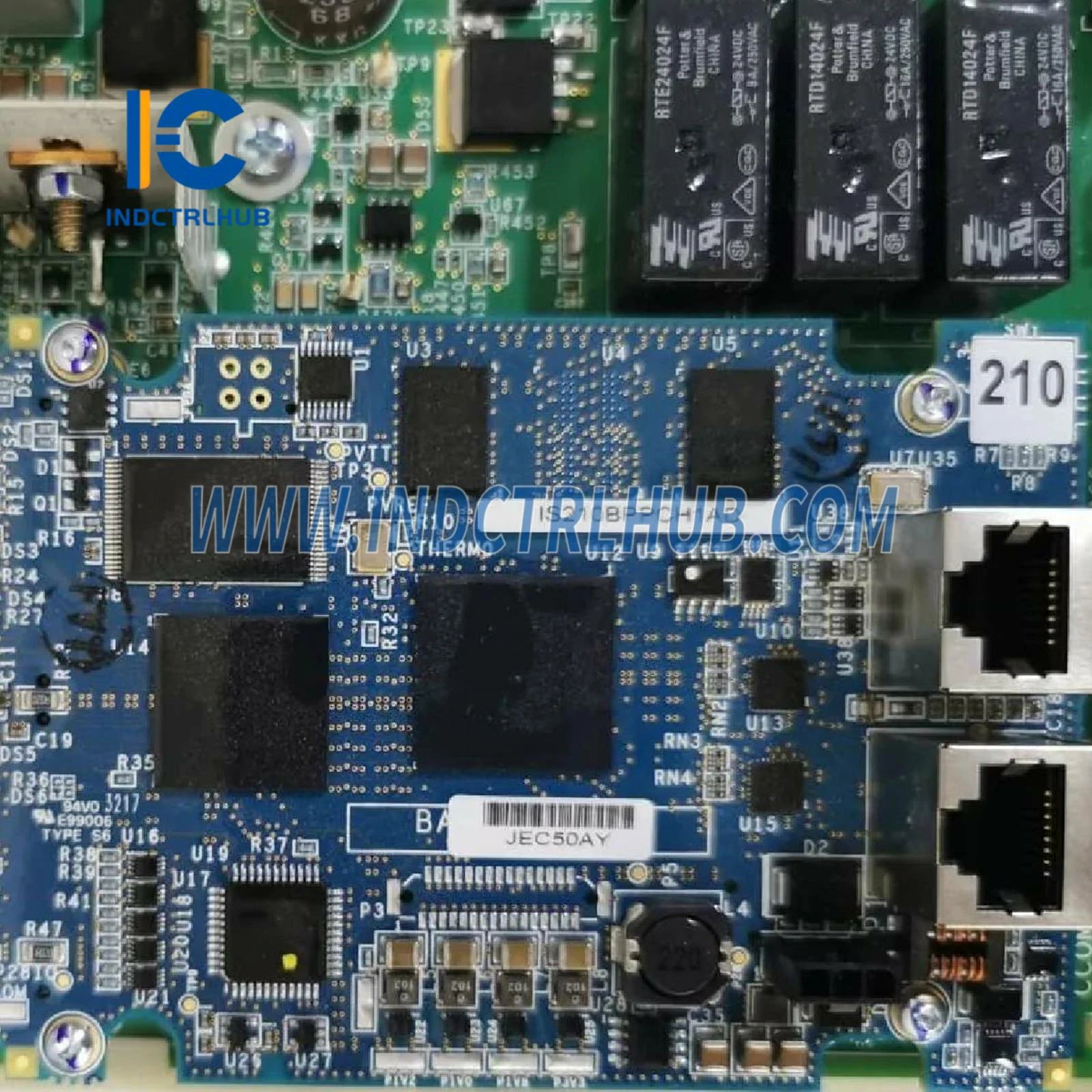

The General Electric IS210BPPCH1AD, paired with the IS215WEPAH2BA, is a Backup Pulse Protection Control Module designed for the Mark VIe Speedtronic Turbine Control System. Manufactured by General Electric (GE), a leader in industrial automation and power generation, this module is a critical component in turbine control applications, providing backup protection for gas and steam turbines. It interfaces with the Mark VIe distributed control system (DCS) to ensure redundancy and reliability in pulse-based control functions, such as overspeed protection or emergency trip systems. The IS210BPPCH1AD serves as an I/O pack that mounts onto the IS215WEPAH2BA terminal board, facilitating communication and signal processing within the VME rack architecture. This module is widely used in power generation and industrial turbine applications, leveraging the Mark VIe’s advanced diagnostics and flexible platform.
Technical Information
| Item | Specifications |
|---|---|
| Manufacturer | General Electric |
| Series | Mark VIe Speedtronic |
| Model/Part Number | IS210BPPCH1AD (I/O Pack), IS215WEPAH2BA (Terminal Board) |
| Description | Backup Pulse Protection Control Module |
| Function | Provides backup protection and pulse signal interfacing |
| Connectivity | 2 Ethernet ports (10/100), mounts to IS215WEPAH2BA terminal board |
| Power Supply | 28 Vdc (via Mark VIe backplane) |
| Operating Temperature | -30 °C to +65 °C (-22 °F to +149 °F) |
| Dimensions | IS210BPPCH1AD: 82 mm H x 42 mm W x 108 mm D (3.23 in x 1.65 in x 4.25 in) IS215WEPAH2BA: 261 mm H x 24 mm W x 178 mm D (10.25 in x 0.94 in x 7 in) |
| Weight | IS210BPPCH1AD: 0.2 kg (0.44 lb) IS215WEPAH2BA: 0.45 kg (1 lb) |
