Product Description
Product Overview

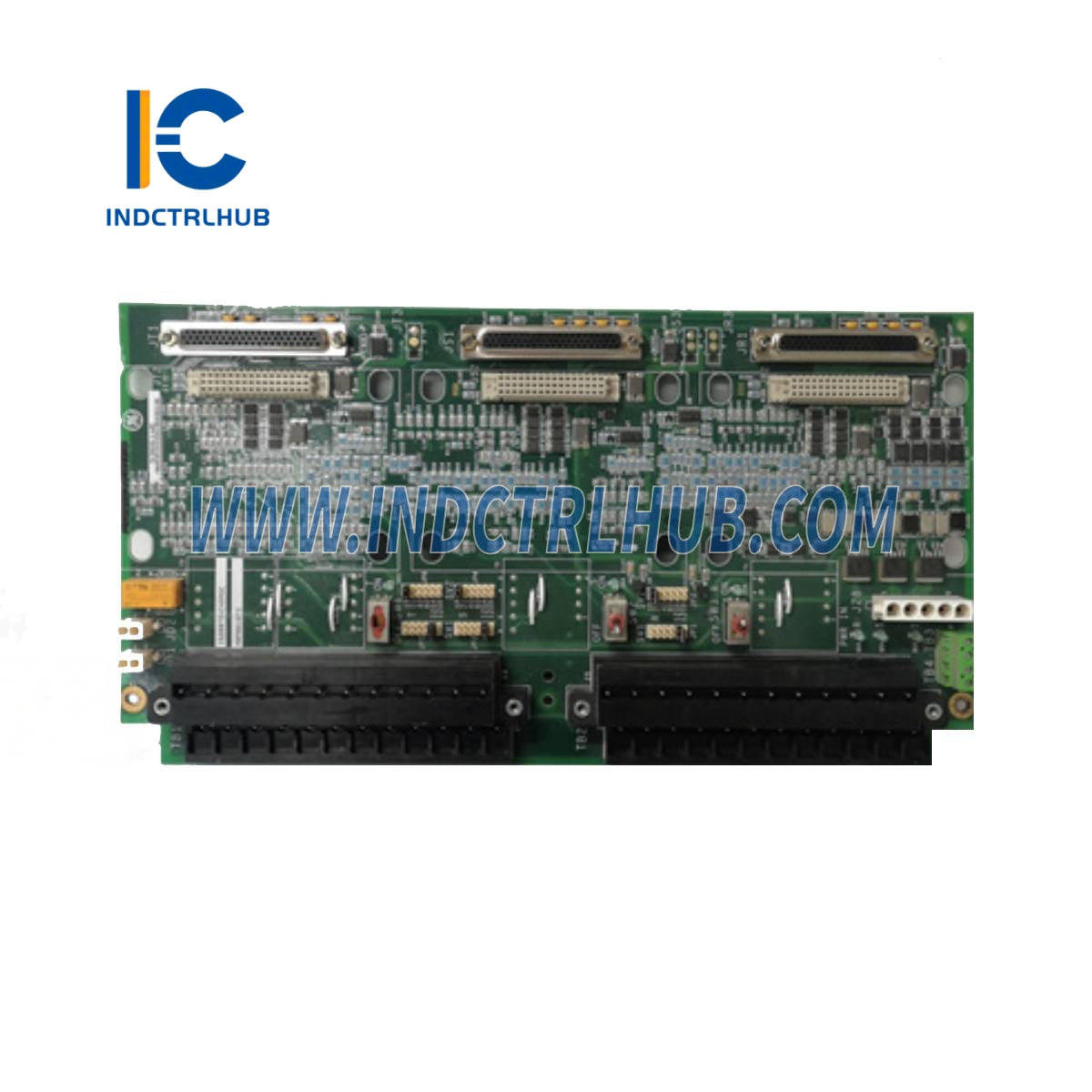

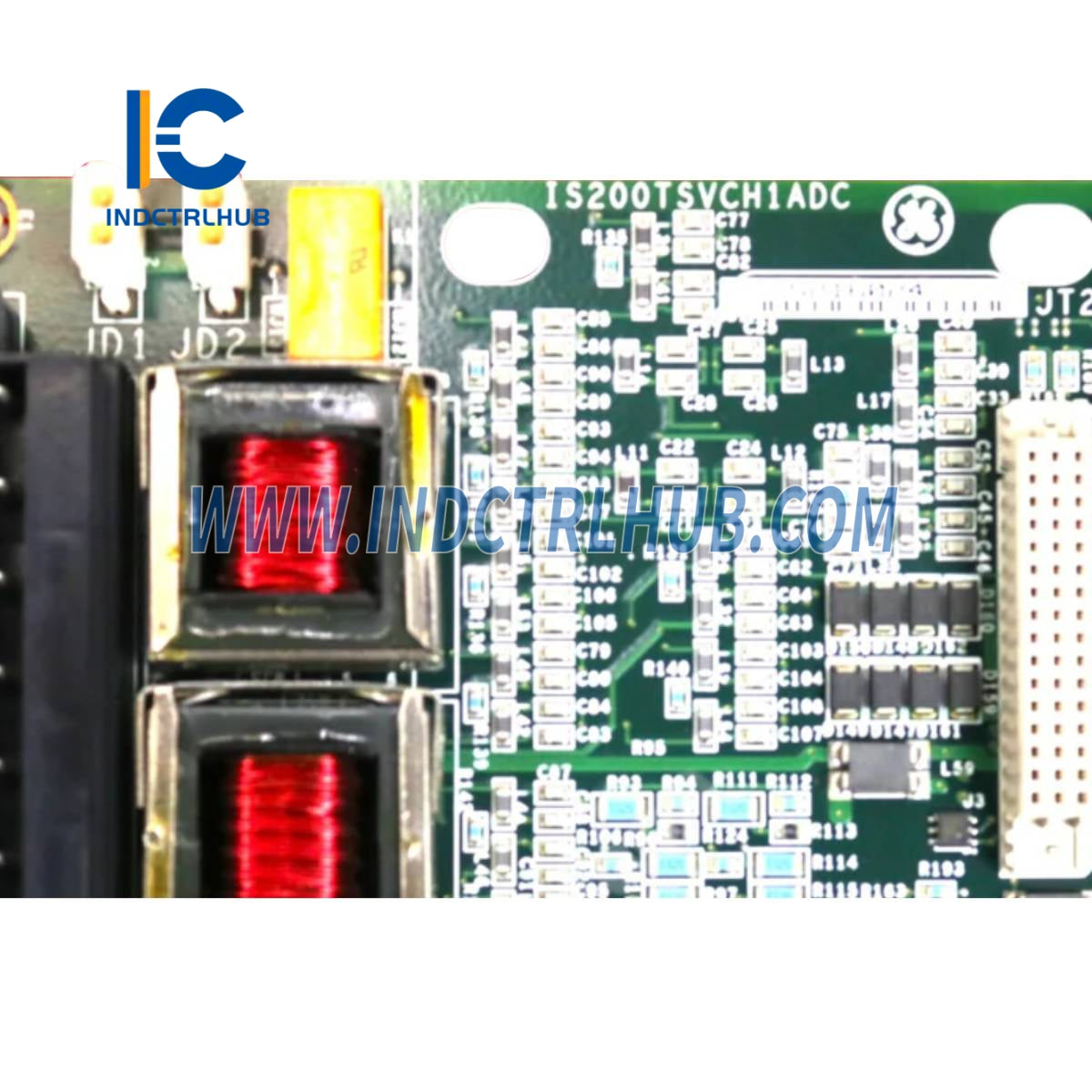

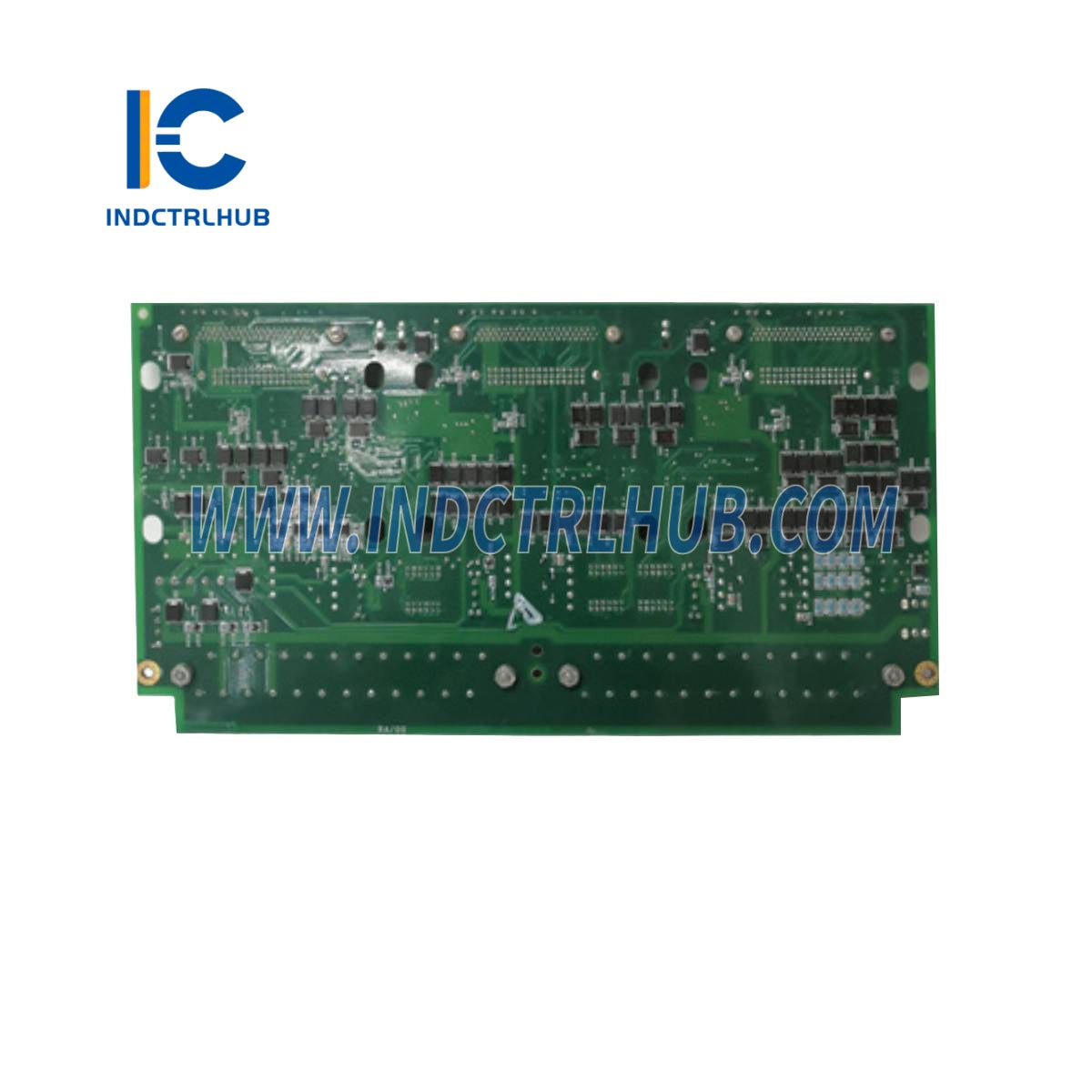

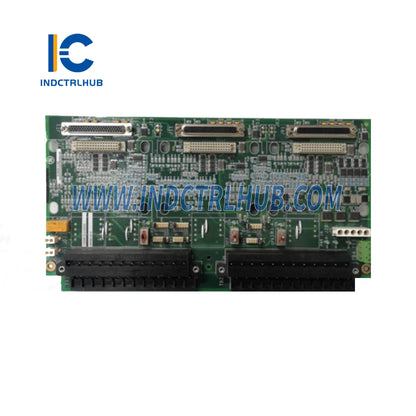

The General Electric IS200TSVCH1ADC is a Servo Terminal Board designed for the GE Mark VI Speedtronic System, an advanced platform for managing gas and steam turbines in industrial applications. Manufactured by General Electric, a global leader in industrial automation and power generation solutions, this board serves as a turbine-specific I/O module, providing a direct interface between field devices (e.g., servo valves) and the control system. It is typically used with a PSVOH1A I/O pack and supports precise servo control for two channels, facilitating the operation of electro-hydraulic servo valves in turbine systems. The IS200TSVCH1ADC, with its “ADC” revision, likely includes enhancements (e.g., firmware or circuitry updates) over the base IS200TSVCH1A, reducing instrumentation needs and enabling direct diagnostics for field devices in power plants, oil and gas facilities, and other industrial settings.
Technical Information
| Item | Specifications |
|---|---|
| Manufacturer | General Electric |
| Series | Mark VI Speedtronic |
| Model/Part Number | IS200TSVCH1ADC |
| Description | Servo Terminal Board |
| Input Voltage | 24 VDC (via associated I/O pack) |
| Channels | 2 servo channels |
| Outputs | 2 coil outputs |
| Inputs | 2 pulse rate inputs, 8 LVDT (Linear Variable Differential Transformer) inputs |
| Terminal Type | Removable barrier-type terminal block |
| Operating Temperature | 0 °C to +60 °C (32 °F to +140 °F) |
| Dimensions | 267 mm H x 152 mm W x 51 mm D (10.5 in x 6.0 in x 2.0 in) |
| Weight | 0.68 kg (1.5 lb) |
