Product Description
Product Overview

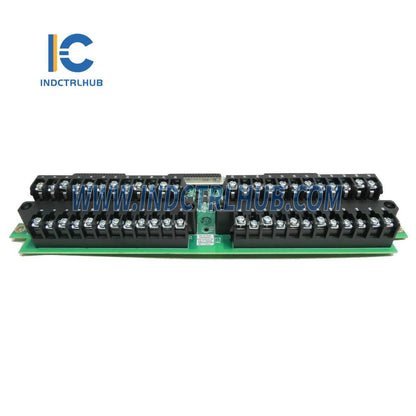

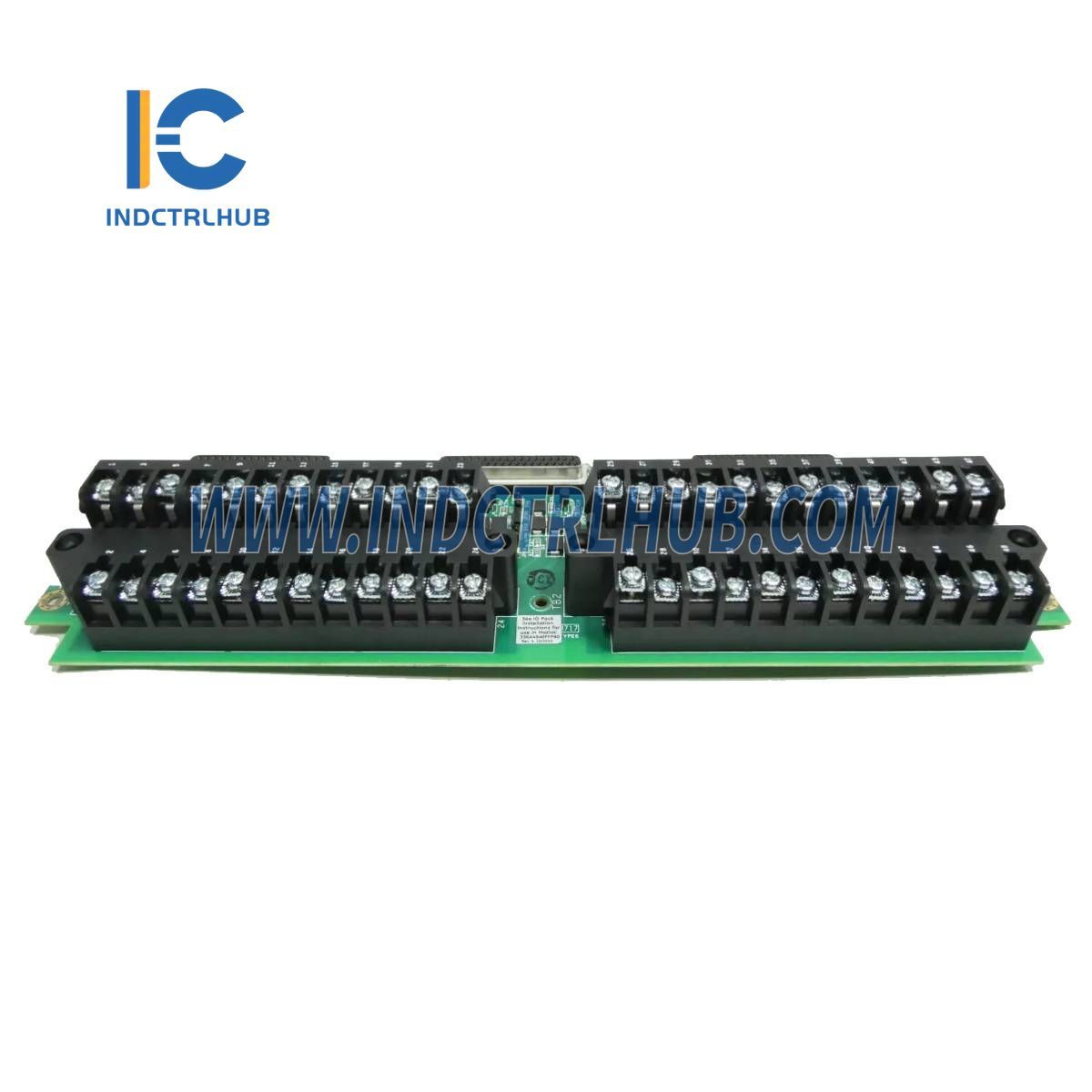

The General Electric IS200TBCIH1B is a Contact Input Terminal Board with Group Isolation from the GE Speedtronic Mark VI Series, designed to manage and process contact inputs in industrial automation systems, particularly for gas and steam turbine control. Manufactured by GE, now under Emerson Automation Solutions following the 2019 acquisition of GE Intelligent Platforms, this printed circuit board (PCB) accepts 24 dry contact inputs wired to two terminal blocks, supporting simplex, dual, and triple modular redundant (TMR) configurations. It is suited for applications in power generation, industrial processing, and turbine management, offering robust noise suppression and reliable integration with Mark VI control systems.
Technical Information
| Item | Specifications |
|---|---|
| Manufacturer | General Electric (GE) / Emerson Automation Solutions |
| Series | Mark VI Speedtronic |
| Model/Part Number | IS200TBCIH1B |
| Description | Contact Input Terminal Board with Group Isolation |
| Input Channels | 24 Dry Contact Inputs |
| Terminal Blocks | 2 (TB1 and TB2, 24 terminals each) |
| Connectors | 3 DC-37 Female (JR1, JS1, JT1 for I/O packs) |
| Power Consumption | 0.5 A at 5 V DC |
| Operating Temperature | 0 °C to +60 °C (32 °F to +140 °F) |
| Weight | 0.45 kg (1 lb) |
