Product Description
Product Overview

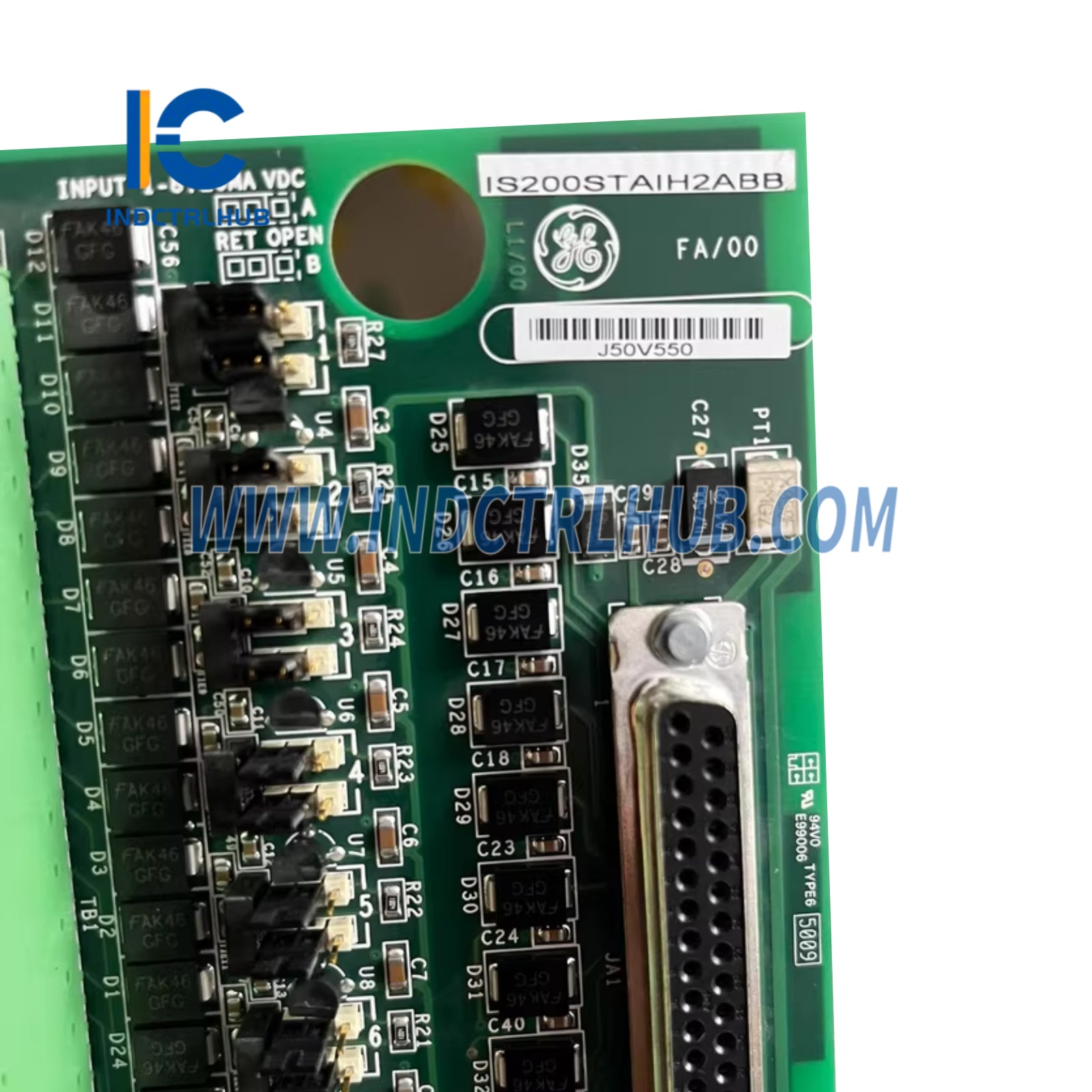

The General Electric IS200STAIH2ABB is a Simplex Analog Input Terminal Board designed for the Mark VI Speedtronic Turbine Control System. Manufactured by General Electric (GE), a leader in industrial automation and power generation, this board is a critical component for managing analog input signals in gas and steam turbine applications. It supports up to 24 analog inputs, interfacing directly with field sensors to collect data such as temperature, pressure, or flow, which is then processed by the Mark VI control system. The IS200STAIH2ABB is optimized for simplex (non-redundant) configurations, making it suitable for smaller or less critical turbine setups within power generation, oil and gas, and industrial automation environments. Its robust design ensures reliable performance and seamless integration with the Mark VI’s advanced diagnostics and control capabilities.
Technical Information
| Item | Specifications |
|---|---|
| Manufacturer | General Electric |
| Series | Mark VI Speedtronic |
| Model/Part Number | IS200STAIH2ABB |
| Description | Simplex Analog Input Terminal Board |
| Analog Inputs | 24 channels (current or voltage) |
| Input Types | 4-20 mA, 0-10 Vdc (configurable) |
| Power Supply | 28 Vdc (via Mark VI backplane) |
| Operating Temperature | -30 °C to +65 °C (-22 °F to +149 °F) |
| Dimensions | 261 mm H x 24 mm W x 178 mm D (10.25 in x 0.94 in x 7 in) |
| Weight | 0.45 kg (1 lb) |
