Product Description
Product Overview

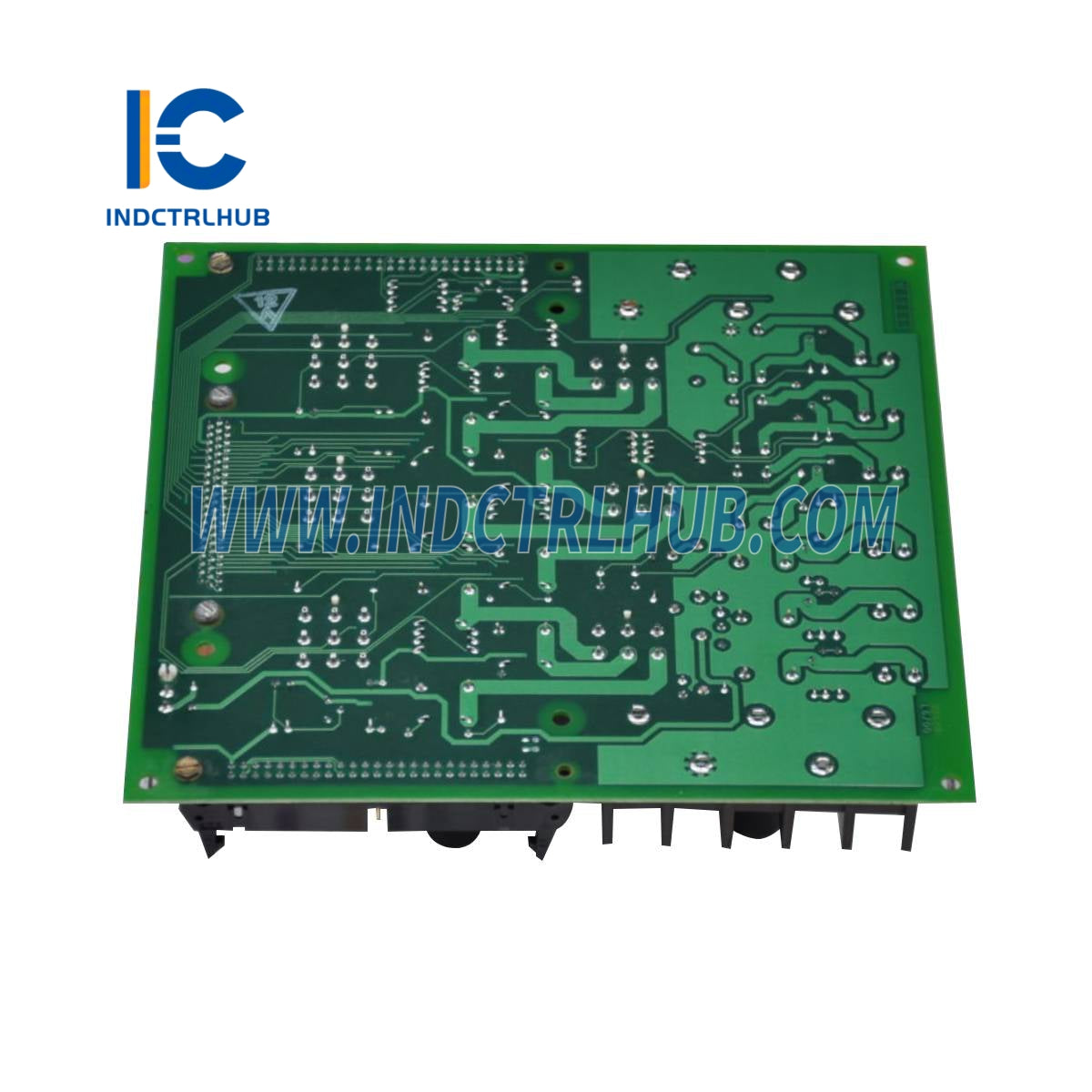

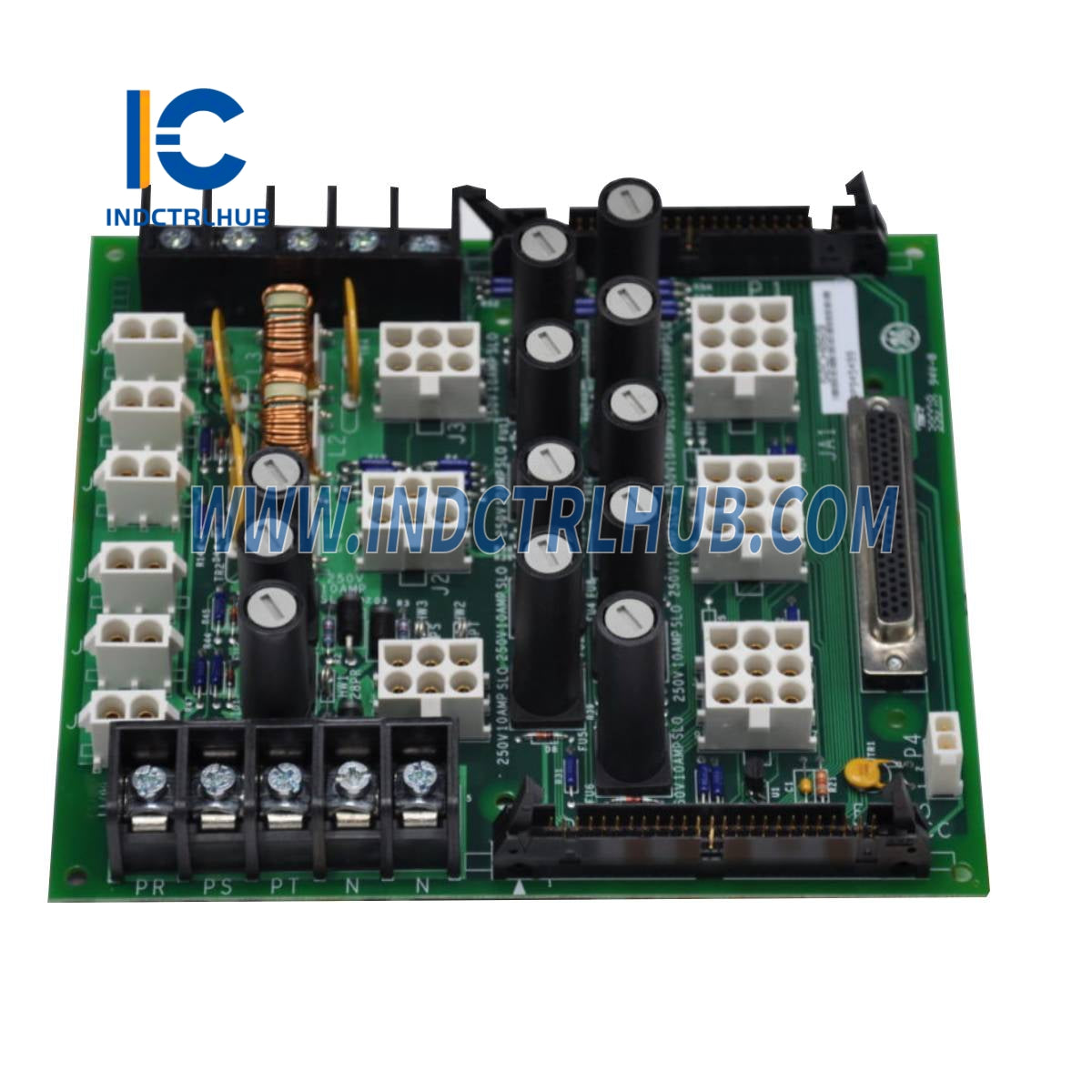

The General Electric IS200JPDMG1ACC is a Power Distribution Board designed for the GE Mark VIe Turbine Control System, an advanced platform for managing gas and steam turbines in industrial applications. Manufactured by General Electric, a global leader in industrial automation and power generation solutions, this board—known by its functional acronym JPDM—distributes 28 VDC power to various system components, ensuring reliable operation in power generation plants, oil and gas facilities, and other industrial settings. The IS200JPDMG1ACC features DIN-rail mounting, fuse protection for all outputs, and a compact design with enhancements over prior revisions (e.g., IS200JPDMG1A), likely including updated firmware or circuitry as indicated by the “ACC” suffix. It supports the Mark VIe’s distributed control architecture, providing stable power delivery critical for turbine control system uptime and safety.
Technical Information
| Item | Specifications |
|---|---|
| Manufacturer | General Electric |
| Series | Mark VIe |
| Model/Part Number | IS200JPDMG1ACC |
| Description | Power Distribution Board |
| Input Voltage | 24-30 VDC (nominal 28 VDC) |
| Output Channels | 8 independent channels |
| Output Current | Up to 10 A per channel, 20 A total |
| Mounting | DIN-rail |
| Protection | Fuse protection on all outputs, electronic current limiting |
| Operating Temperature | -30 °C to +65 °C (-22 °F to +149 °F) |
| Dimensions | 165.1 mm H x 178 mm W x 75 mm D (6.5 in x 7.0 in x 2.95 in) |
| Weight | 0.45 kg (1.0 lb) |
