Product Description
Product Overview

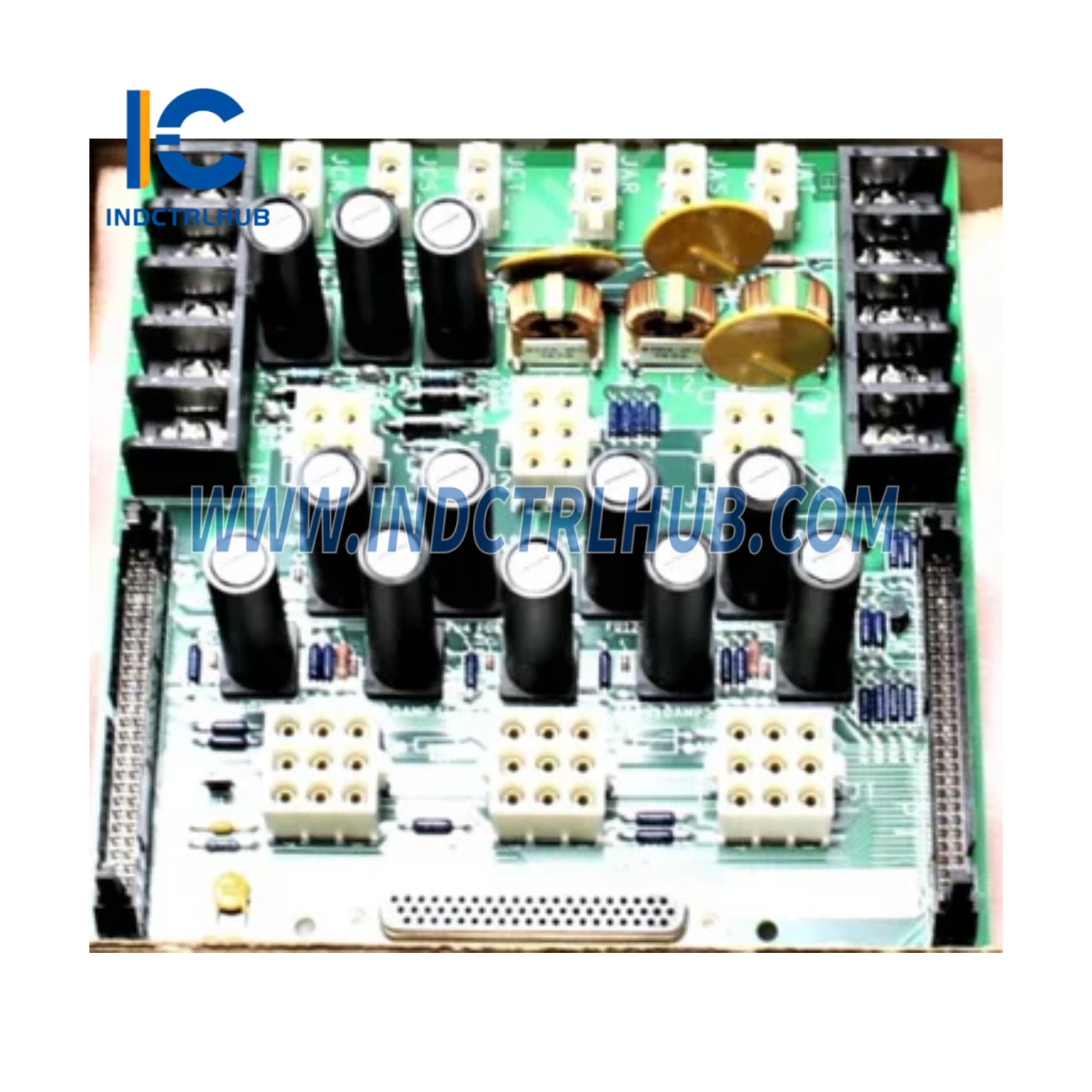

The General Electric IS200JPDMG1A is a Power Distribution Board designed for the GE Mark VIe Turbine Control System, a sophisticated platform for managing gas and steam turbines in industrial applications. Manufactured by General Electric, a global leader in industrial automation and power generation solutions, this board—known by its functional acronym JPDM—distributes 28 VDC power to various system components, ensuring reliable and efficient operation. It is typically deployed in power generation plants, oil and gas facilities, and other industrial settings requiring precise turbine control. The IS200JPDMG1A features DIN-rail mounting, fuse protection for all outputs, and a compact design, making it an essential component for maintaining system stability and safety in the Mark VIe distributed control architecture.
Technical Information
| Item | Specifications |
|---|---|
| Manufacturer | General Electric |
| Series | Mark VIe |
| Model/Part Number | IS200JPDMG1A |
| Description | Power Distribution Board |
| Input Voltage | 24-30 VDC (nominal 28 VDC) |
| Output Channels | 8 independent channels |
| Output Current | Up to 10 A per channel, 20 A total |
| Mounting | DIN-rail |
| Protection | Fuse protection on all outputs, electronic current limiting |
| Operating Temperature | -30 °C to +65 °C (-22 °F to +149 °F) |
| Dimensions | 165.1 mm H x 178 mm W x 75 mm D (6.5 in x 7.0 in x 2.95 in) |
| Weight | 0.45 kg (1.0 lb) |
