Product Description
Product Overview

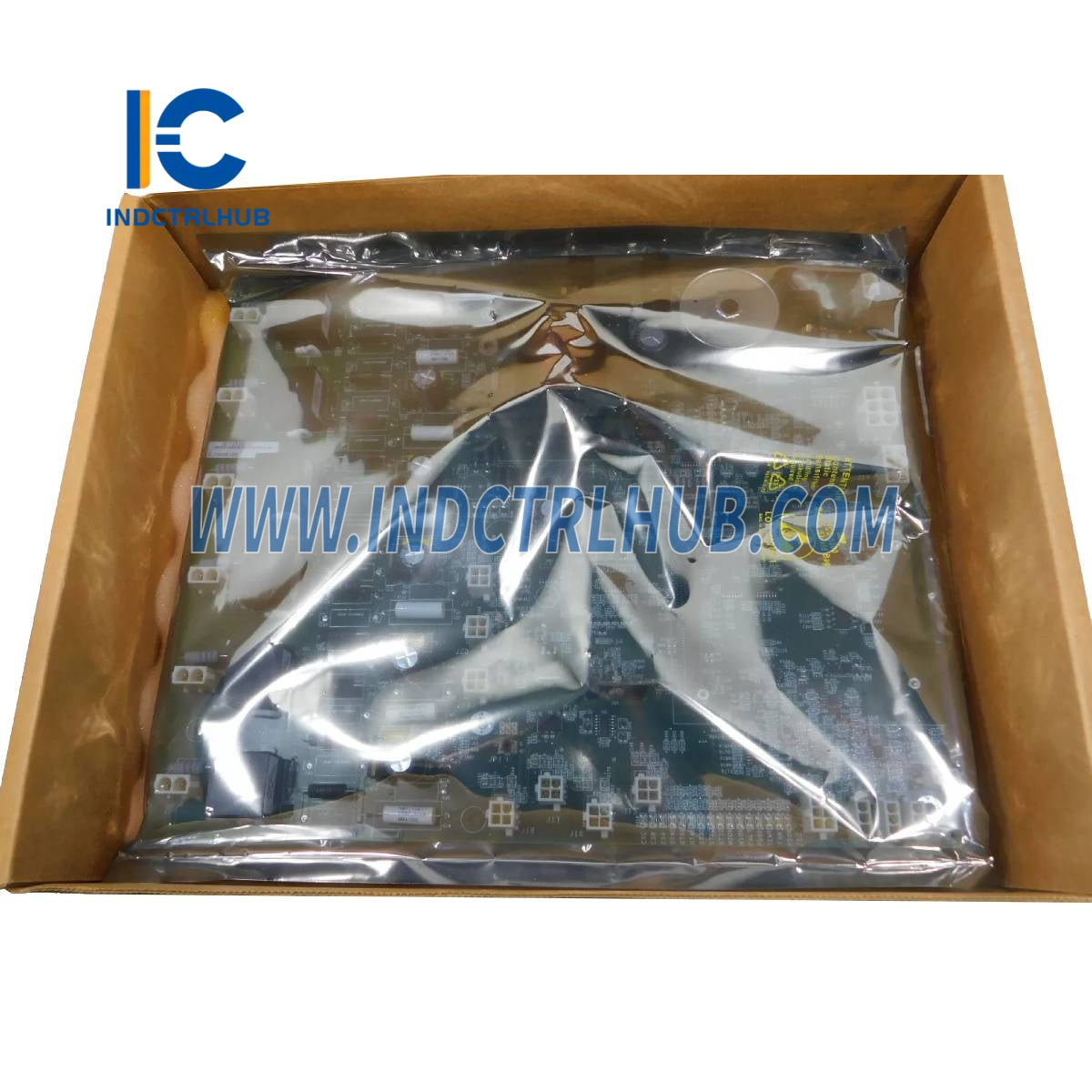

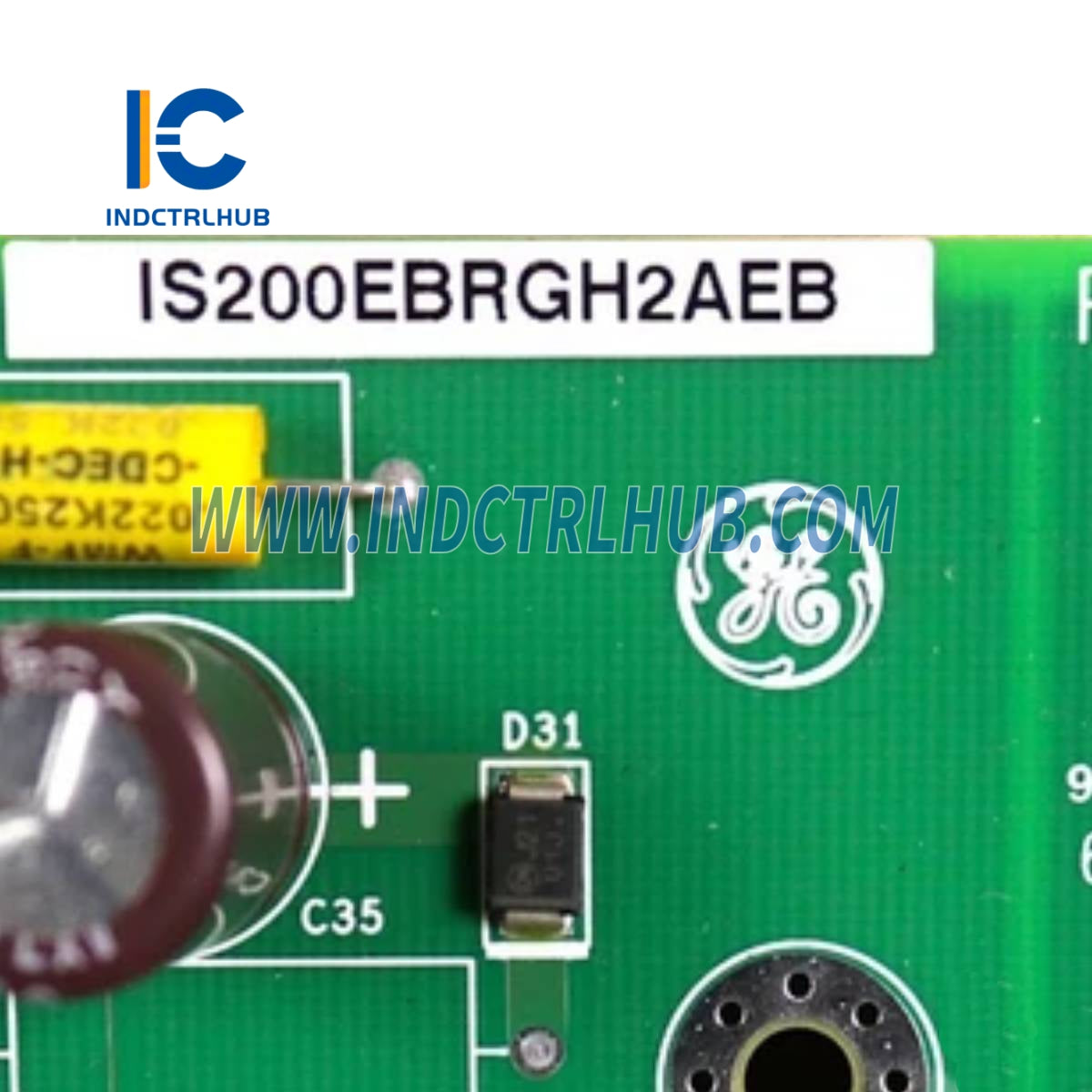

The General Electric IS200EBRGH2A is an Exciter Bridge Interface Board designed for use in the GE EX2100e Excitation Control System, a sophisticated platform for managing generator excitation in gas, steam, and hydro turbines. Manufactured by General Electric, a global leader in industrial automation and power generation solutions, this board serves as a critical bridge and protection module (EBRG), facilitating precise control signal transmission between the control unit and the power bridge. It is integral to industrial drive systems within the EX2100e series, ensuring efficient power management and protection for new and retrofit generator applications. The IS200EBRGH2A integrates seamlessly with Mark VI and Mark VIe systems, as well as the LS2100e Static Starter, and supports Modbus Ethernet connectivity for broader distributed control system (DCS) compatibility.
Technical Information
| Item | Specifications |
|---|---|
| Manufacturer | General Electric |
| Series | EX2100e |
| Model/Part Number | IS200EBRGH2A |
| Description | Exciter Bridge Interface Board |
| Input Voltage | 24 VDC |
| Communication | HSSL (High-Speed Serial Link) to main control processor |
| Connectors | 21 female plug connectors (2- to 8-position), 2 female cable connectors |
| Standoffs | 4 pre-installed for daughterboard support |
| Operating Temperature | -30 °C to +65 °C (-22 °F to +149 °F) |
| Dimensions | 387 mm H x 305 mm W x 83 mm D (15.25 in x 12.00 in x 3.25 in) |
| Weight | 1.32 kg (2.90 lb) |
